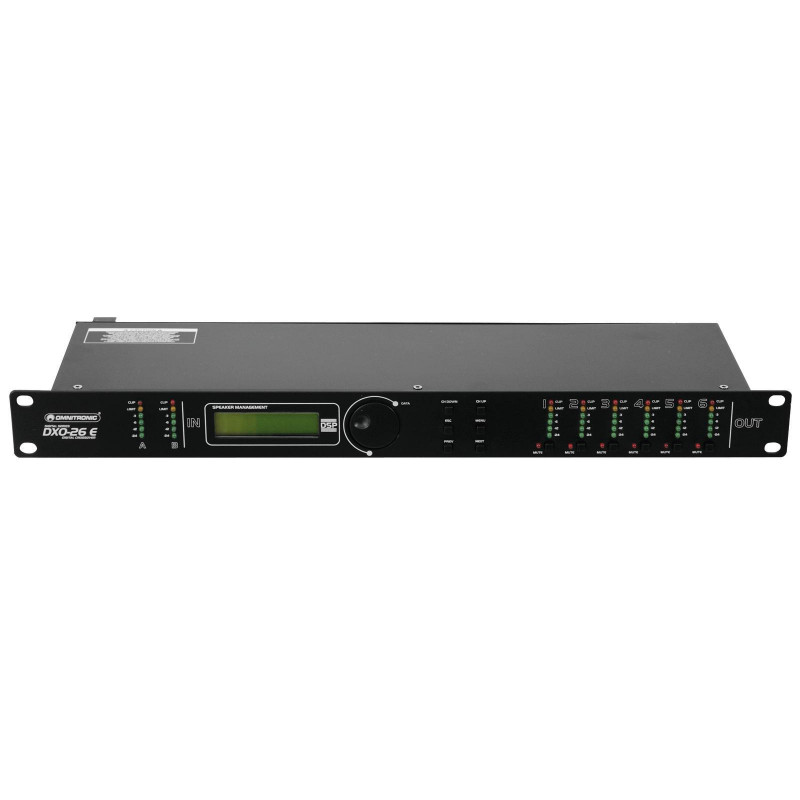

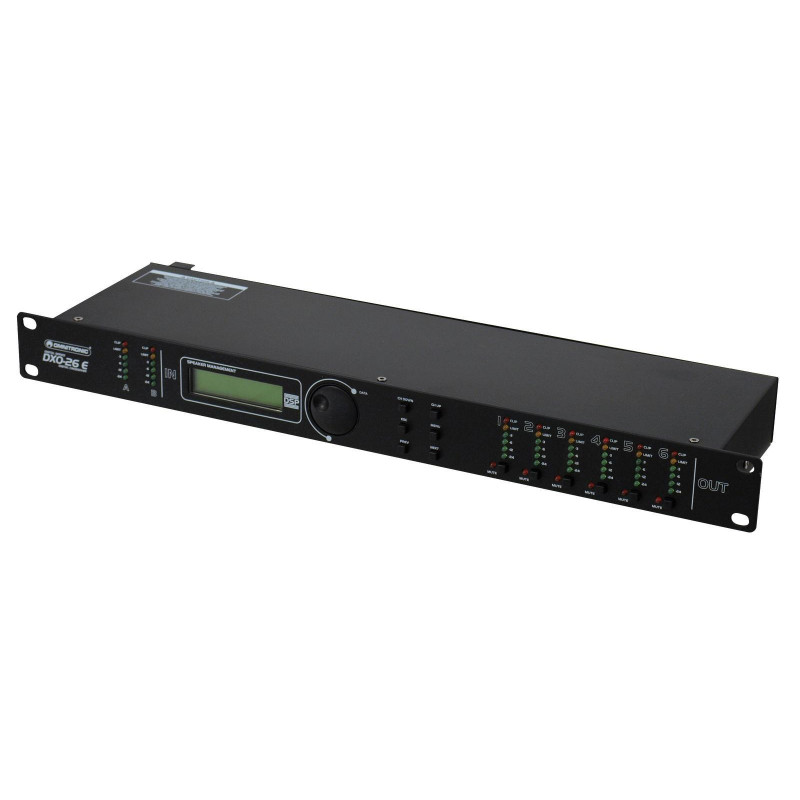

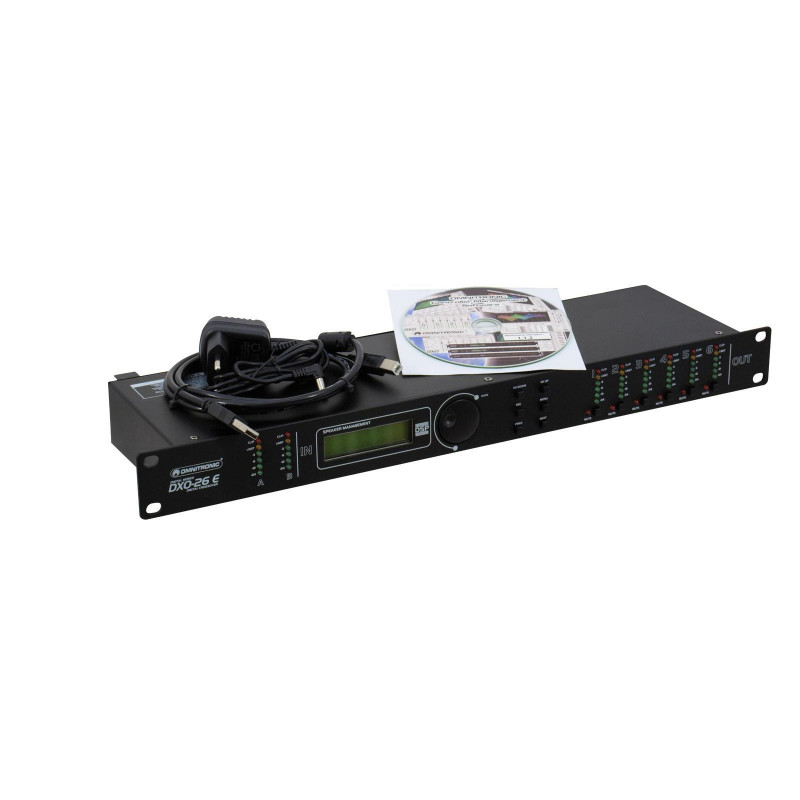

Digital stereo active crossover with 2 inputs and 6 outputs, incl. software
- Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 6 analog outputs (XLR)
- Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands

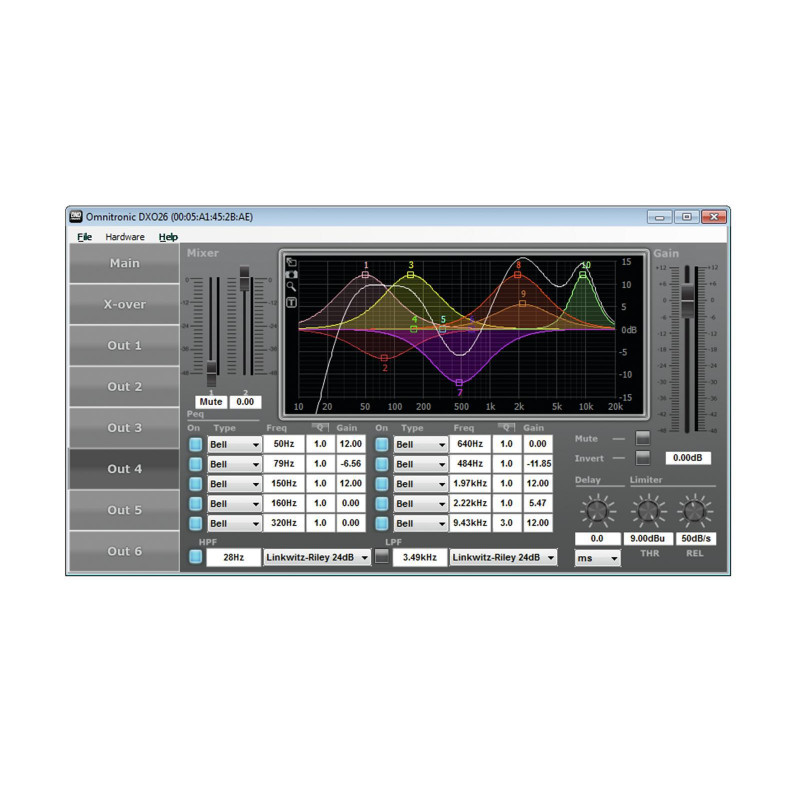

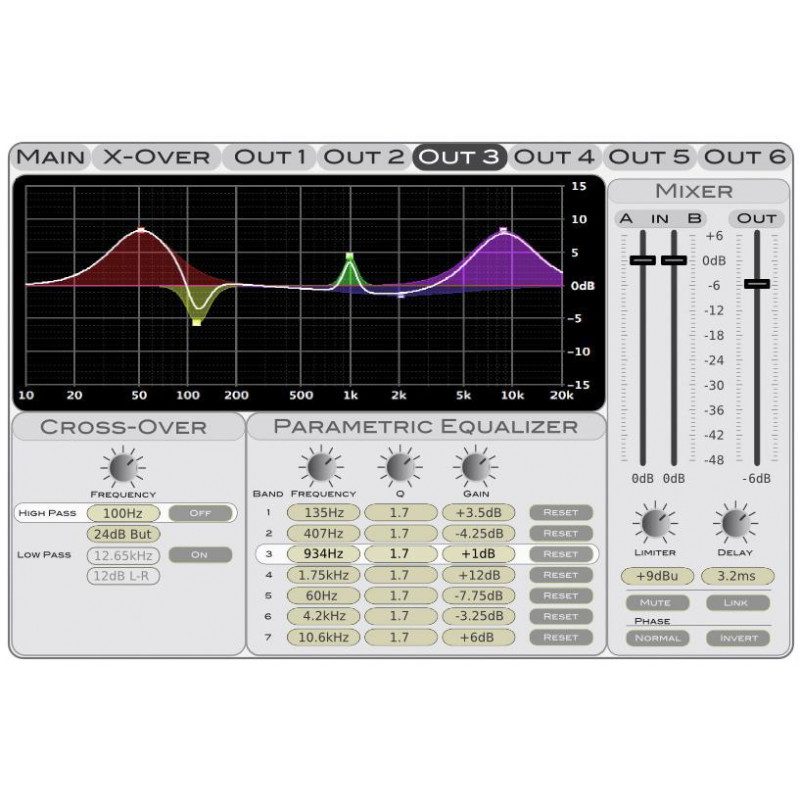

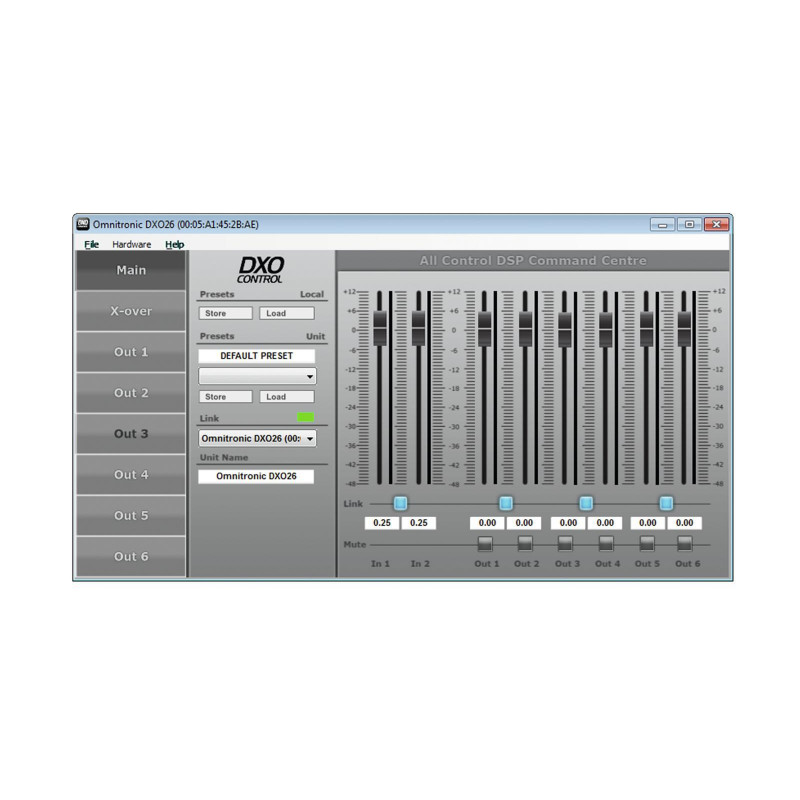

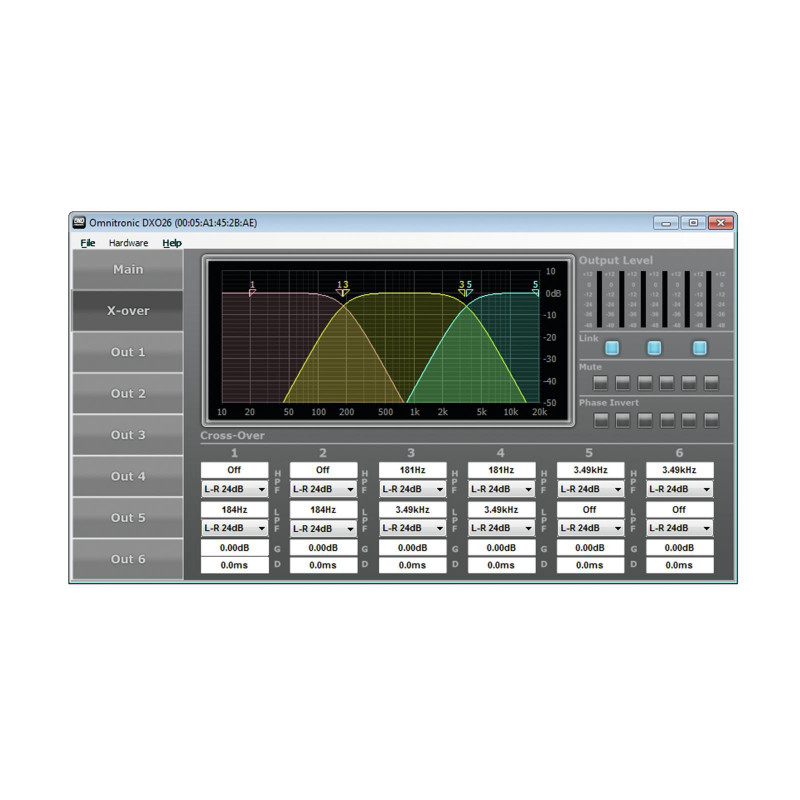

- Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
- Up to 30 user presets storable in the device via software

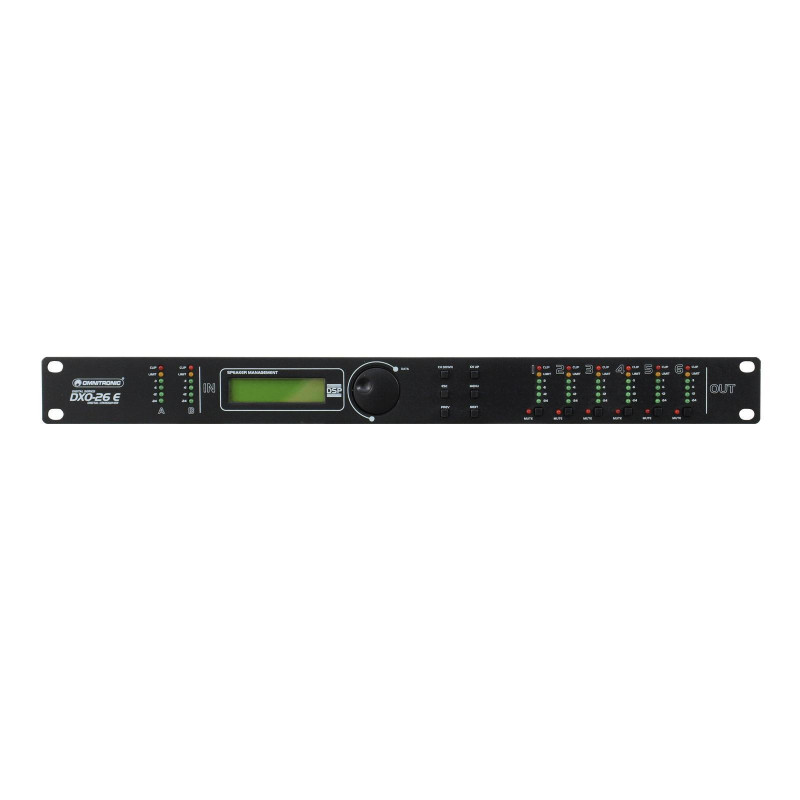

- Alphanumeric LCD screen with 2 lines of 16 characters each
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
- Mute switch with LED indicator per output
- 7-band parametric EQ per output
- Up to 7 ms signal delay adjustable for the outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase
- Lock function for protecting the program settings
- Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
- DSP: Digital signal processor
- PC connect: DXO Software via USB Firmware can be updated
- Housing design: (19") 48.3 cm rack installation 1 U
Power supply: | 100-240 V AC, 50/60 Hz 6 V DC 800 mA |
Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
Frequency range: | 10 - 30000 Hz |
DSP: | Digital signal processor |
Crossover frequency: | 20-20000 Hz |
USB port: | Typ B |
Distortion: | <0,005 % |
PC connect: | DXO Software via USB Firmware can be updated |
Housing design: | (19") 48.3 cm rack installation 1 U |
Width: | 48,3 cm |
Height: | 4,45 cm |
Depth: | 12,8 cm |
Weight: | 1,77 kg |

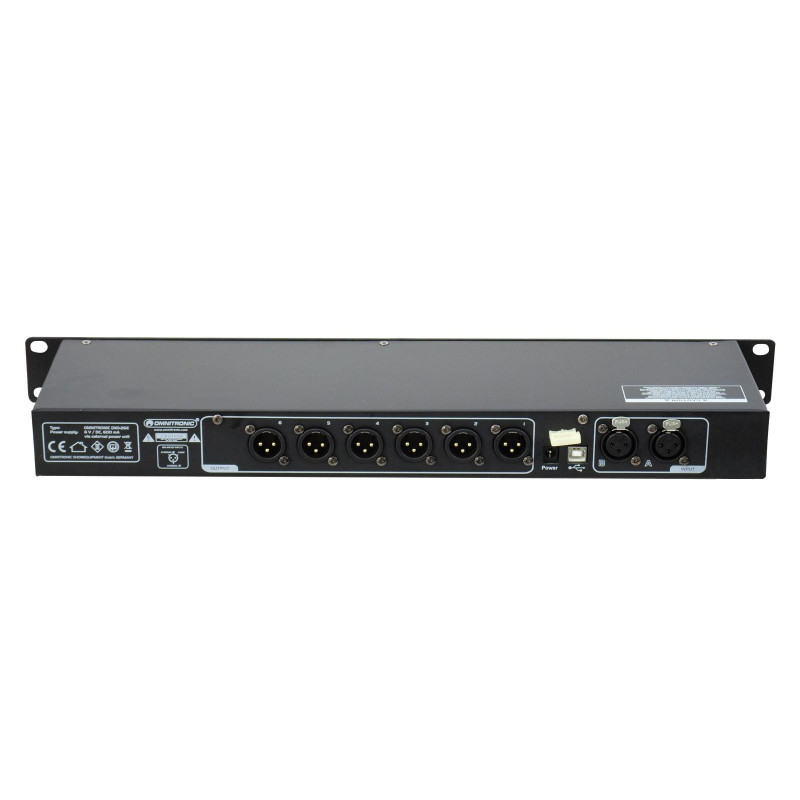

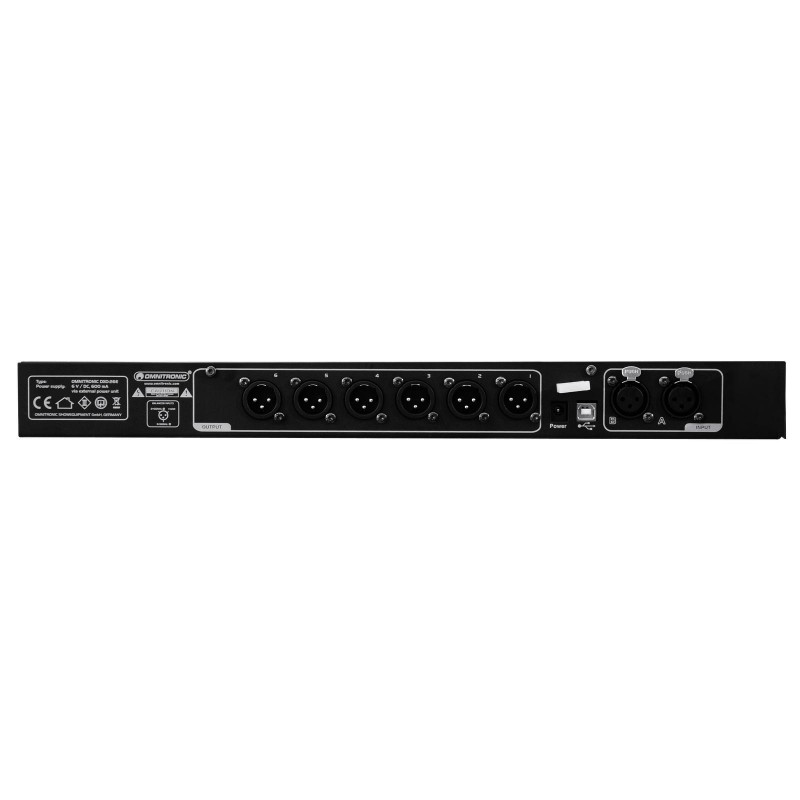

Inputs: | 2 x XLR, balanced |
Maximum input level: | +22 dBu |
Input impedance: | 10 kohms |
Dynamic range: | 114 dBA |
Outputs: | 6 x XLR, balanced |
Output impedance: | 50 ohms (electronically balanced) |
Output gain range: | -50 to +12 dB |
Maximum output level: | +9 dBu |
Dynamic range: | 110 dBA |
Sampling frequency: | 67 kHz |
Filter types: | Bessel, Butterworth or Linkwitz-Riley |
Slopes: | 6, 12, 18 or 24 dB/octave |
Delay: | 0-5 msec |
Communication: | USB type B |
