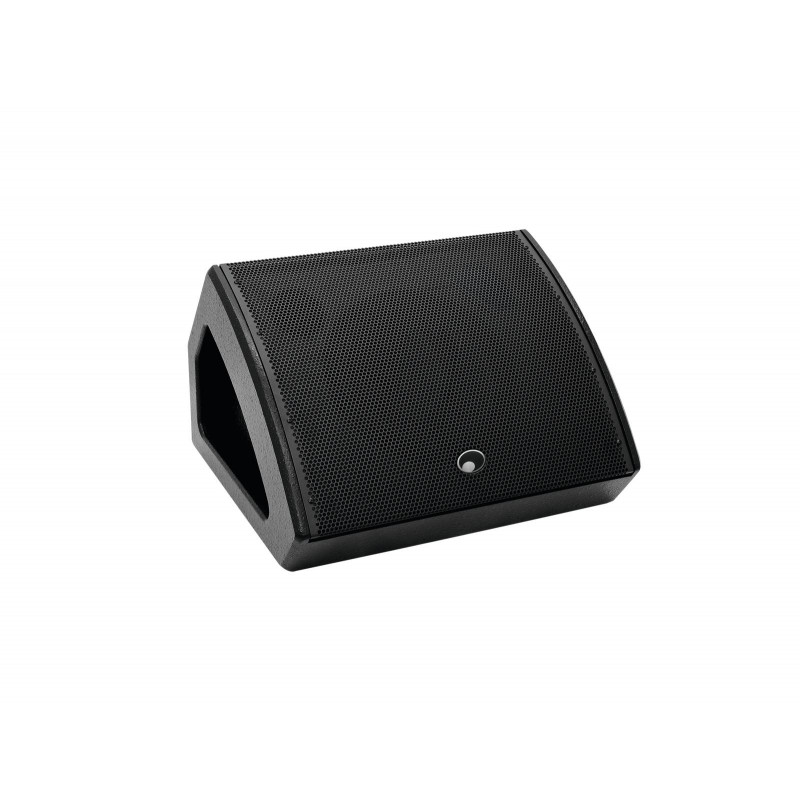

Omnitronic - KM-110A Active Stage Monitor, coaxial
KM-110A Active Stage Monitor
KM-110A Active Stage Monitor, coaxial
More info
Monitor, 10" woofer, 1,35" driver, LF: 150 W RMS, HF: 50 W RMS
- Active 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- Power output LF: 150 W RMS
- Power output HF: 50 W RMS

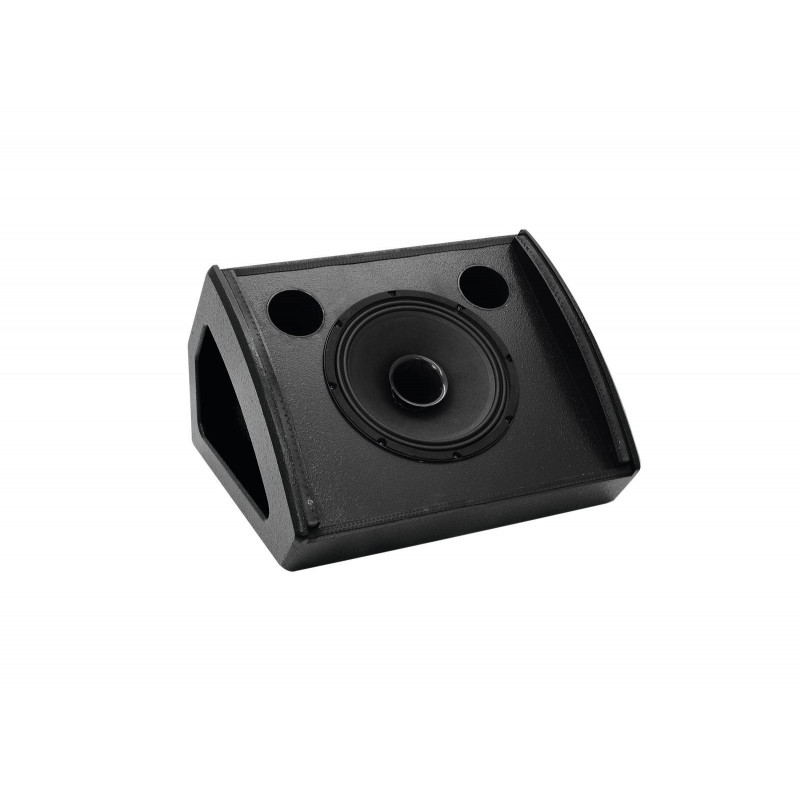

- 25 cm bass speaker (10") and 3.5 cm compression driver (1.35")
- 80° x 80° nominal coverage
- Bassreflex cabinet provides deep bass and high SPL

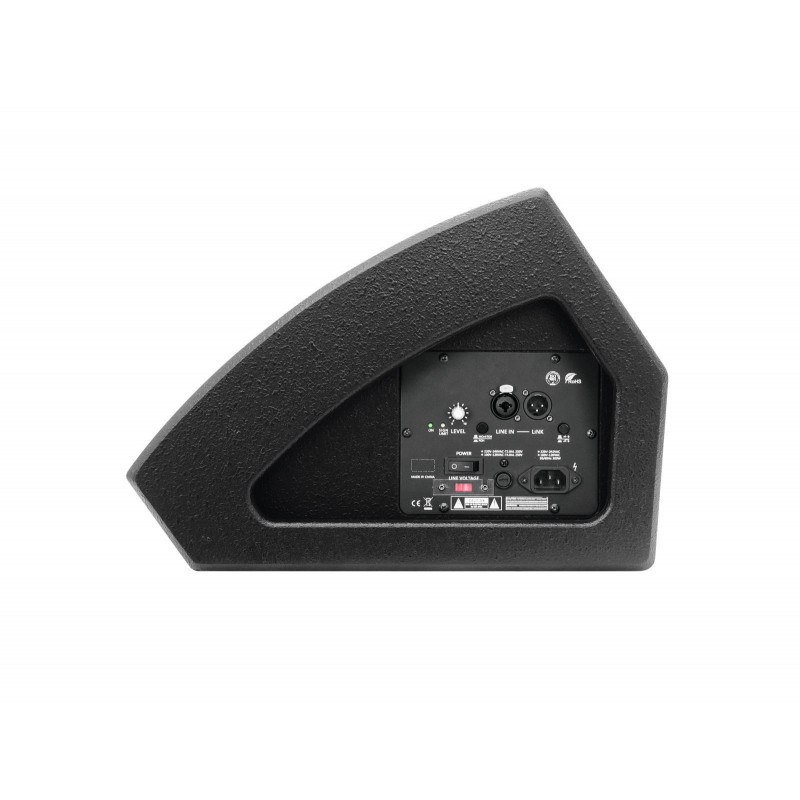

- Line input (XLR/6.3 mm jack)
- Parallel output (XLR) for linking further active speaker systems
- Low cut, volume control
- Dual limiter and overload protection
- Rugged MDF housing with scratch-resistant lacquer surface and impact-resistant steel grille

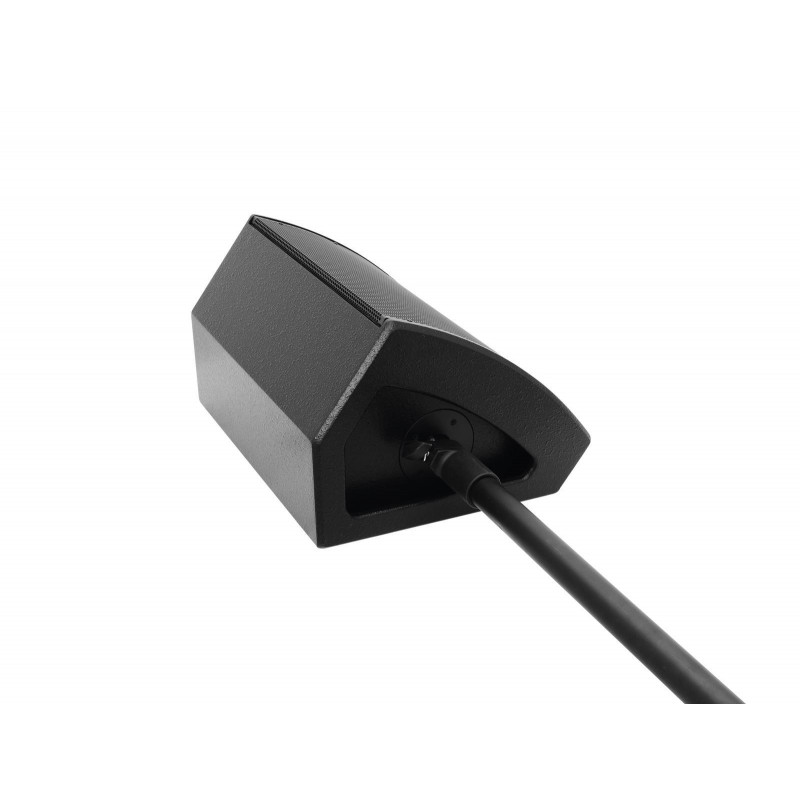

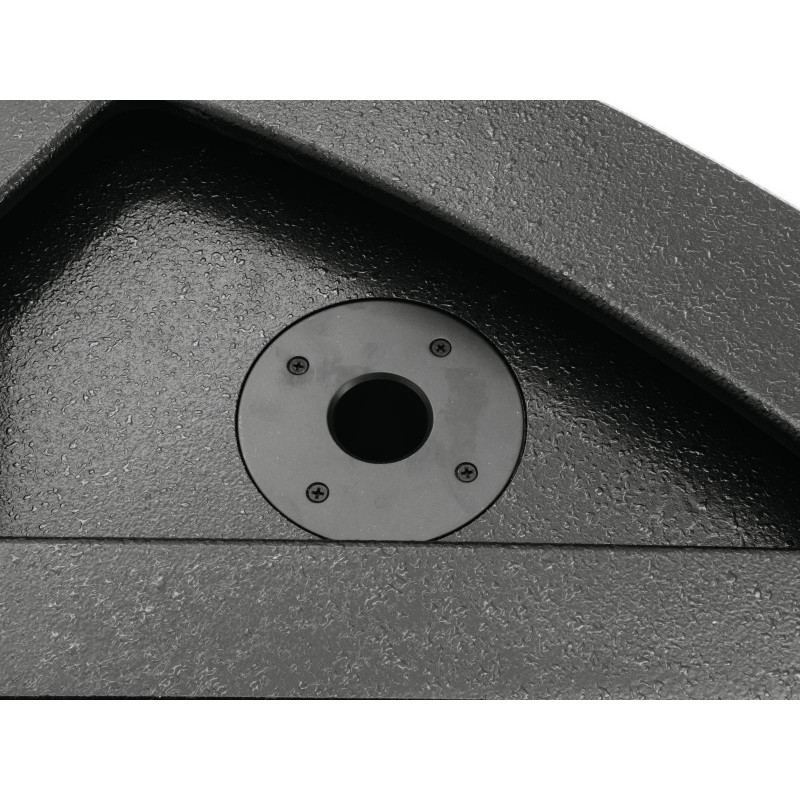

- Flange for stand installation
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 80 W |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Rated power: | 150 W RMS LF; 50 W RMS HF |
| Program power: | 300 W |
| Frequency range: | 60 - 20000 Hz |
| Max. SPL: | 121 dB |
| Dispersion angle: | 80° x 80° |
| Connections: | Input: 1 x line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Output: 1 x line via 3-pin XLR | |
| input channels: | 1 x Mono via XLR or jack, channel control via Rotary knob |
| Speakers: | 1 x woofer (10") approx 25 cm with Ferritmagnet |
| 1 x Voice coil tweeter (1.35") appox 3,5cm | |
| Width: | 48 cm |
| Height: | 42 cm |
| Depth: | 30 cm |
| Weight: | 14,30 kg |
