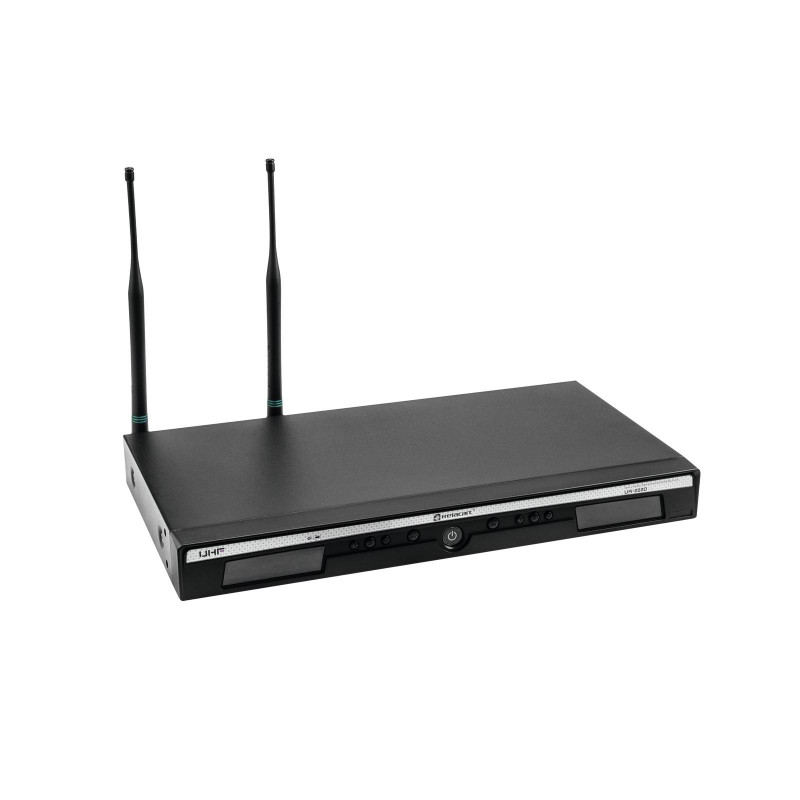

The UR-222D is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.

2-channel multifrequency wireless receiver with true diversity reception

• 2-channel multifrequency wireless receiver with high-quality true diversity reception
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free reception
• Operation range with line of sight approx. 80 meters
• Automatic frequency scan (AFS) finds interface-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal

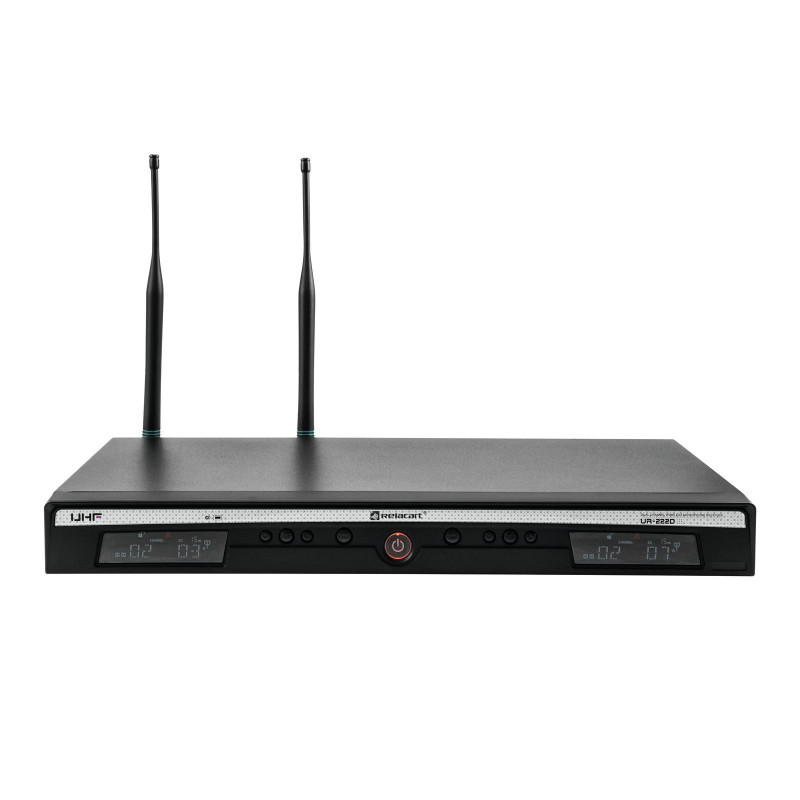

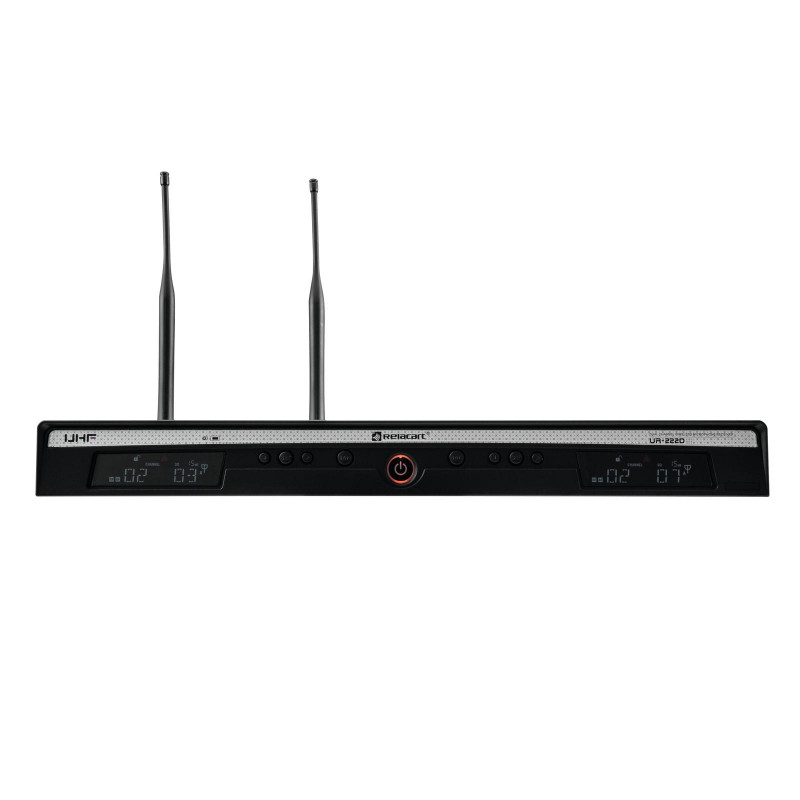

• LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider

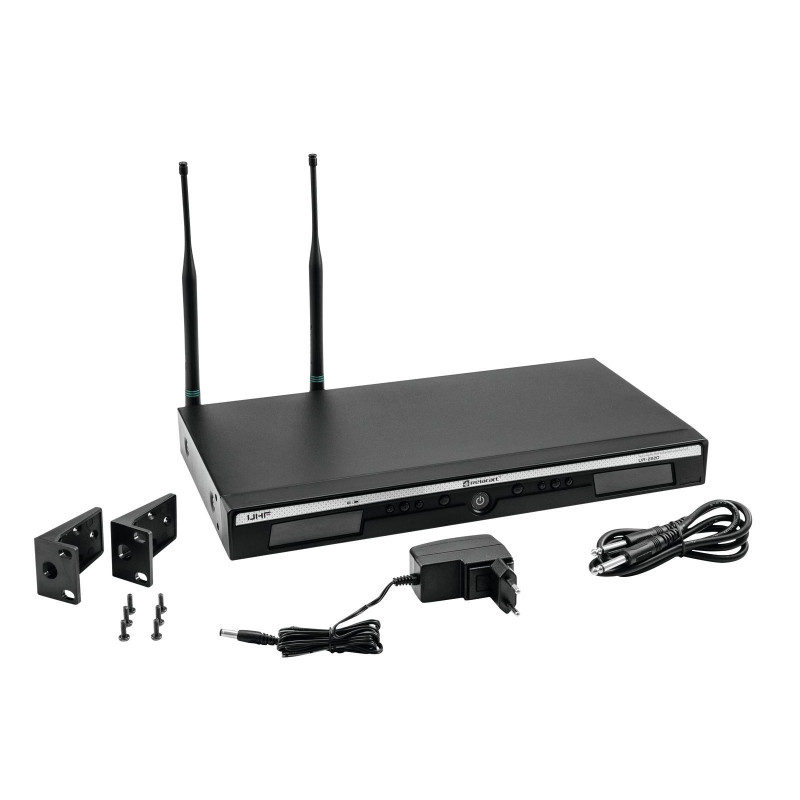

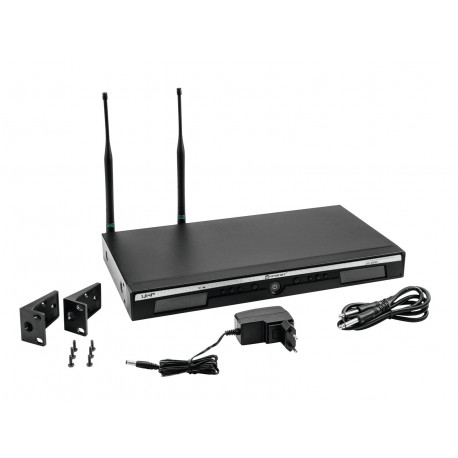

• Delivery includes practical transport bag with jack cable and power unit
• Durable metal housing
• 483 mm rack installation possible with supplied mounting brackets
• Matching transmitters optionally available: hand-held microphone (UH-222D) and pocket transmitter (UT-222)
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Desktop console 1 U; (19") 48.3 cm rack installation (provided)

Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	6 W
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Frequency range:	45 - 18000 Hz
S/N ratio:	>105 dB

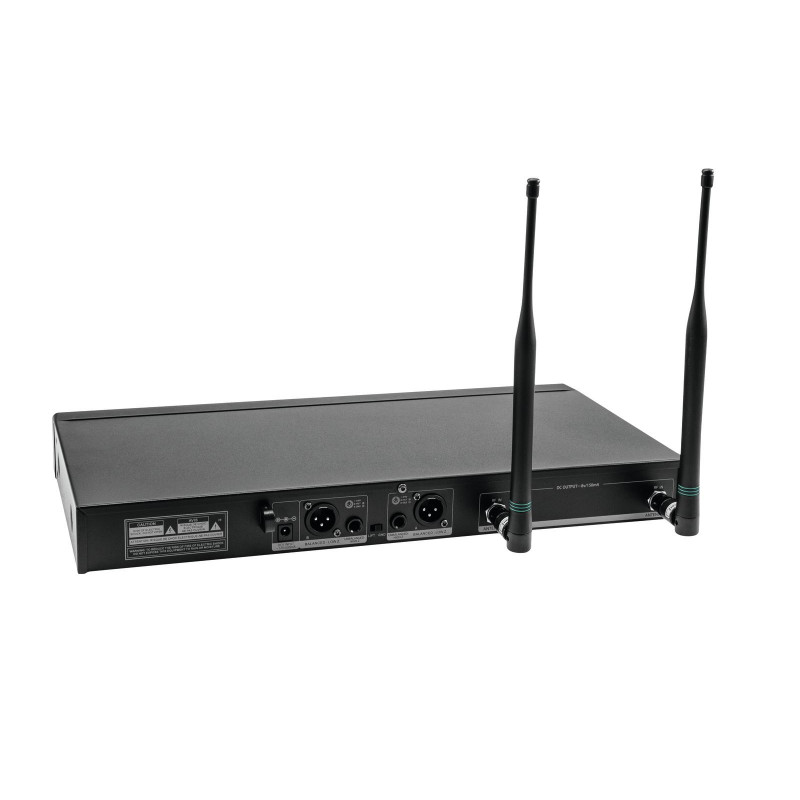

Connections:	Output: 2 x line via 3-pin XLR
	Output: 2 x line via 6.3 mm plug (unbal.)
	2 x Antenna via BNC (F) 8 V
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:	90 Switchable frequencys in 10 groups with up to 10 preset frequencies each
Modulation:	FM
Frequency stability:	± 0,0005 %
Range:	80 m with line of sight
Switching bandwidth:	11 MHz
switch:	on/off switch
Material:	Metal
Housing design:	Desktop console 1 U; (19") 48.3 cm rack installation (provided)
Width:	41 cm
Height:	4,6 cm
Depth:	26 cm
Weight:	2,17 kg
