Omnitronic - VHF-101 Wireless Mic System 214.35MHz

VHF-101 Wireless Mic System

VHF-101 Wireless Mic System 214.35MHz

In Stock

Europe Warehouse: 70

More info

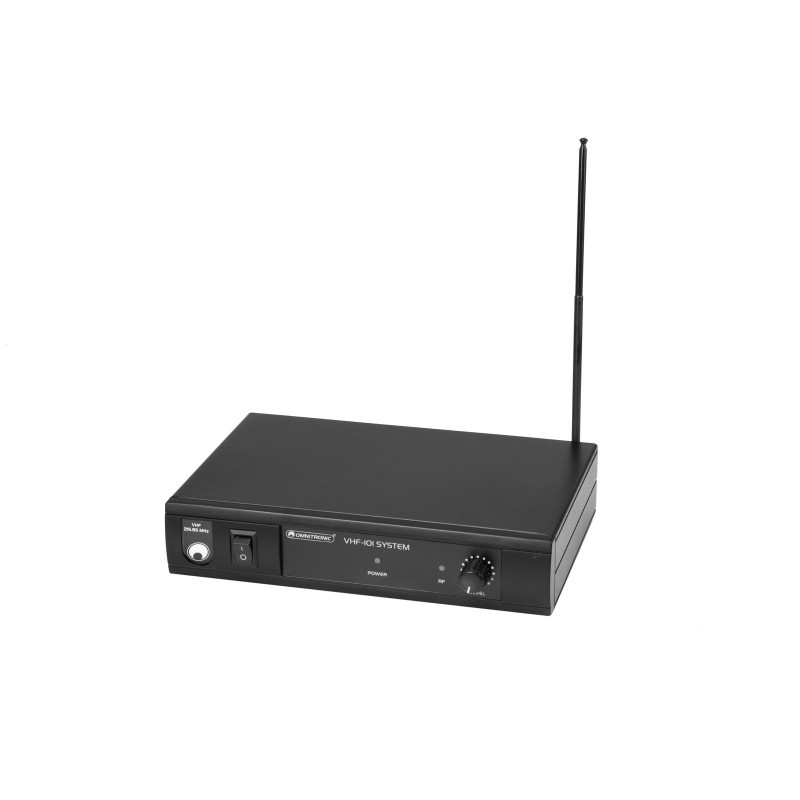

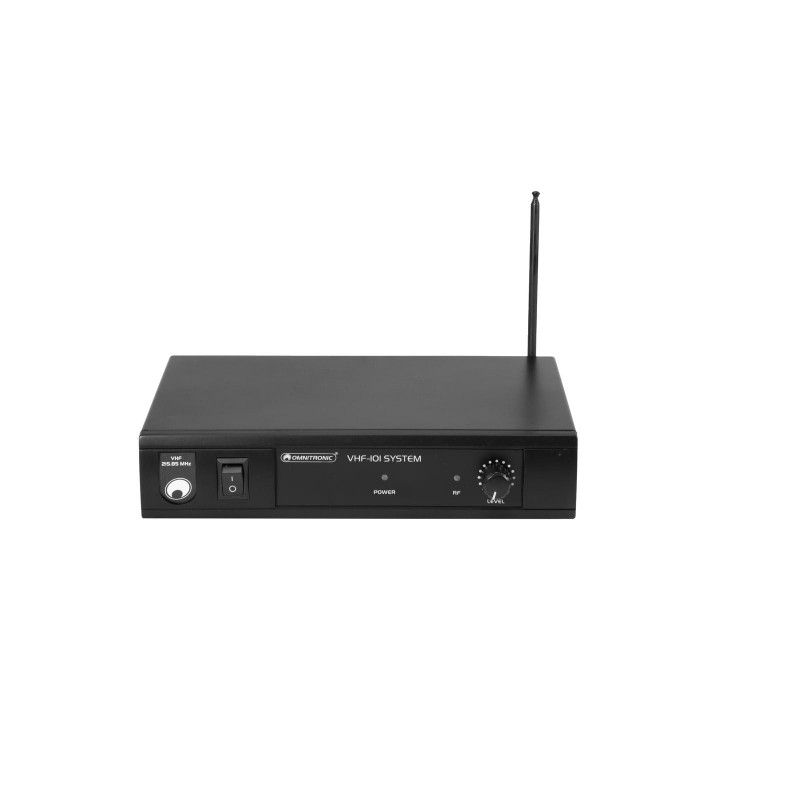

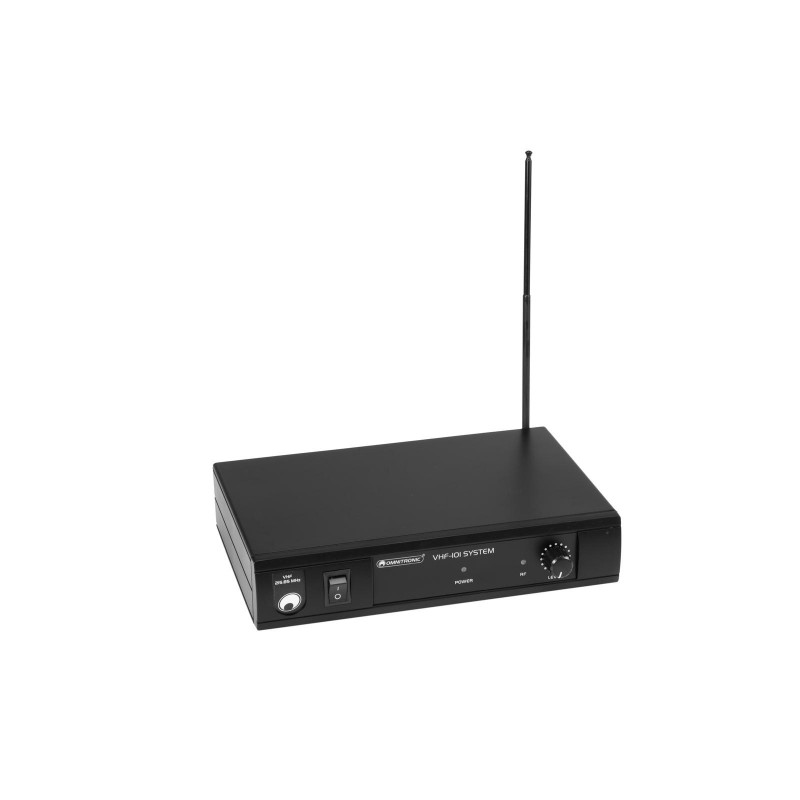

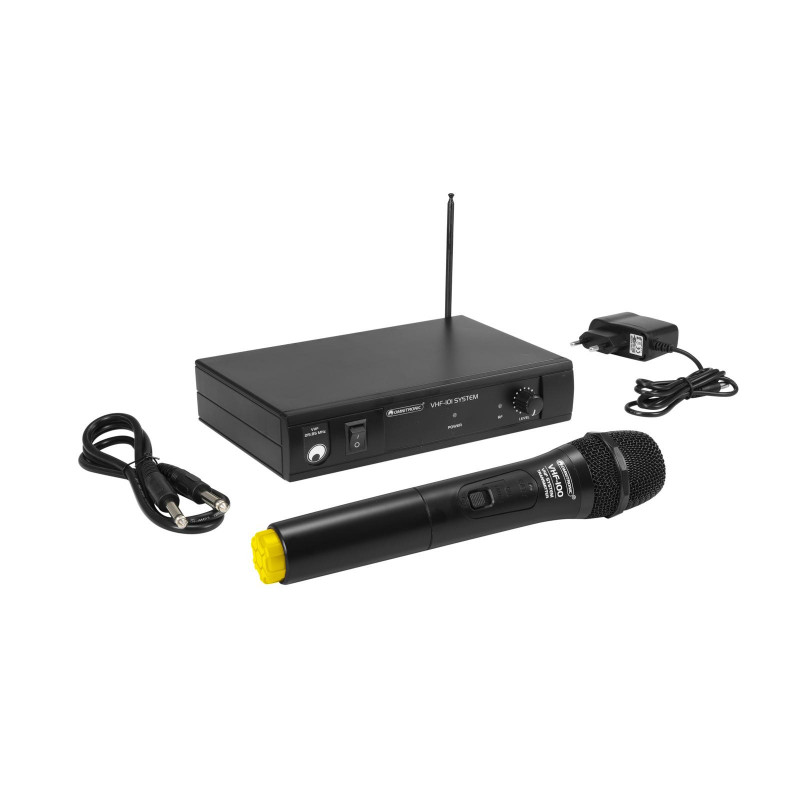

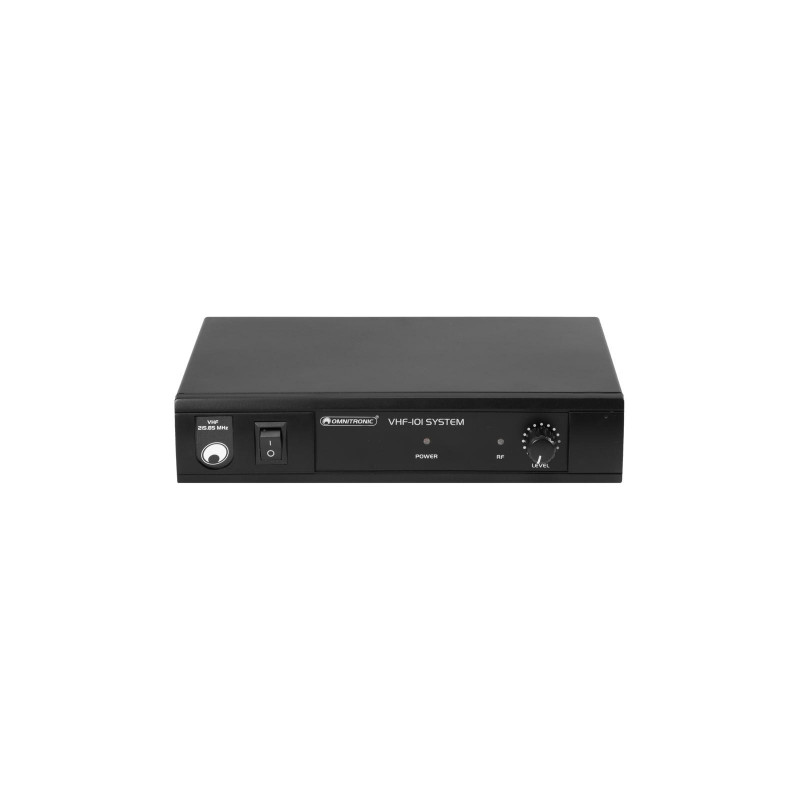

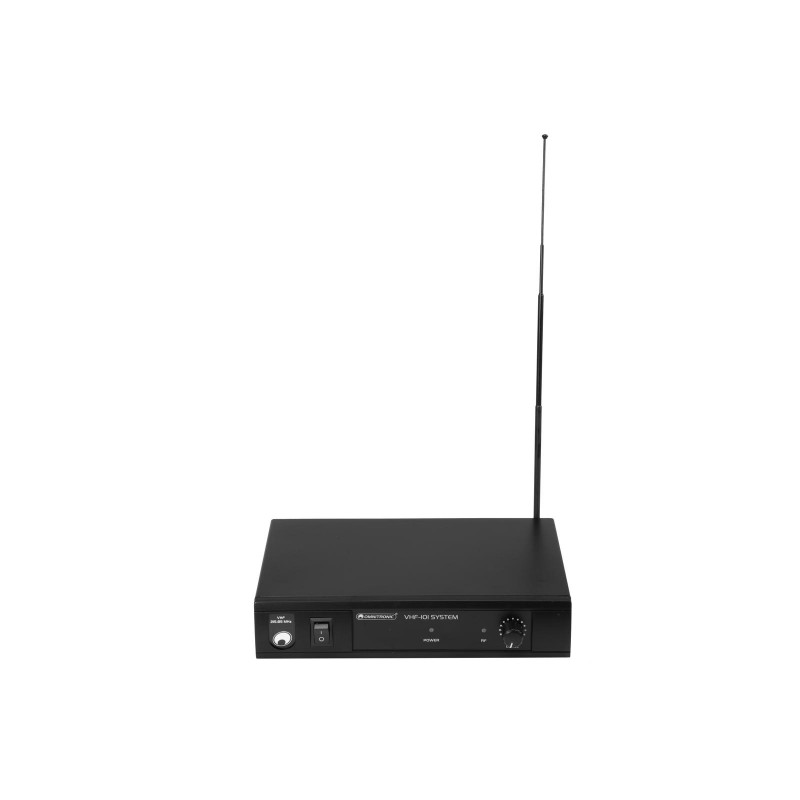

VHF wireless microphone system

  • Receiver unit and hand-held microphone with PLL technology
  • Operation with fixed VHF frequency
  • Volume control
  • XLR and 6.3 mm output
  • LEDs for power and carrier signal
  • Operation of the receiver unit via supplied power unit
  • Microphone with mute function and color indication
  • Operation of the microphone via 2 x 1.5 V battery (type AA), not included
  • Operation range approx. 30 meters
  • License-free and approved in Germany and other EU countries
  • Cardioid


Power supply:100-240 V AC, 50/60 Hz
12 V DC
Power consumption:max. 5 W
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Capsule type:Dynamic
Polar pattern:Cardioid
Frequency range:80 - 12000 Hz

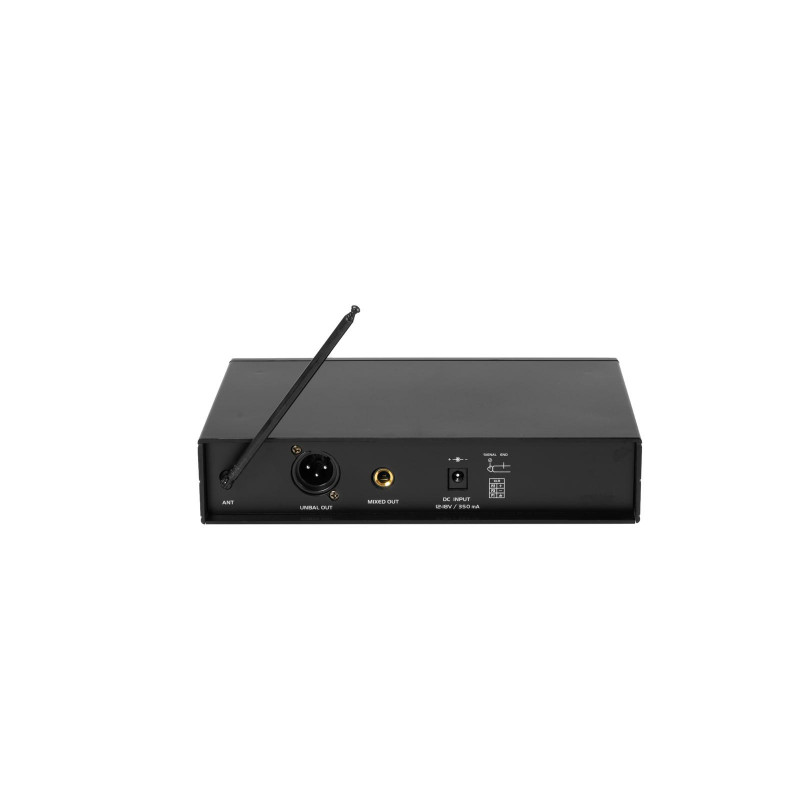

Connections:Output: 1 x Microphone via 6.3 mm plug (unbal.)
Output: 1 x Microphone via 3-pin XLR
Frequency band:VHF
Carrier frequency:214,350 MHz
RF power output:10 mW
Range:30 m with line of sight
switch:on/off switch; Mute control
Material:Plastic
Weight:0,60 kg
Receiver
Width:21,2 cm
Height:4,7 cm
Depth:15,5 cm
Weight:0,3 kg
Microphone
Battery:2 x Mignon (AA) (not included)
Length:24 cm
Diameter:5 cm
Weight:0,17 kg
