  6. Omnitronic - PA Set AZX active L

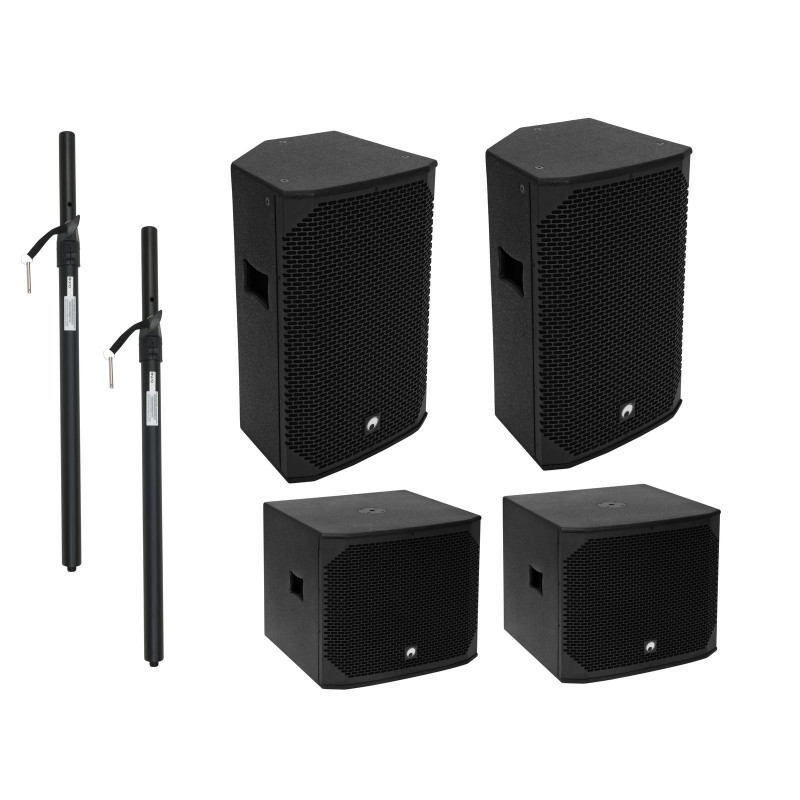

Omnitronic - PA Set AZX active L 1 View larger

Omnitronic - PA Set AZX active L

PA Set AZX active L

PA Set AZX active L

1899.00€%8.21 You save 156.00€
1 743,00 €

Add to wishlist

In Stock

Europe Warehouse: 70

More info



11039046 OMNITRONIC AZX-118A PA Subwoofer active 400W

Active 18" PA bassreflex subwoofer, 400 W

  • 46 cm (18") bass speaker with 76 mm voice coil
  • Class D amplifier with 400 W
  • XLR inputs and parallel outputs L/R
  • XLR output L/R with high-pass filter
  • Adjustable crossover frequency 80-200 Hz
  • Phase reversal switch
  • Limiter for overload protection
  • Limit, signal and power LED
  • M20 metal flange for top speakers
  • Carrying handles
  • Housing made of 15 mm MDF
  • Scratch-resistant lacquer surface
  • Impact-resistant steel grille with acoustic foam

11039034 OMNITRONIC AZX-215A 2-way top active 350W

Active speaker with 15" woofer, 1.75" titanium driver, LF 300 W RMS, HF 50 W RMS

  • 2-way bassreflex enclosure with 38 cm woofer and 4.5 cm titanium driver
  • Master control with 2-band EQ
  • HF adjustment -4 dB, -2 dB, 0 dB
  • Limiter for overload protection
  • Limit, signal and power LED
  • Housing made of 15 mm MDF
  • Scratch-resistant lacquer surface
  • Carrying handles
  • Impact-resistant steel grille with acoustic foam
  • M10 threaded inserts for suspended installation
  • Dual flange with 0° and 5° tilt angle enables flexible positioning
  • Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20

Variable distance tube

  • Connecting tube for satellite systems
  • Locking screw and bolt
  • Powder-coated steel version
  • Thread: M20


11039046 OMNITRONIC AZX-118A PA Subwoofer active 400W
Power supply:230 V AC, 50 Hz
Power consumption:650 W
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Rated power:400 W RMS
Frequency range:40 - 250 Hz
Sensitivity:95 dB (1W/1m)
Crossover frequency:80-200 Hz
Attachment:M20
Circuitry:Class D
Connections:Input: 2 x line via 3-pin XLR
Output: 2 x line via 3-pin XLR
Output: 2 x high-pass via 3-pin XLR
Speakers:1 x woofer (18") approx 45 cm
Construction:Vented
Material:MDF (Medium-density fibreboard)
Width:66.5 cm
Depth:66.5 cm
Weight:33.65 kg
11039034 OMNITRONIC AZX-215A 2-way top active 350W
Power supply:230 V AC, 50 Hz
Power consumption:650 W
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Rated power:300 W RMS LF; 50 W RMS HF
Frequency range:50 - 20000 Hz
Sensitivity:95 dB (1W/1m)
Equalizer:master: 1 x 2-band tone control
Attachment:Flange system Ø 35mm variable tilt
Circuitry:Class D Biamp
Connections:Input: 1 x via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: 1 x line via 3-pin XLR
input channels:1 x Mono with Mic/line button via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary knob
Speakers:woofer (15") approx 38 cm with Ferritmagnet
Voice coil lows (3") approx. 8 cm
Voice coil tweeter (1.75") approx 4.5 cm
Material:MDF (Medium-density fibreboard)
Width:48.5 cm
Height:75 cm
Depth:48 cm
Weight:25.45 kg
60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20
Maximum carrying capacity:30 kg
Tube diameter sector:41 - 35 mm
Height:maximum: 1.35 m
minimum: 0.75 m
Color:Black
Attachment:Flange system Ø 35mm
Type (general stands):Distance tube
Thread:M20
Weight:1.02 kg
