The EP-220PS is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It features 2-way tone control and offers four inputs for audio units with line signal level (e.g. CD player, tuner, mixer). Stream your music wirelessly from your smartphone, tablet or computer via Bluetooth to the built-in audio player, which also offers an FM tuner and slots for USB storage devices and SD(HC) memory cards. A remote control is included for convenient control of the audio player. Via the input selector one of the sources can be selected for playback. The preamplifier is also provided with an adjustable microphone input. For better intelligibility of an announcement, a priority function can be activated. Thanks to its separate master outputs the EP-220PS can be directly connected to active speakers or amplifiers.

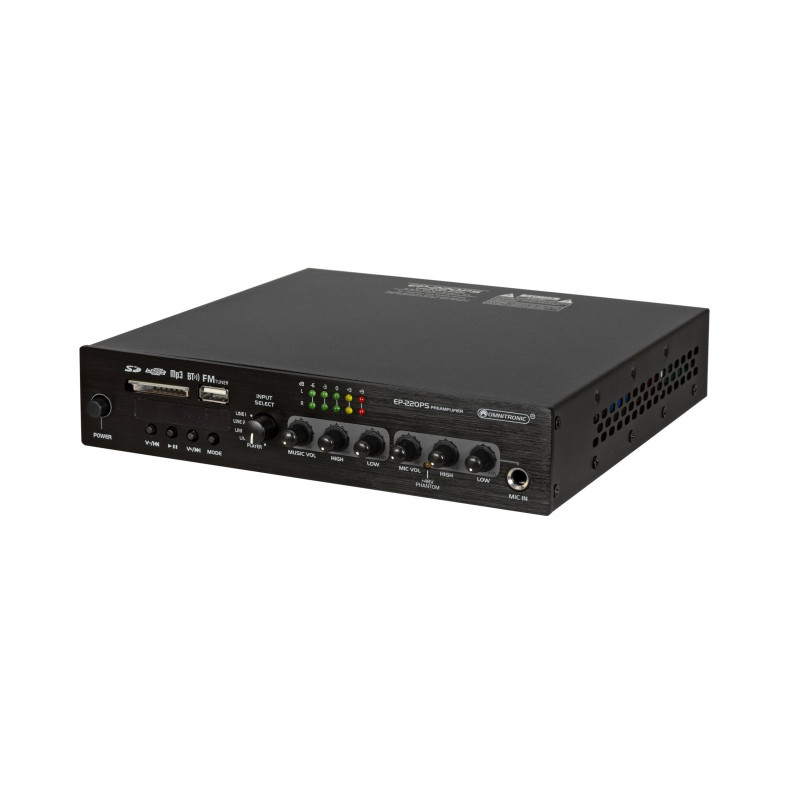

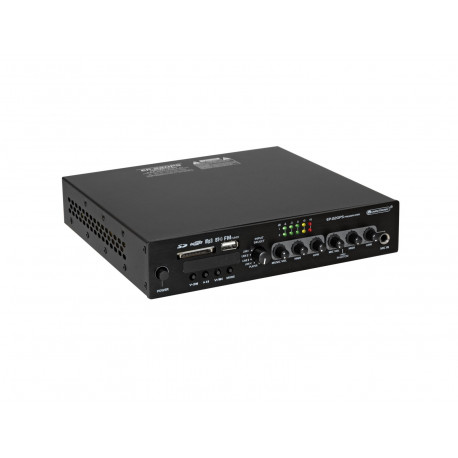

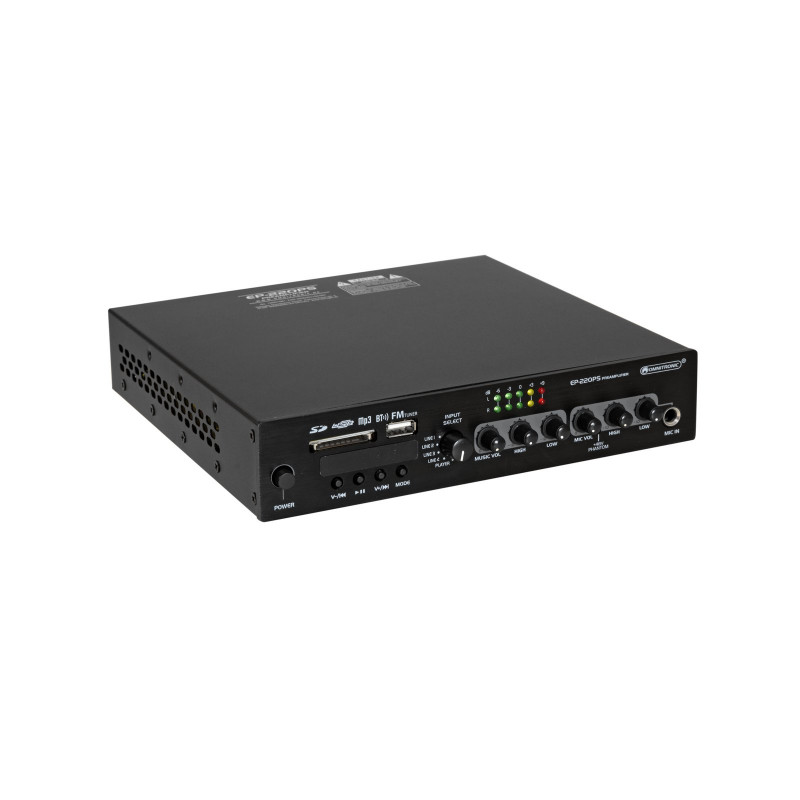

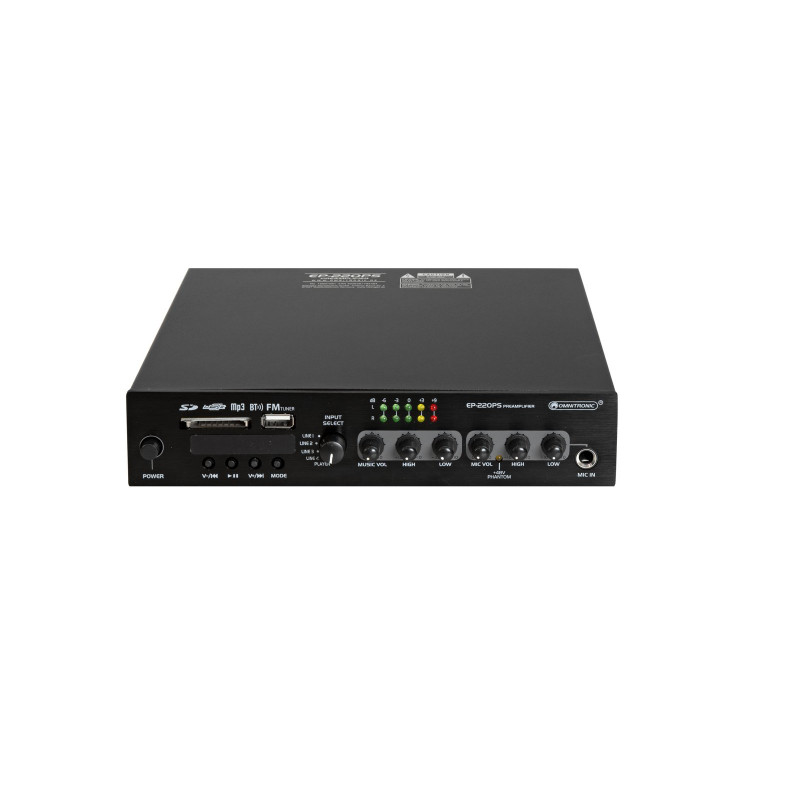

Universal 9.5" preamplifier with audio player, Bluetooth and FM radio

• Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
• USB 2.0 input and SD card slot
• FM tuner with auto scan

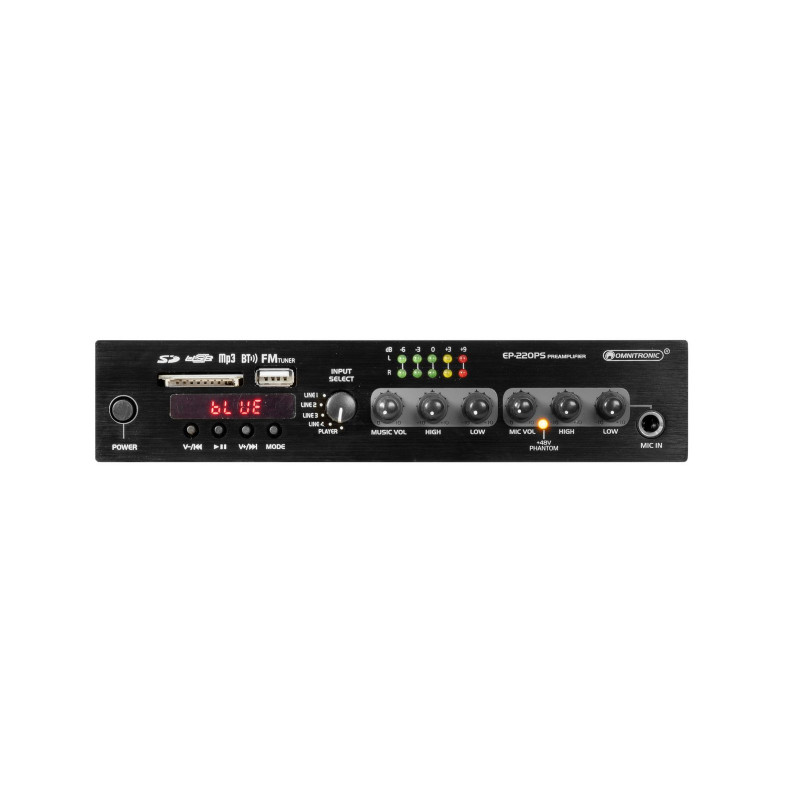

• 1 microphone input with controls for volume, bass and treble on the front panel
• Phantom power and priority circuit switchable for the microphone input
• Controls for volume, bass and treble
• Audio source selector
• 5-fold LED level display
• 2 stereo master outputs
• 4 digit 7-segment LED display
• Desktop console housing
• For application areas such as: Trade fair and shop fitting; sports centres/gyms; restaurants, bars and hotels
• (19") 48.3 cm rack installation possible

Audio player

• Control via Bluetooth; IR remote control

Package contents

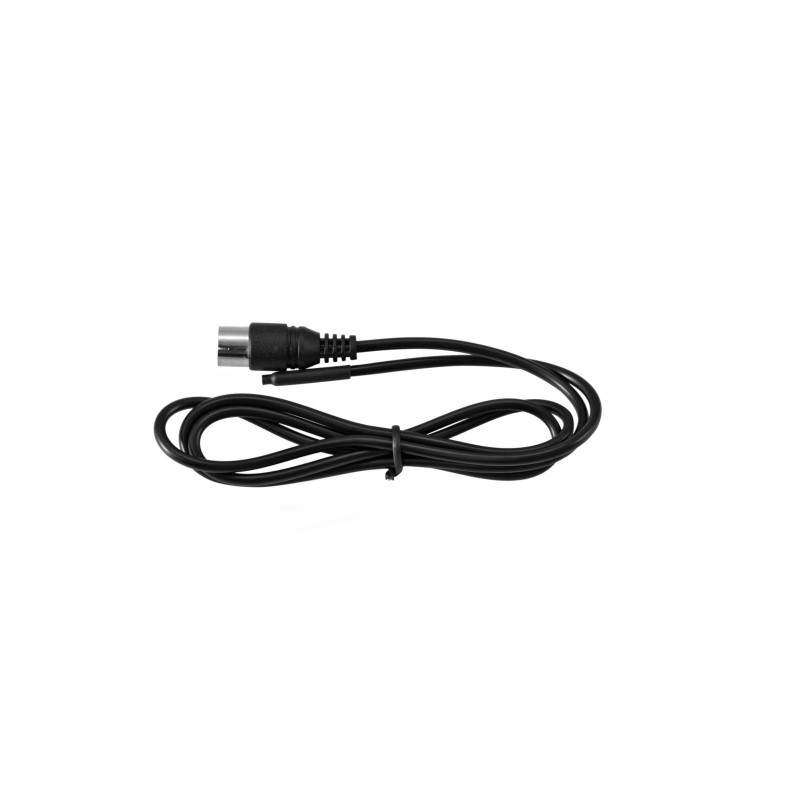

• 1 x device, 1 x power cord, 1 x antenna, 1 x remote control, 1 x battery, 4 x foot, 6 x mounting bracket, 8 x screw, 1 x plug (male), 1 x user manual, 1 x declaration of conformity

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	8 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>100 dB
THD:	<0,1 % at 1 kHz
Impedance:	Input: 10 kOhm , unbal. Input: 20 kOhm , bal.
Display type:	4 digit 7-segment LED display
Tuner frequency range:	FM 87-108 MHz
Control elements:	Source selector, level control, tone control
Status LED:	Level meter, phantom power

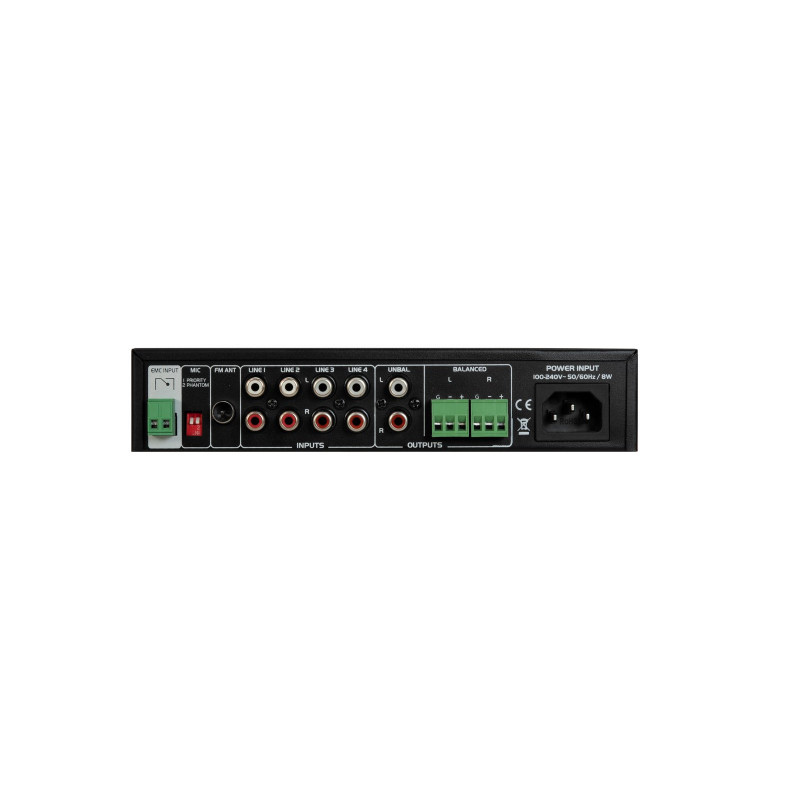

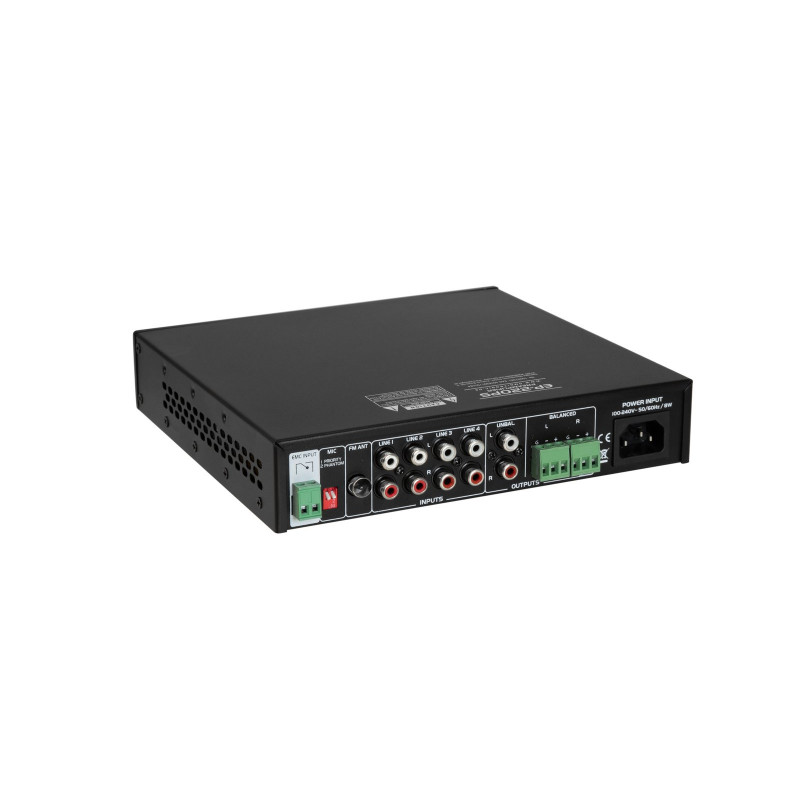

Connections:	Input: antenna via Belling-Lee (M) Input: line via 4 x RCA (F) mounting version Input: Microphone via 1 x 6.3-mm-jack (bal.) Output: line via 1 x stereo RCA Output: line via 2 x screw plug-in terminal
Equalizer:	Master: 1 x 2-band tone control stereo 1 x 2-band tone control
Input sensitivity:	1 V
Max. level:	Input: Microphone -11 dBu Input: line +14 dBu Output: +22 dBu
Material:	Metal
Color:	Black
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible
Dimensions:	Width: 21,5 cm Depth: 24 cm Height: 4,4 cm
Weight:	1,70 kg
Audio player
Control:	Bluetooth; IR remote control
Audio player:	USB + SD + Bluetooth + FM Radio,
Music format:	MP3; WMA; WAV
Carrier frequency:	2,4 GHz
Available storage media:	USB devices/SD cards max. 32GB (FAT 16/32)

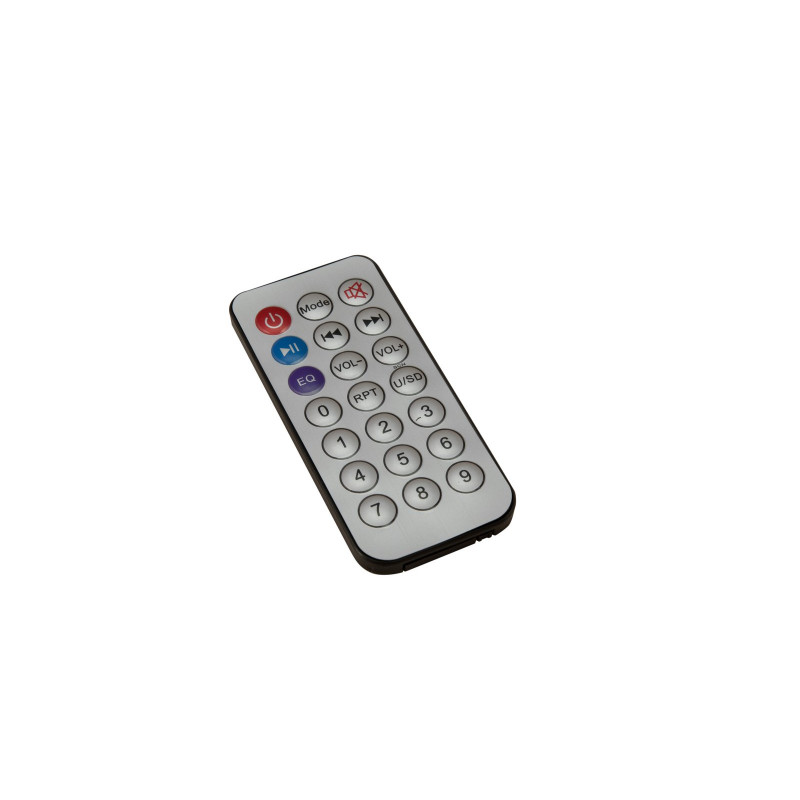

Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
