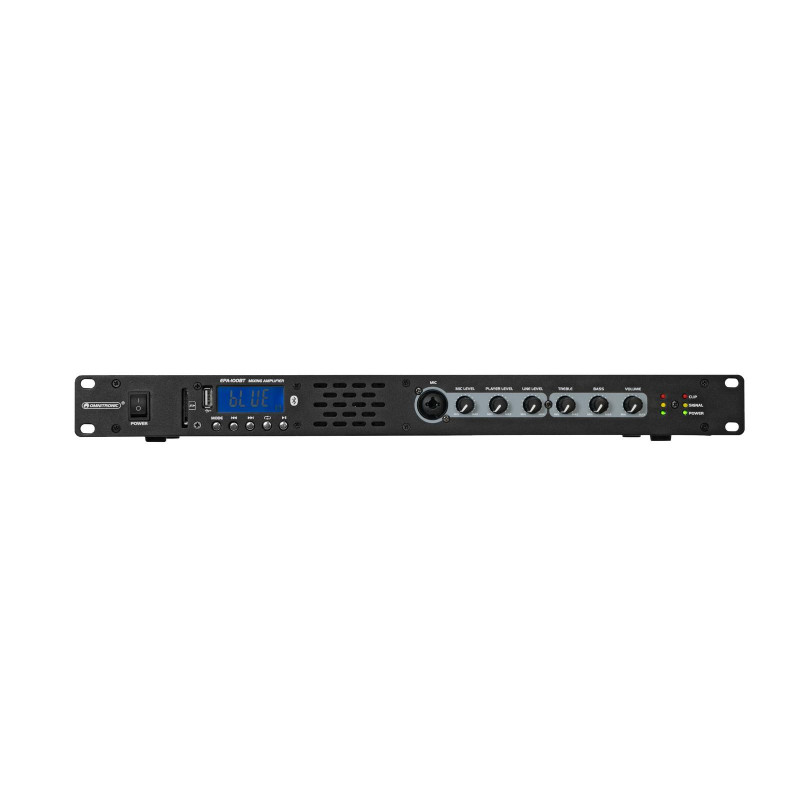

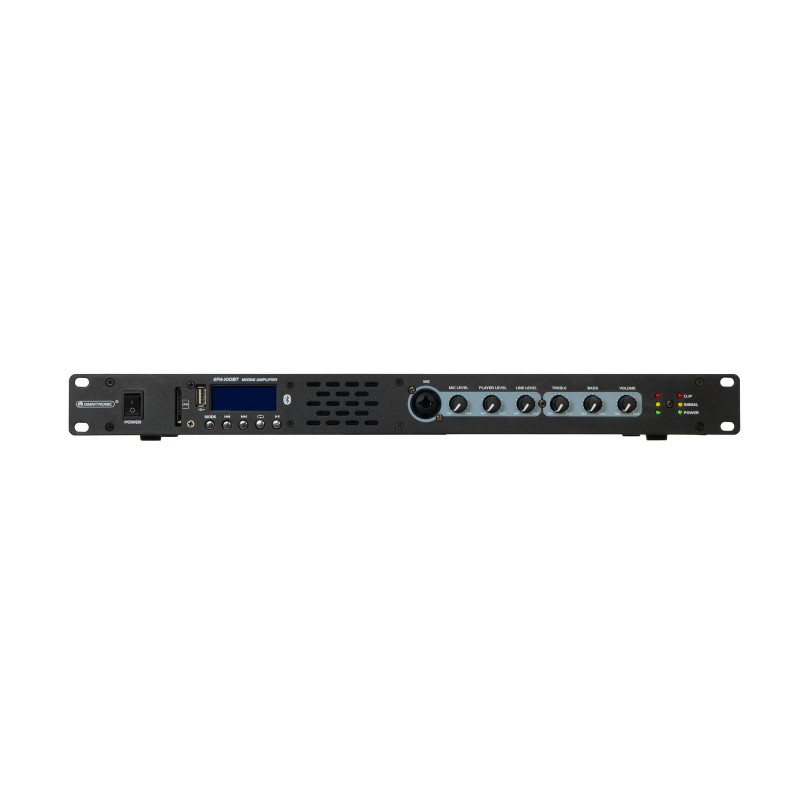

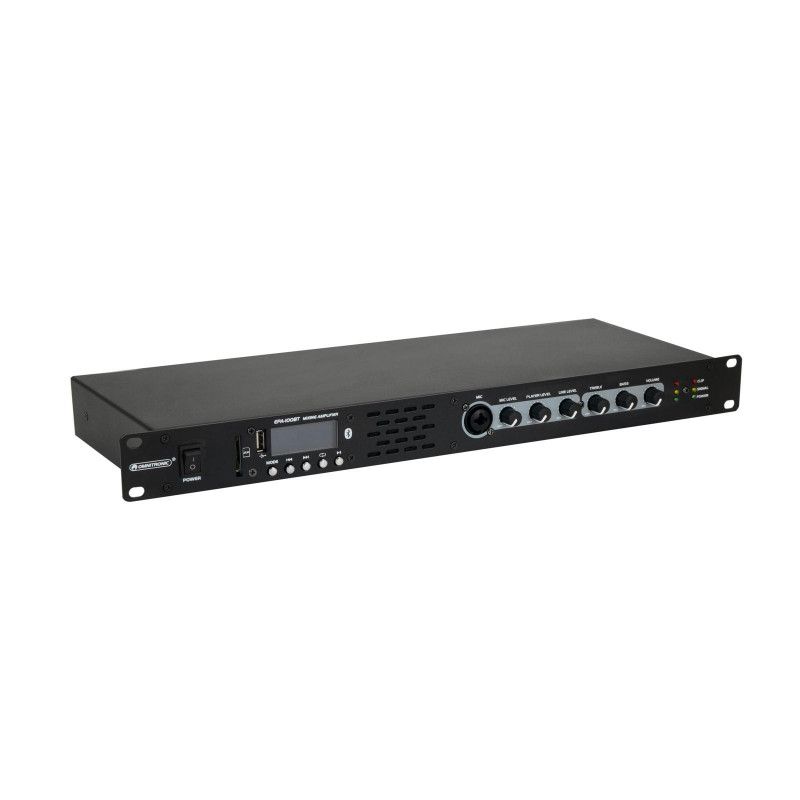

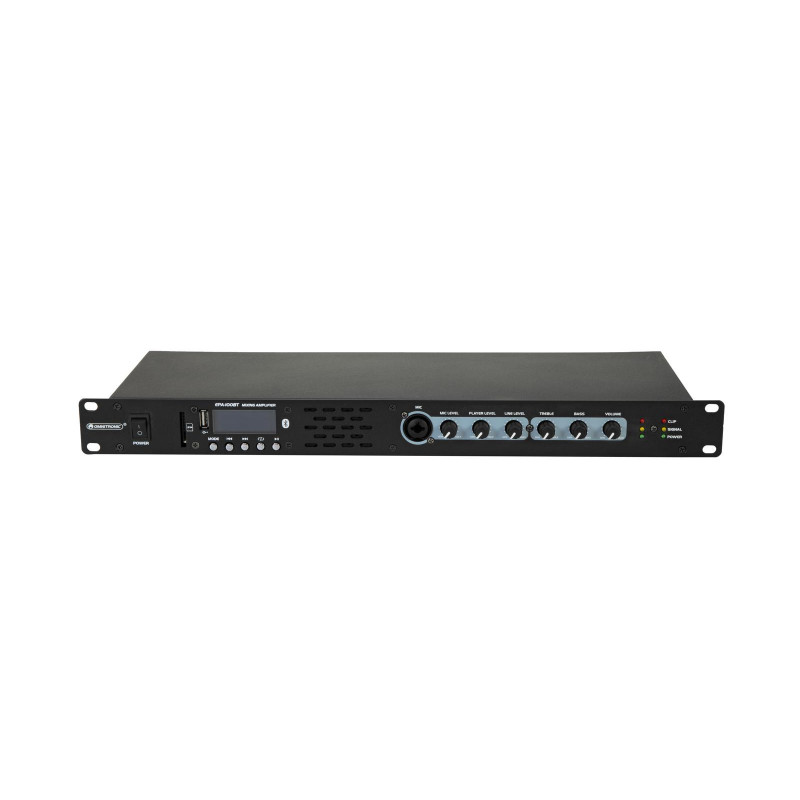

The 1 U flat stereo mixing amplifier EPA-100BT with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 50 watts at 4 ohms and lets you play and control music from multiple sources. Equipped with connections for a microphone and a line-level audio source, it also features a built-in audio player with USB port and memory card slot as well as a Bluetooth receiver for wireless audio streaming directly from your smartphone, tablet or any other Bluetooth-enabled device.

19" mixing amplifier with audio player, Bluetooth and 2 x 50 watts power

• 1 U flat stereo mixing amplifier with 2 x 50 watts power
• For quick-access music playback control in restaurants, fitness studios and retail locations
• Built-in audio player with USB port and SD card slot
• Blue backlit LCD screen
• Integrated Bluetooth audio streaming
• Adjustable stereo line input via XLR and RCA jacks
• Adjustable microphone input on the front panel
• Controls for volume, bass and treble
• Signal, clip and power indicators
• Stereo line output via XLR and RCA jacks
• Screw terminals for low-impedance speakers
• Groundlift switch against humming
• Limiter for overload protection
• Efficient class D circuitry
• Low weight and height due to integrated switch mode power supply
• Rack installation, 1 U
• Housing design: (19") 48.3 cm rack installation built-in 1 U

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	100 W
Output power:	30 W RMS (8 ohms)
	50 W RMS (4 ohms)
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
Cooling fan:	Yes
Audio player:	USB + SD + Bluetooth
Master equalizer:	1 x 2-band tone control Stereo
Circuitry:	Class D

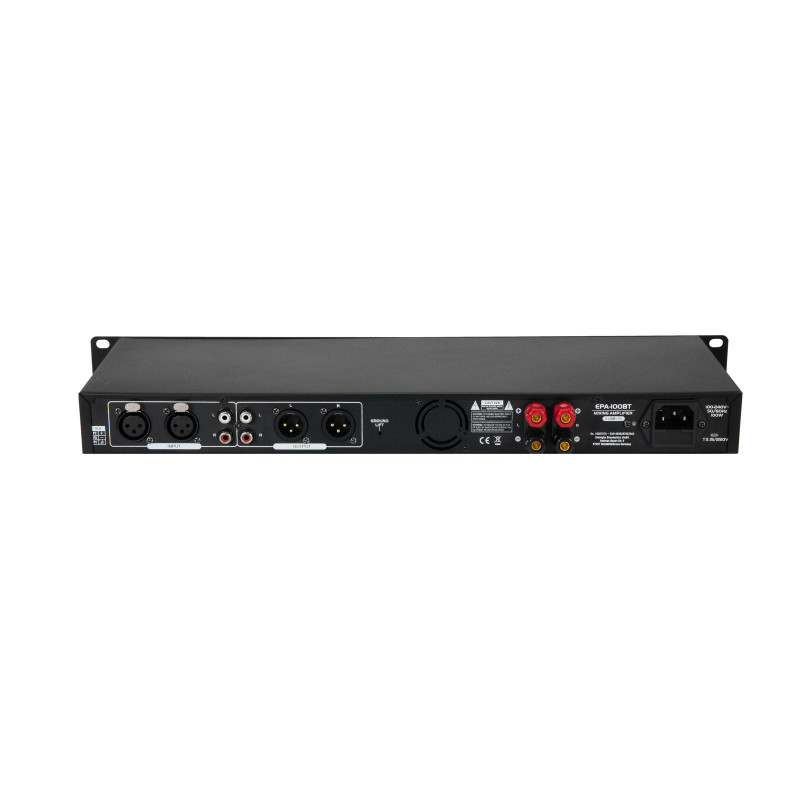

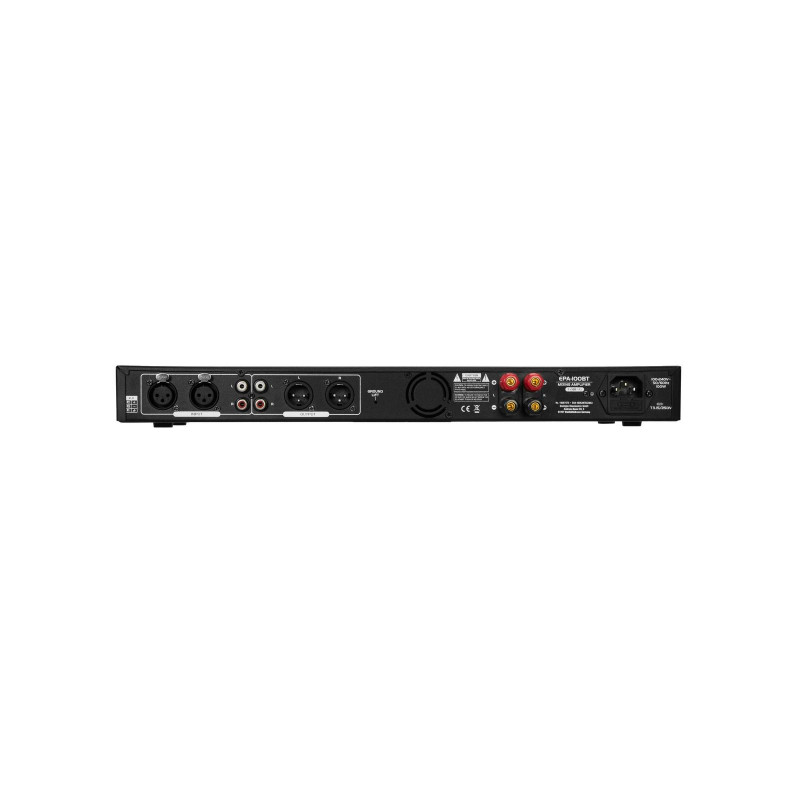

Connections:	Input: Speakers via screw terminal
	Input: 2 x line via 3-pin XLR
	Input: 1 x line via Stereo RCA
	Output: 2 x line via 3-pin XLR
	Output: 1 x line via Stereo RCA
Carrier frequency:	2,4 GHz
Range:	10 m Bluetooth
Housing design:	(19") 48.3 cm rack installation built-in 1 U
Width:	48,3 cm
Height:	4,45 cm
Depth:	21 cm
Weight:	2,59 kg
Audio player
Available storage media:	USB devices/SD cards max. 32GB
Inputs:
Line:	RCA and XLR, balanced
Mic:	combination XLR/6.3 mm jack, balanced
Outputs:
Line:	RCA and XLR, balanced
Circuitry:	class D
Audio player:
Playback format:	MP3, WMA, WAV
