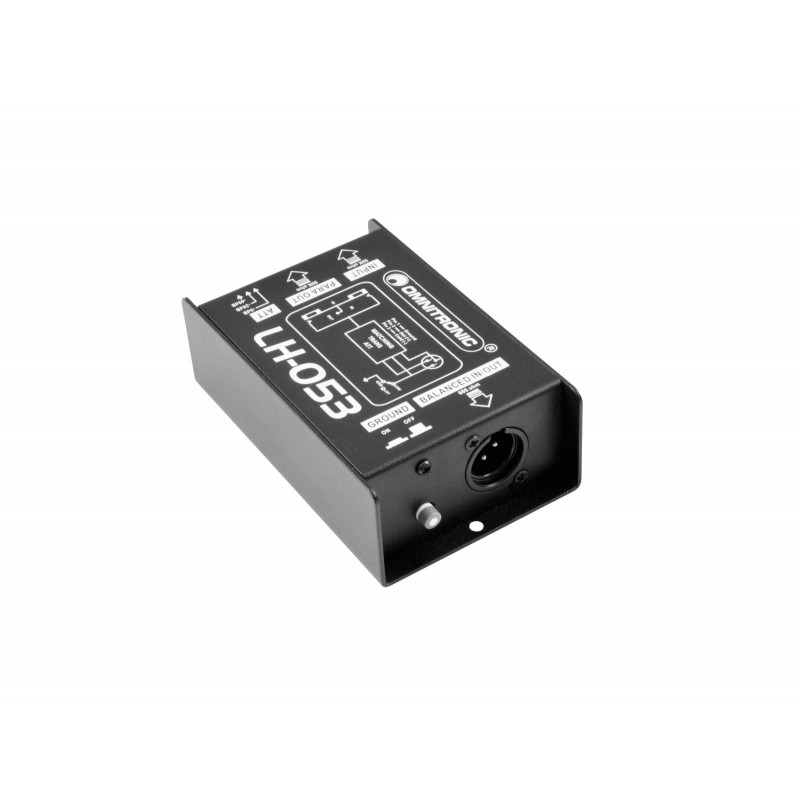

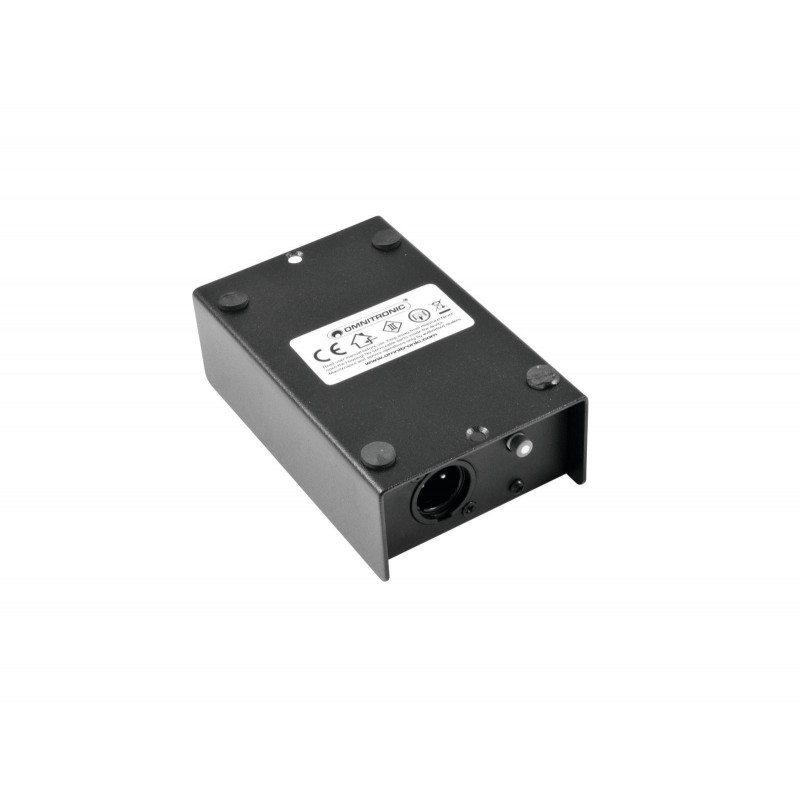

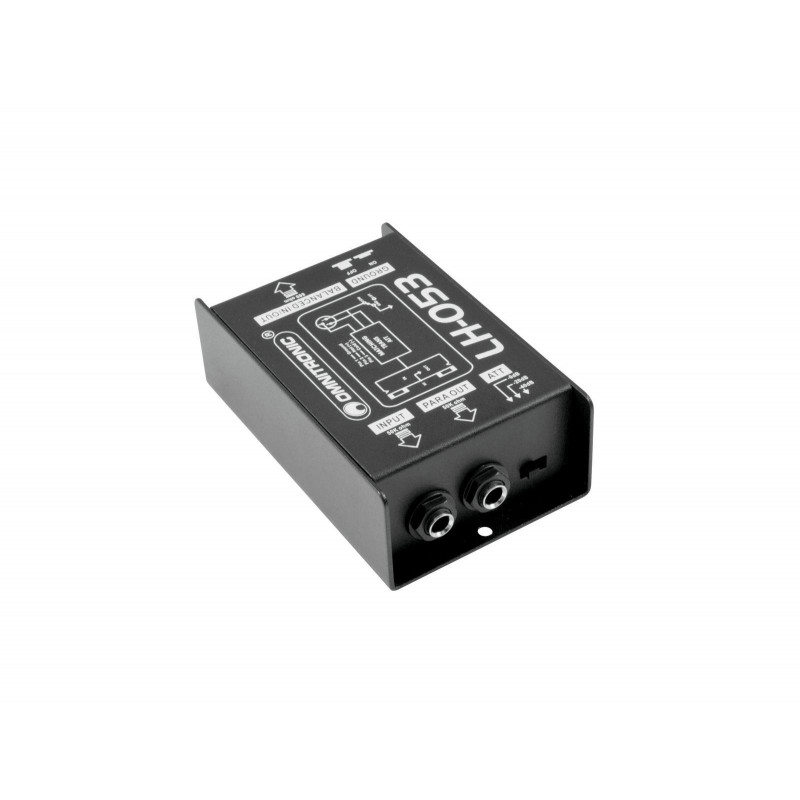

Little brother of the LH-055 DI Box. Sturdy housing, solid workmanship at an unbeatable price.

Passive 1-channel DI box, Black

• Passive DI box
• 1 high-impedance signal input, 6.3 mm jack
• 1 low-impedance XLR output
• 1 instrument feed-through output, 6.3 mm jack
• Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
• Switchable input attenuation: 0 dB, -20 dB, -40 dB
• Ground-lift switch eliminates signal interference and ground loop problems
• Rugged black metal housing

Frequency range:	15 - 30000 Hz
S/N ratio:	>95 dB
Width:	12,7 cm
Height:	4,5 cm
Depth:	7,4 cm
Weight:	0,43 kg
Input impedance:	50 kohms
Output impedance:	600 ohms
Input connector:	6.3 mm jack, unbal.
Output connectors:	XLR, bal.
	6.3 mm jack, unbal. (parallel out)
