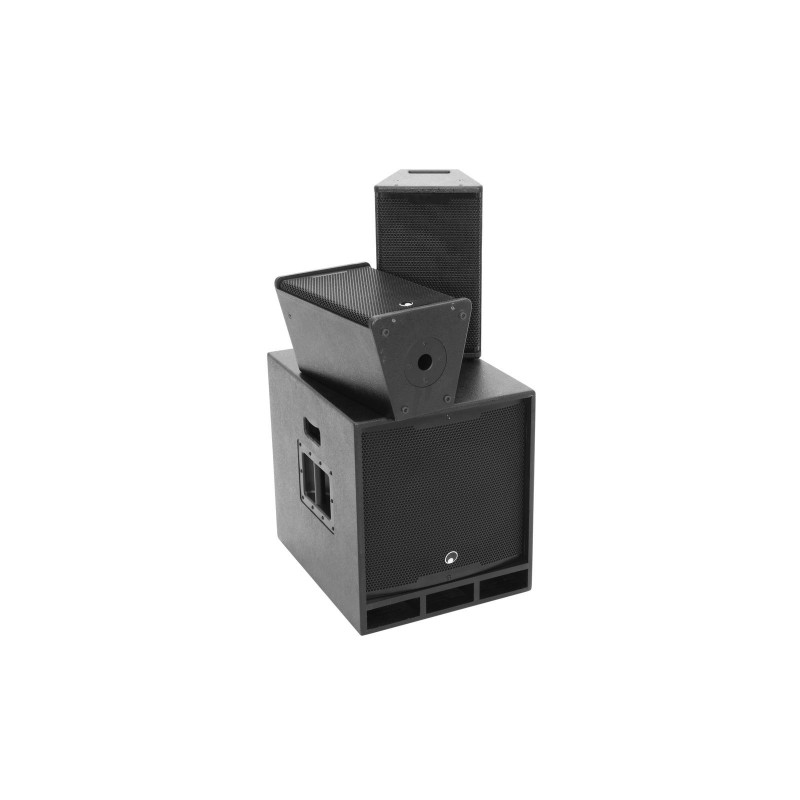

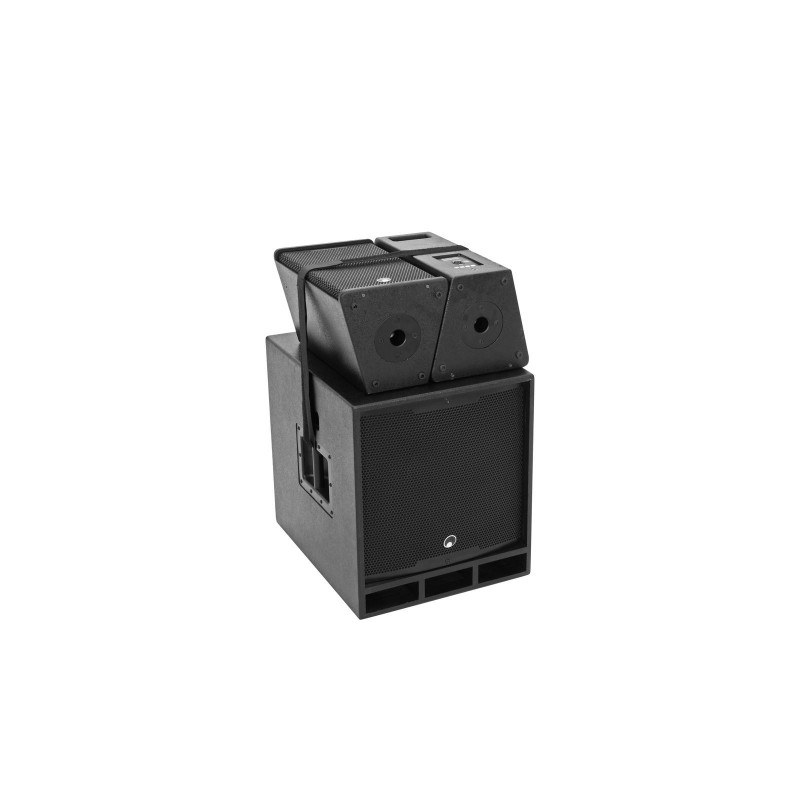

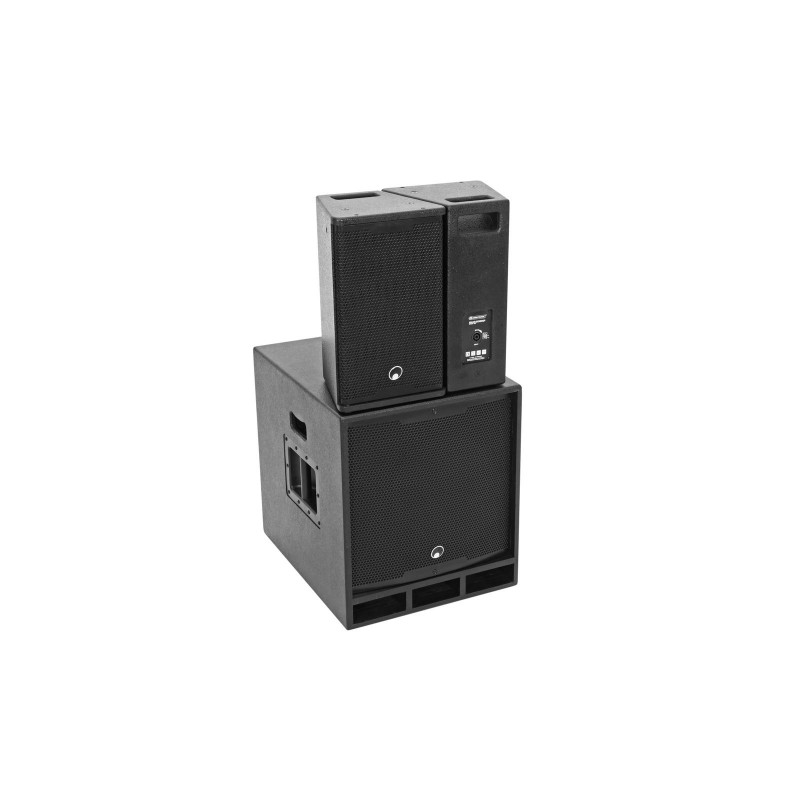

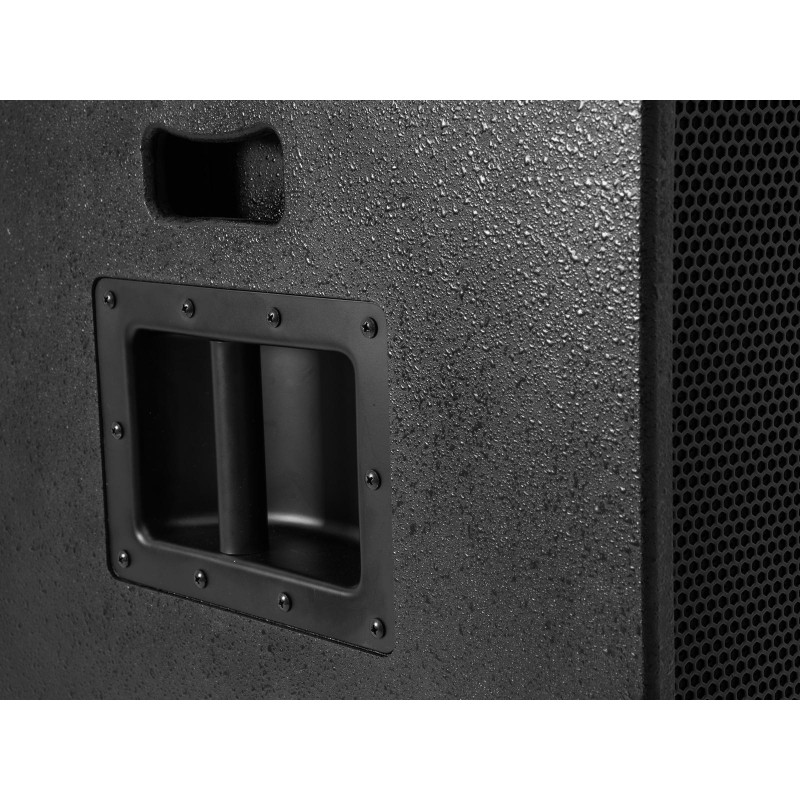

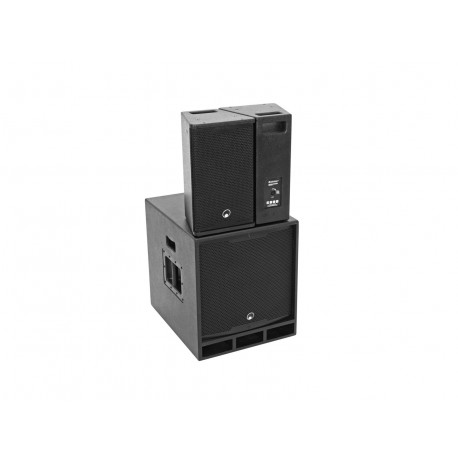

The MAXX-1508DSP is an active 2.1 PA system with 700 watts output power. It provides perfect sound and good level stability in various kinds of mobile PA applications.The high-power 15" subwoofer with power-efficient Class D amplifier in a bass reflex cabinet delivers powerful, dry bass. The two satellite loudspeakers with 8" bass/midrange drivers and 1" compression drivers are equipped with a passive 2-way crossover including PTC tweeter protection and ensure a well-rounded sound experience.Equipped with a DSP (digital signal processor) which enables convenient application presets for quick sound contouring, the MAXX-1508DSP offers combined XLR and 6.3 mm inputs with XLR parallel output (for linking additional systems), and an additional RCA input with level adjustment. Enjoy music wirelessly from your smartphone or any other Bluetooth device via the integrated Bluetooth audio receiver and charge them at the same time via the integrated powerbank. The MAXX-1508DSP subwoofer's professional hardware includes a rugged multiplex/MDF enclosure, scratch-resistant lacquer, steel grille and ergonomically shaped handles. Swivel castors for easy transport are optionally available. Matching speaker stands, distance tubes, and stand forks are also available as accessories.

High-power active PA system with DSP, Bluetooth, 700 watts (15" sub, 8" tops)

• Mobile 2.1 system with DSP and 700 watts RMS power
• Provides perfect sound and good level stability in various kinds of mobile PA applications up to medium-sized party events - ideal for solo entertainers, bands and mobile discos
• 15" subwoofer with class D amplifier in bassreflex cabinet provides powerful, dry bass
• Two satellites with 8" bass-midrange speakers and 1" compression driver
• Satellites with passive 2-way crossover, PTC tweeter protection
• Balanced signal input XLR/6.3 mm jack L/R
• Additional stereo RCA input, with level switch
• Parallel XLR line output L/R
• Integrated Bluetooth audio streaming for your smartphones and tablets
• 3 EQ presets with indicators, DSP-controlled
• Signal limiter, DSP-controlled
• Separate volume control for subwoofer and satellites
• Stereo/mono selection
• Built-in fast charger (5 V/2 A) for convenient charging of your mobile USB devices
• Enclosures made from 16 mm MPX/MDF (subwoofer) and MDF (satellites) with scratch-resistant lacquer surface and steel grille
• Subwoofer with M20 metal flange for mounting a satellite speaker
• Castors available as accessory
• Delivery includes two speaker cables

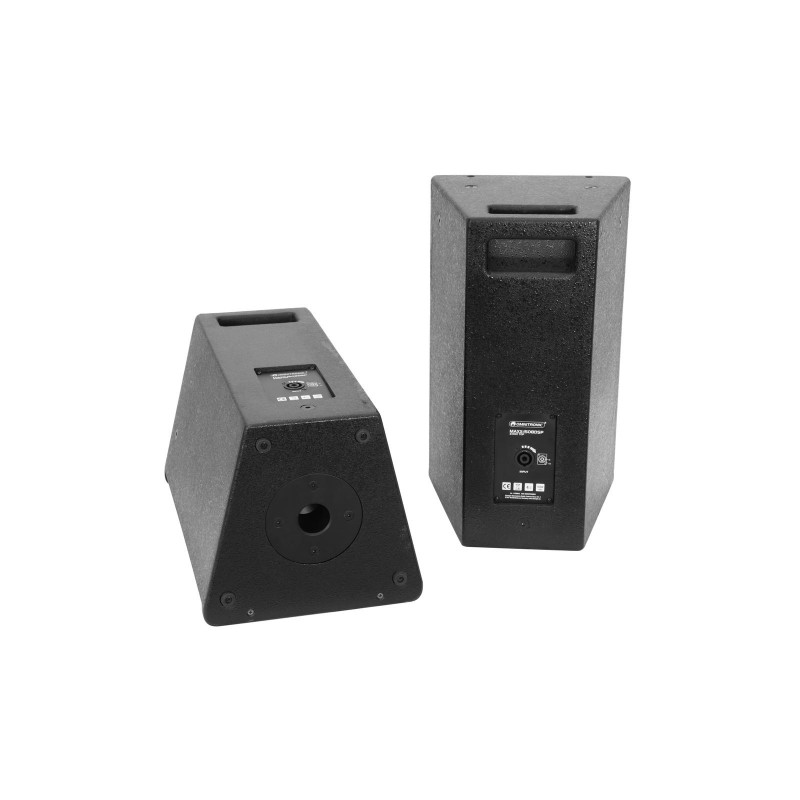

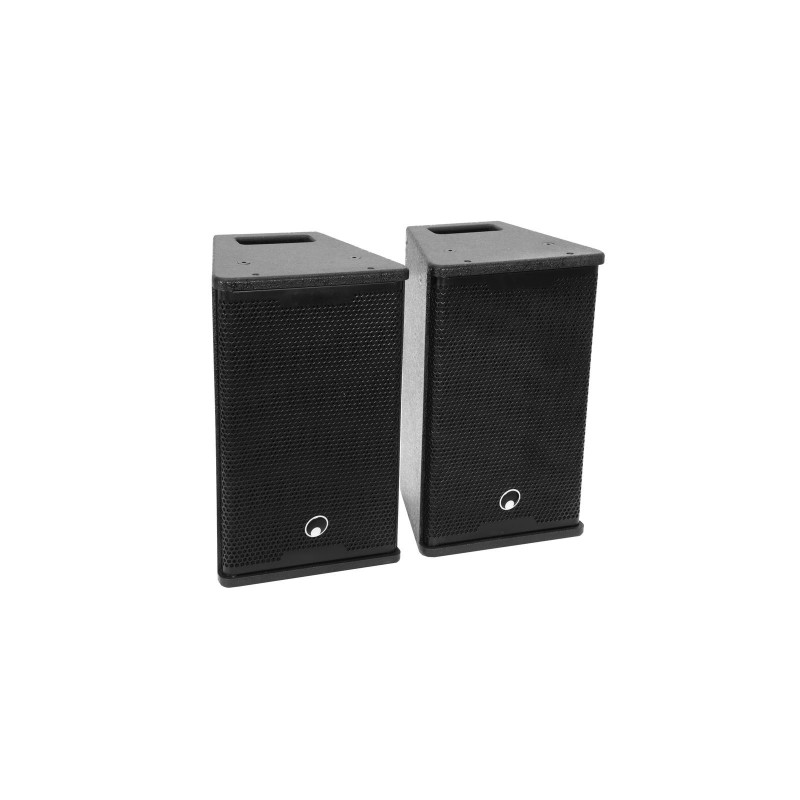

OMNITRONIC MAXX-1508 2-Way Top 2x

2 x 8" passive full-range speaker, 150 W RMS

• 2-way bass-reflex system with 8" bass-midrange speaker and 1" compression driver
• Serve as a mobile 2.1 system together with the MAXX-1508 subwoofer
• With passive 2-way crossover, PTC tweeter protection

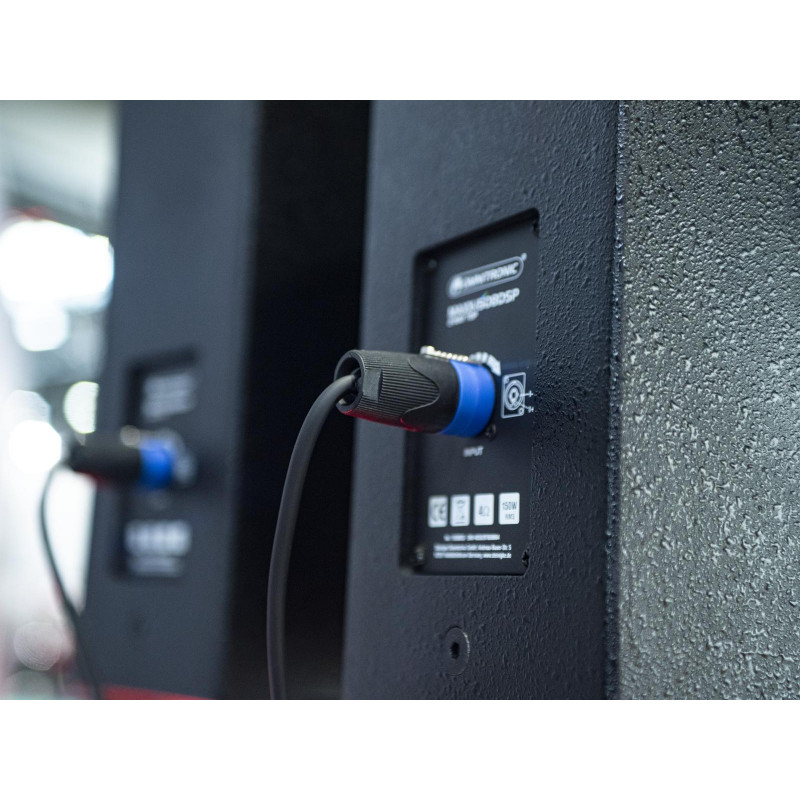

• Speaker connection
• Stable MDF enclosures (16 mm) with scratch-resistant lacquer surface, steel grille and recessed handle
• Flange for stand installation
• M8 threaded inserts for suspended installation
• Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

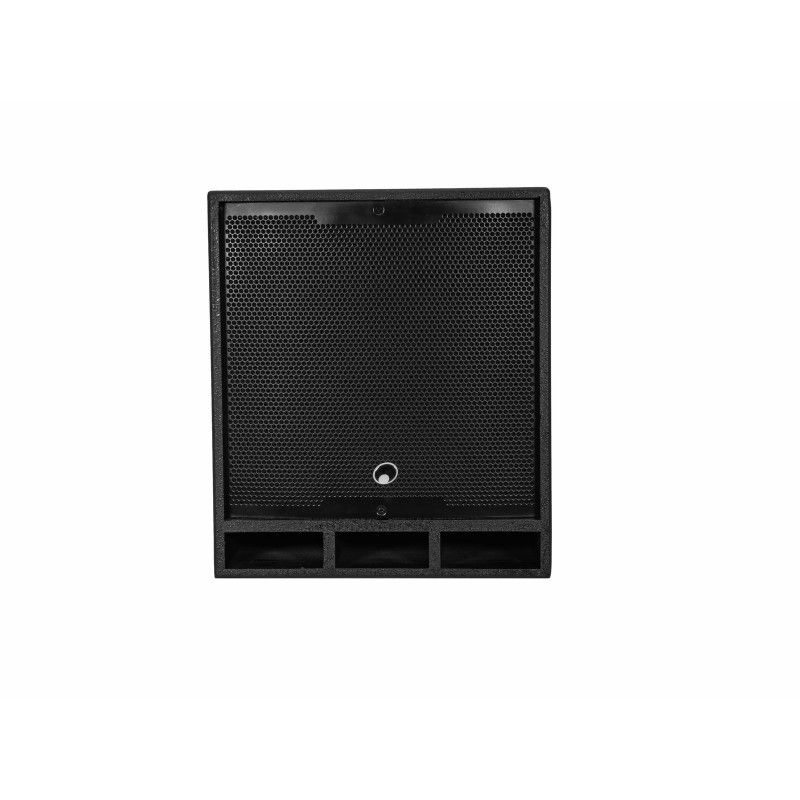

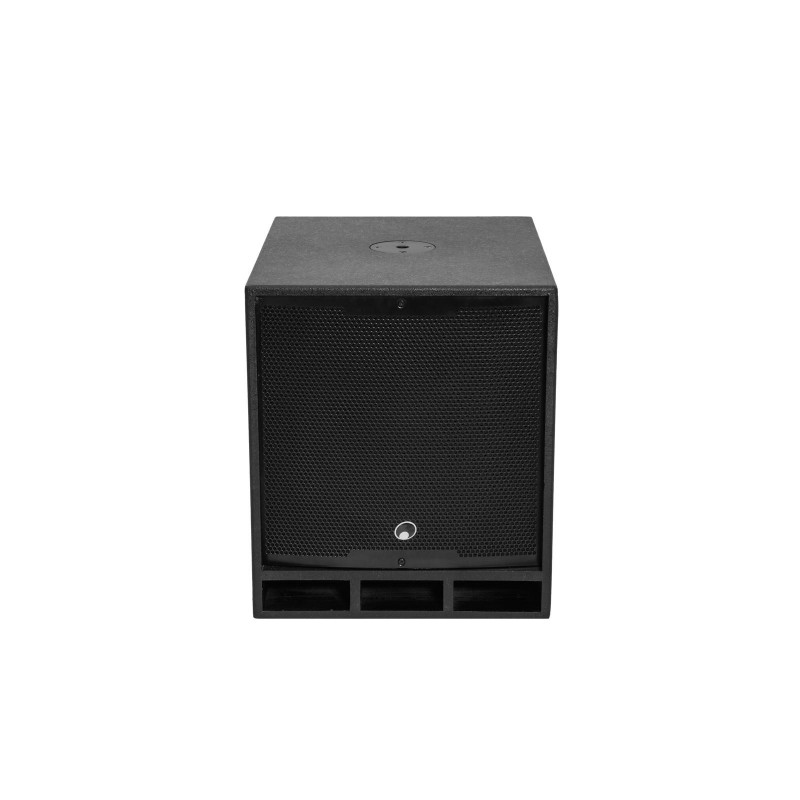

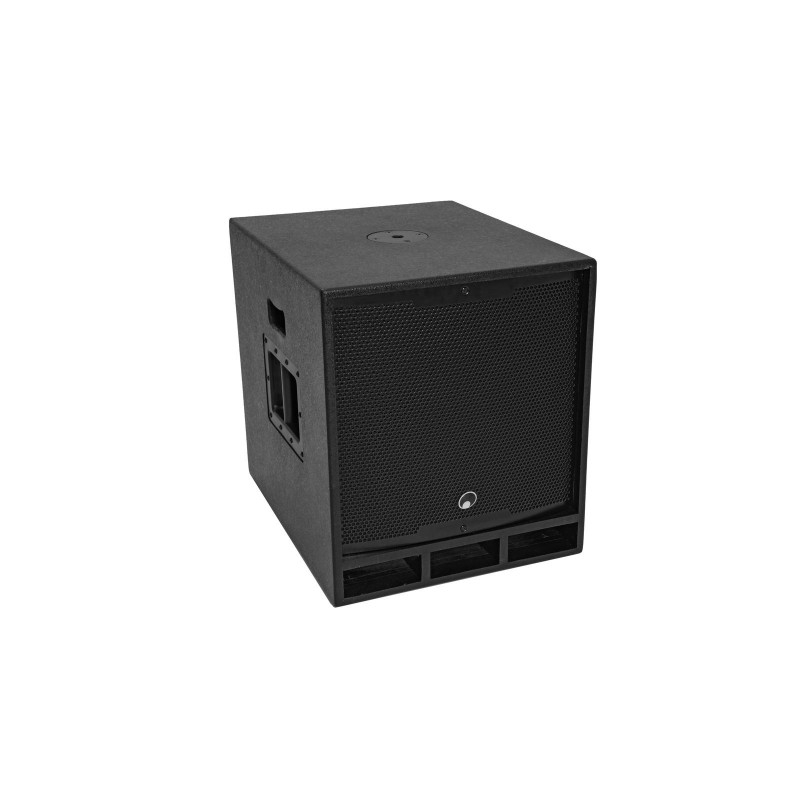

OMNITRONIC MAXX-1508DSP 2.1 Active Subwoofer

High-power 15" active subwoofer with DSP and Bluetooth, 700 watts

• 15" subwoofer with Class D amplifier in bassreflex cabinet
• Amplifier power: 400 W RMS + 2 x 150 W RMS for two satellites
• Serves as a mobile 2.1 system together with MAXX-1508 2-way tops
• Balanced signal input XLR/6.3 mm jack L/R
• Additional stereo RCA input, with level switch
• Parallel XLR line output L/R
• Integrated Bluetooth audio streaming for your smartphones and tablets
• 3 EQ presets with indicators, DSP-controlled
• Signal limiter, DSP-controlled
• Separate volume control for subwoofer and satellites
• Stereo/mono selection
• Built-in fast charger (5 V/2 A) for convenient charging of your mobile USB devices
• MPX/MDF enclosure (16 mm) with scratch-resistant lacquer surface and steel grille
• M20 metal flange for mounting a satellite speaker
• Castors available as accessory
• Delivery includes two speaker cables
• DSP: Digital signal processor
• Control: Bluetooth
• Transport aid: Wheels optional

OMNITRONIC MAXX-1508 2-Way Top 2x
Rated power:	2 x 150 W RMS
Program power:	300 W
Frequency range:	120 - 18000 Hz
Sensitivity:	92 dB
Max. SPL:	116 dB
Dispersion angle:	90° x 60°
Impedance:	4 Ohm
Connections:	Input: 1 x Speakers via Speaker built-in socket (f)
Speakers:	1 x woofer (8") approx 20 cm
	1 x Tweeter highs (1") approx 2,5 cm
Width:	25,5 cm
Height:	42,1 cm
Depth:	24,1 cm
Weight:	17,25 kg
OMNITRONIC MAXX-1508DSP 2.1 Active Subwoofer
Power supply:	230 V AC, 50 Hz
Power consumption:	800 W
Rated power:	400 W RMS LF; 2 x 150 W RMS HF
Frequency range:	Bass 35 - 120 Hz; Top 120 - 18000 Hz
Sensitivity:	95 dB
Max. SPL:	120 dB
DSP:	Digital signal processor
Control:	Bluetooth
Circuitry:	Class D

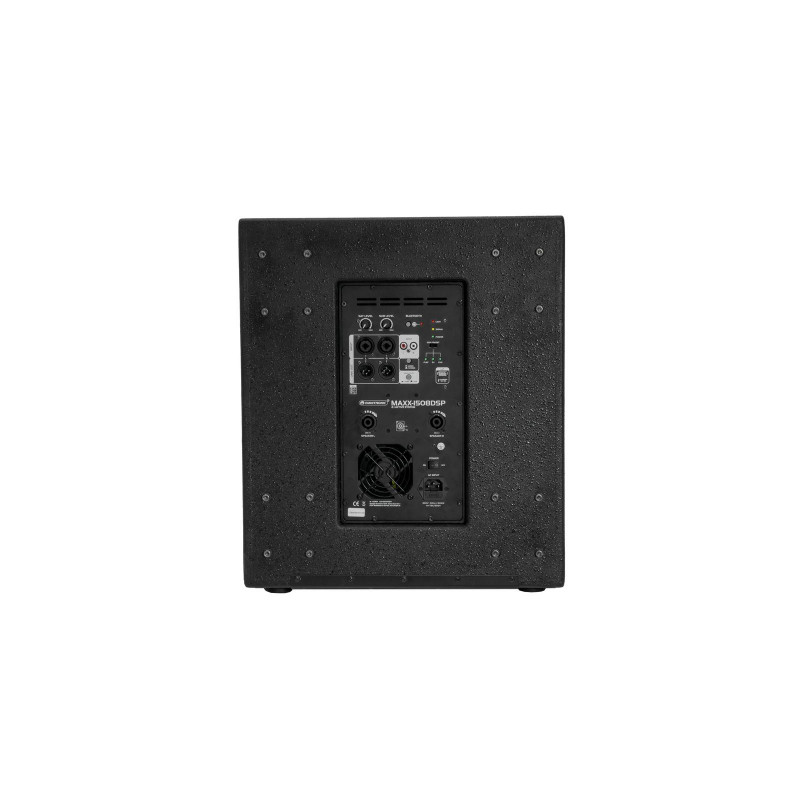

Connections:	Input: 1 x Stereo via Stereo RCA
	Input: 1 x Stereo via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
	Output: 1 x line via 3-pin XLR
	Output: Speakers via Speaker built-in socket (f)
input channels:	1 x Stereo via XLR or RCA or bluetooth, channel control via Rotary knob
Speakers:	1 x woofer (15") approx 38 cm with Ferritmagnet
Material:	Birch multiplex; MDF (Medium-density fibreboard)
Width:	45,4 cm
Height:	53,4 cm
Depth:	57 cm
Weight:	29,30 kg
