Great sound - also runs with 100 voltsYou want reliable and balanced sound for your bar, restaurant, shop or the conference area of your hotel? You need indoor and outdoor speakers? With the OPD series you get powerful installation speakers that meets all your requirements.The speakers have a brilliant sound pattern and are available in a low ohm (16 ohms) and in a 100 V version. These two cover both small and large installations. A rotatable mounting bracket is included in the delivery. A swivel wall mount with matching colors is optionally available.With their weatherproofed (IP54) plastic cabinet the ODP speakers are well prepared for outdoor use, indoor use is of course also possible.

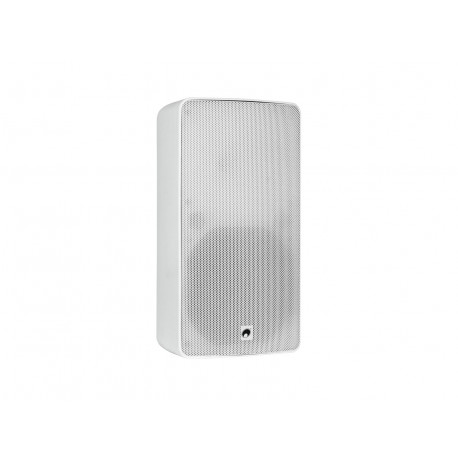

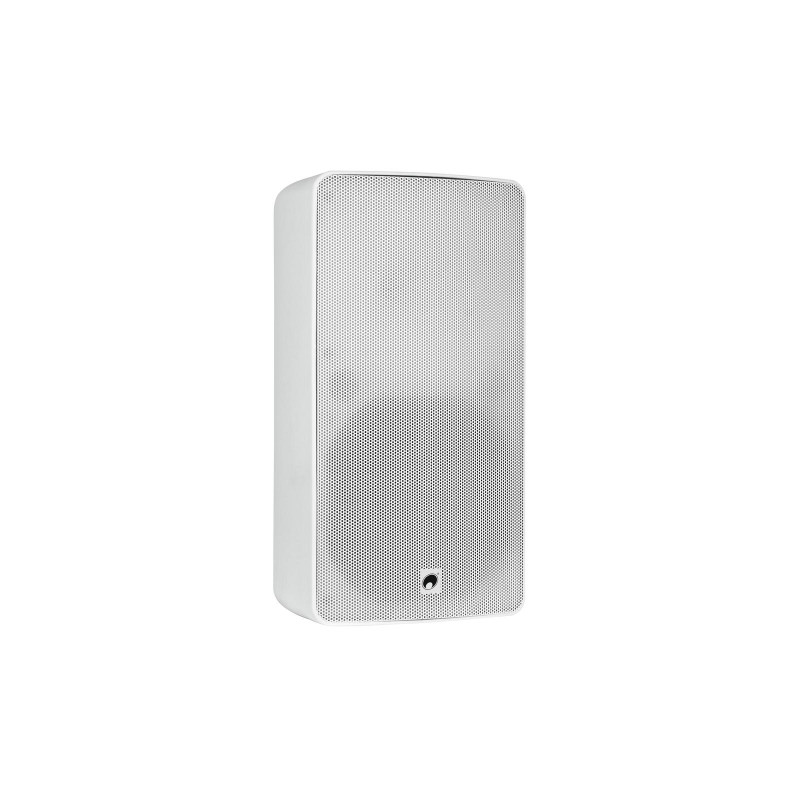

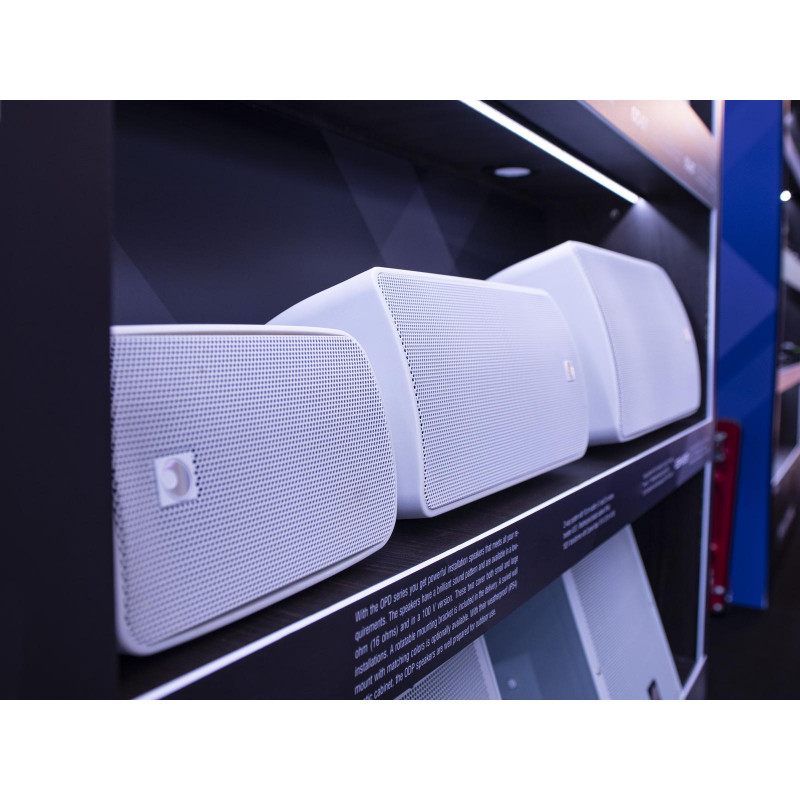

Weatherproof 8" wall speaker with mount, 37.5/75/150 W RMS
- 100 V PA speaker system with an excellent sound for general applications

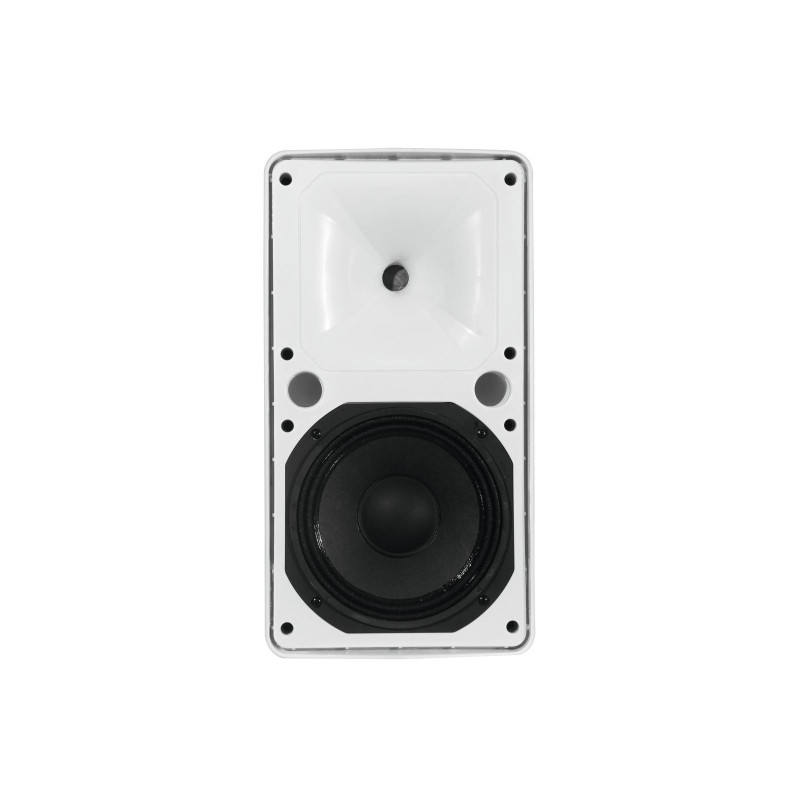

- 2-way system with 20 cm woofer (8") and 2.5 cm dome tweeter (1")
- Weatherproof plastic cabinet (IP65)
- 100 V transformer with 3 power taps (37.5 W, 75 W, 150 W)
- Power selector switch with 16 ohms operating position

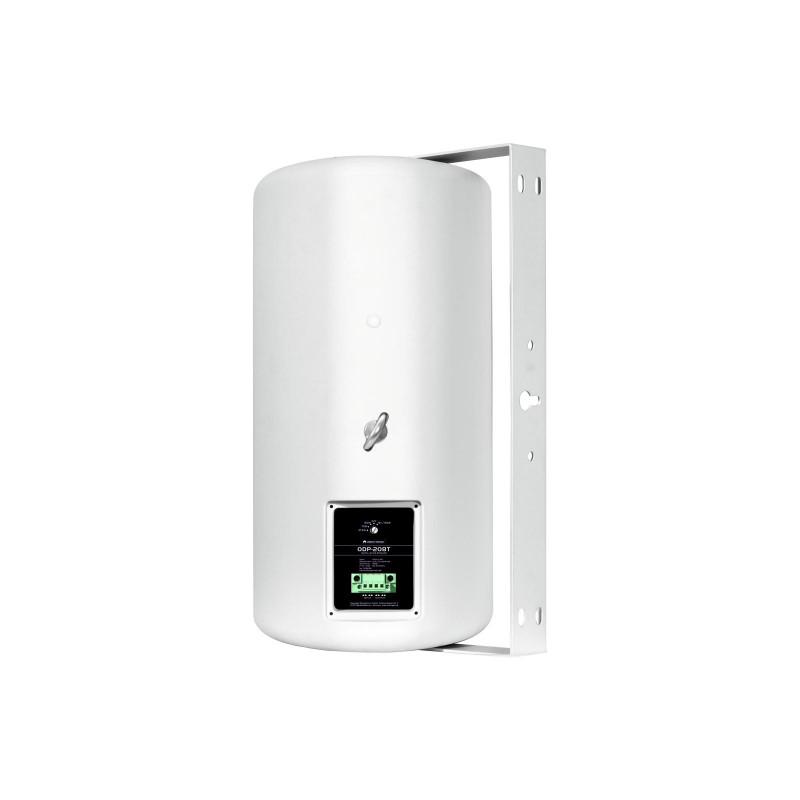

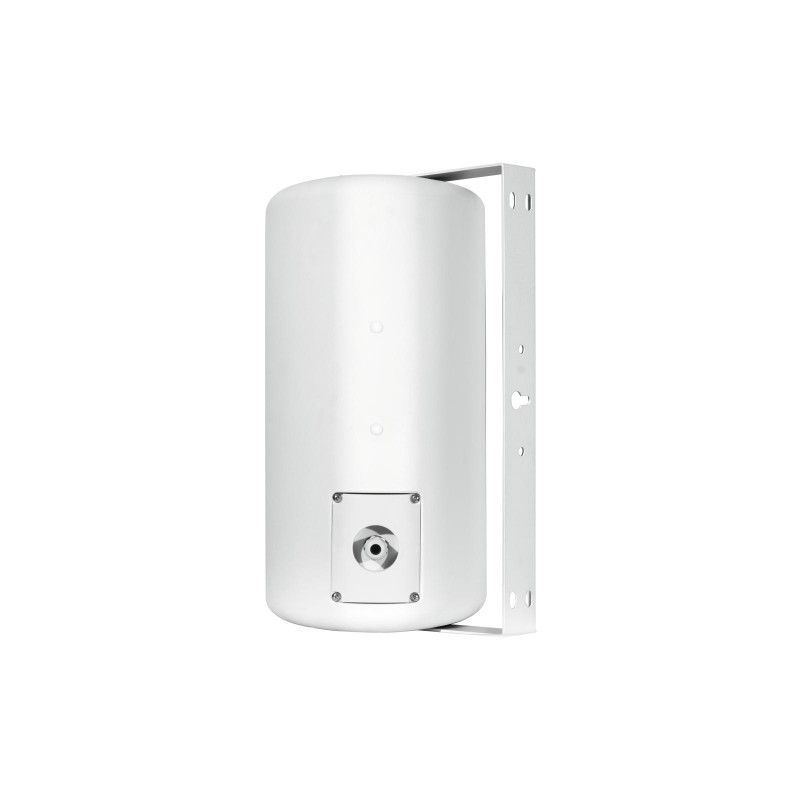

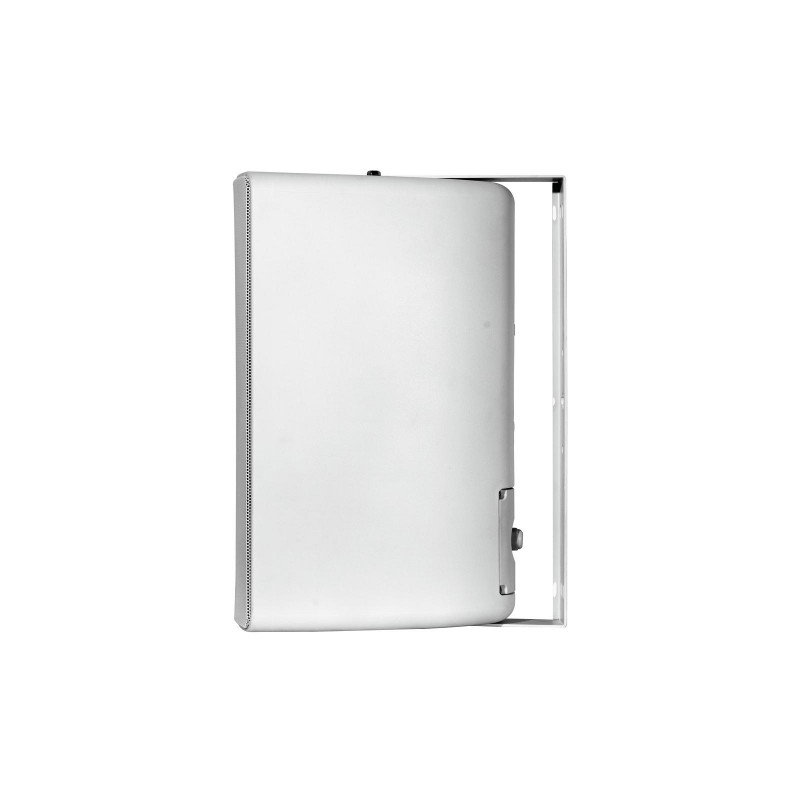

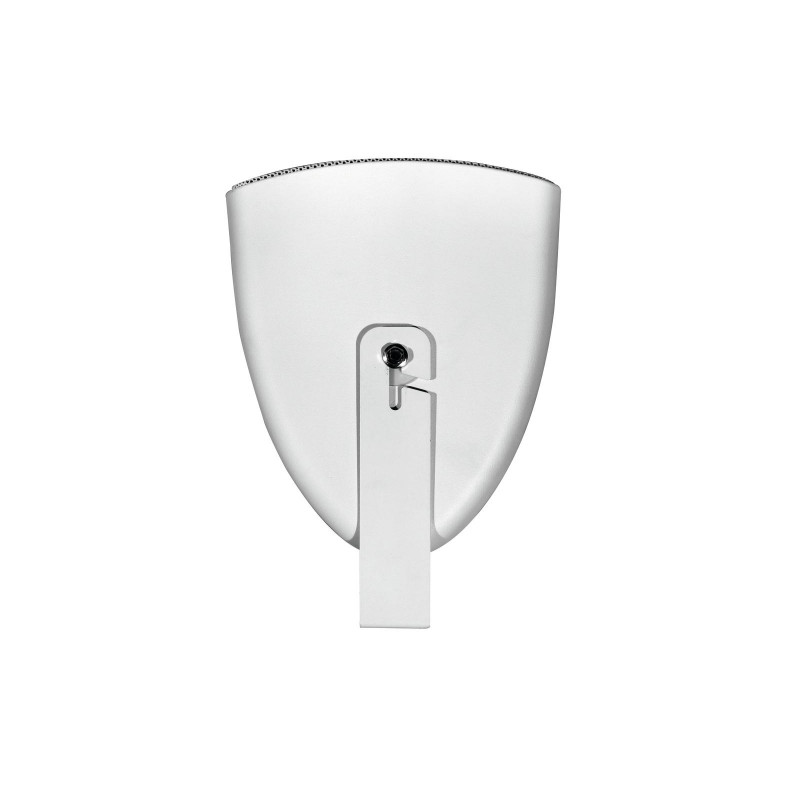

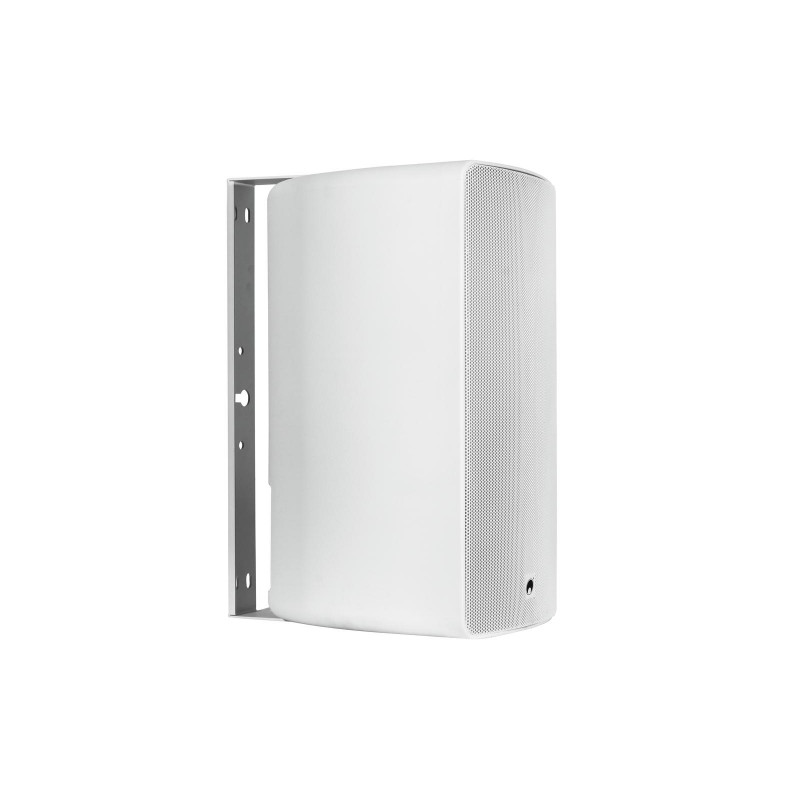

- Swivel mounting bracket for wall installation
- Swivel and tilting wall bracket for wall installation
- Connection via screw terminals
- Ideal for PA applications in restaurants, bars, shops or conferences
IP classification: | IP65 |
Rated power: | 150 W RMS |
Program power: | 300 W |
Frequency range: | 60 - 18000 Hz |
Sensitivity: | 94 dB (1W/1m) |
Max. SPL: | 116 dB |
Dispersion angle: | 90° x 50° |
Impedance: | 100 V ELA; 16 Ohm |
Color: | White |
Power tapping: | 37,5W; 70W; 150W RMS via Selector switch switchable |
Connections: | Input: Speakers via screw terminal |
Speakers: | 1 x woofer (8") approx 20 cm |
| Calottes highs (1") approx 2,5 cm |
Width: | 24,1 cm |
Height: | 45 cm |
Depth: | 28,5 cm |
Weight: | 10,85 kg |
