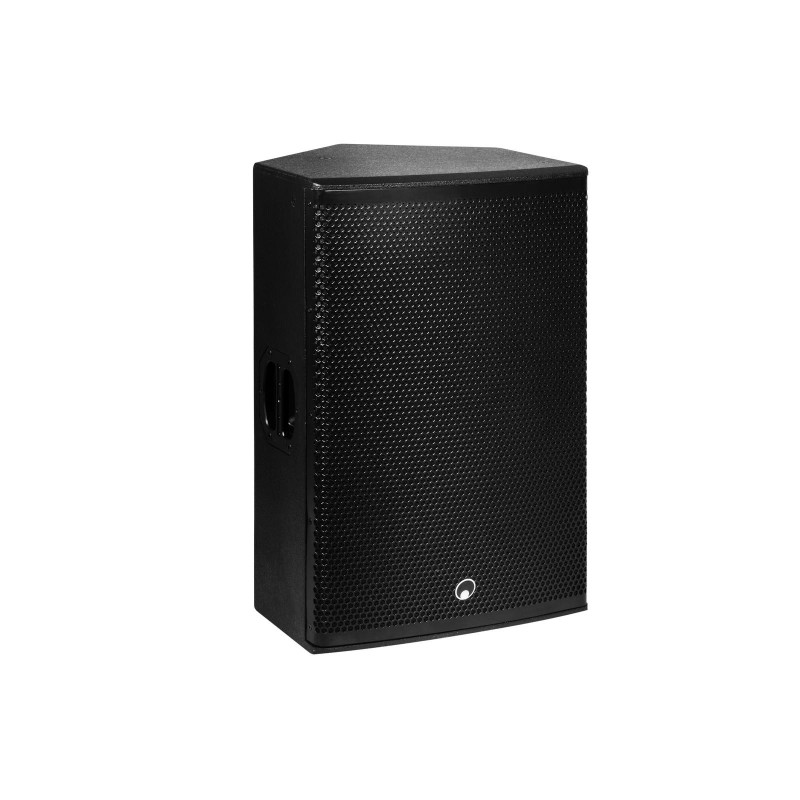

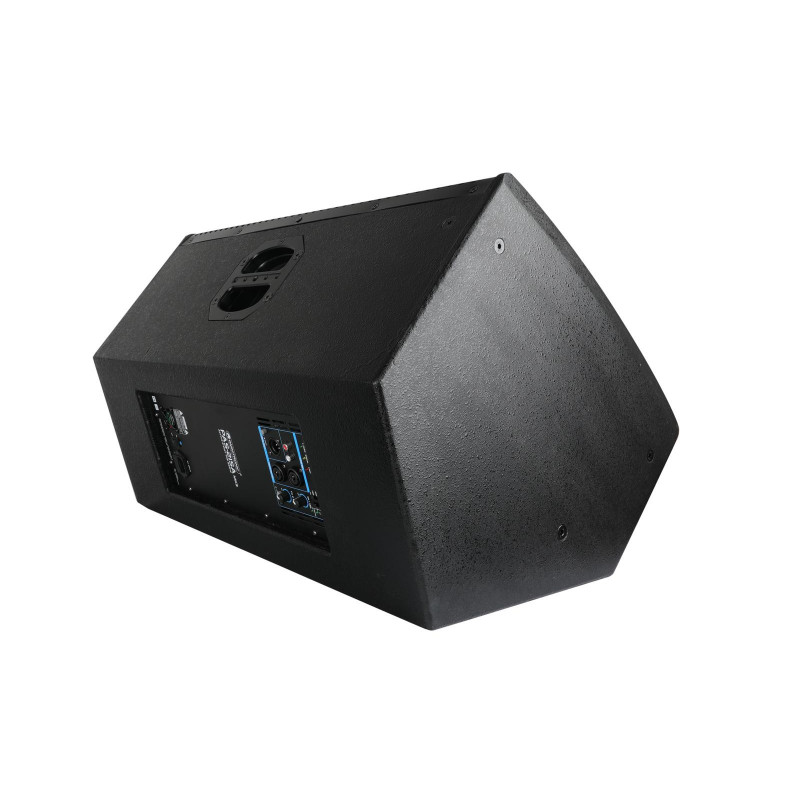

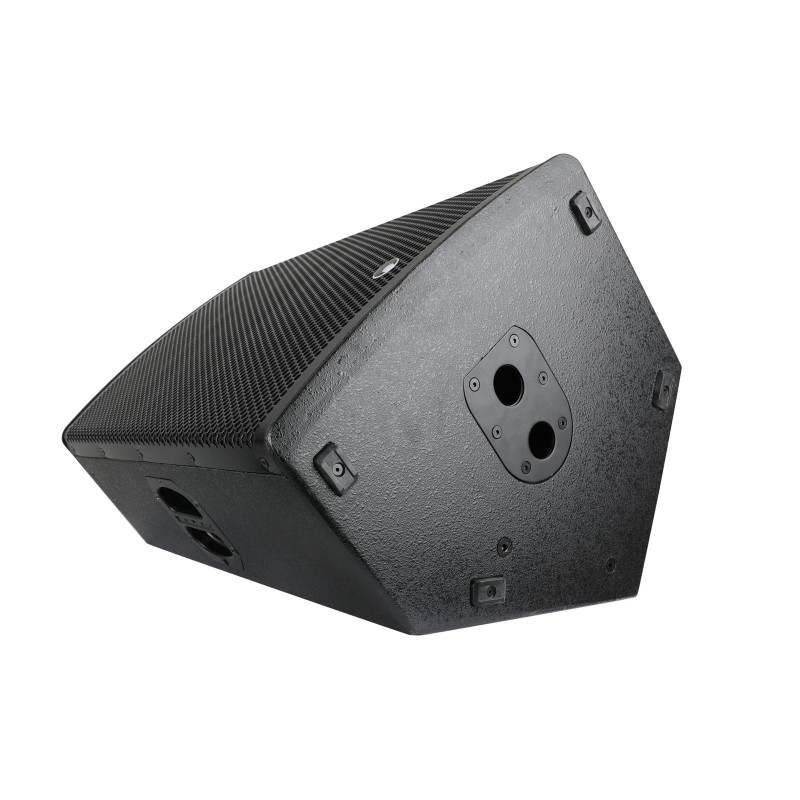

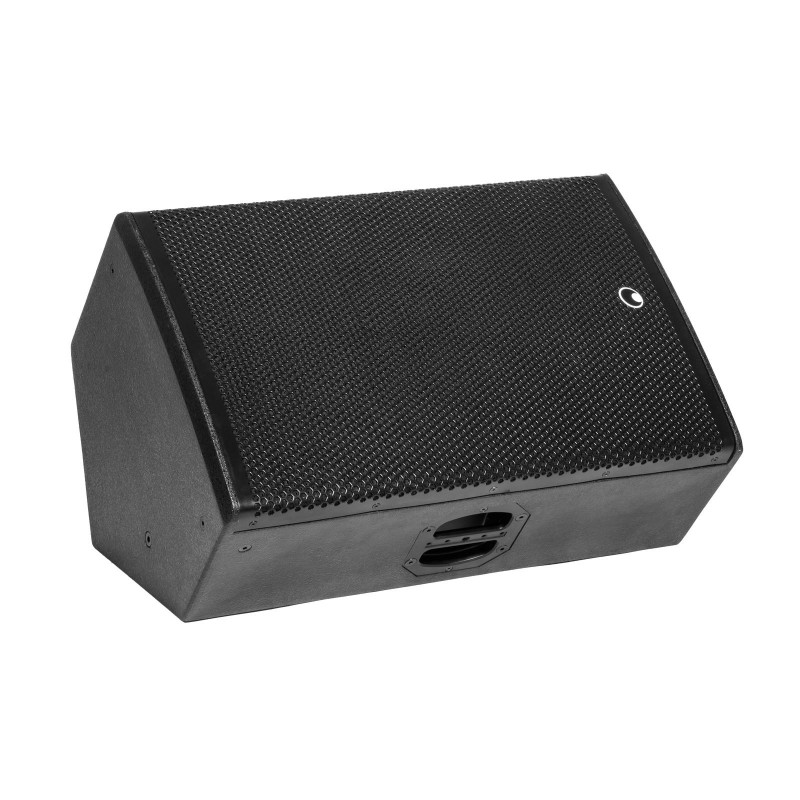

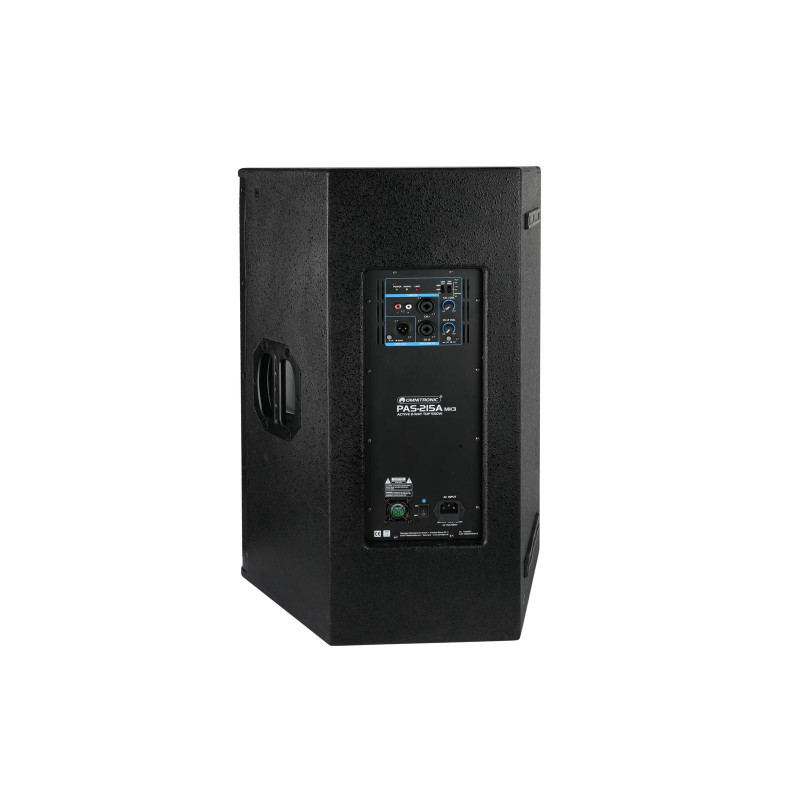

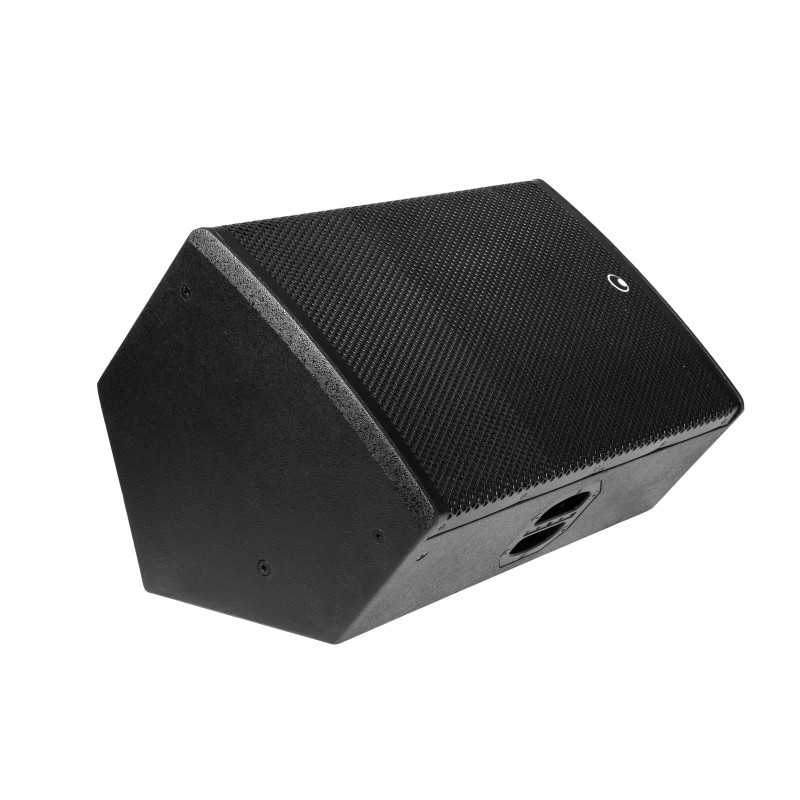

Omnitronic - PAS-215A MK3 2-Way Top, active, DSP
PAS-215A MK3 2-Way Top, active
PAS-215A MK3 2-Way Top, active, DSP
More info
Active 15" PA speaker with DSP presets, 2 input channels, 550 W RMS
- Active PA speaker system for touring applications and permanent installations

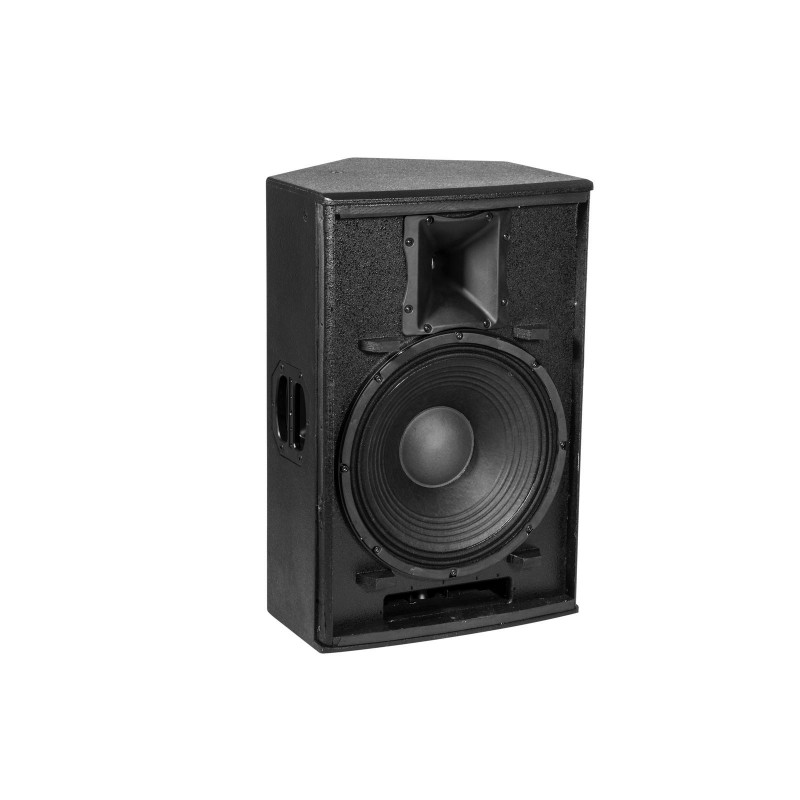

- 2-way bassreflex enclosure with 38 cm woofer and 2.5 cm compression driver
- DSP-controlled class D amplifier with 550 watts power
- 3 EQ presets with indicators (DJ, monitor, flat)
- Switchable low cut (120 Hz, 90 Hz)
- Switch-on delay and limiter for overload protection
- Limit, signal and power LED
- 1 adjustable line input via XLR/6.3mm combo jack and RCA
- 1 adjustable mic/line input via XLR/6.3mm combo jack
- XLR output for linking further active speaker systems, switchable CH 1/CH 2
- Optimized for combination with PAS subwoofers
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Scratch-resistant lacquer surface
- Aluminum alloy handlebars
- Impact-resistant steel grille with acoustic foam

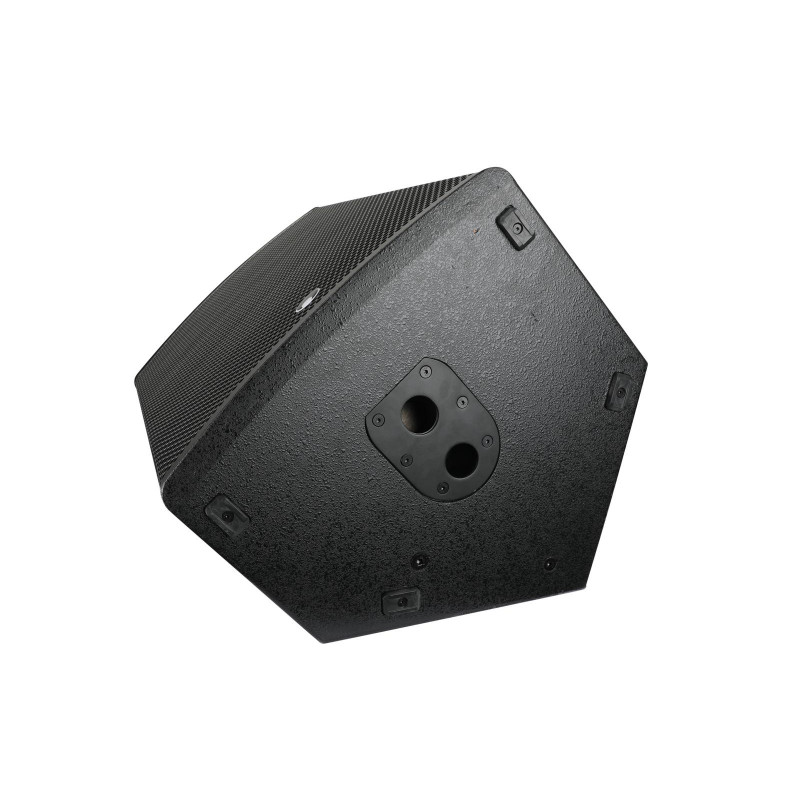

- M8/M10 threaded inserts for suspended installation
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
- DSP: Digital signal processor
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Output power: | 550 W RMS |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Frequency range: | 50 - 20000 Hz |
| Max. SPL: | 127 dB |
| DSP: | Digital signal processor |
| Dispersion angle: | 90° x 60° |
| Color: | Black painted |
| Attachment: | Flange system Ø 35mm variable tilt |
| Circuitry: | Class D |
| Connections: | Input: 2 x via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input: 1 x via Stereo RCA | |
| link: via 3-pin XLR | |
| input channels: | 1 x Mono with Mic/line button via XLR or RCA, channel control via Rotary knob |
| 1 x Mono with Mic/line button via XLR, channel control via Rotary knob | |
| Speakers: | 1 x Tweeter highs (1") approx 2,5 cm with Ferritmagnet basket material Aluminum |
| Voice coil tweeter (1.5") approx 4 cm | |
| Horn vent (1") approx 2,5 cm | |
| 1 x woofer (15") approx 38 cm | |
| Voice coil lows (3") approx. 8 cm | |
| Material: | Birch multiplex |
| Flying points: | 4 x M10; 6 x M8 |
| Width: | 45 cm |
| Height: | 43.5 cm |
| Depth: | 69.5 cm |
| Weight: | 26.00 kg |
