Omnitronic - XPA-1800...

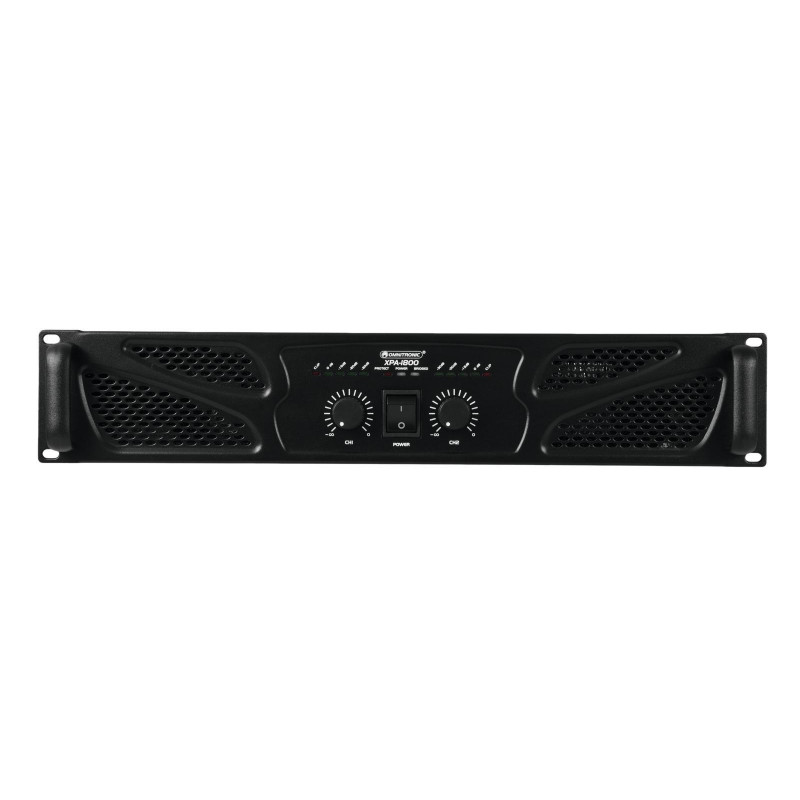

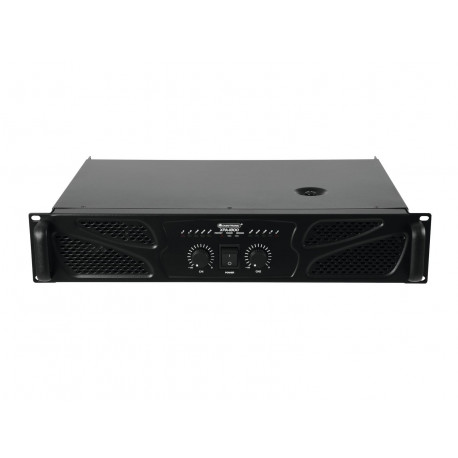

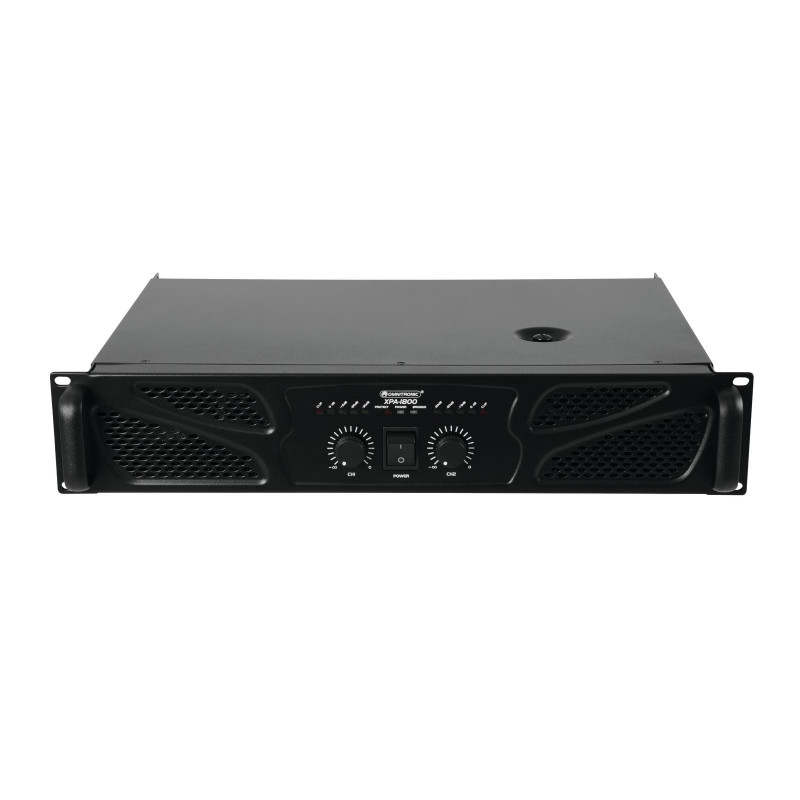

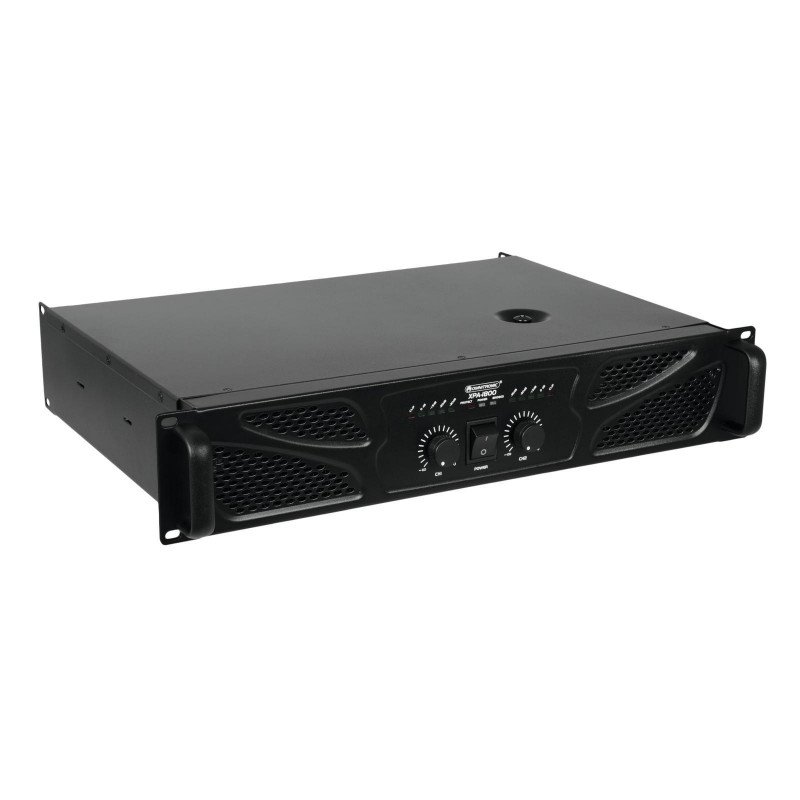

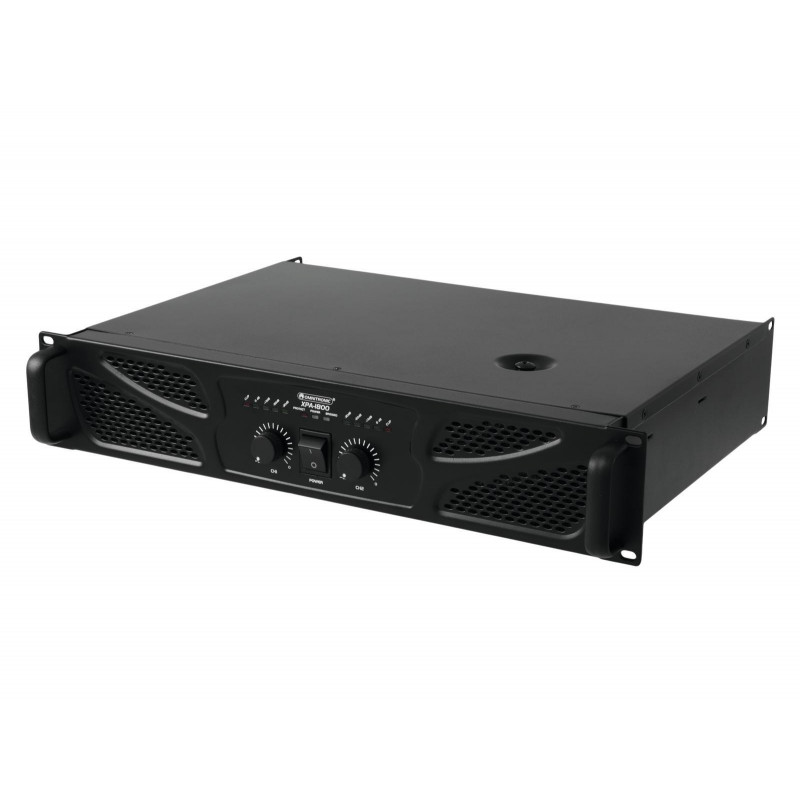

XPA-1800 Amplifier
-
Gonalca Percusion - 4025
BOMBO BANDA 66X34 CM QUADURA...
More info
PA amplifier with integrated limiter, 2 x 900 W / 4 ohms, 2 x 650 W / 8 ohms
- 3 operating modes can be selected (stereo, parallel or bridged)
- Input sensitivity adjustable
- Speaker switch-on delay
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
- Fan cooling
- Signal inputs via XLR or RCA connectors

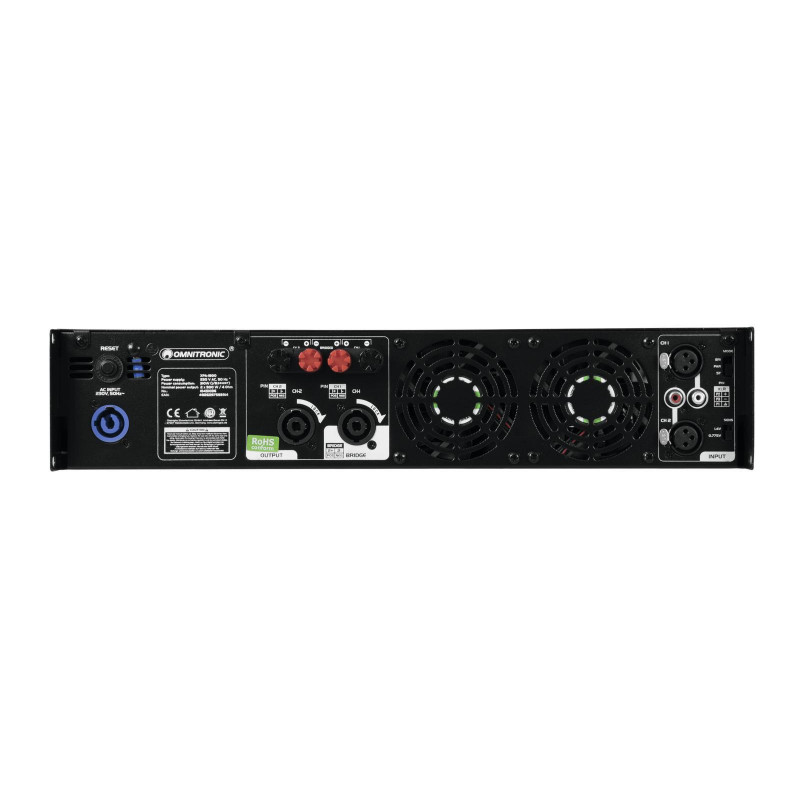

- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Class H circuitry
- Housing design: (19") 48.3 cm rack installation 2 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 765 W 1/8 power |
| Output power: | 2 x 900 W RMS (4 ohms) |
| 2 x 650 W RMS (8 ohms) | |
| 1800 W RMS bridged (8 ohms) | |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| Circuitry: | Class H |
| Connections: | Input: 2 x line via 3-pin XLR |
| Input: 1 x line via Stereo RCA | |
| Output: 2 x Speakers via Speaker built-in socket (f) | |
| Output: Speakers via screw terminal | |
| Input sensitivity: | ca. 0,775 V; ca. 1,4 V switchable |
| Distortion: | <0,5 % |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Width: | 48,3 cm |
| Height: | 8,9 cm |
| Depth: | 35,4 cm |
| Weight: | 13,70 kg |
| Damping factor: | >200 |
| Slew rate: | >10 V/µsec |
| Input impedance: | 20 kohms (balanced), 10 kohms (unbalanced) |
| Input connectors: | 2 x XLR, 2 x RCA |
| Output connectors: | 2 x speaker, 2 x pairs of screw terminals |
| Control elements: | power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector |
| LED indicators: | bridged, protect, and 5-fold output meter with clip LED (per channel) |
| Protection circuits: | short-circuit, overheat, DC voltage, power on/off transients, softstart |
| Construction: | steel chassis with steel front panel |
| Dimensions (DxWxH): | 354 x 483 x 103 mm (19", 2 U) |
