Palmer Pro - MACHT 402

MACHT 402

19" Stereo Power Amp for Guitar

481.67€%28.17 You save 135.67€
346,00 €

Add to wishlist

In Stock

Europe Warehouse: 230

More info

The Palmer MACHT 402 is a 19" stereo power amplifier specially designed for guitar applications. It pumps out 200 watts per channel and 400 watts bridged to drive virtually all speaker cabinets. Featuring a highly efficient switch mode power supply and low noise fan the soft start class D design is protected against overvoltage, DC, short circuits and overheating.

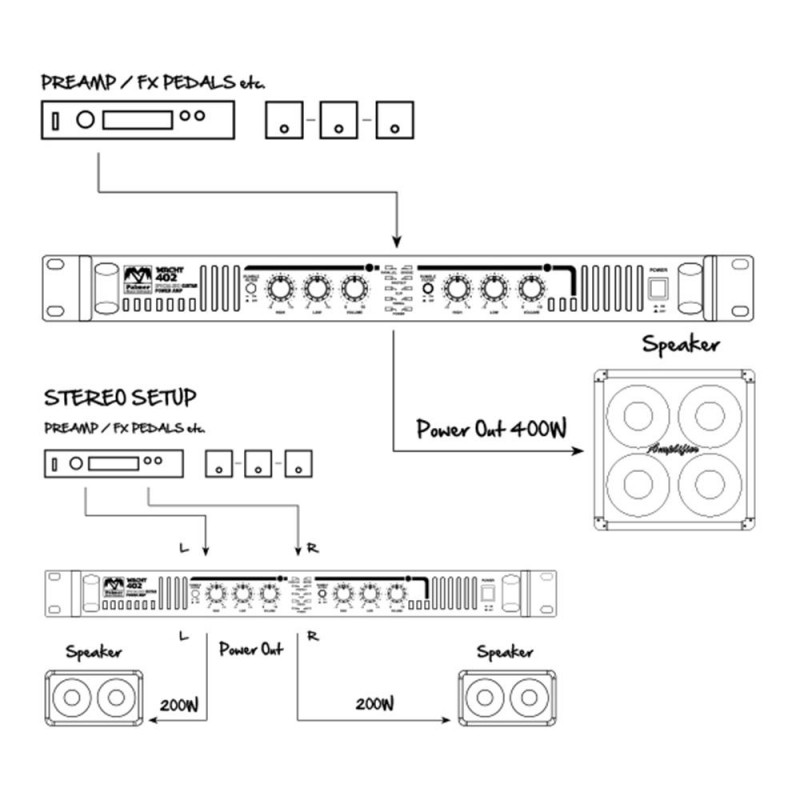

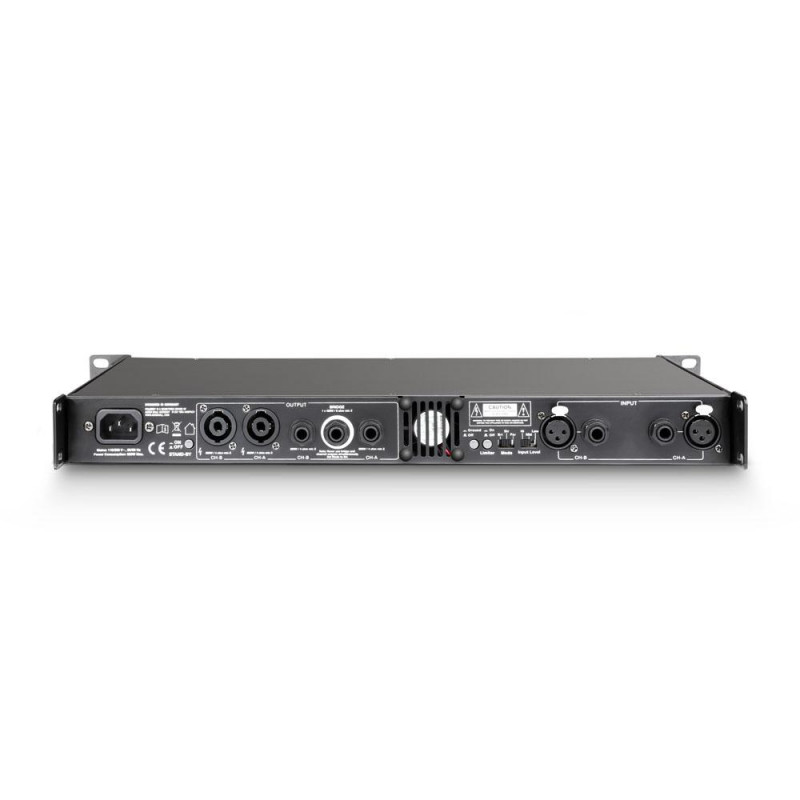

Conventionally named, the channels' Hi and Low controls have been carefully tailored for guitar signals to provide extensive EQ facility, a wide variety of sounds and authentic tube power stage characteristics. In addition, the MACHT 402 sports rumble filtering, LED indicators, a 3-way sensitivity selector, built-in limiter and ground lift switch. With XLR and 6.35 mm inputs as well as Speakon compatible and 6.35 mm output connectors the Palmer MACHT 402 is the ideal power station for guitar preamps, small amps, modelers and even effects pedals.

Attention:

The MACHT 402 is unsuitable for direct connection to a guitar. Please include a preamp, modeller or an effect pedal in between.

  • Stereo guitar power amplifier
  • 200 watts per channel into 4 ohms
  • 400 watts bridged for mono use
  • Carefully tailored, guitar-specific EQ
  • Input sensitivity selector for use with preamps, pedals etc.
  • Built-in limiter
  • All major protections
  • Works with virtually any cabinet(s)

Product typeGuitar Amplifiers
Rated ouput power (1kHz @ 4 Ohms)2 x 200 W
Rated ouput power (1kHz @ 8 Ohms)2 x 100 W
Rated ouput power (1kHz @ 8 Ohms, bridged)400 W
Output circuitryClass D
Frequency response20 - 20000 Hz
Total Harmonic Distortion (THD)< 0.1 %
Gain32 dB / 26 dB / 28 dB
Input sensitivity0,68 V / 1,4 V / 1,2 V
Protection circuitsDC, over-current, short circuit, soft start, thermal overload

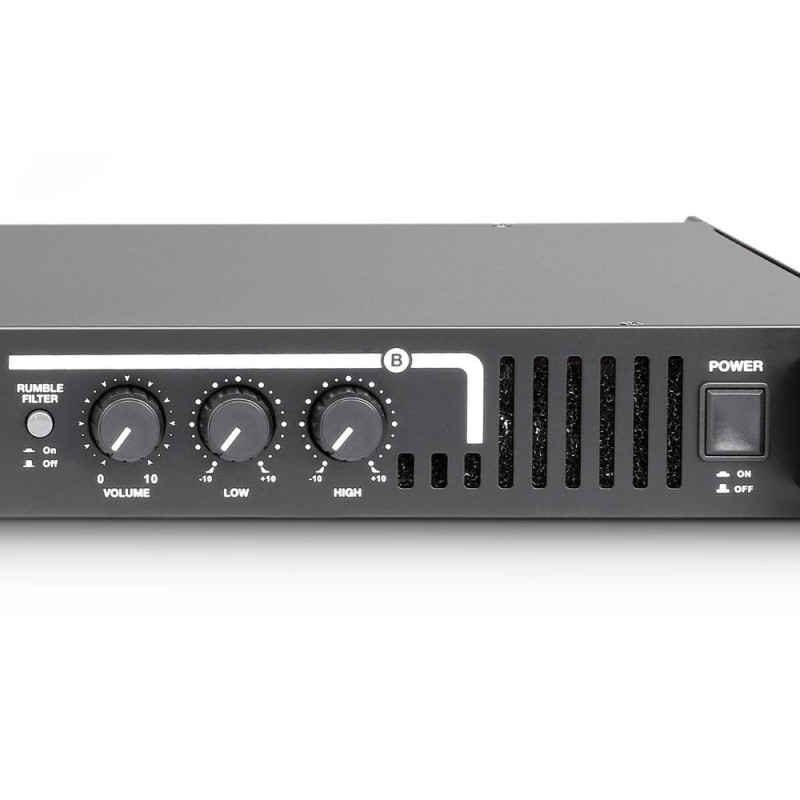

Controlsground lift, high, limiter, low, Mode, On / Off, Sensitivity, volume

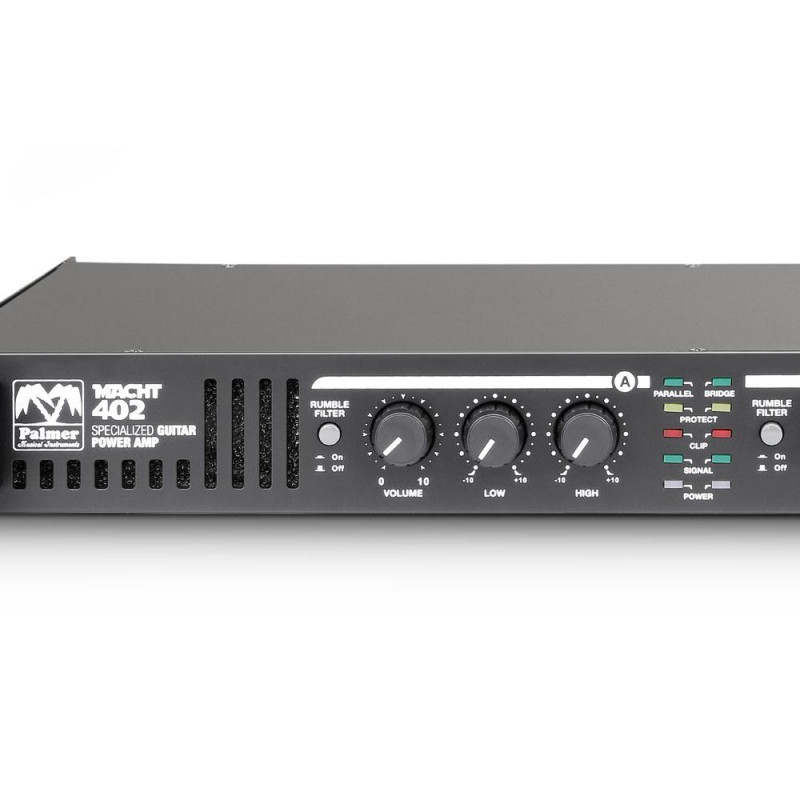

Indicatorsclip, Mode, Power, Protect (protection circuit engaged), Signal
Line inputs2

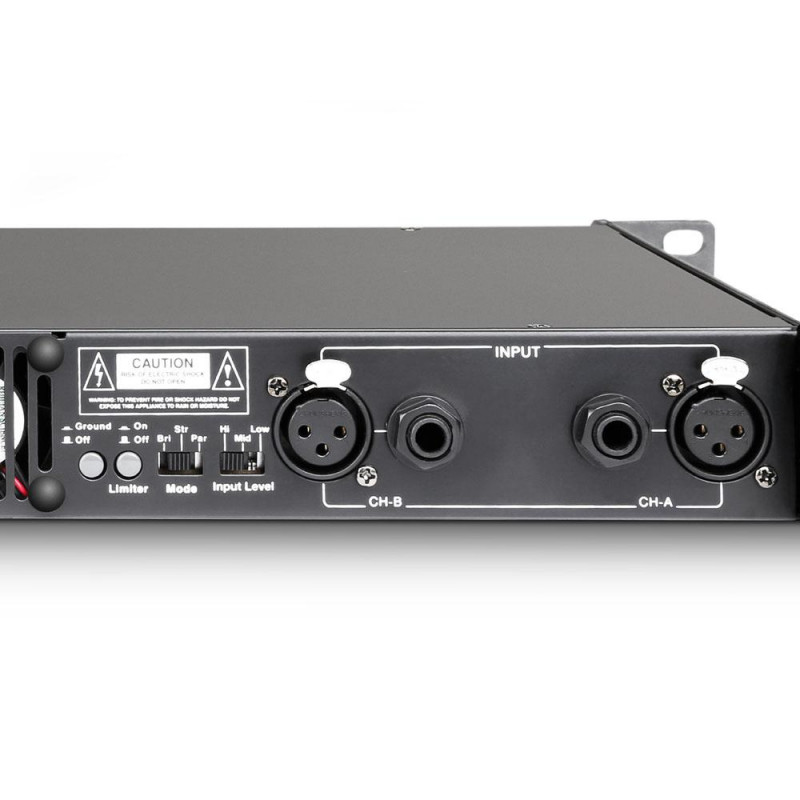

Line input connectors6.3 mm jack, RCA
Loudspeaker outputs2

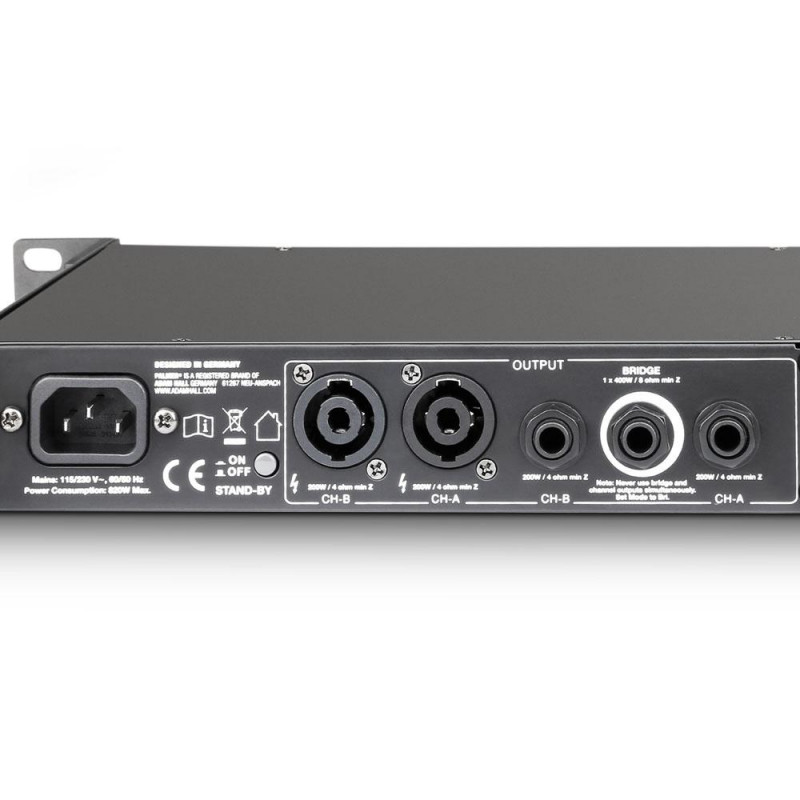

Speaker output connections6.3 mm jack, Speakon compatible
Coolinglow-noise fan
Operating voltageSwitching power supply, 115 V AC / 230 V AC (switchable)
Power consumption @ full load470 W
Operating voltageSwitching power supply, 115 V AC / 230 V AC (switchable)
Width482 mm
Height44 mm
Depth244 mm
Weight3,8 kg

PMACHT402_PalmerMI_Bedienungsanleitung_DE_EN_FR_ES.pdf
