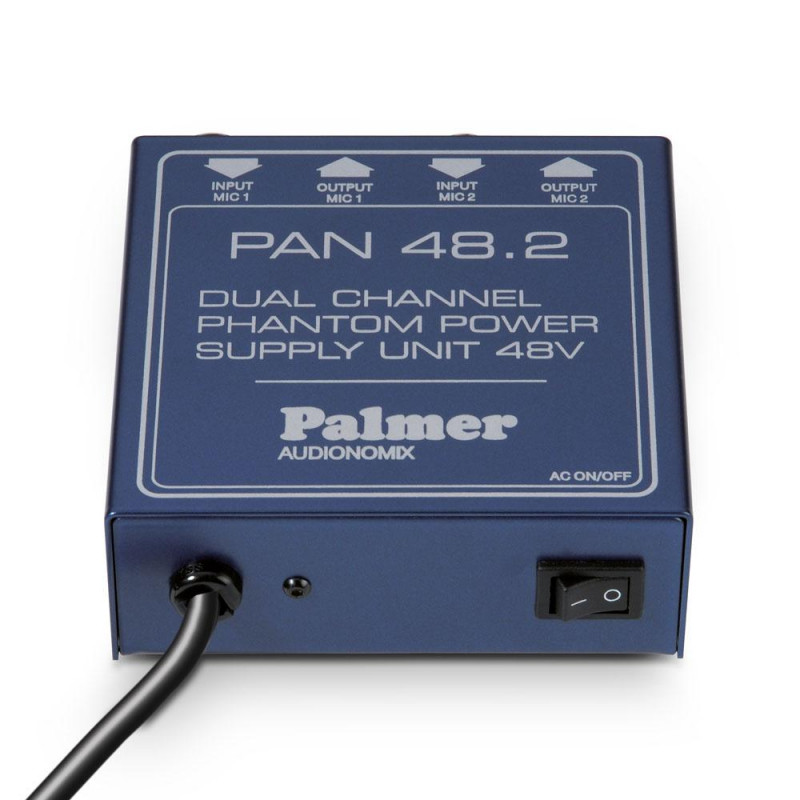

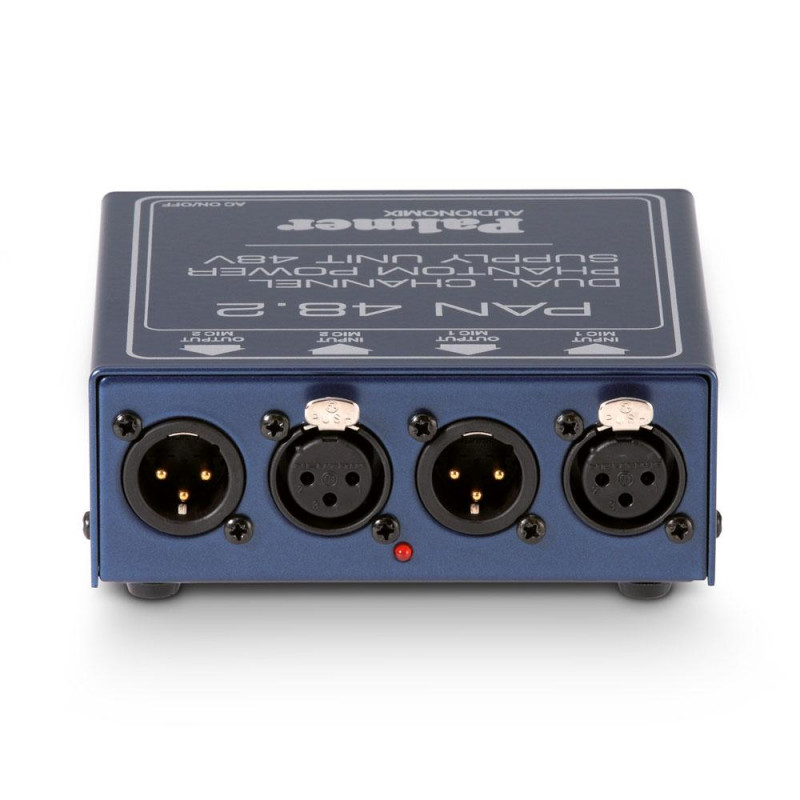

Palmer Pan 48 is a unit for the external power supply of phantom powered appliances. Due to the high current level of a maximum of 20mA, the application is not just limited to condenser microphones. PAN 48 is excellent for supplying phantom powered active DI-boxes. The box has two channels. Specifications: 2 channels, each channel: Microphone input: XLR/f Pin 2 & 3 +48VDC, Pin 1 Ground Output: XLR/m no DC voltage Ground lift switch Phantom power stabilized ±5%. Low ripple, low noise Max. current 20mA totally. LED control. Metal casing
