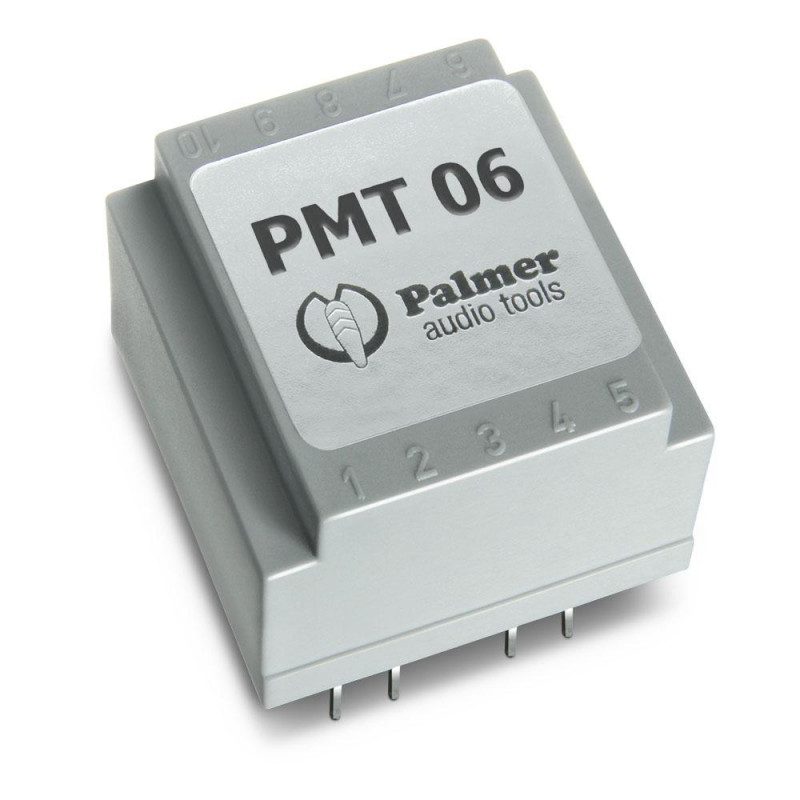

Balancing Split Transformer for Line...
Studio level line isolating and split transformer. Inputs and outputs work with balanced and unbalanced lines. Electrostatic shieldig, mu-metal shielding on request. PCB mount, PCB for 2 x PMT-06 available (#PCB-06). Technical specifications: Ratio 1 : 1 + 1 Nominal impedance input and outputs: 600 ohms Frequency range: 30 Hz - 20 kHz, +/- 0,5 dB Level: + 20 dB max. Dimensions: (without pins): 35 x 34 x 25 mm
Product type | Audio Transformers |
Ratio | 1:1 + 1 |
Source impedance | 600 Ohm(s) |
Load impedance | > 600 Ohm(s) |
Max. level | + 20 dB |
Frequency response | 30 - 20000 Hz |
PCB | PCB06 |
Dimensions | EE32 mm |
application | line isolator, line split |
Weight | 0,108 kg |
