Palmer Pro - STUDIMON 5

STUDIMON 5

Powered 5" Reference Nearfield Studio Monitor

267.54€%30.48 You save 81.54€
186,00 €

Add to wishlist

In Stock

Europe Warehouse: 230

More info

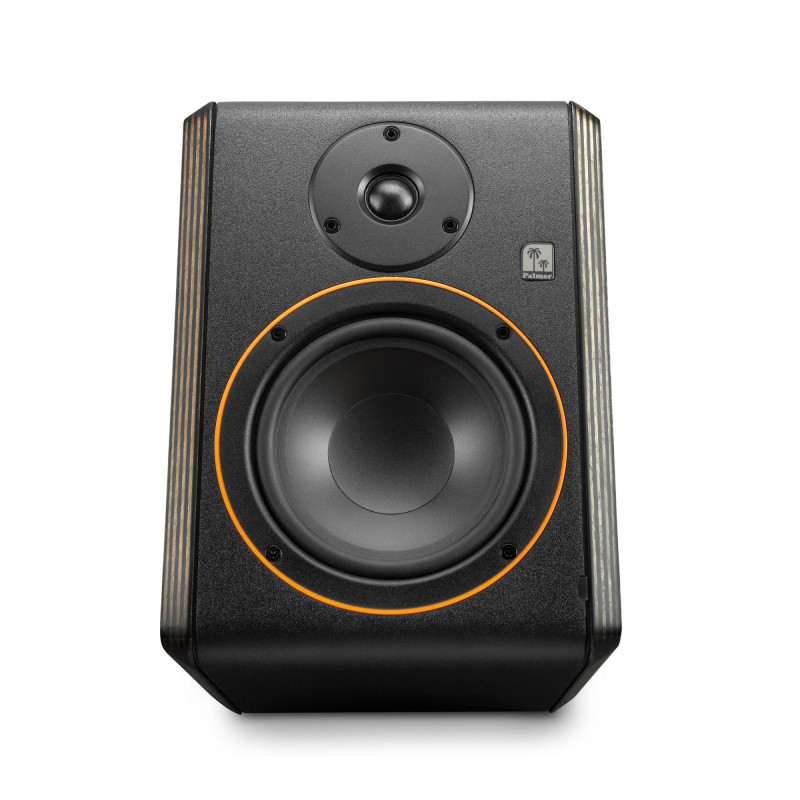

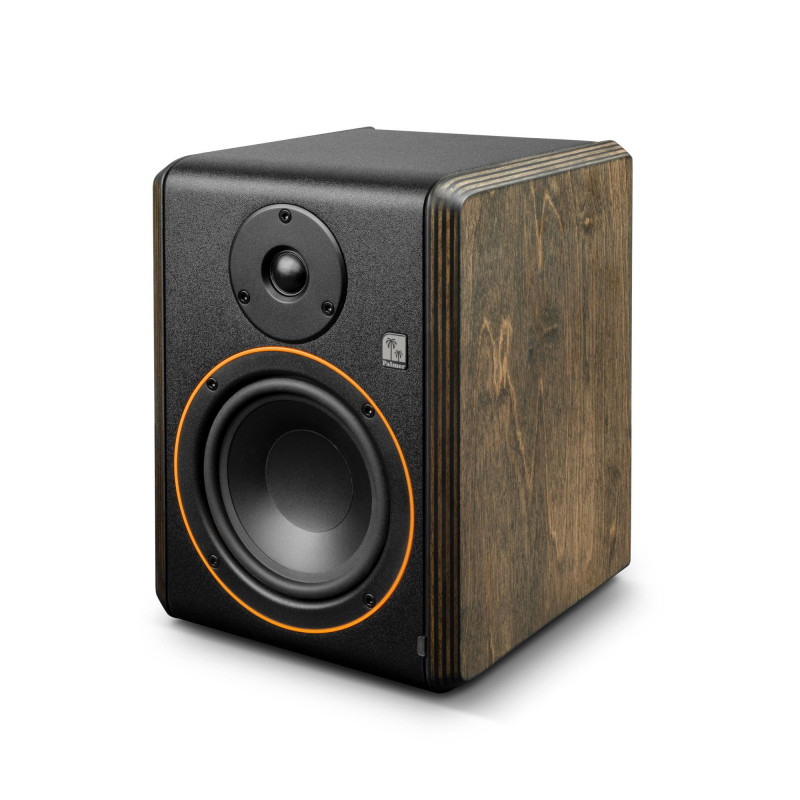

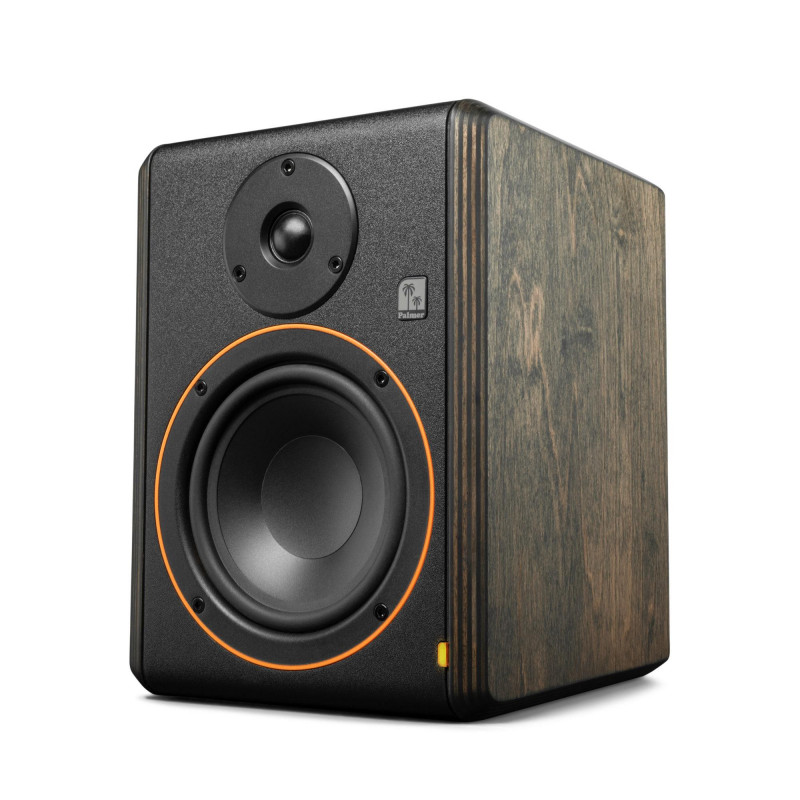

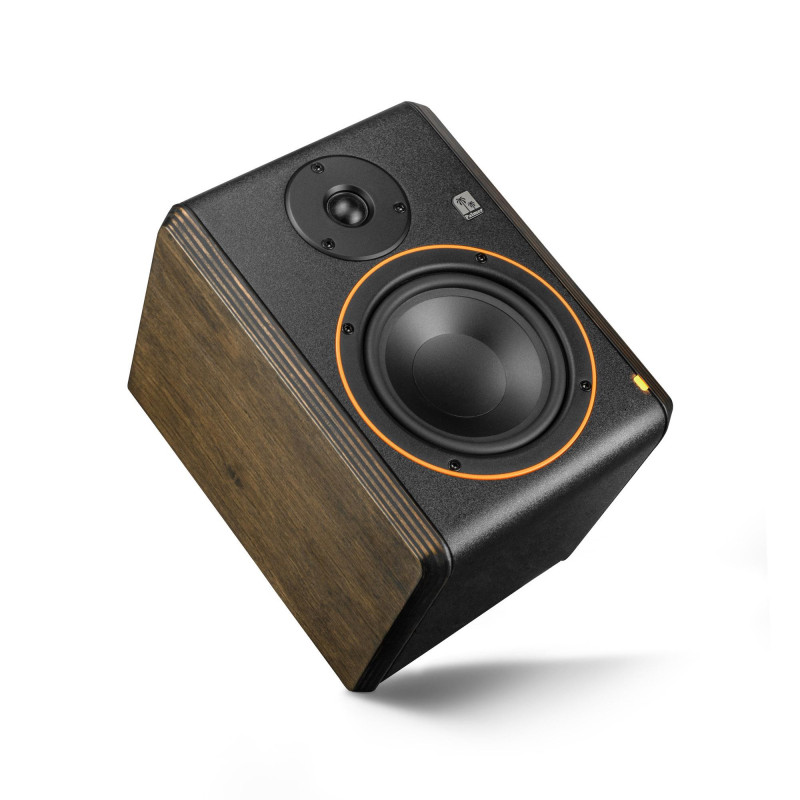

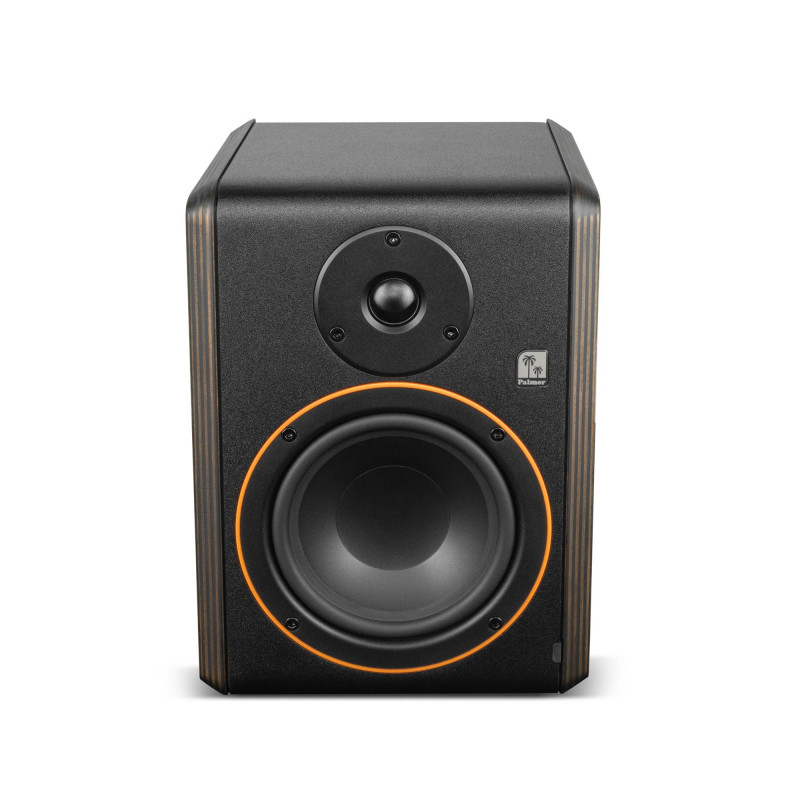

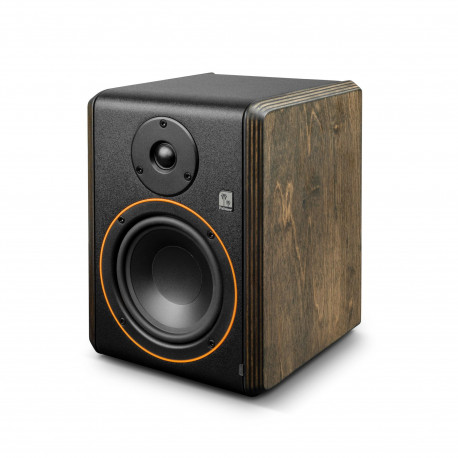

Active 5" nearfield reference-class studio monitor

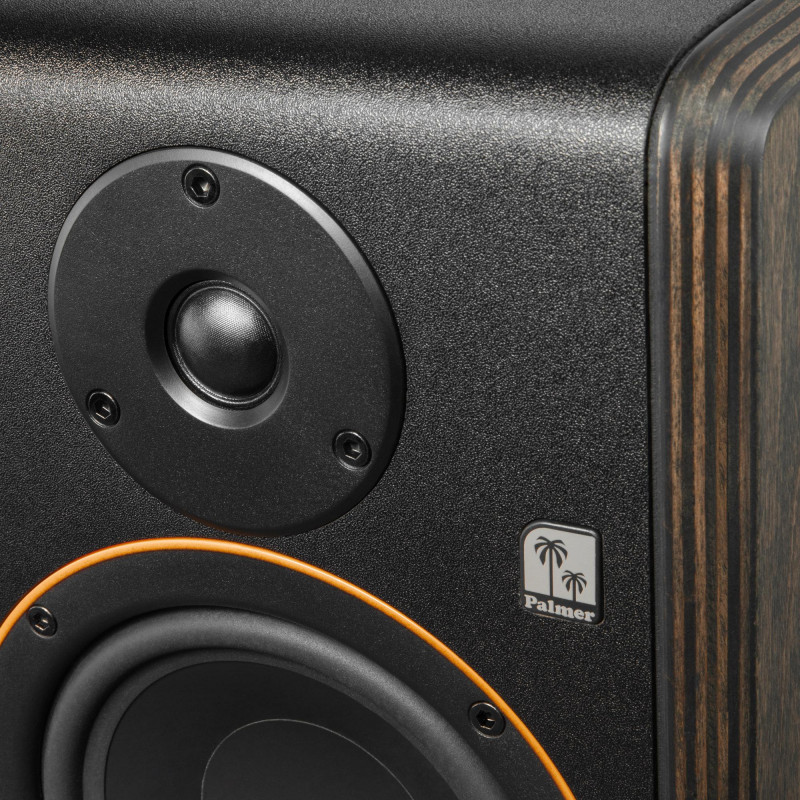

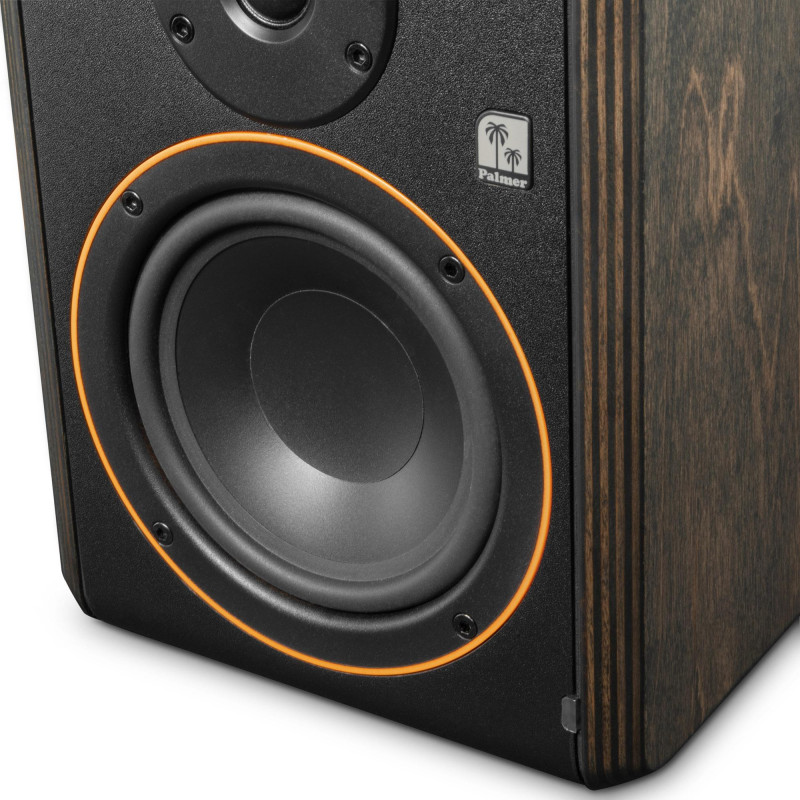

A basic requirement for any studio is that the mix is accurate and that it's reproduced with the highest possible dynamics and impulse fidelity. The STUDIMON 5 from Palmer is a reference-class nearfield studio monitor with a bi-amping power amplifier. Drawing on two 30-watt class-AB power amplifiers, the STUDIOMON 5 delivers incredible sound despite its compact design. The studio monitor is fitted with a magnetically shielded 5" woofer with rubber surround and a 0.75" tweeter with silk dome, and features a rear reflex aperture for optimal deep bass reproduction. Balanced XLR and 6.35 mm stereo jack inputs guarantee disruption-free signal transmission, while a practical volume controller rounds off the loudspeaker's features. The elegant design of the STUDIOMON 5 seamlessly complements MONICON series products from Palmer.

  • 5" woofer and 0.75" soft dome tweeter
  • Bass reflex design
  • 60-W RMS bi-amping power amplifier
  • 70 Hz to 20 kHz frequency response

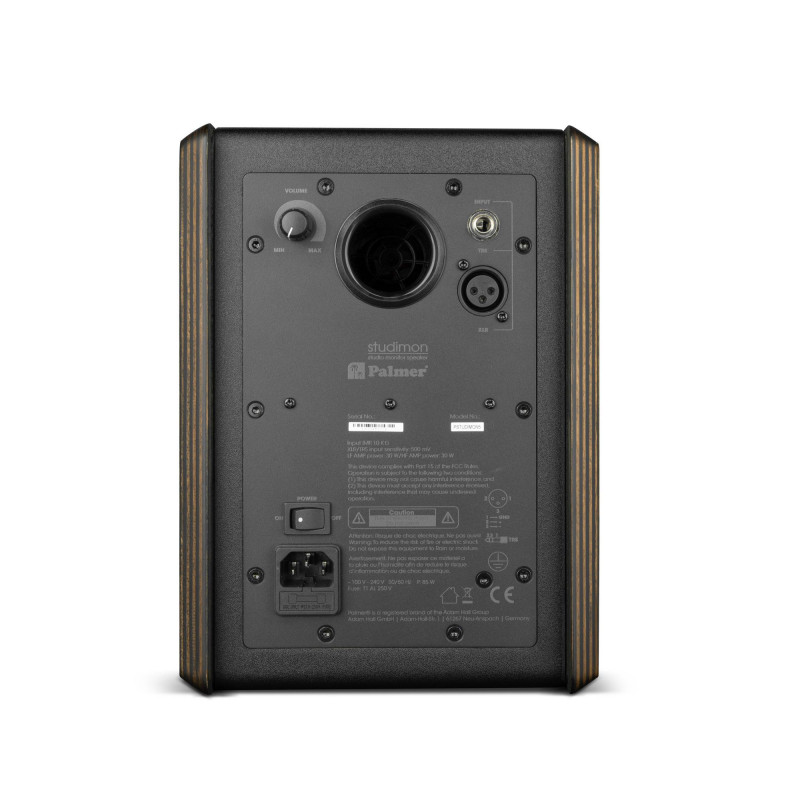

  • Balanced XLR and 6.35 mm stereo jack input
  • Compact design
  • Elegant and robust housing

Product typeOther Studio and Recording Equipment
TypeStudio monitor
Low/mid driver dimensions5 "
Woofer size127 mm
Woofer magnet80 mm Ferrit
Woofer brandCustom-made
HF driver dimensions0.75 "
HF Driver Size19 mm
HF driver magnet28 mm Neodym
HF driver brandCustom-made
Power amplifier (Class A)Class A/B
Dispersion (H x V)120 ° x 120 °
RMS2 x 30 W
Frequency response70 - 20.000 Hz
Crossover frequency2500 Hz
Max. SPL110 dBU @ 1 kHz dB
Signal-to-noise ratio85 dB
Protection circuitsOvertemperature, short circuit
Input impedance10,000 Ohm(s)
Controlsmains switch (on/off), volume control
Indicatorsorange (LED)
Line input connectors6.3 mm stereo jack (balanced), XLR (balanced)
Operating voltageSwitching power supply, 100 V AC - 240 V AC, 50 - 60 Hz
Cabinet materialBirch Plywood, MDF
Housing Wall Strength15 mm
Cabinet surfaceLaminated, stained
Cabinet colourBlack
Cabinet constructionBass Reflex
Width190 mm
Height268 mm
Depth215 mm
Weight3,95 kg
Accessories (included)Power cord

PSTUDIMON5_Palmer_Users_Manual_EN_DE_FR_ES_PL_IT.pdf
