Powerdynamics - PDM-S2004

PDM-S2004

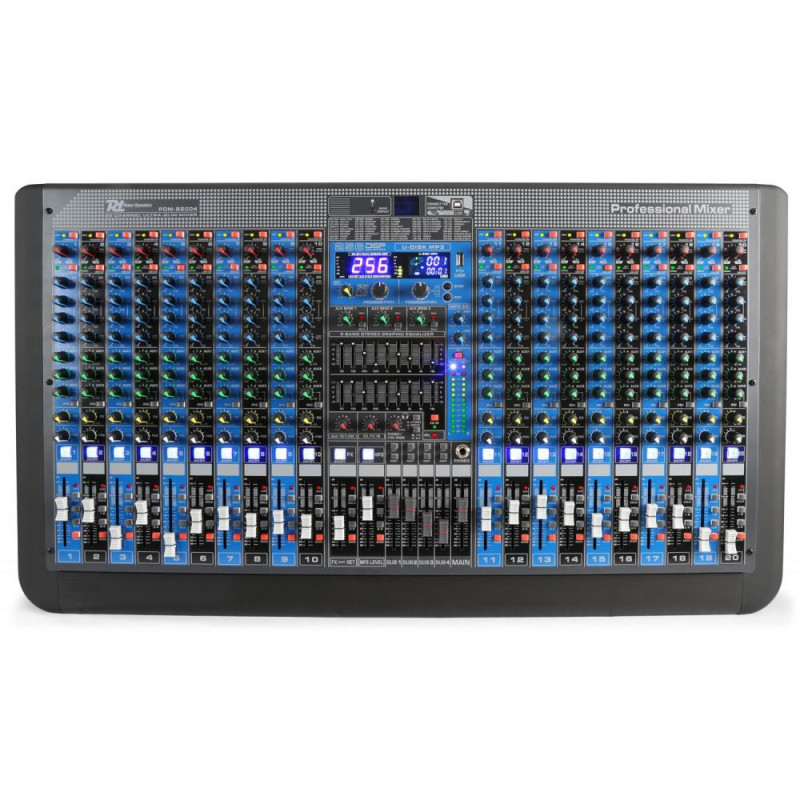

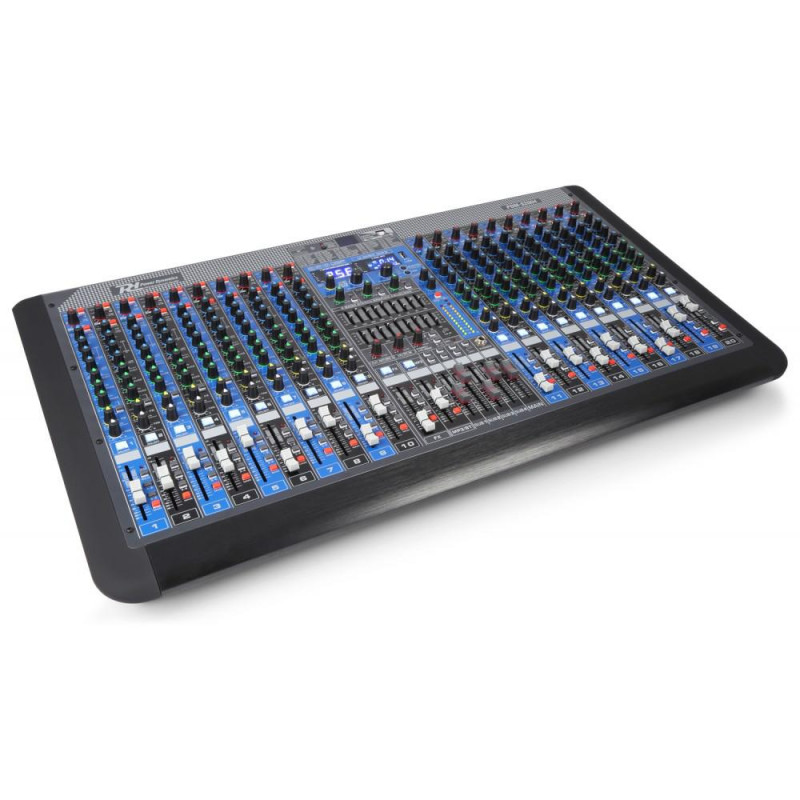

PDM-S2004 20-Channel Dual Function Mixer

759,00 €

-

In Stock
Usually ships in 1 - 3 business days.

More info

Details

A 20 channel professional dual function mixer split in 10 channels per side. Perfect for use on live stage setups, houses of worship or other multi-input venues.
  • 20 Mono microphone-/line inputs balanced (XLR + 6.3mm Jack)
  • Built-in stereo USB/Audio Interface to connect directly to your computer
  • +48V phantom power with individual preamp per channel
  • 75Hz Low cut filter per channel
  • Multi-FX processor with 256 presets
  • Solo switch per channel (PFL)
  • On/off switch per channel
  • Hi, Mid and Low control for each channel
  • Adjustable Mid frequency per channel
  • 3 Aux sends per channel (1 pre-/2 post fader)
  • Adjustable FX, Pan, Trim per channel
  • Dual 9-band Equalizer
  • Stereo main outputs balanced (XLR + 6.3mm Jack)
  • 4 Assignable Subgroup outputs (6.3mm Jack)
  • Separate control room, headphones and stereo rec outputs
  • Built-in USB player with digital display
  • BT-receiver for audio streaming
  • LED VU meter and Peak LED's

Additional Information

Frequency response10Hz -45kHz (±3dB)
THD<0.01%
DSP Resolution24-bit
Type of effectsHall, Room, Chapel, Plate, Spring, Gated rev, Reverse, Early refl, Ambience, Stadium, Delay, Echo, Gate, Chorus, Flanger, Phaser, Pitch, Reverb, Leslie, Flang, Ping pong delay
Presets256
Signal to noise ratio>112dB
Output level+/- 1V
Input:Line+/- 150mV
Input:Mic+/- 1.5mV
Power supply100-240VAC / 50-60Hz
Dimensions450 x 775 x 145mm
Weight10.4kg
