The HR-31S is a premium true diversity system in the UHF spectrum that can fully exploit its strengths, in particular in connection with the RWW software. The transmission takes place either in the professional switchable band 731-790 MHz or in the license-free range 823-832 MHz. The other features also convince: quick setup via infrared andan exceptionally long service life of the transmitter from up to 15 hours on just one set of batteries.

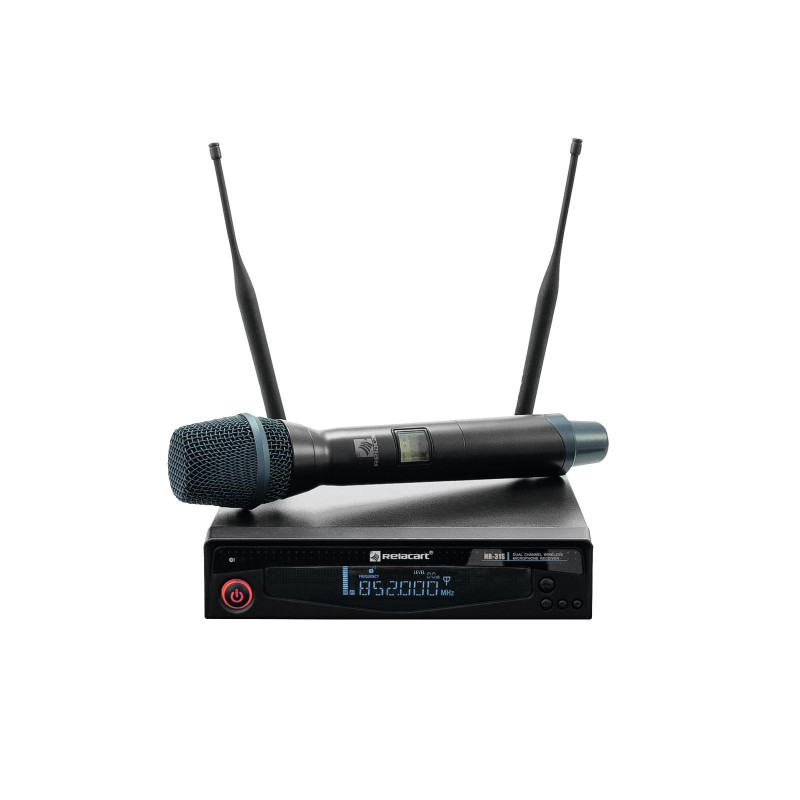

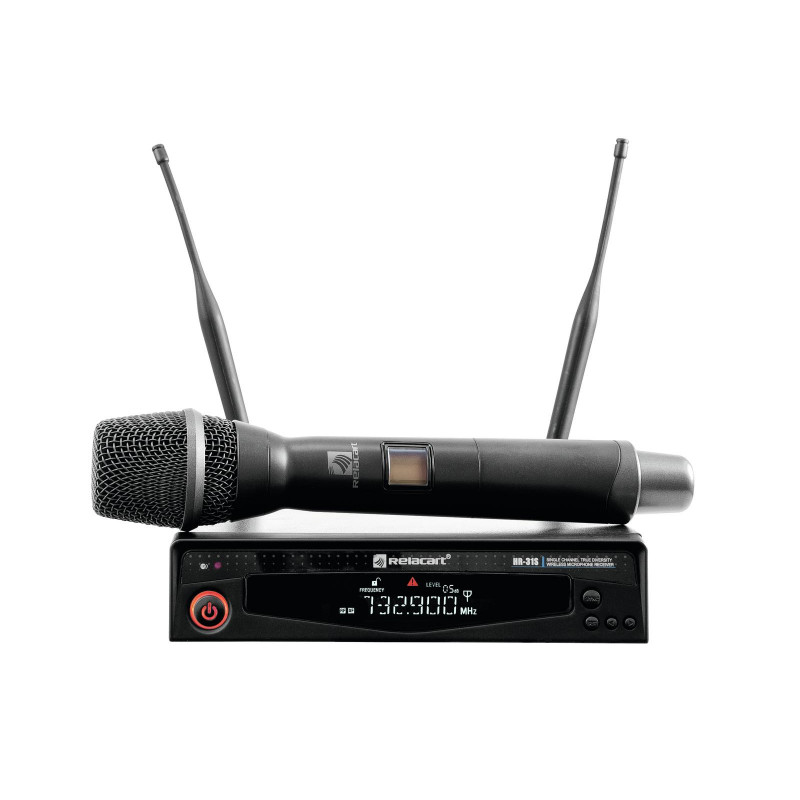

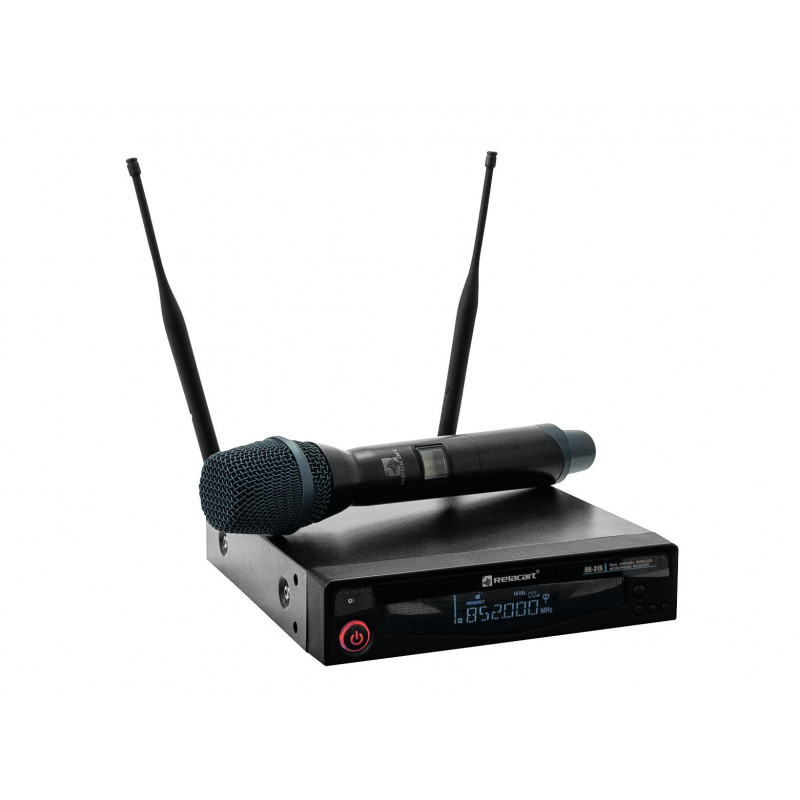

Wireless microphone system with PC control, 731-790 + 863-865 MHz

• Multifrequency wireless receiver with high-quality true diversity reception
• Dynamic hand-held microphone with ergonomic aluminum alloy housing and OLED display, applicable for touring
• Real-time monitoring and data management using RWW PC software
• 2 license-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Parallel operation of up to 16 systems is possible without any interference
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• Operation range with line of sight approx. 80 meters
• Long battery life for up to 15 hours continuous operation
• Automatic frequency scan (AFS) finds interference-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
• Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
• Several units can be cascaded with network cables
• Lock function avoids accidental changing of settings
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider

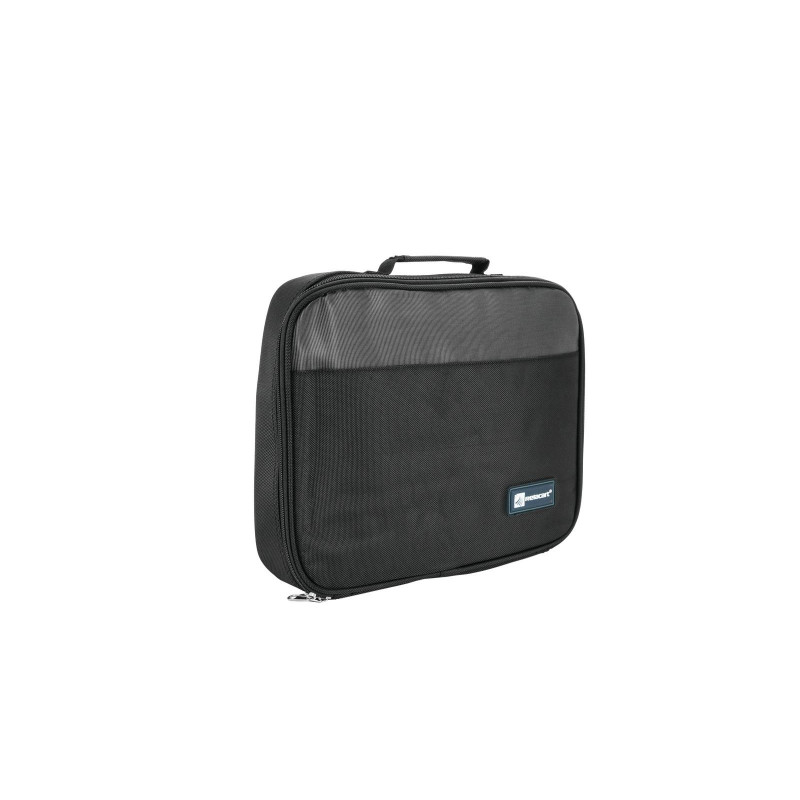

• Delivery includes practical transport bag with jack cable and power unit
• Durable metal housing
• 483 mm rack installation possible with supplied mounting brackets
• Microphone directly compatible with Shure's SM58 capsule
• Receiver and microphone also available separately
• License-free and approved in large parts of the EU (please check on a country-by-country basis)

13055200 RELACART HR-31S 1-Channel True Diversity Receiver

True diversity wireless receiver with PC control

• Multifrequency wireless receiver with high-quality true diversity reception
• Real-time monitoring and data management using RWW PC software
• 2 license-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Parallel operation of up to 16 systems is possible without any interference
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
• Up to 32 units can be linked with network cables
• Lock function avoids accidental changing of settings
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching transmitters optionally available: hand-held microphone (HR-31S), pocket transmitter (T-30)
• Delivery includes practical transport bag with jack cable and power unit
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• PC connect: Relacart software via RJ14 (F) mounting version
• Housing design: Desktop console 1 U; (19") 48.3 cm rack installation included

13055201 RELACART H-31 Microphone for HR-31S system

Hand-held microphone with PLL multifrequency transmitter

• Dynamic hand-held microphone with UHF pilot tone technology (PLL)
• Ergonomic aluminum alloy housing, applicable for touring
• Matches receiver HR-31S
• 2 different frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• OLED display for battery status, frequency and channel
• Mute function
• RF output power Hi/Low adjustable
• Gain level Hi/Mid/Low adjustable
• Directly compatible with Shure's SM58 capsule
• Long battery life for up to 15 hours continuous operation
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Polar pattern: Cardioid

Type:	Wireless set
Weight:	2,4 kg
13055200 RELACART HR-31S 1-Channel True Diversity Receiver
Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC
Power consumption:	3,5 W
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Number of channels:	1
Frequency range:	45 - 18000 Hz
S/N ratio:	>108 dB

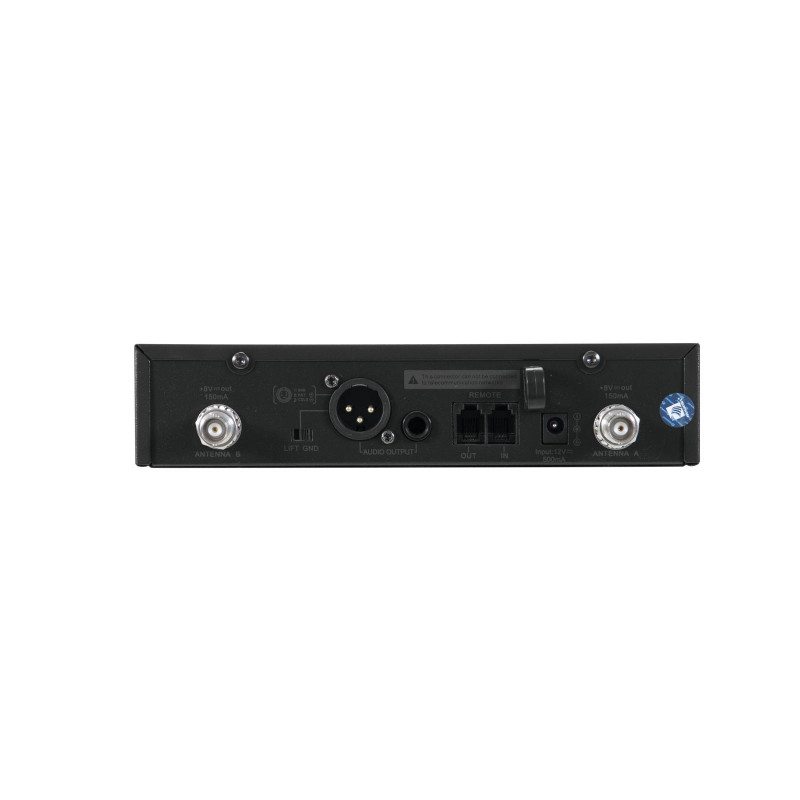

Connections:	2 x Antenna via BNC (F) 8 V
	Output: 1 x line via 3-pin XLR
	Output: 1 x line via 6.3 mm jack socket (stereo) mounting version
	link: 2 x via RJ14 (F) mounting version
Frequency band:	UHF 823 - 832 MHz; UHF 731 - 790 MHz
Frequency selection:	292 Switchable frequencys in 10 groups with up to 25 preset frequencies each and
	in 8 groups with up to 7 preset frequencies each
Modulation:	FM
Frequency stability:	± 0,0005 %
Range:	80 m with line of sight
Switching bandwidth:	68 MHz
switch:	on/off switch
Material:	Metal
PC connect:	Relacart software via RJ14 (F) mounting version
Housing design:	Desktop console 1 U; (19") 48.3 cm rack installation included
Width:	20 cm
Height:	4,3 cm
Depth:	26 cm
Weight:	1,89 kg
13055201 RELACART H-31 Microphone for HR-31S system
Type:	Transmitter
Power supply:	3 V DC
Power connection:	Battery/battery pack
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Color:	Black
Frequency band:	UHF 823 - 832 MHz; UHF 731 - 790 MHz
Frequency selection:	292 Switchable frequencys in 10 groups with up to 25 preset frequencies each and
	in 8 groups with up to 7 preset frequencies each
Modulation:	FM
RF power output:	50 mW
Range:	80 m with line of sight
Switching bandwidth:	68 MHz
switch:	on/off switch; Mute control
Material:	Aluminum
Length:	26,5 cm
Diameter:	5,3 cm
Weight:	0,29 kg
