The UR-222S is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.

Multifrequency wireless receiver with true diversity

• Multifrequency wireless receiver with high-quality true diversity reception
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free reception
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal

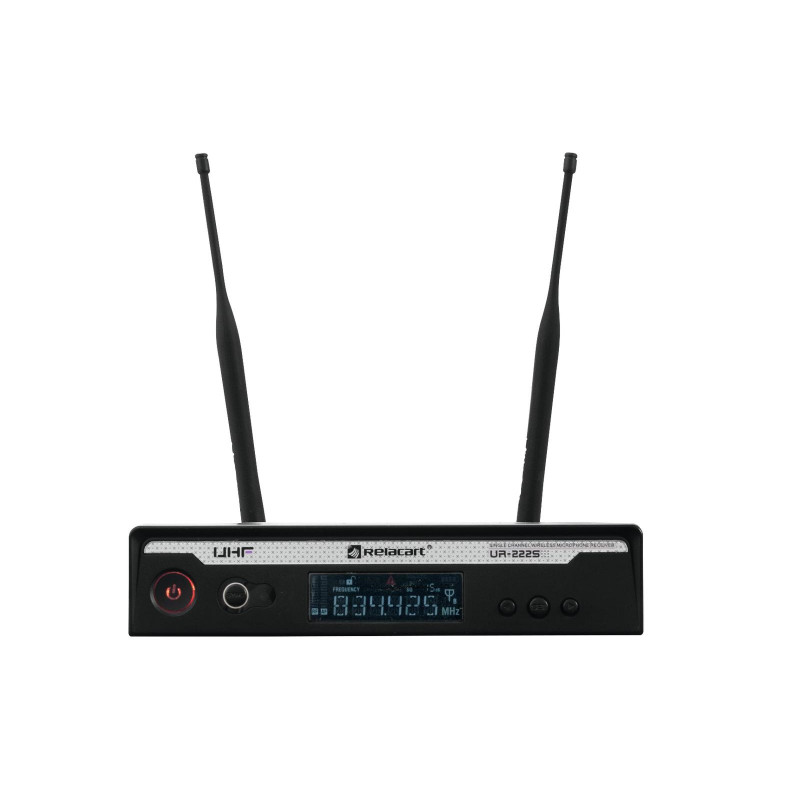

• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency

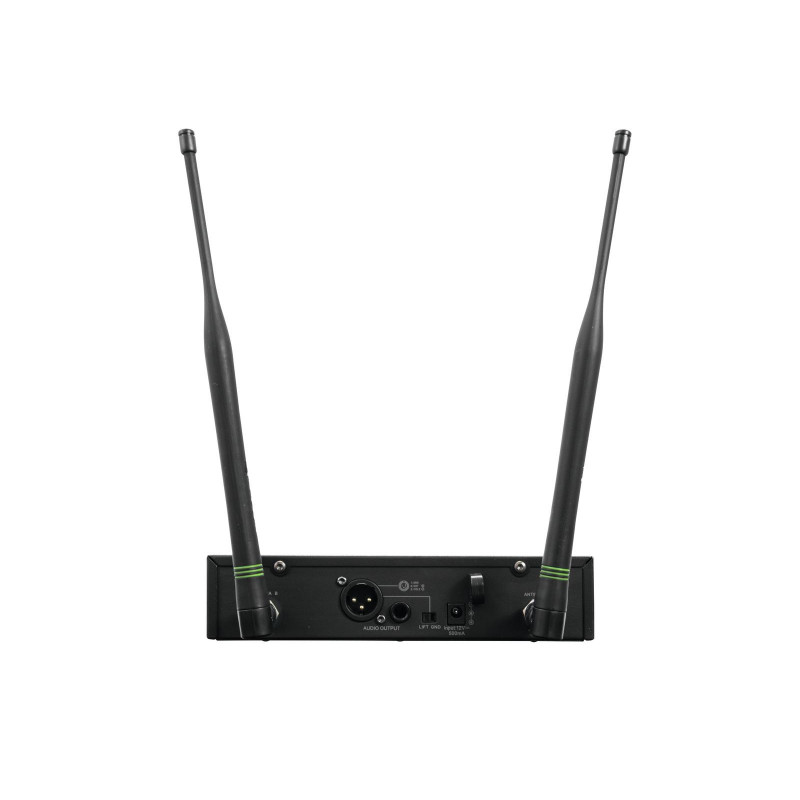

• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching transmitters optionally available: hand-held microphone (UH-222S, UH-222D ), pocket transmitter (UT-222)

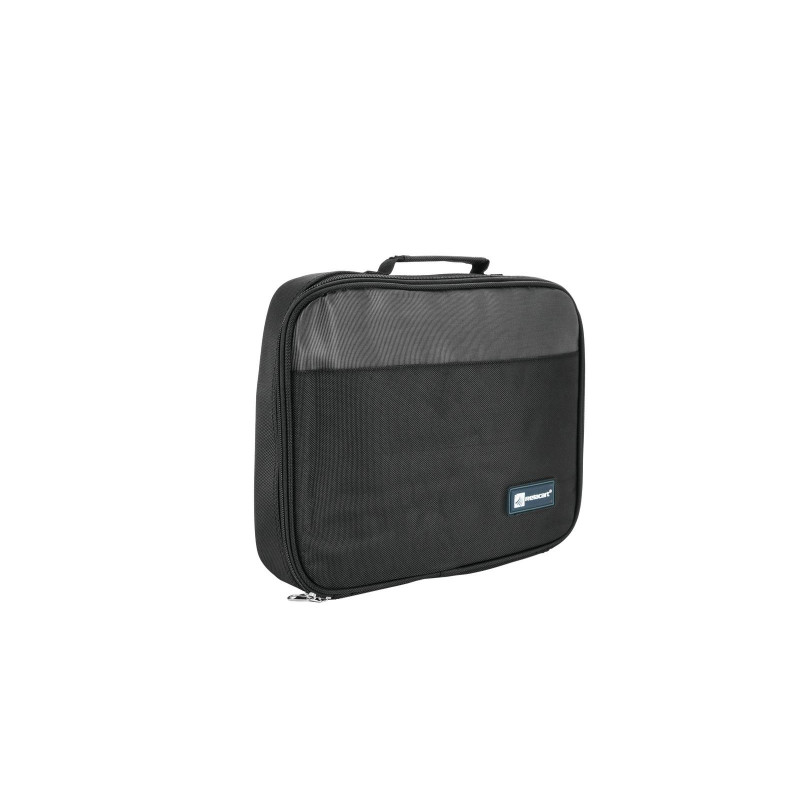

• Delivery includes practical transport bag with jack cable and power unit
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Housing design: Desktop console 1 U; (19") 48.3 cm rack installation (provided)

Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	2,6 W
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Number of channels:	1
Frequency range:	45 - 18000 Hz
S/N ratio:	>105 dB
Connections:	2 x Antenna via BNC (F) 8 V
	Output: 1 x Microphone via 3-pin XLR
	Output: 1 x Microphone via 6.3 mm plug (unbal.)
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:	90 Switchable frequencys in 10 groups with up to 10 preset frequencies each
Modulation:	FM
Frequency stability:	± 0,0005 %
Range:	80 m
Switching bandwidth:	11 MHz
switch:	on/off switch
Material:	Metal
Housing design:	Desktop console 1 U; (19") 48.3 cm rack installation (provided)
Width:	20 cm
Height:	4,6 cm
Depth:	26 cm
Weight:	1,95 kg
