RELACART - UH-222D Microphone

UH-222D Microphone

UH-222D Microphone

In Stock

Europe Warehouse: 70

More info

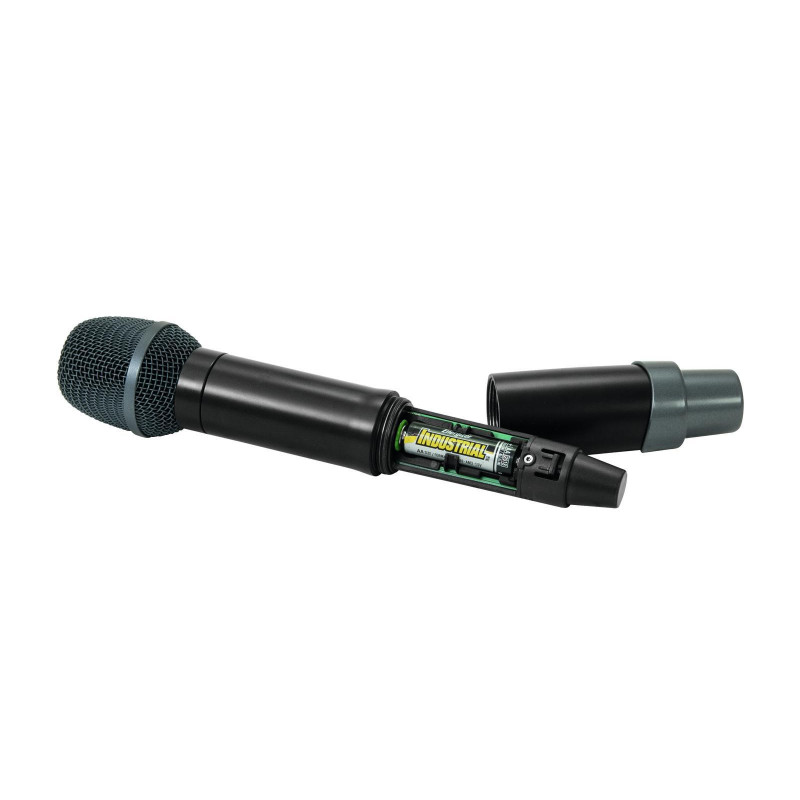

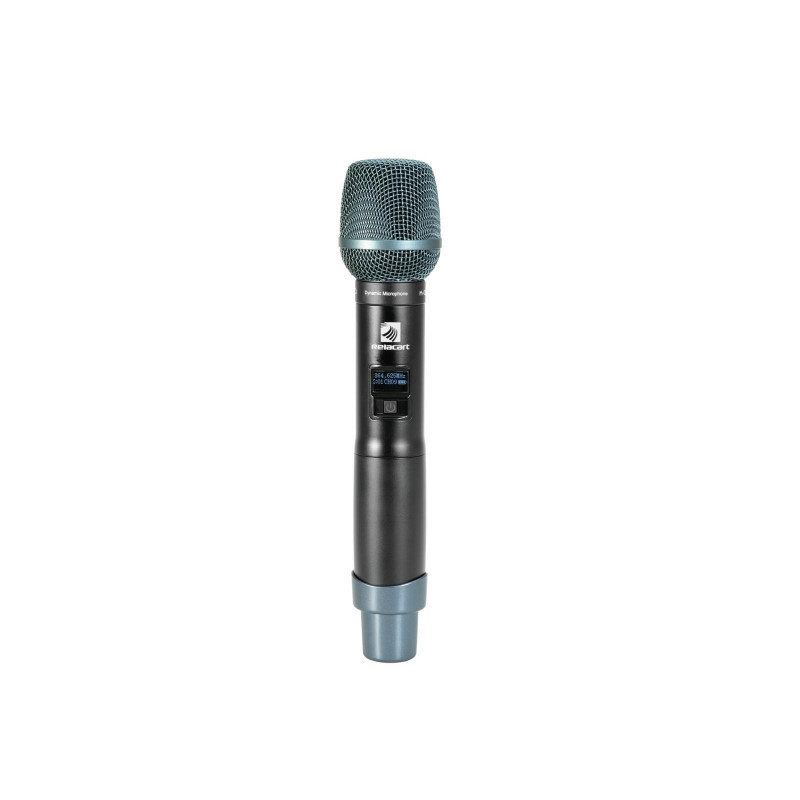

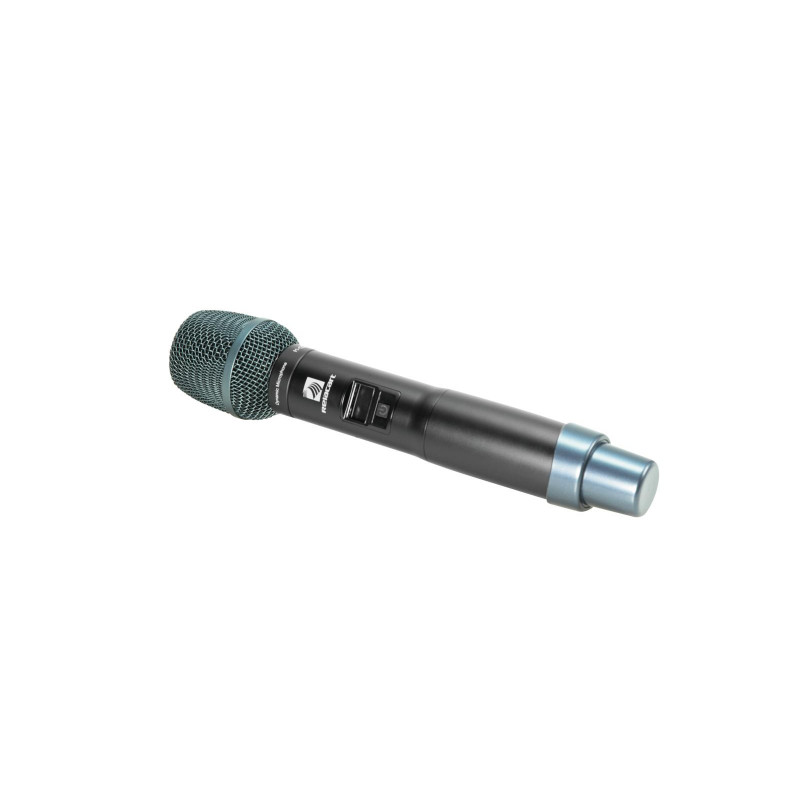

Hand-held microphone with PLL multifrequency transmitter

  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • Matches receivers UR-222S and UR-260D
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Infrared interface for easy and error-free synchronization with the receiver via infrared signal
  • OLED display for battery status and frequency
  • RF output power Hi/Low adjustable
  • Gain level Hi/Mid/Low adjustable
  • Directly compatible with Shure's SM58 capsule
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Polar pattern: Cardioid


Type:Transmitter
Power supply:3 V DC
Power connection:Battery/battery pack
Capsule type:Dynamic
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
Frequency range:45 - 18000 Hz
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:90 Switchable frequencys
in 10 groups with up to 10 preset frequencies each
Modulation:FM
RF power output:10 mW
Range:80 m
Switching bandwidth:11 MHz
switch:on/off switch; Mute control
Material:Aluminum
Length:26 cm
Diameter:5,4 cm
Weight:0,28 kg
