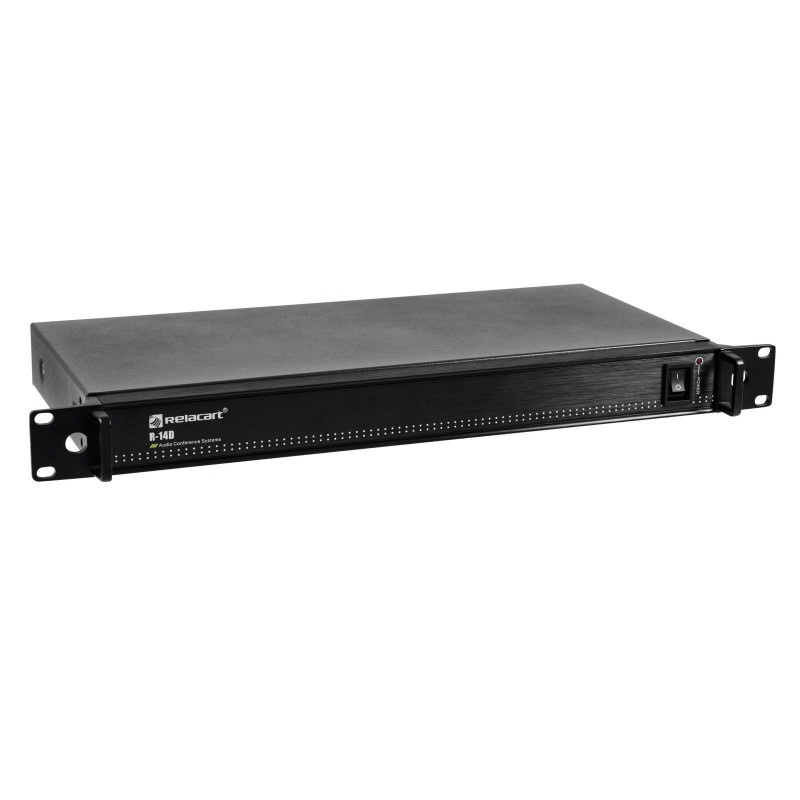

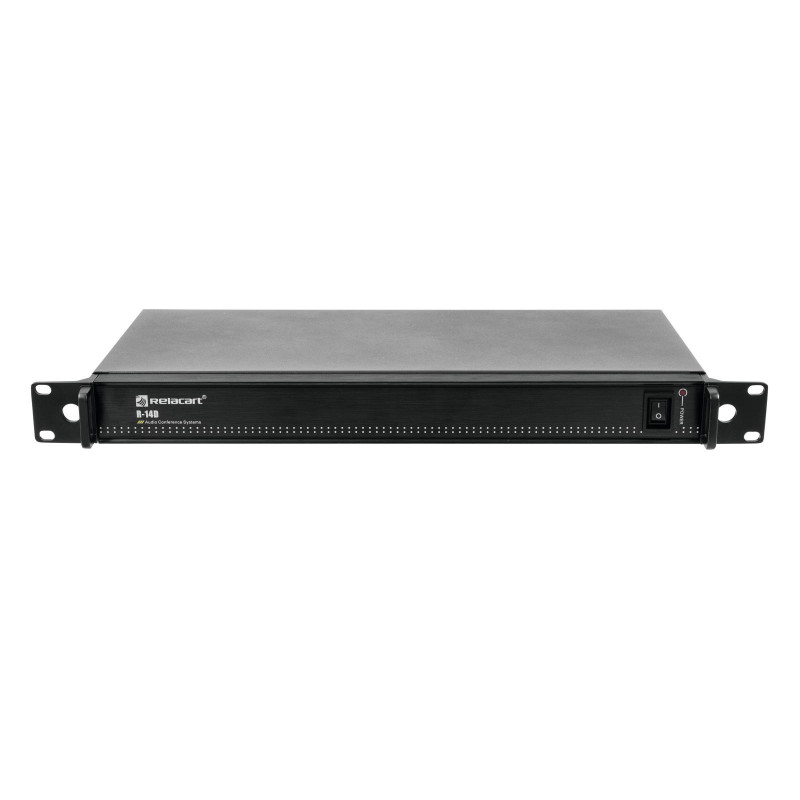

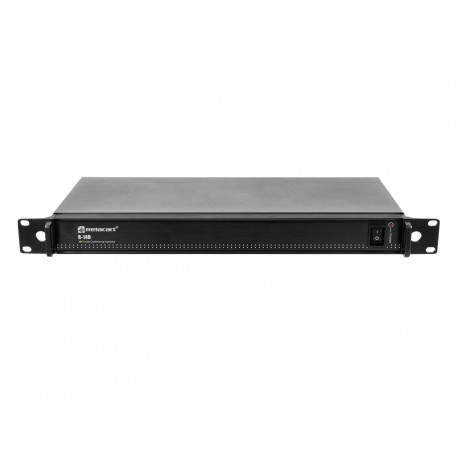

RELACART - R-14D Antenna DistributionSystem
R-14D Antenna DistributionSystem
R-14D Antenna Distribution System
More info
Antenna distributor (470 - 900 MHz)
- Active antenna distributor for operating up to four true diversity UHF receivers on one pair of multi-antennas
- Improves the interference safety and enlarges the range
- Replaces the respective antennas and PSUs of the individual receivers
- Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
- Low-voltage outputs for supplying four UHF receivers, incl. matching DC-connection cables
- Use in the entire UHF frequency range (470 - 900 MHz)

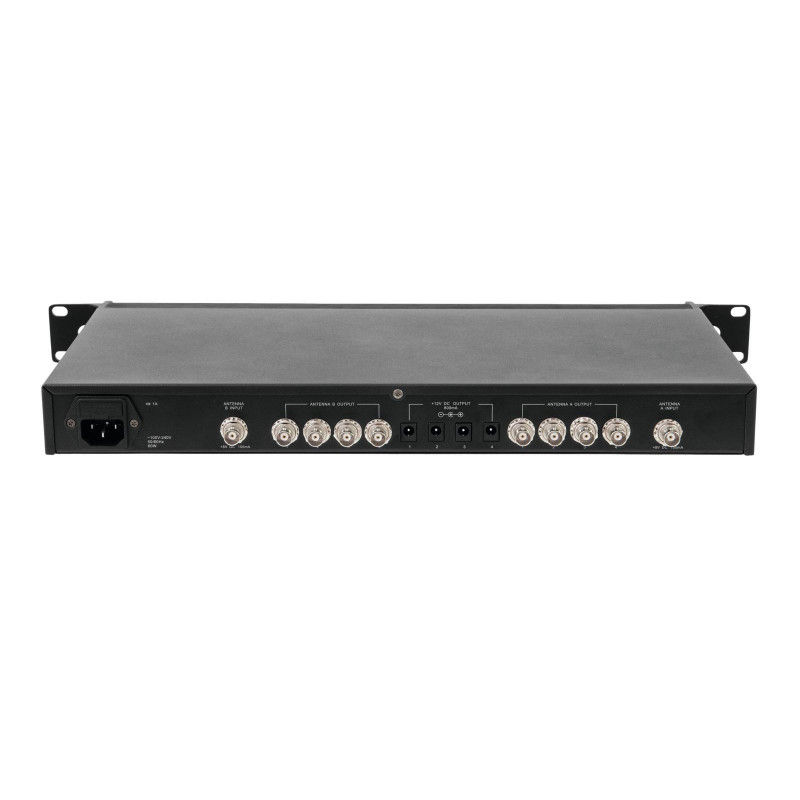

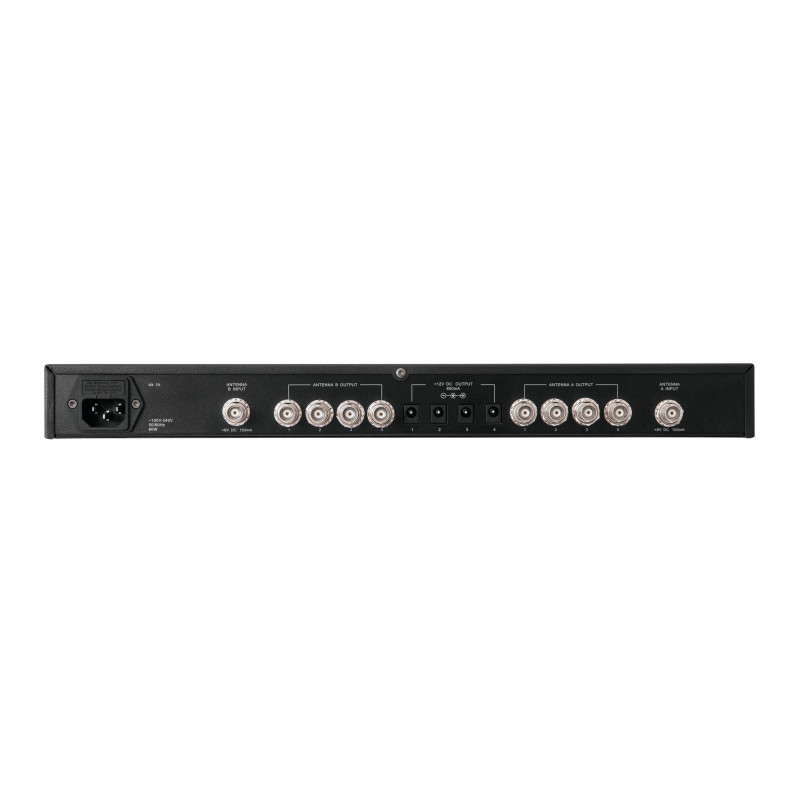

- All antenna connections via BNC jacks, incl. 10 x BNC cable
- Rack installation with 1 unit
- Housing design: (19") 48.3 cm rack installation
| Type: | Antennas and distributors |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 60 W |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Impedance: | 50 Ohm |
| Color: | Black |
| Output voltage: | 4 x 12 V DC |
| Connections: | Input: 2 x Antenna via BNC (F) |
| Output: 8 x Antenna via BNC (F) | |
| Frequency band: | UHF 470 - 900MHz |
| switch: | on/off switch |
| Material: | Metal |
| Housing design: | (19") 48.3 cm rack installation |
| Width: | 48,3 cm |
| Height: | 4,45 cm |
| Depth: | 24,2 cm |
| Weight: | 2,90 kg |
