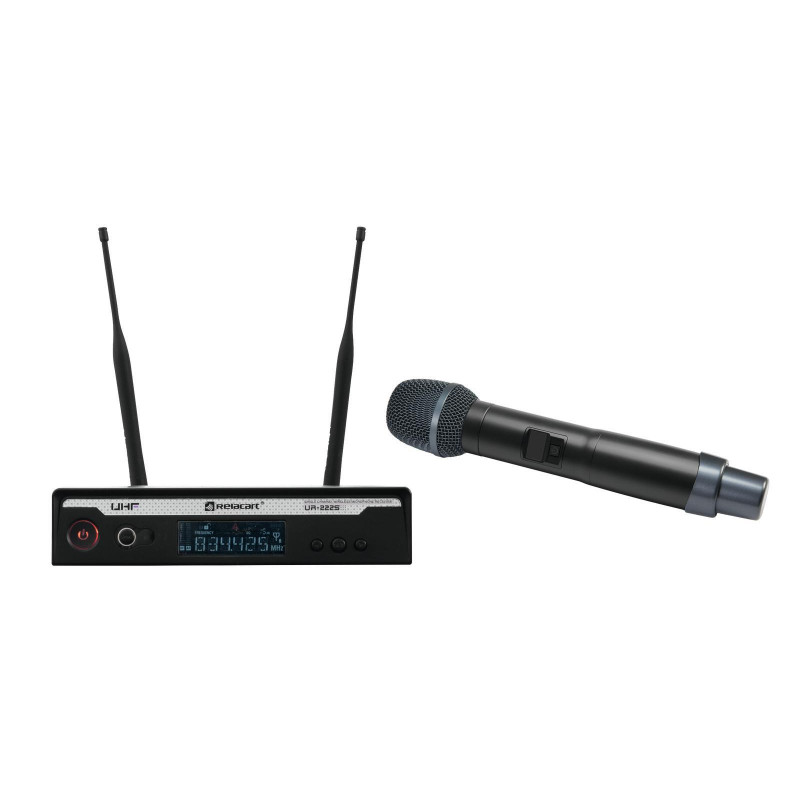

13055205 RELACART UR-222S 1-Channel UHF Receiver

Multifrequency wireless receiver with true diversity

• Multifrequency wireless receiver with high-quality true diversity reception
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free reception
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching transmitters optionally available: hand-held microphone (UH-222S, UH-222D ), pocket transmitter (UT-222)
• Delivery includes practical transport bag with jack cable and power unit
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Housing design: Desktop console 1 U; (19") 48.3 cm rack installation (provided)

13055208 RELACART UH-222C Microphone

Hand-held microphone with PLL multifrequency transmitter

• Condenser hand-held microphone with UHF pilot tone technology (PLL)
• Ergonomic aluminum alloy housing, applicable for touring
• Matches receivers UR-222S and UR-260D
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• OLED display for battery status and frequency
• RF output power Hi/Low adjustable
• Gain level Hi/Mid/Low adjustable
• Directly compatible with Shure's SM58 capsule
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Polar pattern: Cardioid
