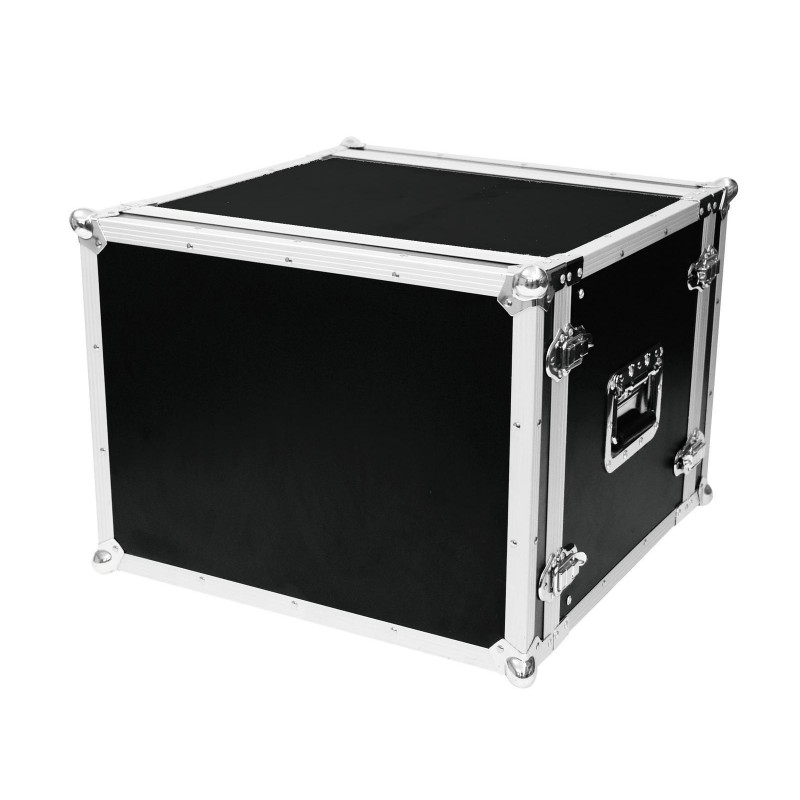

Flightcase for 483 mm unitsThe ROADINGER effect rack CO DD with 8 U and built-in rack rails is ideal for transporting your 483 mm control and effect units. The two removable lids (double door version) allow you to access your equipment quickly and easily. The high-quality workmanship with 7 mm wall thickness as well as the aluminium profile frame with rounded corners and three-legged, medium-sized steel ball corners ensure stability. The flight case also has eight snap locks with eyelets for locking and two chrome-plated case folding handles. The four large, steel-reinforced rubber feet provide the necessary standing security. The case can be loaded with a maximum of 25 kg.

Flightcase for 483 mm units (19")

• Suitable for 483 mm effectors and controllers (19")
• 2 removable covers (double-door version)
• Built-in rack rails
• High-quality workmanship with plywood multilayered glued, black laminated
• Aluminum profile frames (22 mm) with rounded edges
• Three-leg, medium-sized steel ball corners
• 8 spring locks with eyelets for locking-up
• 4 large steel-enforced rubber feet
• 2 hinged, chrome case handles
• Delivery includes mounting screws
• Available in different height units (1 U = 44 mm)
• Housing design: 8 U

Maximum load:	25 kg
Color:	Black laminated
Material:	Glued plywood 7 mm

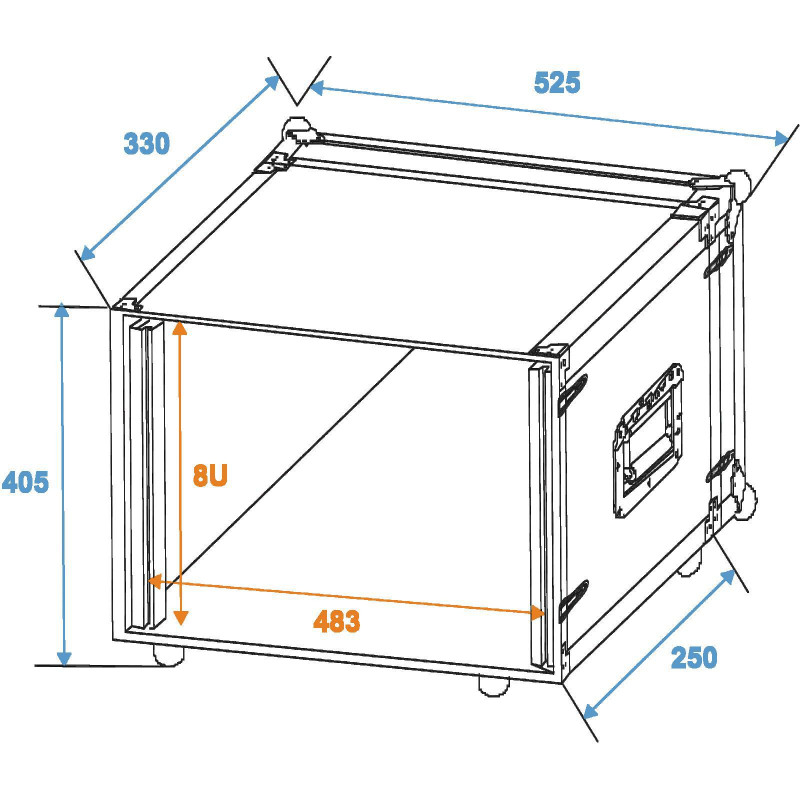

Outer dimensions/corners approx.:	36 mm
Mounting width:	483 mm (ca. 19")
Mounting height:	approx. 360 mm (8 U)
Mounting depth:	250 mm
Housing design:	8 U
Width:	52.5 cm
Height:	42 cm
Depth:	40 cm
Weight:	8.45 kg
