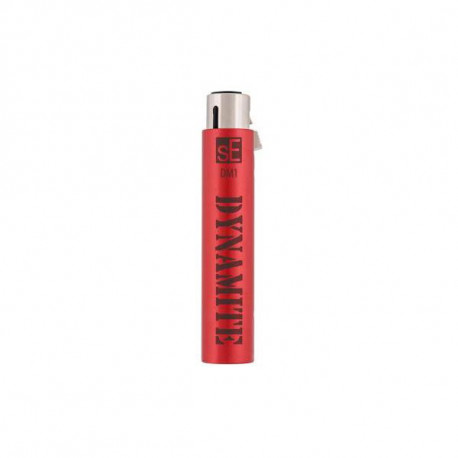

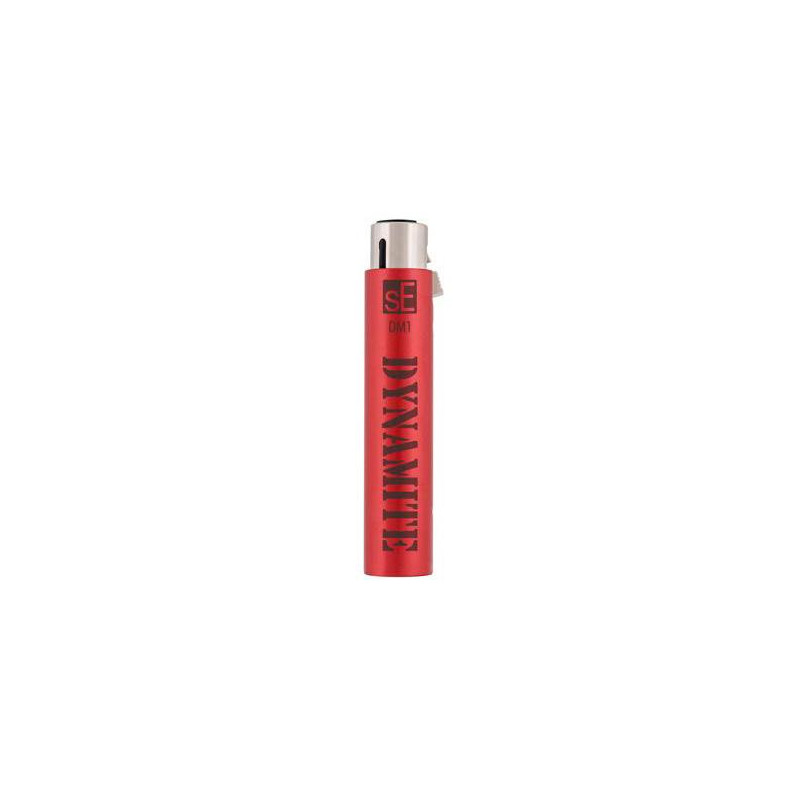

PHANTOM MICROPHONE POWER SUPPLY Introducing the DM1 DYNAMITE: explosive level for all your passive microphones. Some microphones need a LOT of gain, and not all tabletop preamps live up to the challenge. The DM1 DYNAMITE is an ultra-slim, active in-line preamplifier that sits perfectly between your microphone and your mic preamp, providing a massive, +28 dB transparent gain for all your dynamic and passive microphones. With a sophisticated Class A design with high-quality FET transistors, the DM1 has a dramatically lower output impedance and almost half the noise than any other product on the market. Plus, the gain it provides is always 28dB higher, regardless of the connected load, thanks to its dedicated buffer amplifier. Frequency range: 10 Hz - 120,000 Hz (-0.3 dB) - Gain: 28 dB (1kOhms load) - Maximum output level (0.5% THD): 8.3 dBV (2.6 V) - Output noise level: 9 μV (JIS-A) - Power: 48 volts according to IEC 61938 - Electrical impedance: 135 ohms. - Recommended load impedance:> 1k Ohms - Current consumption: 3.0 mA - Connectivity: 3-pin male / female XLR connector - Dimensions: Diameter: 19mm, Length: 95.5mm - Weight: Only 80g
