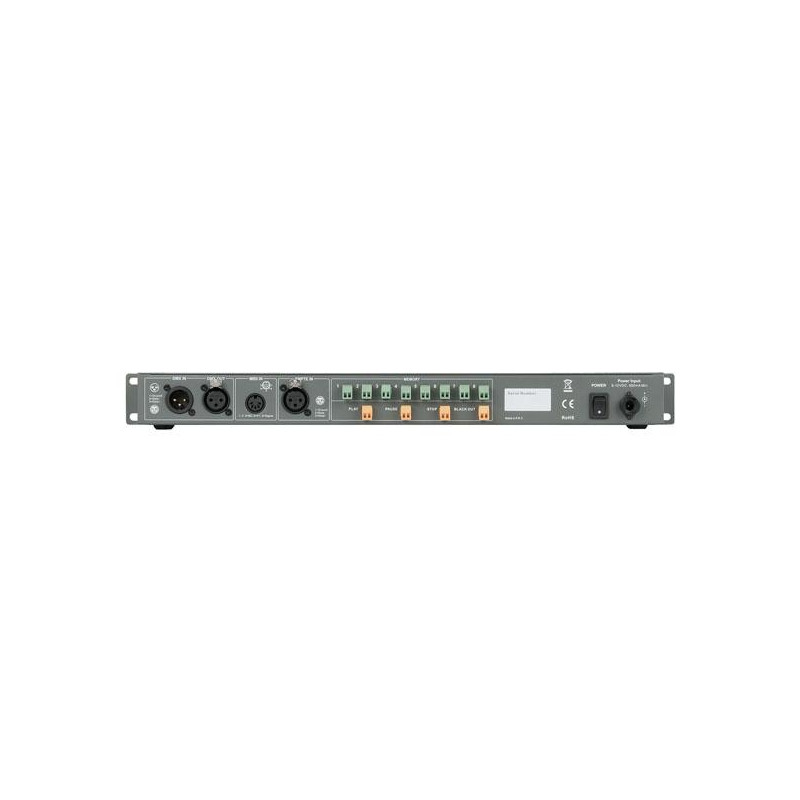

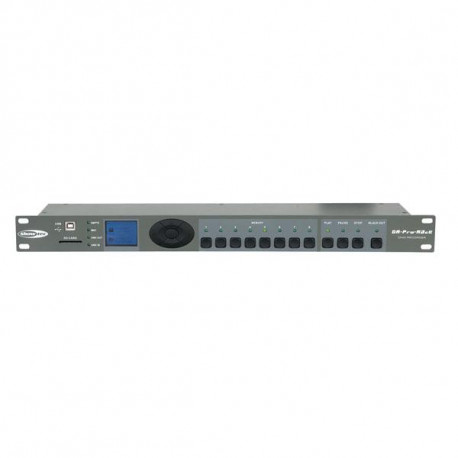

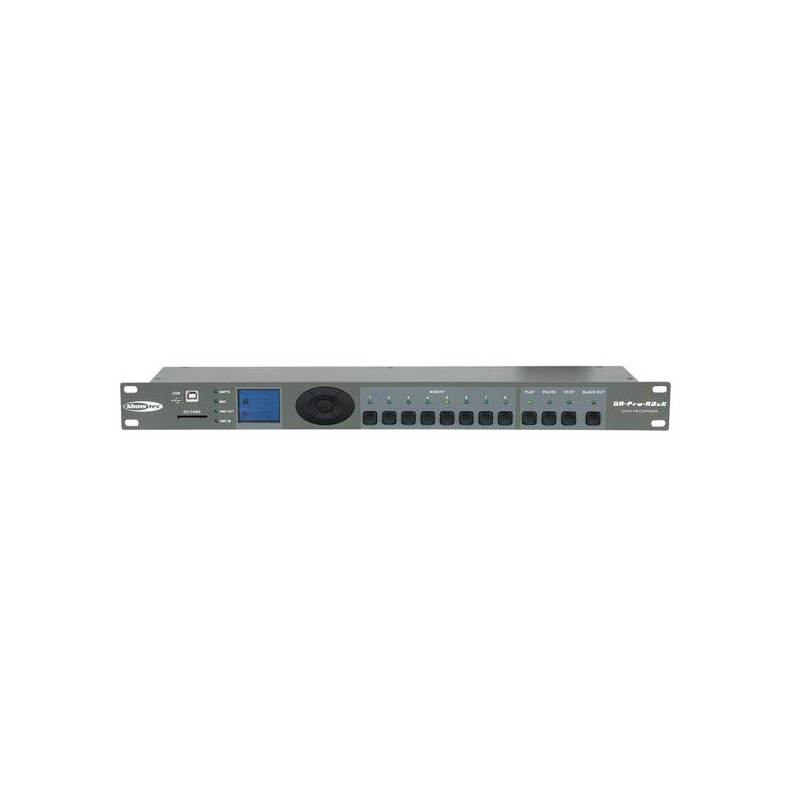

The DR Pro Rack is a useful tool to store DMX values of complete Scenes, Chases or Shows. The total record time is 5 hours shared over the 8 memories. The basic functions are easy to control with the direct playback buttons at the front which makes it ideal for non-technical users. The unit can be locked with a password.
• 128x160 Pixels, color LCD display
• 8 Memories for scenes, chases or shows
• Manual control, Real-time trigger, SMPTE/MIDI time code trigger, DMX trigger and DMX monitor
• 5 Hours internal recording time
• 4 Recording modes, Manual, Auto, Semi-Auto & Smart
Power supply: DC9~12V
Power consumption: 6W
Data signal: DMX/MIDI/SMPTE
DMX connectors: 3pin XLR
User mode: Auto/manual
Intern memory: 2G
Extern memory: <8G
SMPTE mode: Event Trigger
SMPTE connector: 3pin XLR
Display: 128 x 160p
Dimensions: 482 x 78 x 44 mm
Weight: 1,1 kg
