The Showtec PRO-30 truss is made of 50mm alu pipe with a thickness of 2mm and 16mm braces. This is the most used construction system for discotheques, stages, theaters and many more applications. The PRO-30 truss is available in the following models: 2 point Step system (FS, GS, PS), 3 point triangle system (FT, GT, PT) and 4 points square system (FQ, GQ, PQ) The system elements are joined together through conical connectors and spigots. Showtec offers three different coupling systems with different compatibility, shown in the overview below. All Showtec PRO-30 truss systems are certified.

· F-truss compatible with Prolyte systems (Ø 27.8mm)
· G-truss compatible with Global & Euro systems (Ø 29.0mm)
· P-truss compatible with standard Milos truss systems (Ø 29.8mm)

Each truss piece (length or cornerpiece) is always delivered including a complete connection-set (spigots, pins and R-springs) for one side. And the black truss we offer, is powder-coated with color RAL9005, matte black.

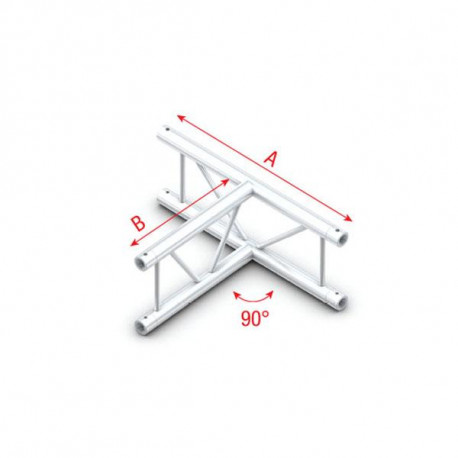

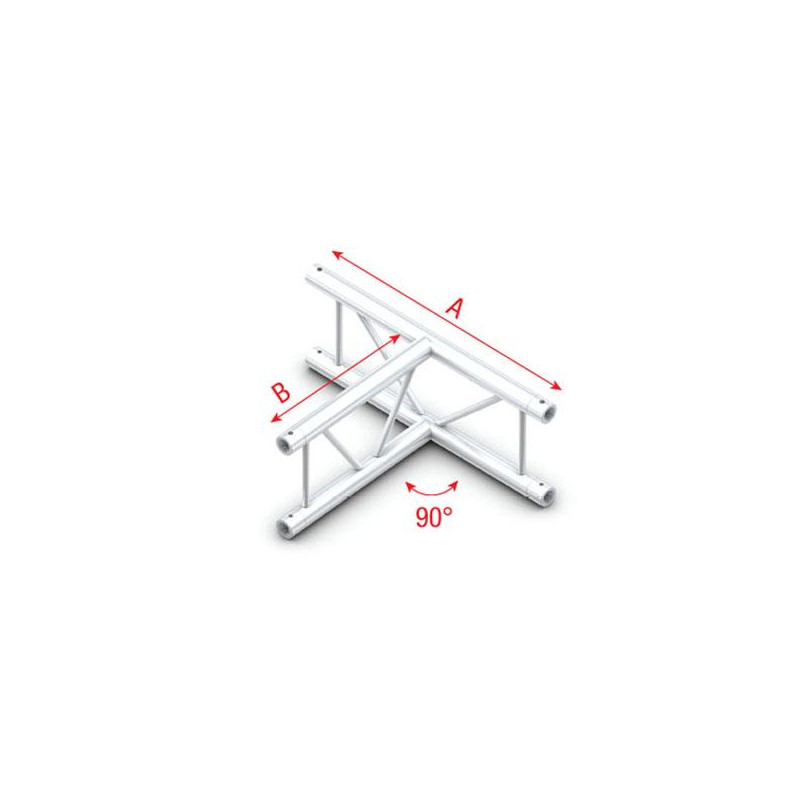

T-Cross vertical
A = 710 mm
B = 500 mm
