Showtec - Galactic TXT

Galactic TXT Text laser with DMX

Galactic TXT

389.00€%6.17 You save 24.00€
365,00 €

Add to wishlist

In Stock

Europe Warehouse: 69

More info

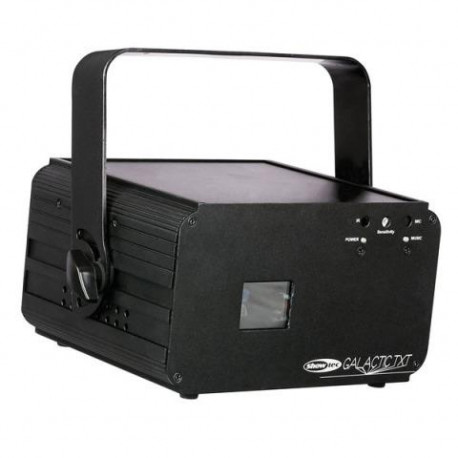

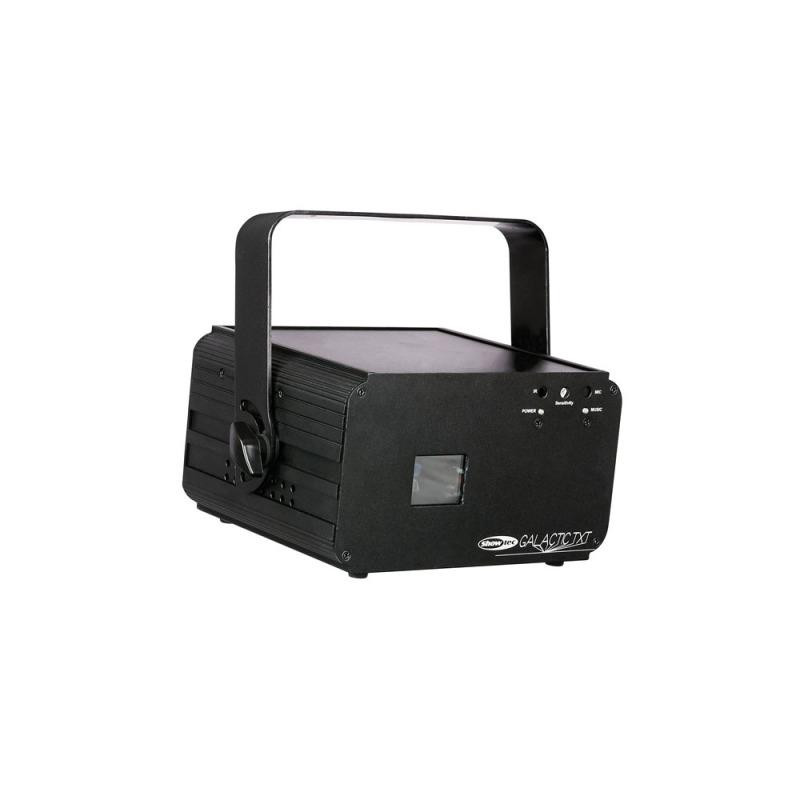

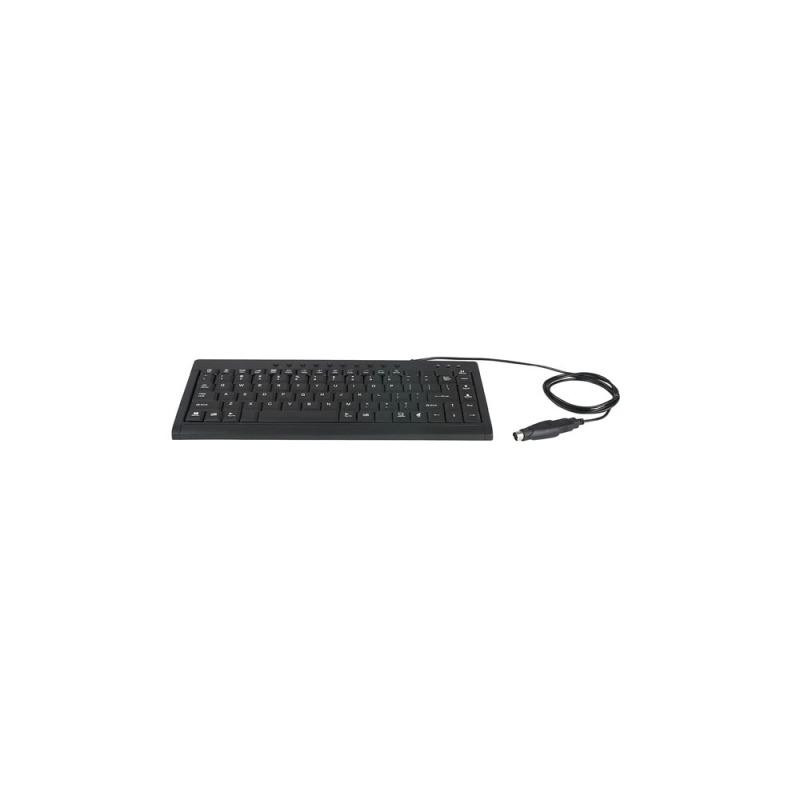

The Galactic TXT DMX in our Galactic series is a text laser which comes with a separate keyboard and gives you the possibility to write your own text with different colors and shapes.
It has bright red, green and blue colors with a total of 300 mW. With these three laser-diodes you can create Red, Green, Yellow, Blue, Purple, Cyan and White colors by TTL modulation. The laser can also be controlled by DMX and has many different figures and patterns.

Attention, the laser only works when the interlock connector is connected with a remote interlock (order code 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's a remote interlock is necessary for safety regulations.

Specifications

Power Input: AC 100-240V, 50/60Hz
Power Consumption: 25 Watt
Laser Color: Red, Green, Blue
Laser Power: 300mW (150mW 638nm Red, 50mW 520nm Green, 100mw 450nm Blue)
Laser Modulation: TTL
Laser Class: 3B
Scanner speed: 10K
Scan Angle: +/-30?

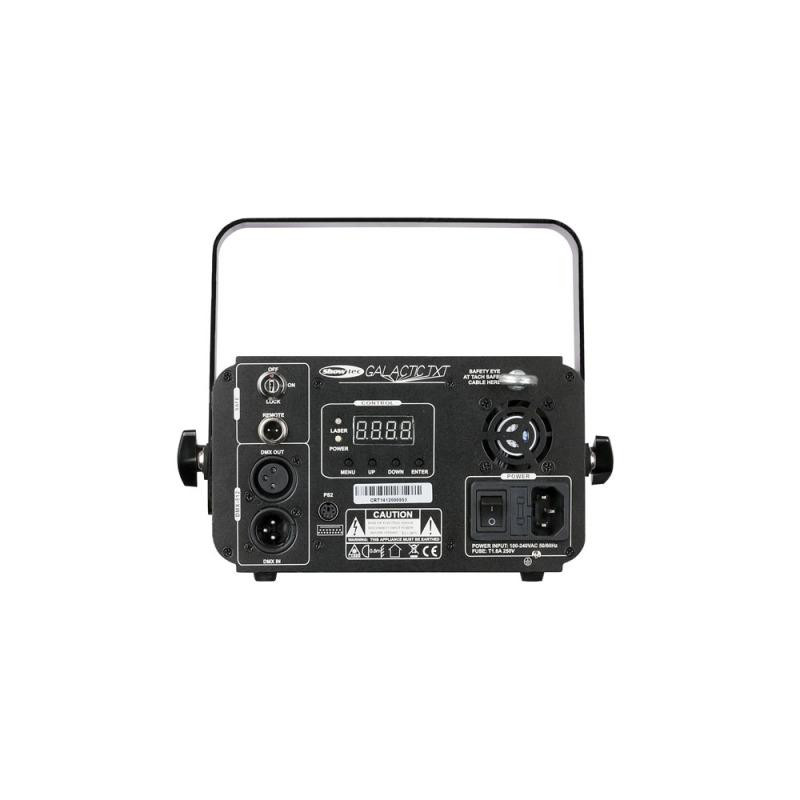

Control Modes: Auto, Sound, Master/Slave, DMX
Control Display: 4 Digits LED
DMX Channels: 17
Data Connector: In/Out (XLR 3Pin)
Safety Features: Key switch, Interlock, Safety eye
Laser Safety: EN/IEC 60825-1 Ed 2, 2007-03
Dimensions: 145 x 160 x 80mm (excl. bracket)
Weight: 1,9 kg
Accessories: Keyboard, 2 Keys, Interlock connector
