Showtec - Showtec LED Octostrip Set MKII

Showtec LED Octostrip Set MKII

Showtec LED Octostrip Set MKII Section control

1455.00€%24.60 You save 358.00€
1 097,00 €

Add to wishlist

In Stock

Europe Warehouse: 69

More info

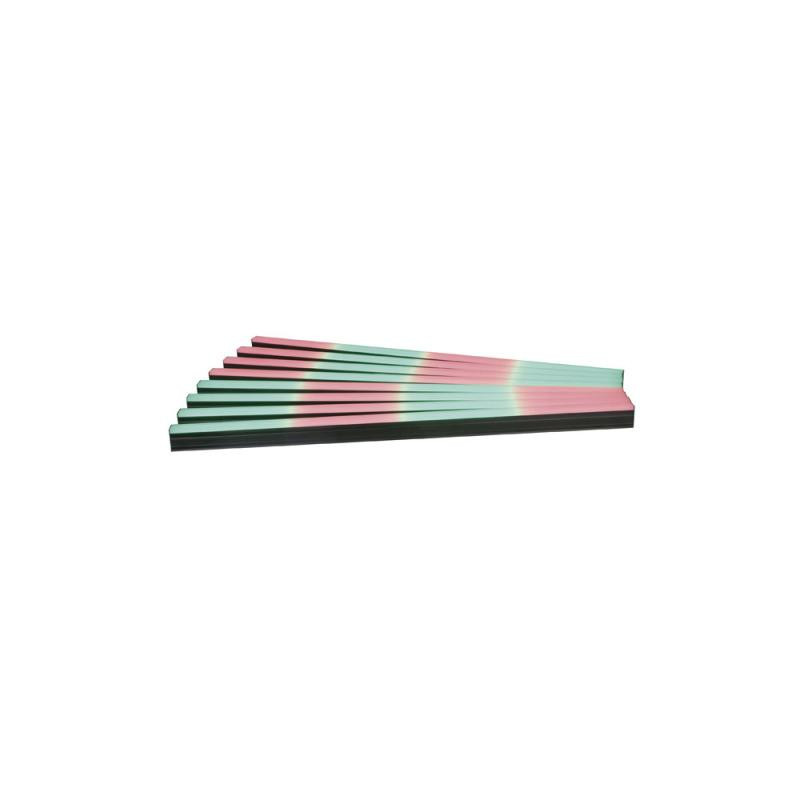

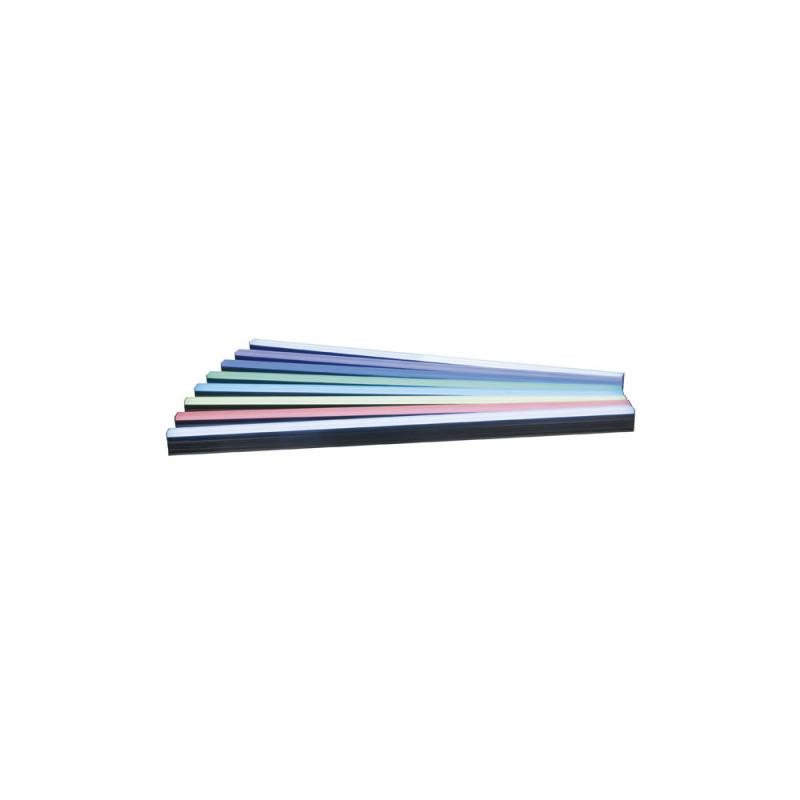

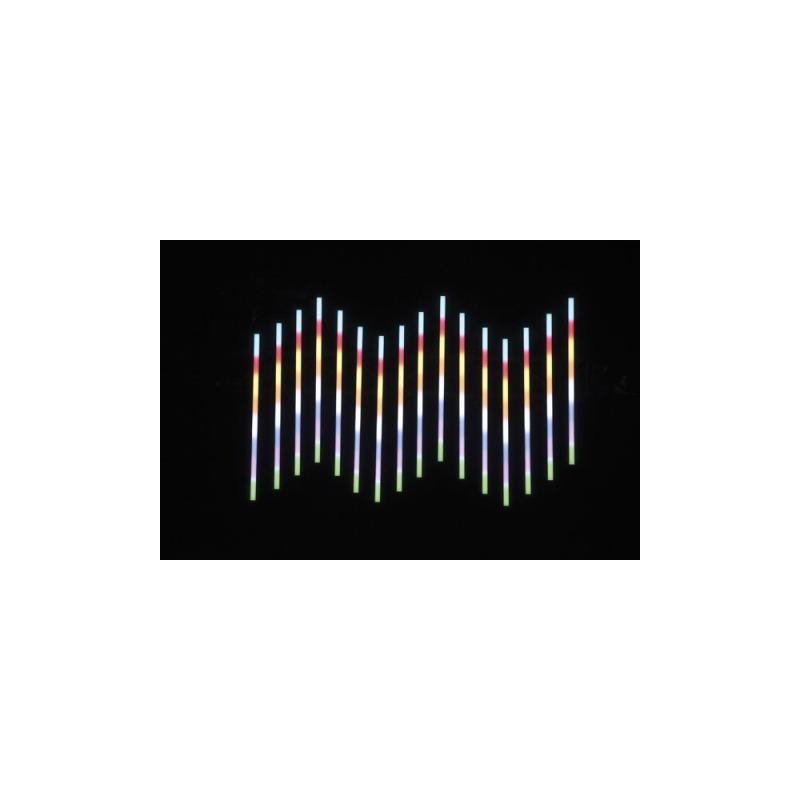

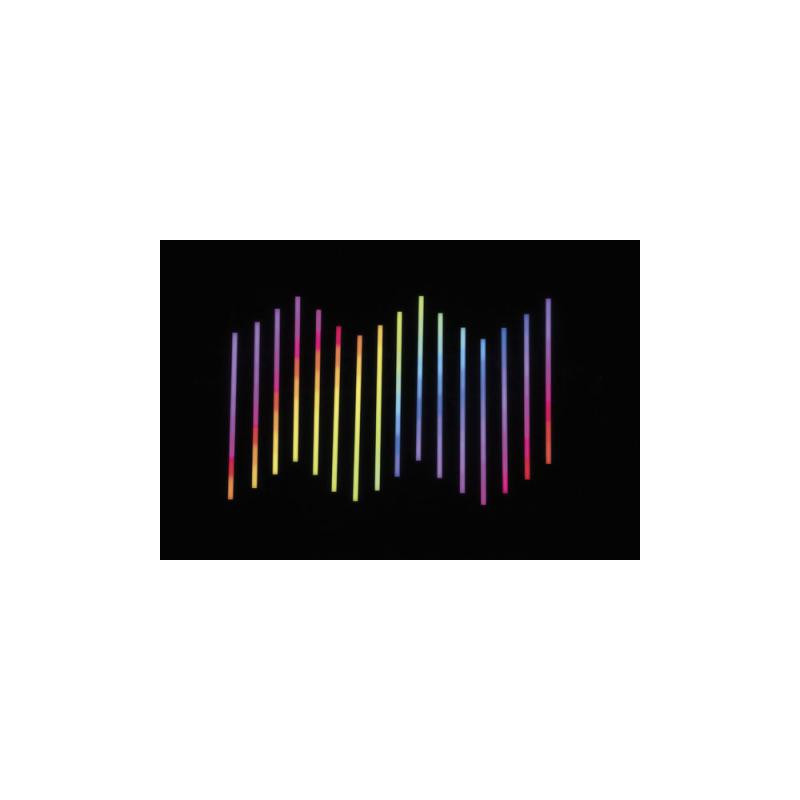

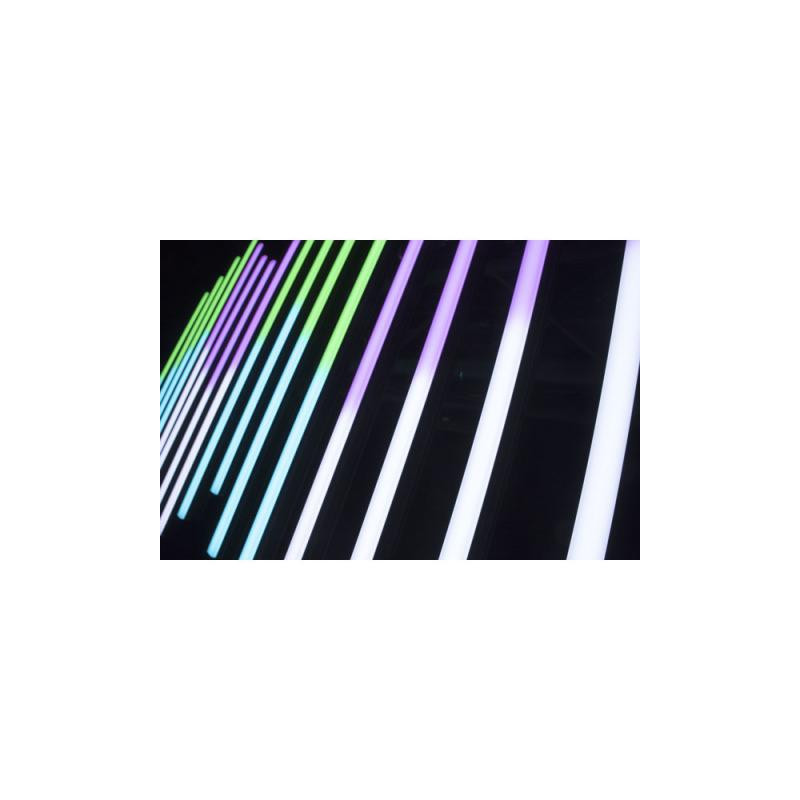

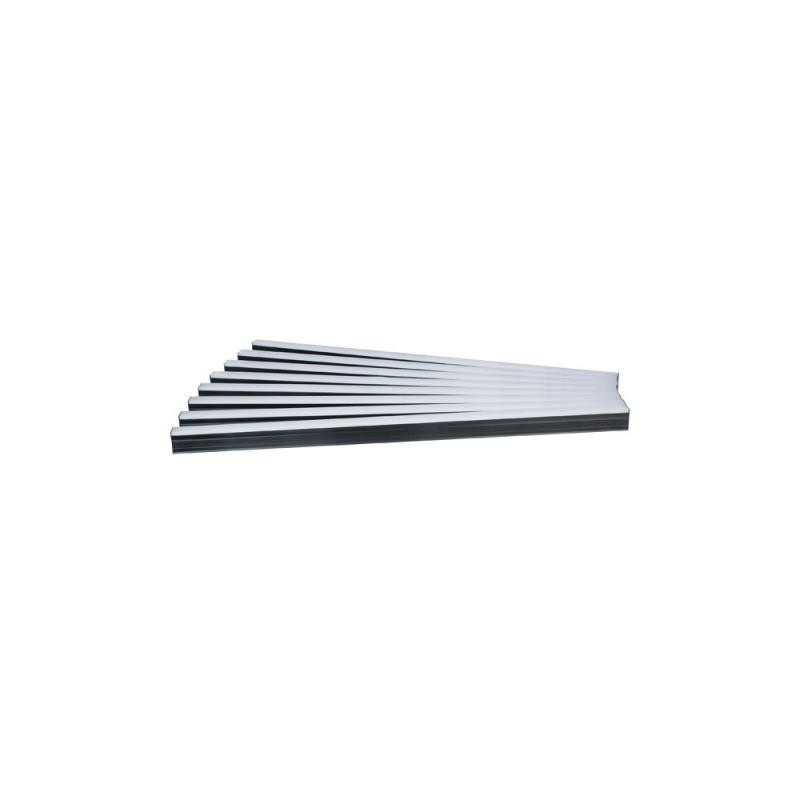

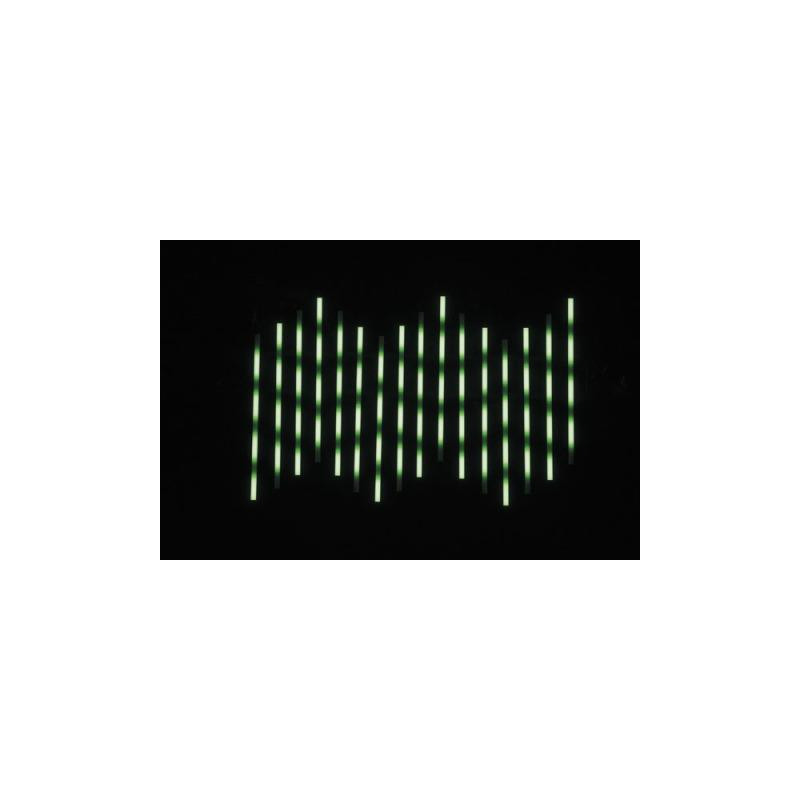

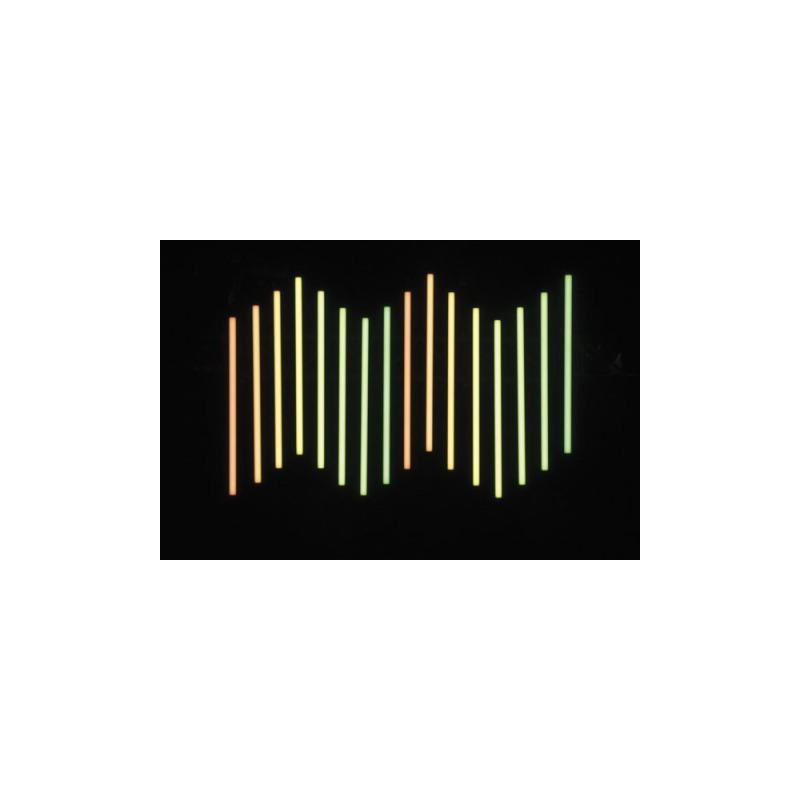

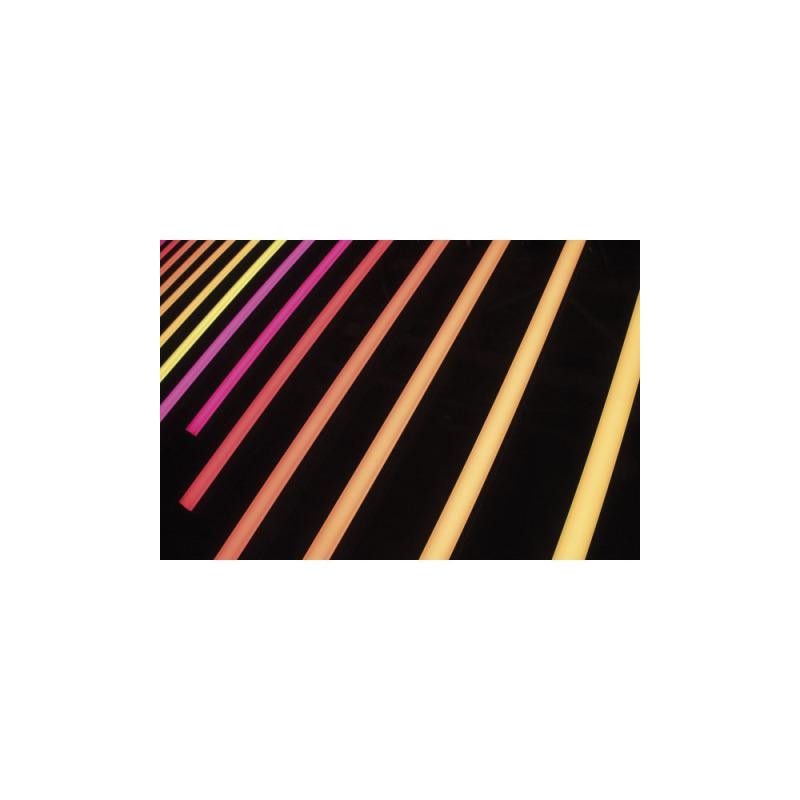

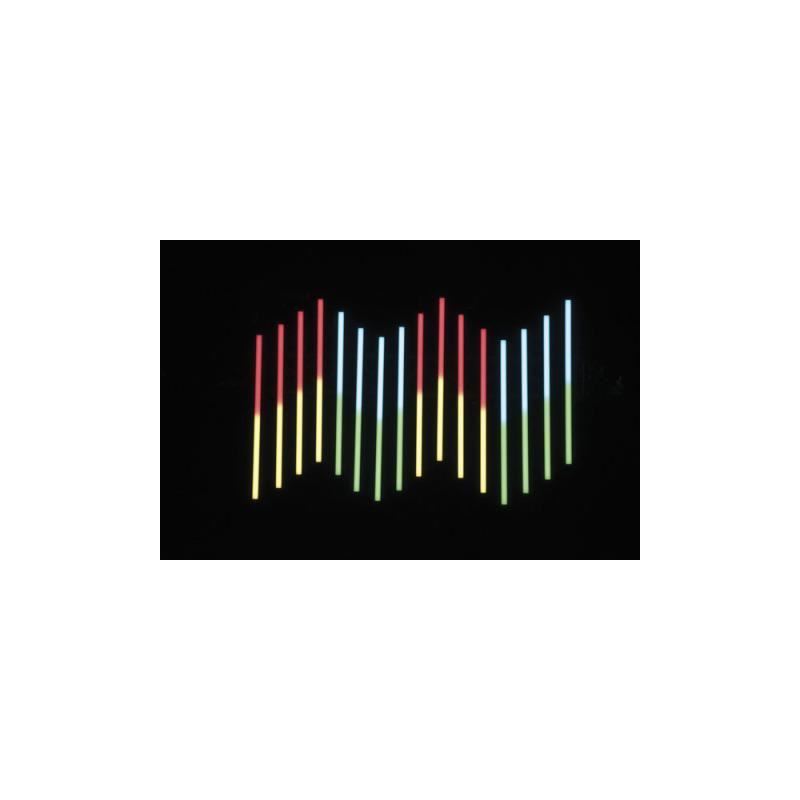

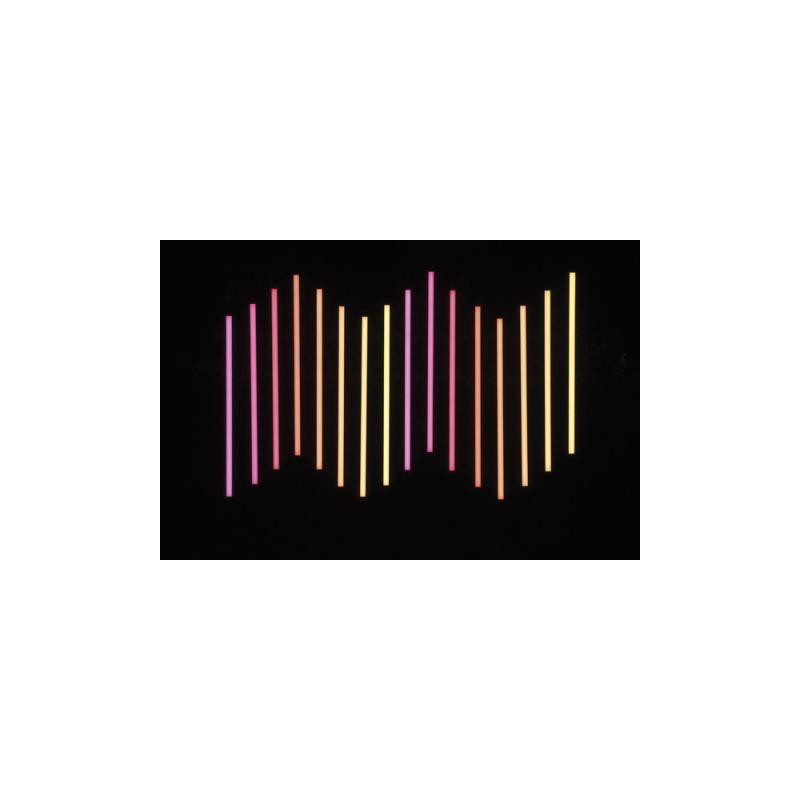

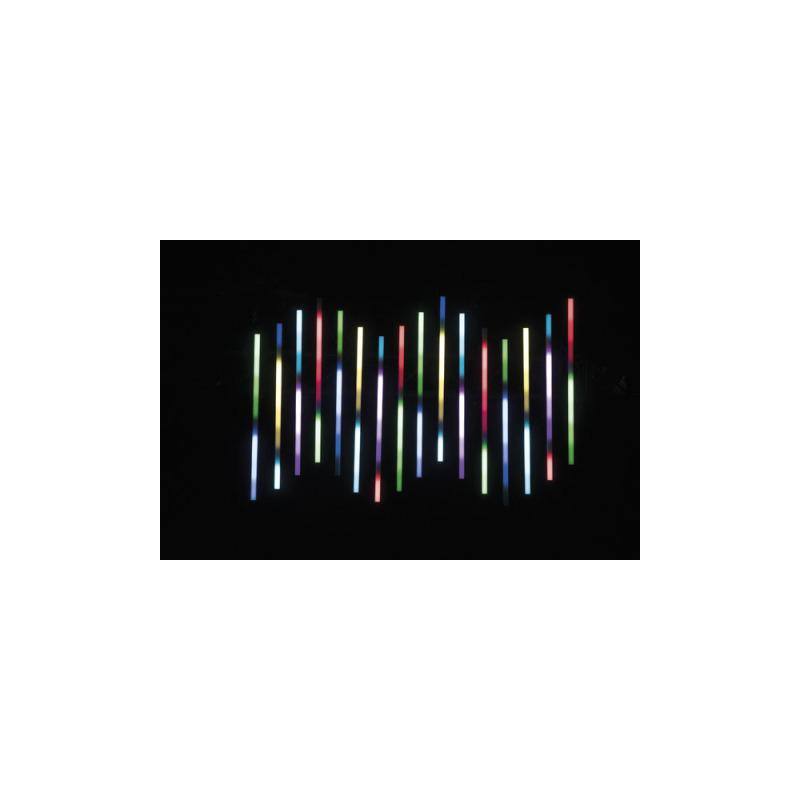

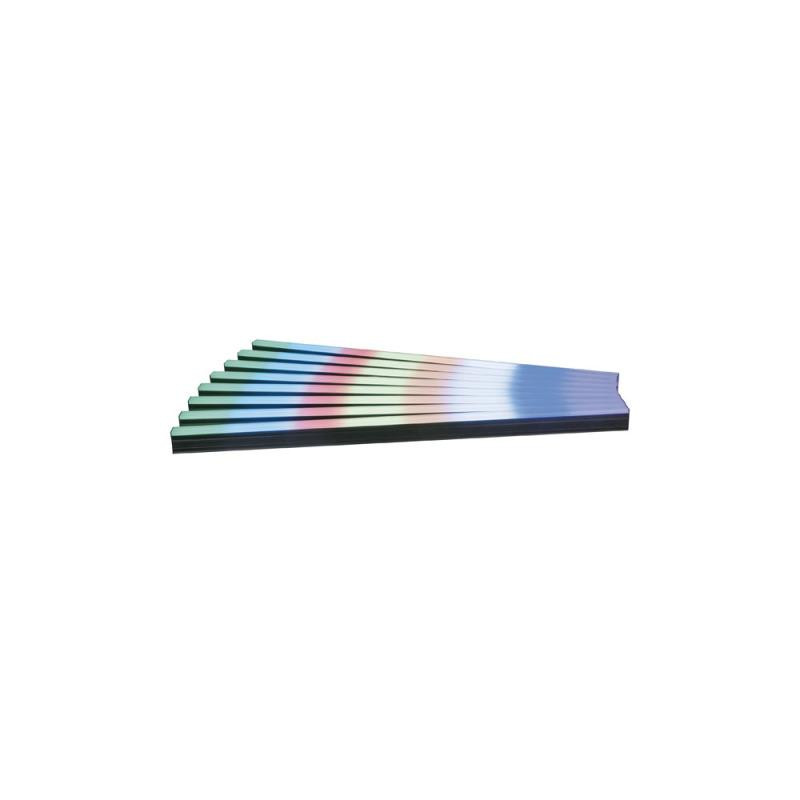

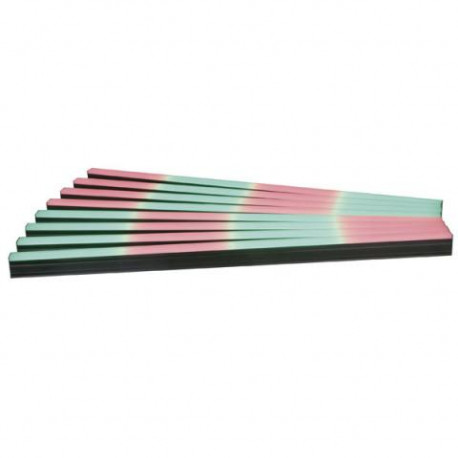

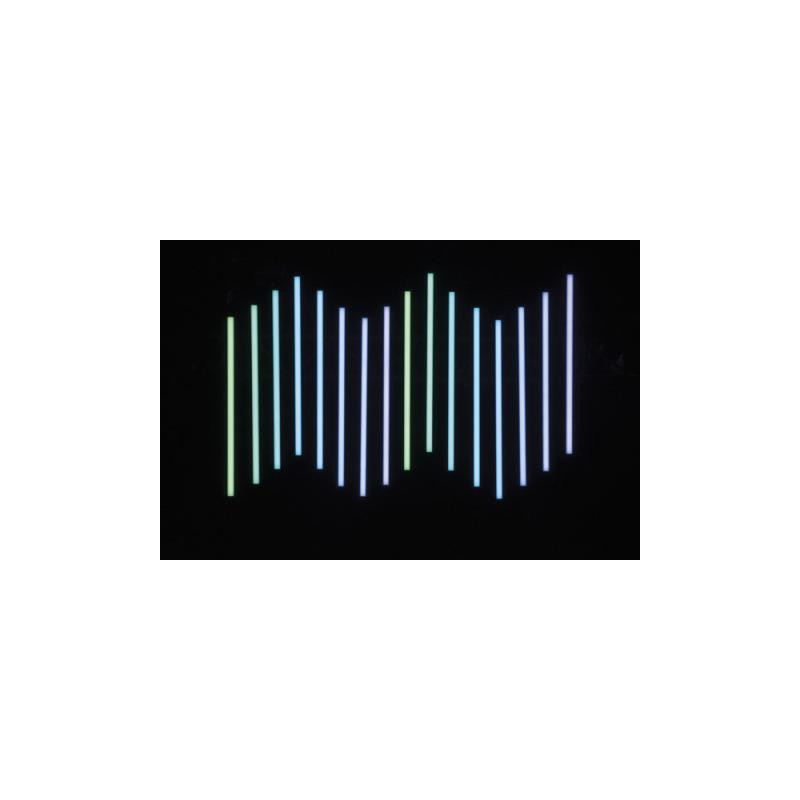

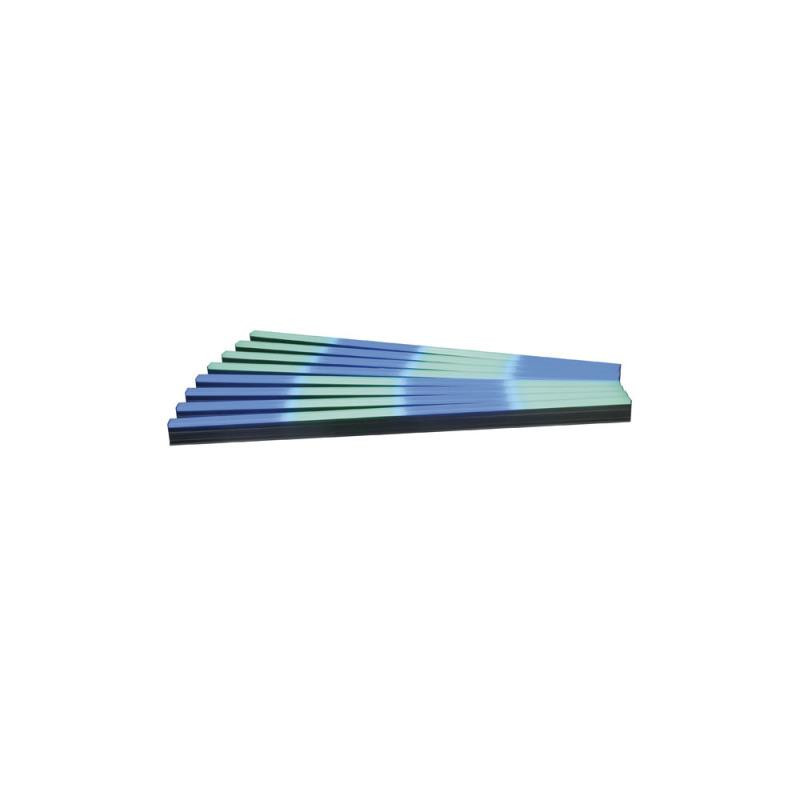

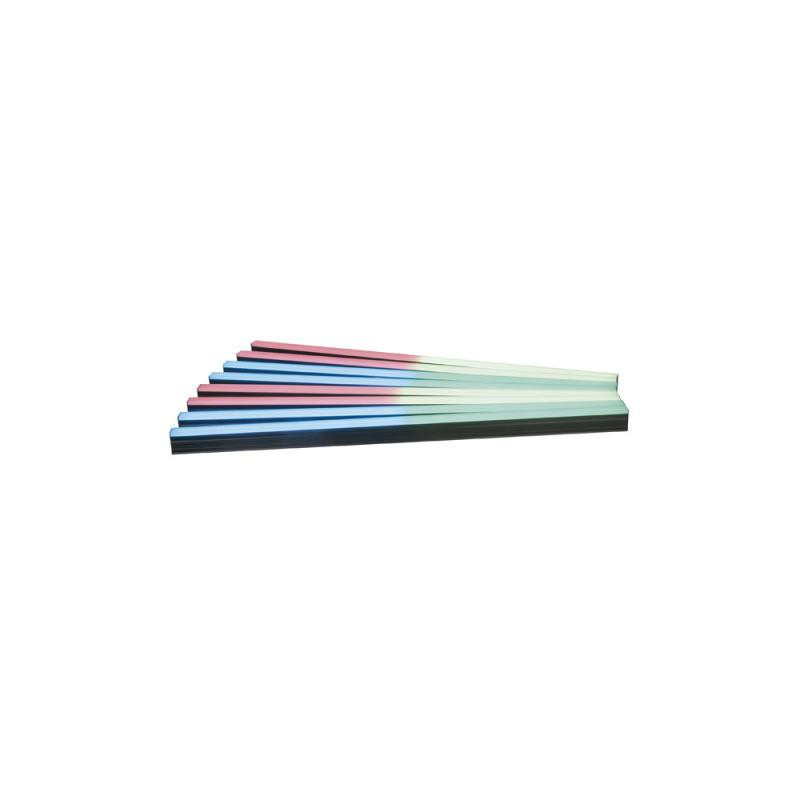

The LED Octostrip MKII is the successor of the popular Octostrip. It is a complete plug-and-play set; consisting of 8 LED strips, a controller and eight 5-meter long XLR extension cables. The new LED Octostrip MKII can control each strip's 8 individual RGB sections, along with the corresponding dimmer and strobe settings. The controller supports ArtNet protocol, which facilitates the use of device while operating in the full RGB mode (192CH mode). It has updated color presets and built-in color flows for use of horizontal and vertical directions which are accessible via DMX (in 6CH, 8CH, 14CH, 26CH and 50CH channel modes). Because of the exact same hardware design It is possible to combine the Octostrip MKI to the new Octostrip MKII in one stage. However, in such case, it is not advisable to operate the old and the new version of the device in Auto mode, as the built-in programs differ per version. The 6CH mode has the same DMX channel settings to control both sets in one setup.

Specifications

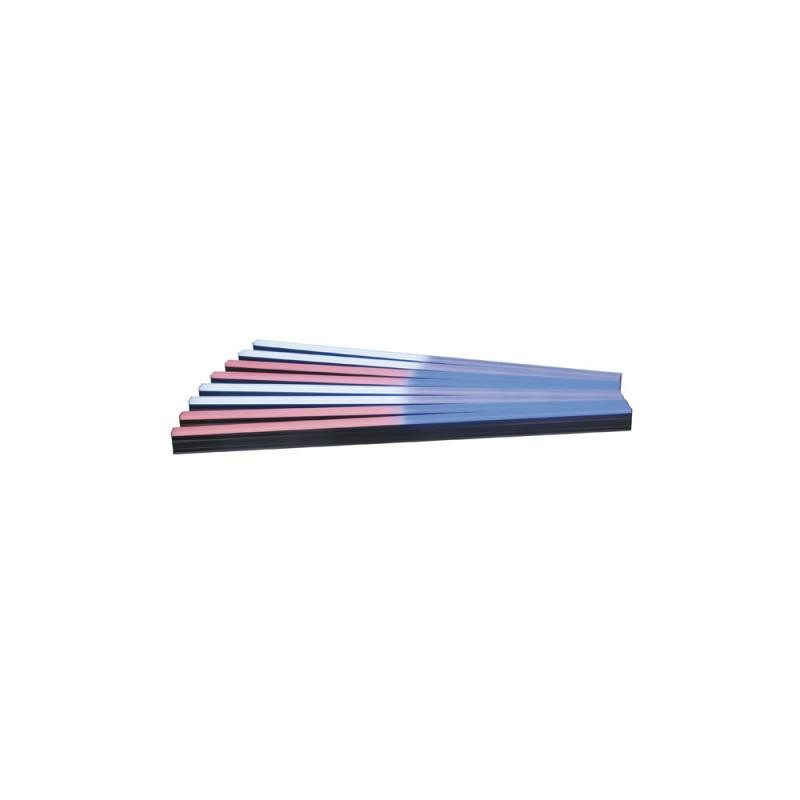

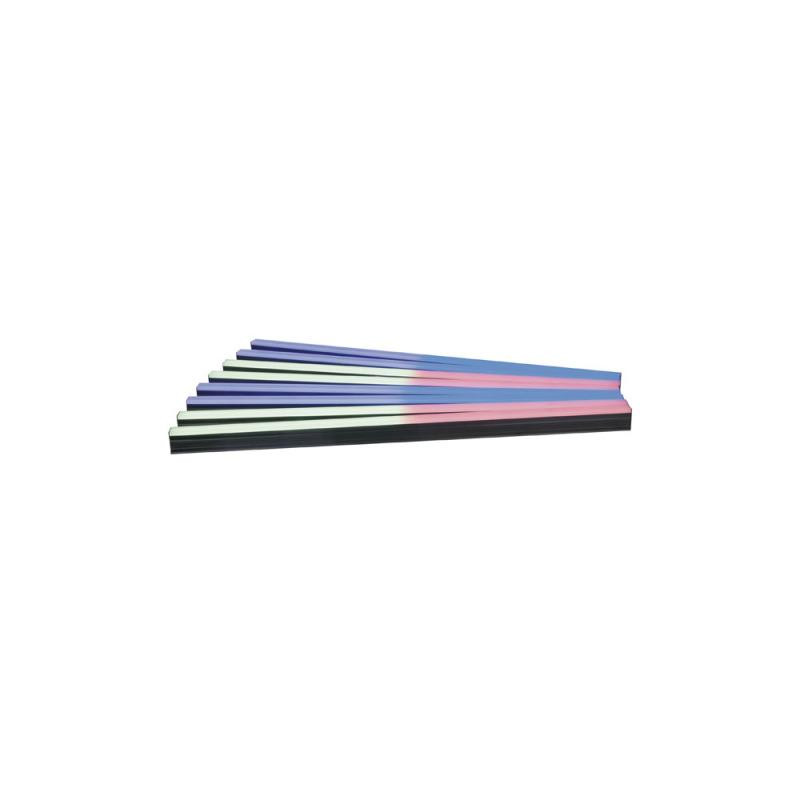

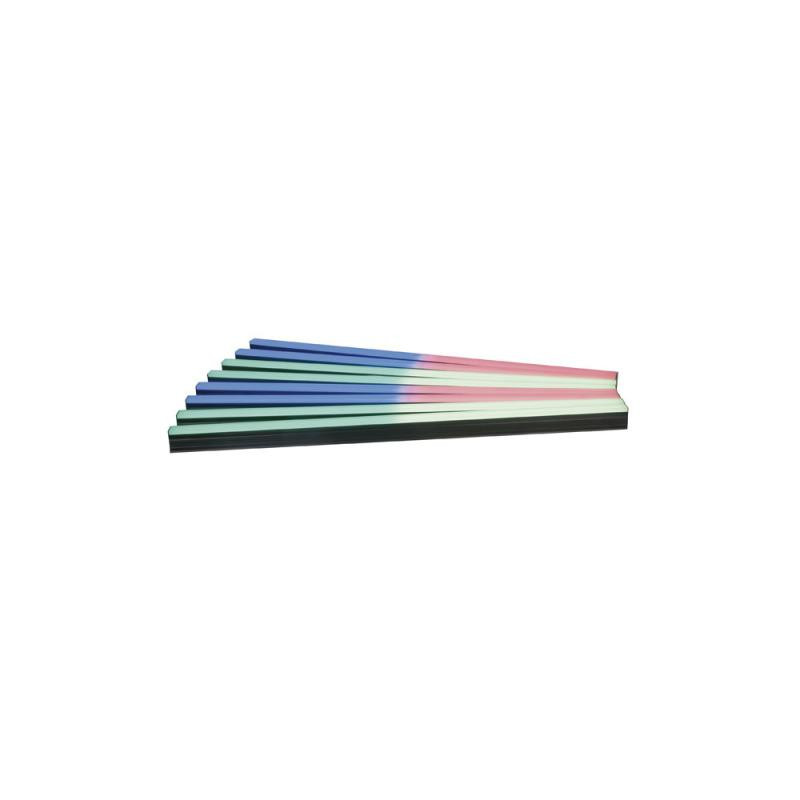

Strips
Length: 1m
Sections: 8
Cable length: 1m
Connection: 5p XLR male connector
LED system: 5050 RGB
Rigging: M10 sliding profile
Dimensions: 1000 x 30 x 50 mm
Weight: 1,4 Kg
IP Rating: IP-20

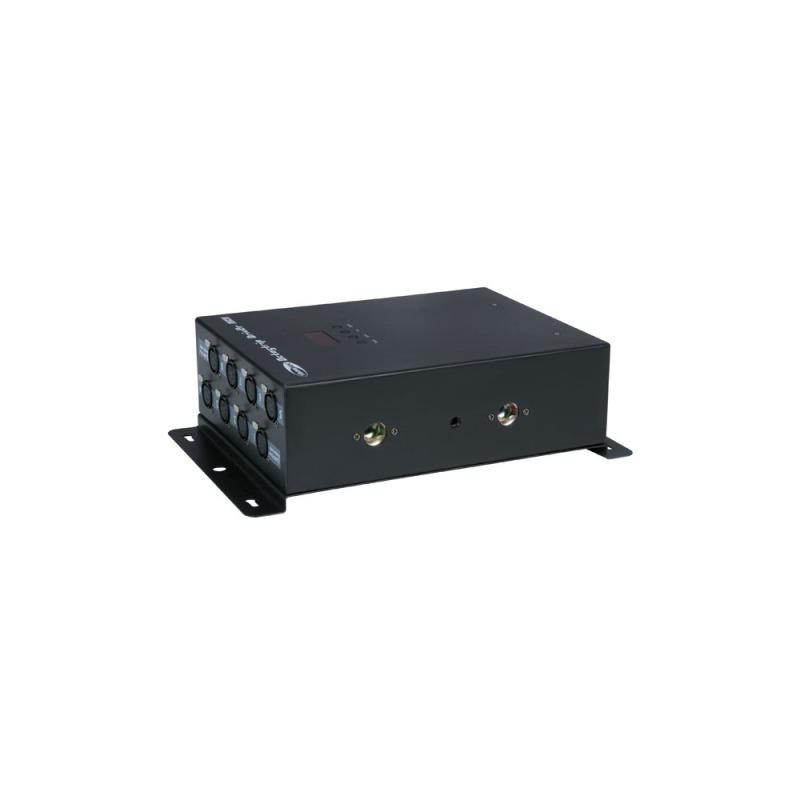

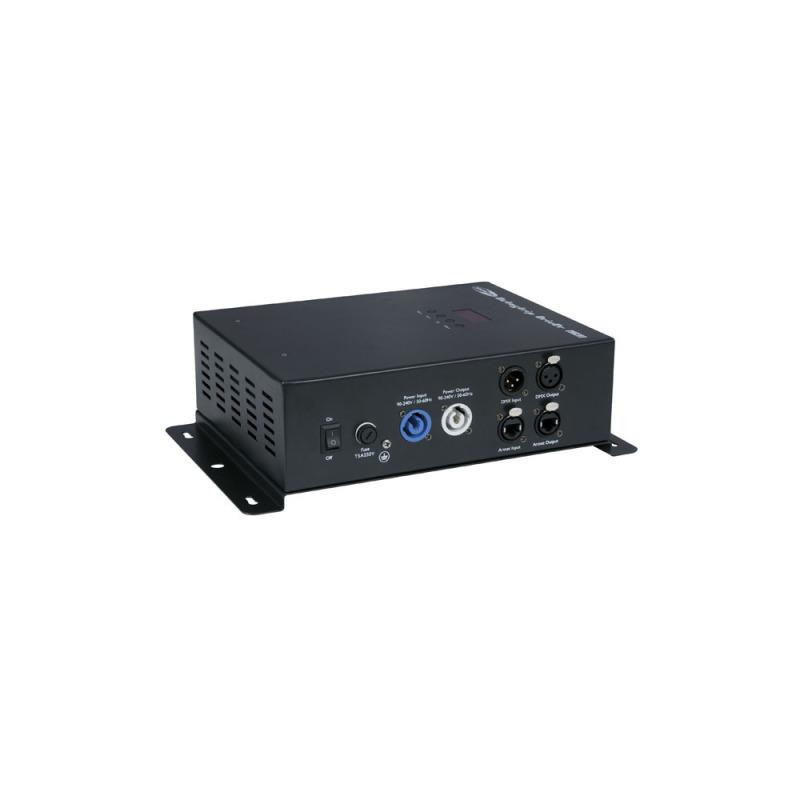

Controller
Input voltage: 100~240VAC, 50/60Hz
Power consumption: 90W at full output
On Board: Display
Modes: DMX, Auto, Sound, Manual
Control protocol: DMX-512, Artnet
Control personality: 6Ch, 8Ch, 14Ch, 26Ch, 50Ch, 192Ch, 208Ch
Color: Black
Housing: Metal
Outputs: 5p XLR female
Max cable length: 6m
Data connections: XLR 3p & RJ-45
Power connections: Pro power in- & output
Dimensions: 360 x 200 x 95 mm
Weight: 2,3 Kg
Certification: CE
Max. ambient temp: 40°
