Skytec - BTS300Z 151.374

BTS300Z 151.374

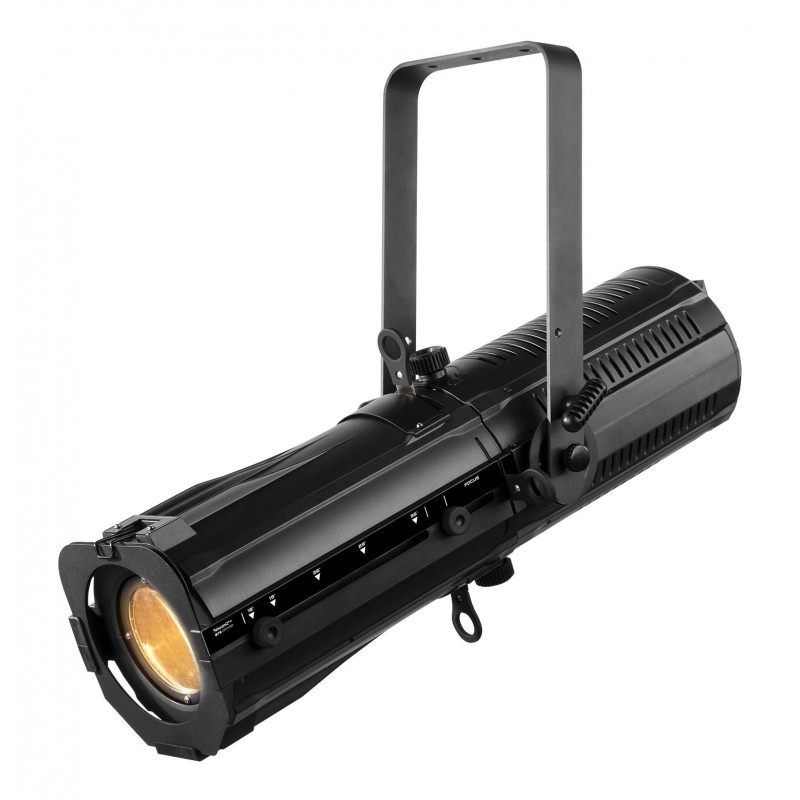

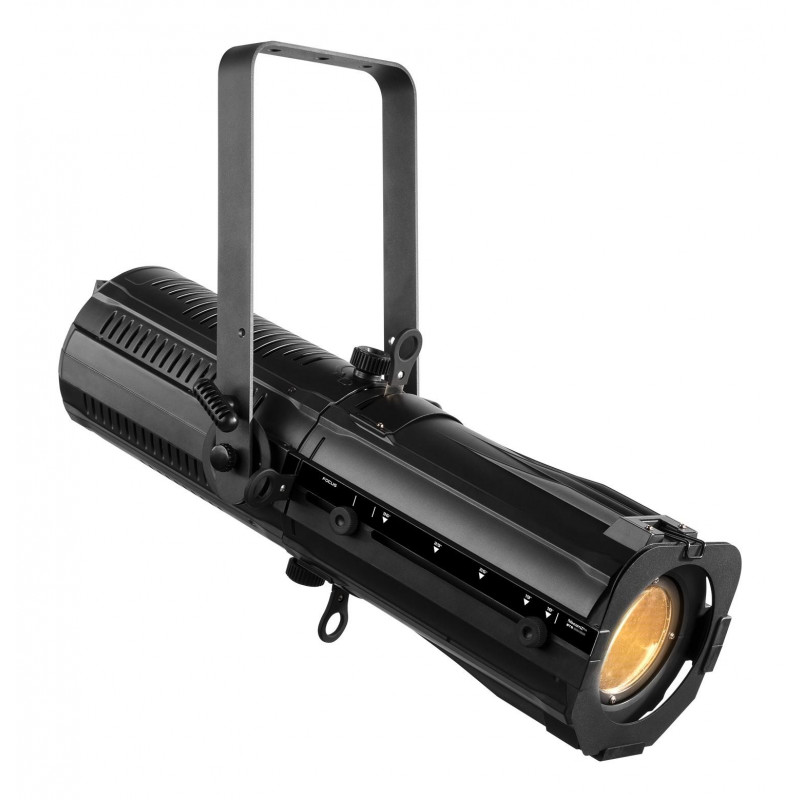

The BTS300Z is a 300W COB high power LED profile spot with manual zoom. The zoom range can be set from 18° to 36° and covers the most regular 19°, 26°, 36° lenses. It features a HQ optical system, a strong ABS housing and an ultra-low power consumption with a surprising output thanks to the 300W LED power source. With this high output LED engine that has near silent cooling it can be used in theatre, studio and concert venues of all types. Use in DMX control mode or with Artnet in & out data connection with RDM function. 300W Warm White COB LED 3200K Lifetime LED: 50.000 hours 18° to 36° Manual zoom Replaces 1KW – 1.5KW Tungsten Halogen profile spots Compact and lightweight ABS body HQ optical system, beam with clean metal shutter cuts 16 bit dimming via DMX Flicker free with selectable PWM Control Panel: full colour LCD Display  CRI 97, TLCI up to 98 DMX (3-pin) and manual control options Artnet connection with RDM function Gobo slot 5 dimmer curves Intelligent temperature control for silent operation Powerconnector in&out Including safety cord and colour frame

1249.00€%14.41 You save 180.00€
1 069,00 €

Add to wishlist

In Stock

Europe Warehouse: 4

More info

Details

The BTS300Z is a 300W COB high power LED profile spot with manual zoom. The zoom range can be set from 18° to 36° and covers the most regular 19°, 26°, 36° lenses. It features a HQ optical system, a strong ABS housing and an ultra-low power consumption with a surprising output thanks to the 300W LED power source. With this high output LED engine that has near silent cooling it can be used in theatre, studio and concert venues of all types. Use in DMX control mode or with Artnet in & out data connection with RDM function.

  • 300W Warm White COB LED 3200K
  • Lifetime LED: 50.000 hours
  • 18° to 36° Manual zoom
  • Replaces 1KW – 1.5KW Tungsten Halogen profile spots
  • Compact and lightweight ABS body

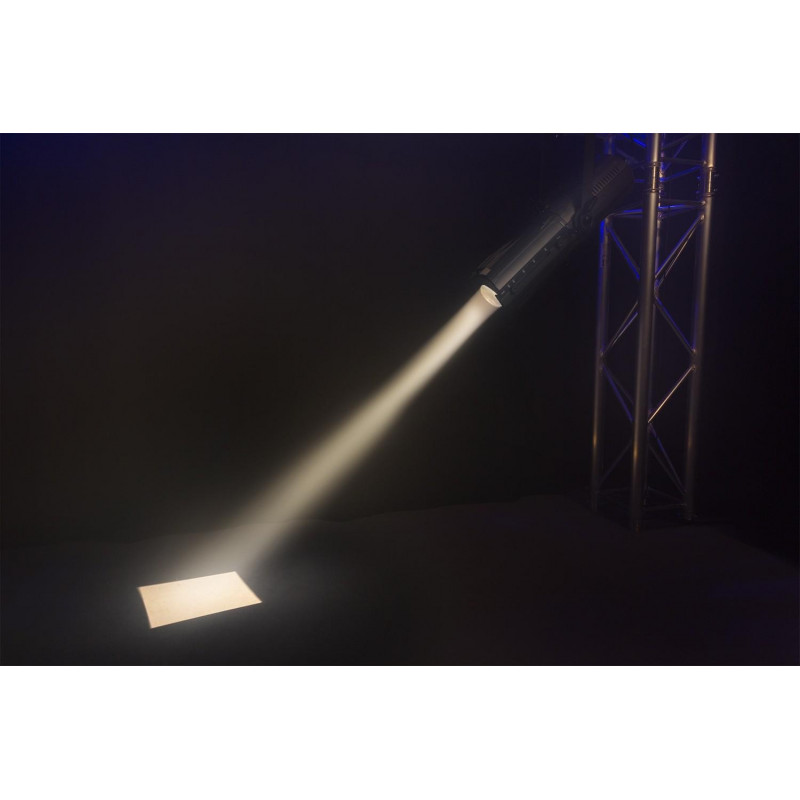

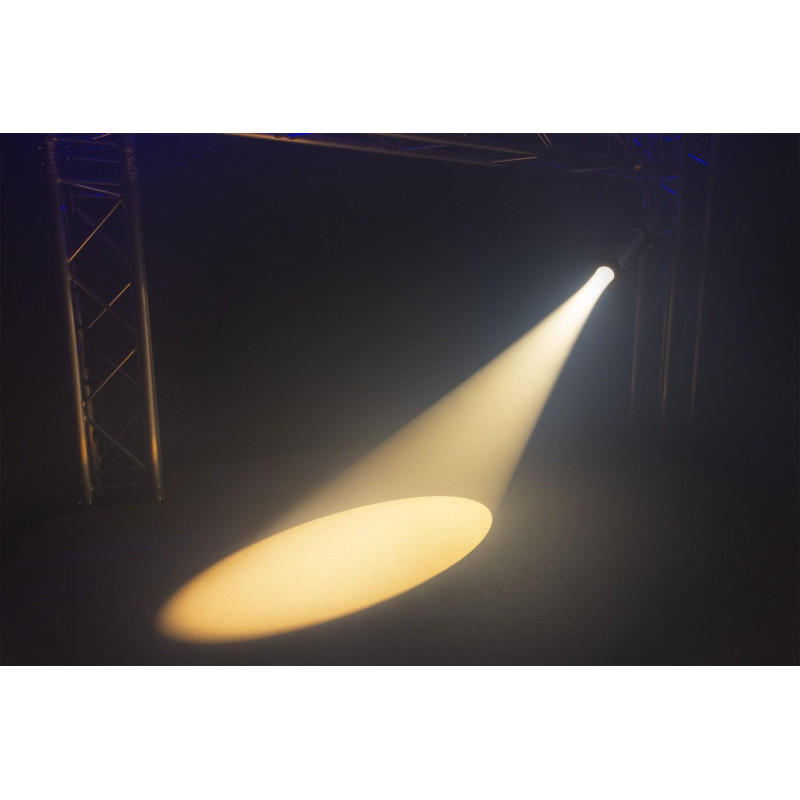

  • HQ optical system, beam with clean metal shutter cuts
  • 16 bit dimming via DMX
  • Flicker free with selectable PWM
  • Control Panel: full colour LCD Display
  • CRI 97, TLCI up to 98

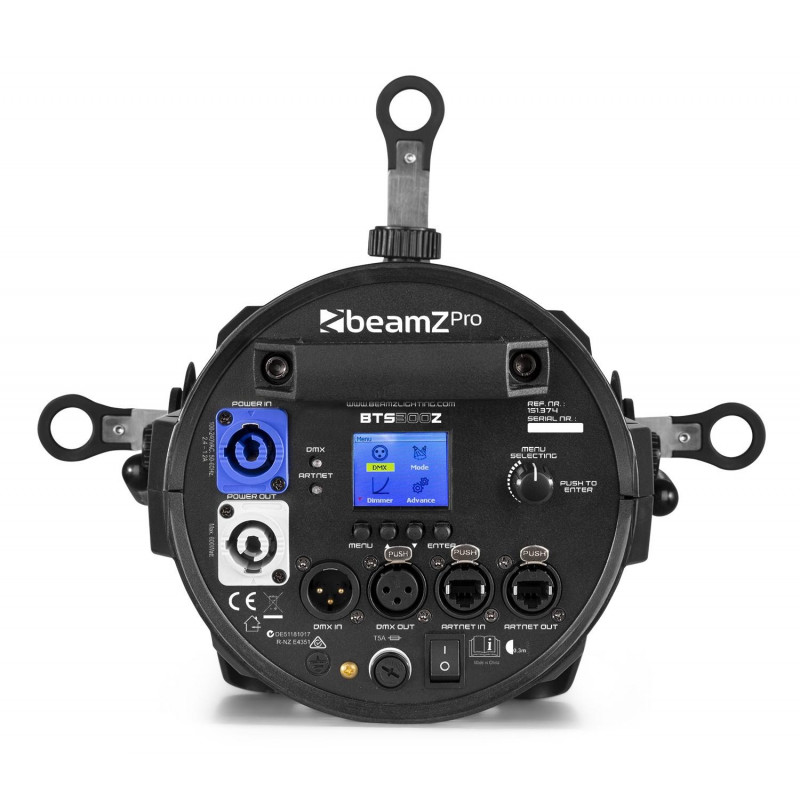

  • DMX (3-pin) and manual control options
  • Artnet connection with RDM function
  • Gobo slot
  • 5 dimmer curves
  • Intelligent temperature control for silent operation

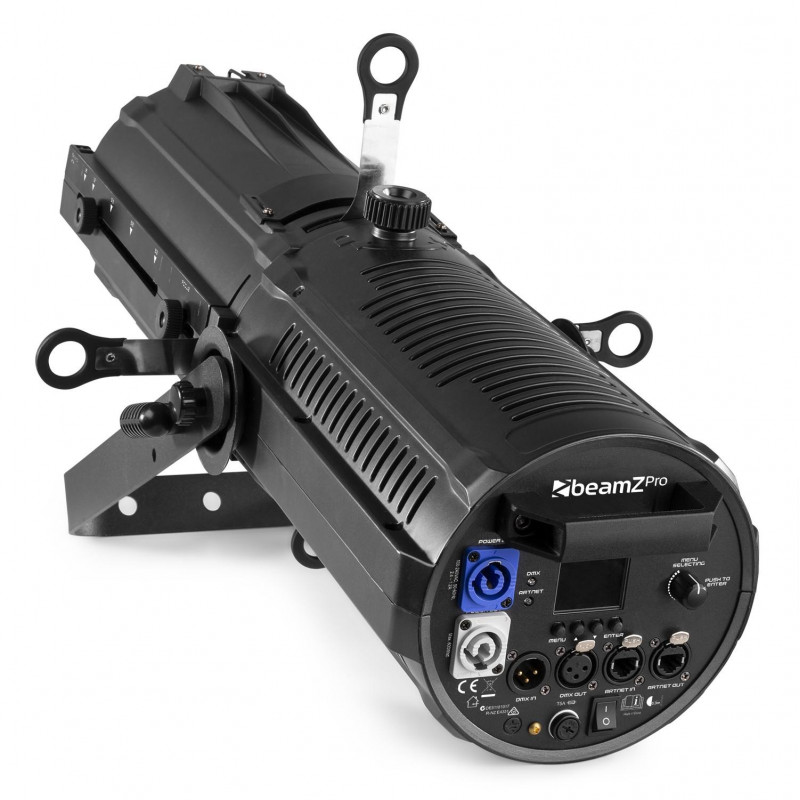

  • Powerconnector in&out
  • Including safety cord and colour frame

Additional Information

BrandBeamz Professional
LightsourceSingle colour LED
LED ColoursWarm White
LED Power300
Colour temperature3200K
Quantity of LEDs1
Beam angle:min (degrees)18
Beam angle:max (degrees)36
Illuminance93538 lx (zoom in)
Flash rate per second1 - 15Hz
DMX Channels1, 2, 3
DMX Connector3-pin XLR, RJ45
ModesDMX
IP ratingIP20
Power PlugPower-connector
Power consumption2.5 - 1.5A
Power Supply100-240VAC 50/60Hz
Dimensions (L x W x H)294 x 745 x 294mm
Weight (kg)9.2
AccessoriesMounting bracket, Power Cable, Safety cord

Product Attachments

pdf Manual - 1.17 MBDownload

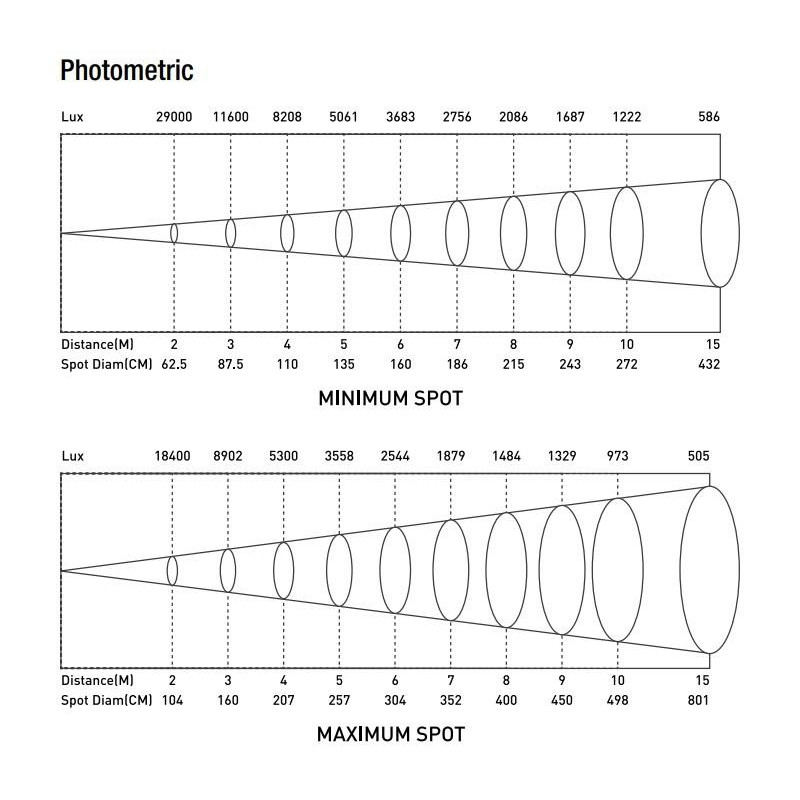

pdf Photometric - 1.64 MBDownload
