Skytec - LCB366LE 150.675

LCB366LE 150.675

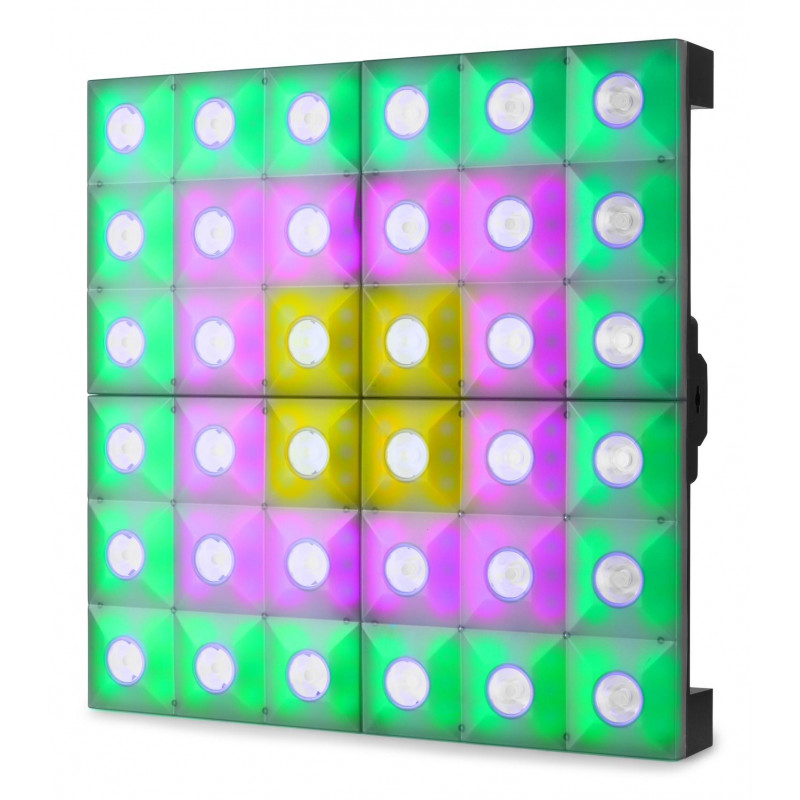

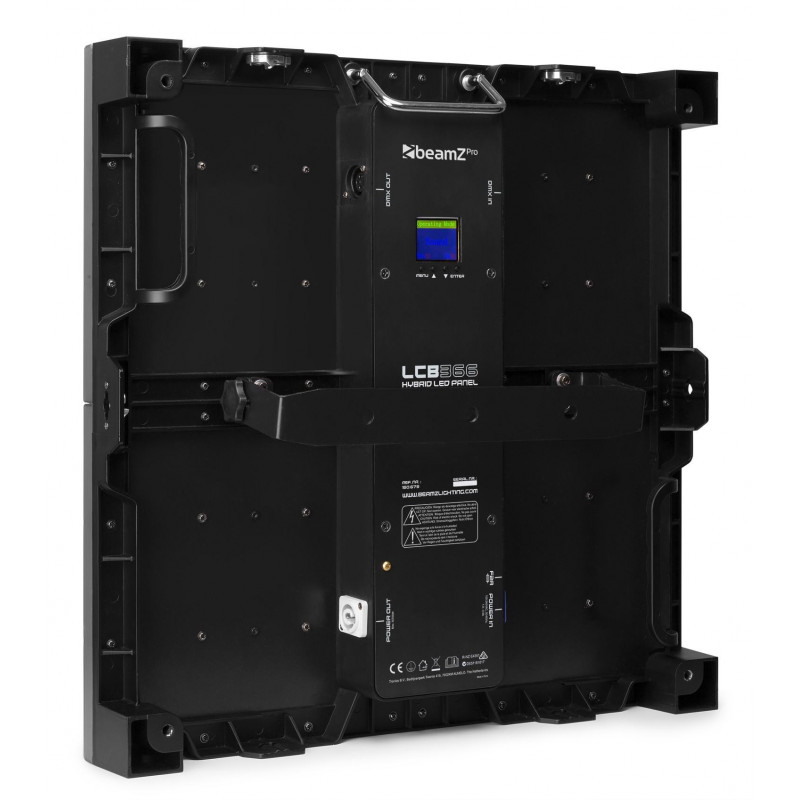

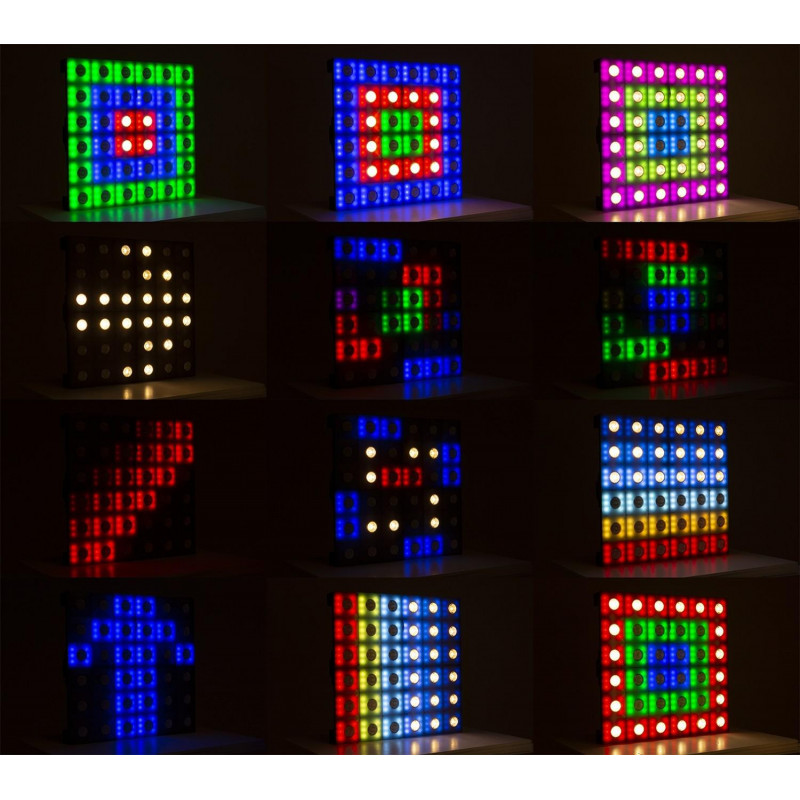

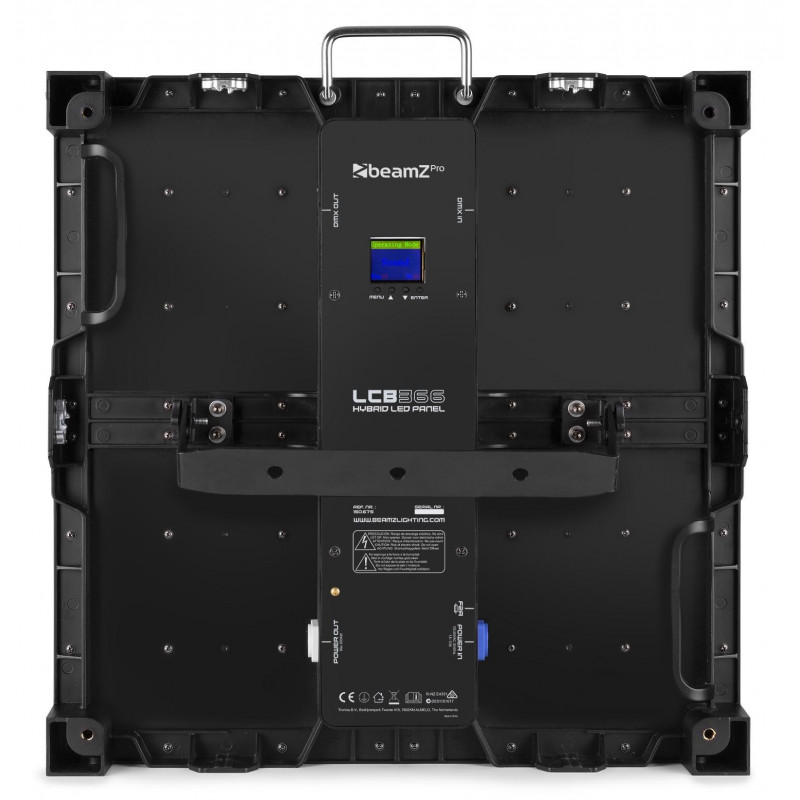

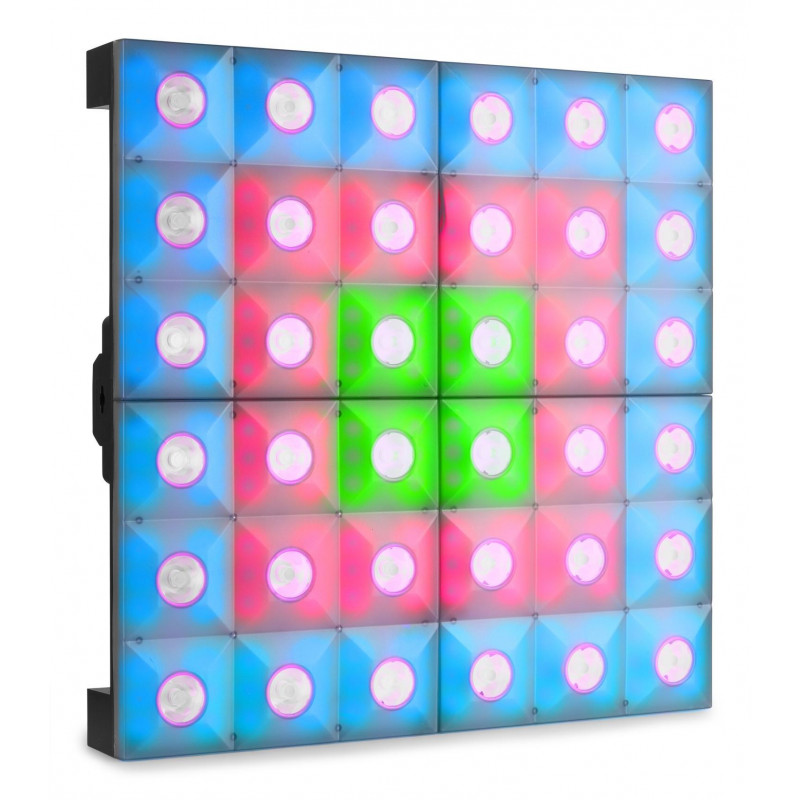

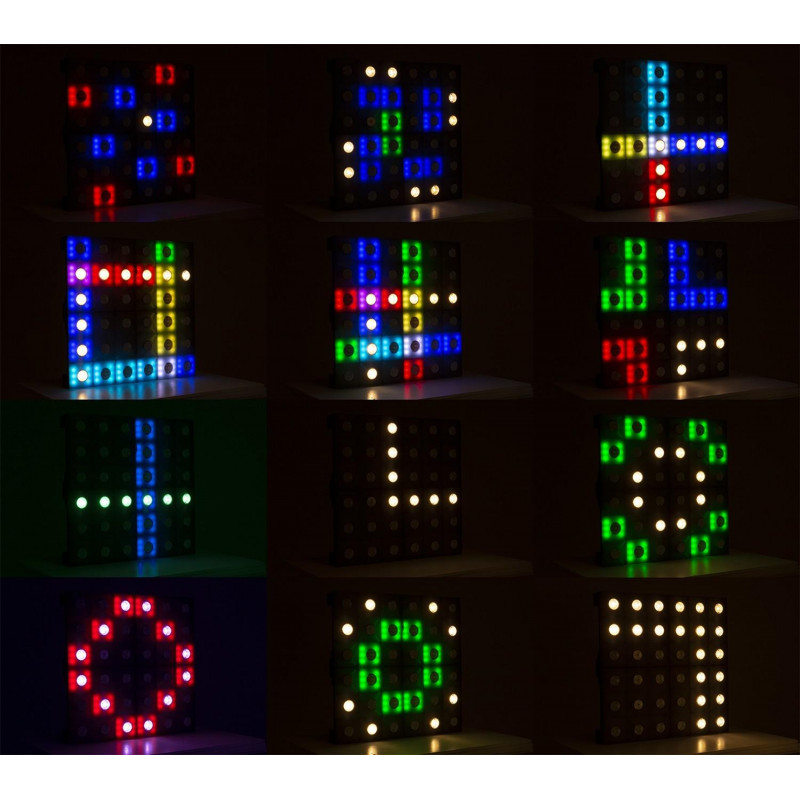

The LCB388 is a hybrid LED panel equipped with 36x 3W Warm White LEDs and 216x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated. It’s also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket. It’s also equipped with a rigging system for a quick and easy way to build an LED wall. 36x 3W Warm White LEDs for sharp 5° beams 216x SMD RGB LEDs (backlight) Single pixel control RDM/DMX protocols Built-in programs Silent operation, natural convection cooling system. Linking multiple panels together with quick locks o-LED colour display Electronic Dimming: 0 - 100% Power Connector TR input/output

539.00€%16.70 You save 90.00€
449,00 €

Add to wishlist

Sold Out

Europe Warehouse: 0

More info

Details

The LCB388 is a hybrid LED panel equipped with 36x 3W Warm White LEDs and 216x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated. It’s also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket. It’s also equipped with a rigging system for a quick and easy way to build an LED wall.

  • 36x 3W Warm White LEDs for sharp 5° beams
  • 216x SMD RGB LEDs (backlight)
  • Single pixel control
  • RDM/DMX protocols
  • Built-in programs
  • Silent operation, natural convection cooling system.

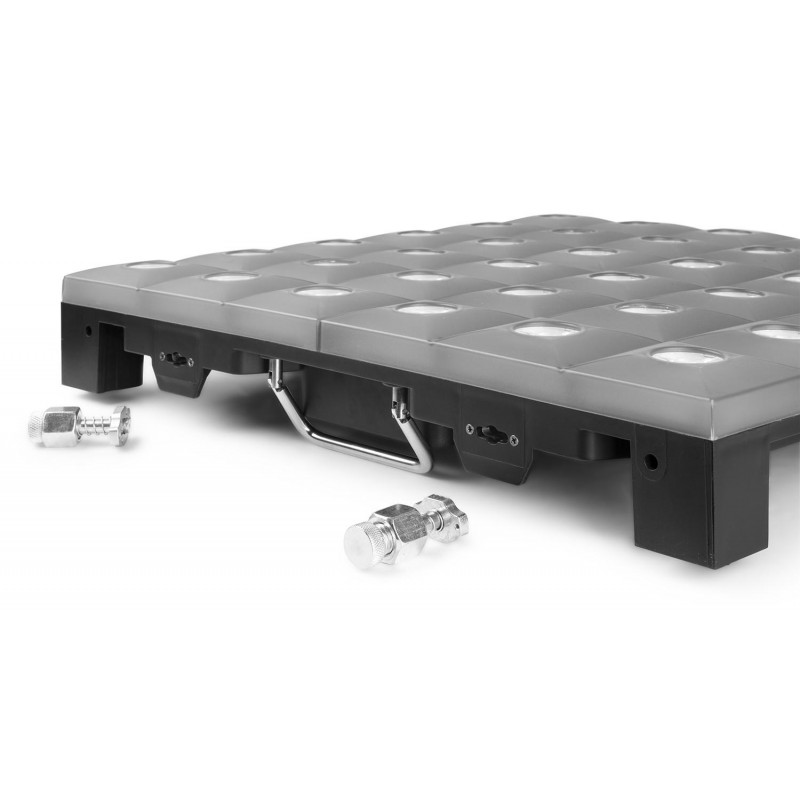

  • Linking multiple panels together with quick locks
  • o-LED colour display
  • Electronic Dimming: 0 - 100%
  • Power Connector TR input/output

Additional Information

BrandBeamz
LightsourceSingle colour LED, 3-in-1 LED
LED ColoursRed, Green, Blue, Warm White
LED Power3
Quantity of LEDs36
LED Power:BacklightSMD
Quantity of Backlight LED's216
Beam angle (degrees)5
Field angle (degrees)10
Illuminance15000 lx @ 1m
Flash rate per second0 - 20Hz
DMX Channels8, 144
DMX Connector3-pin XLR
ModesAutomatic programs, DMX, Manual, Master/Slave
CoolingConvection
DisplayoLed
Power PlugPower-connector
Power consumption1.8 - 0.9A
Power Supply100-240VAC 50/60Hz
Dimensions (L x W x H)500 x 500 x 80mm
Weight (kg)5.7
AccessoriesMounting bracket, Power Cable

Product Attachments

pdf Manual - 2.32 MBDownload
pdf Manual - 461.87 KBDownload
