Sound Sation - CONTROLLER DMX SOUNDSATION SCENE

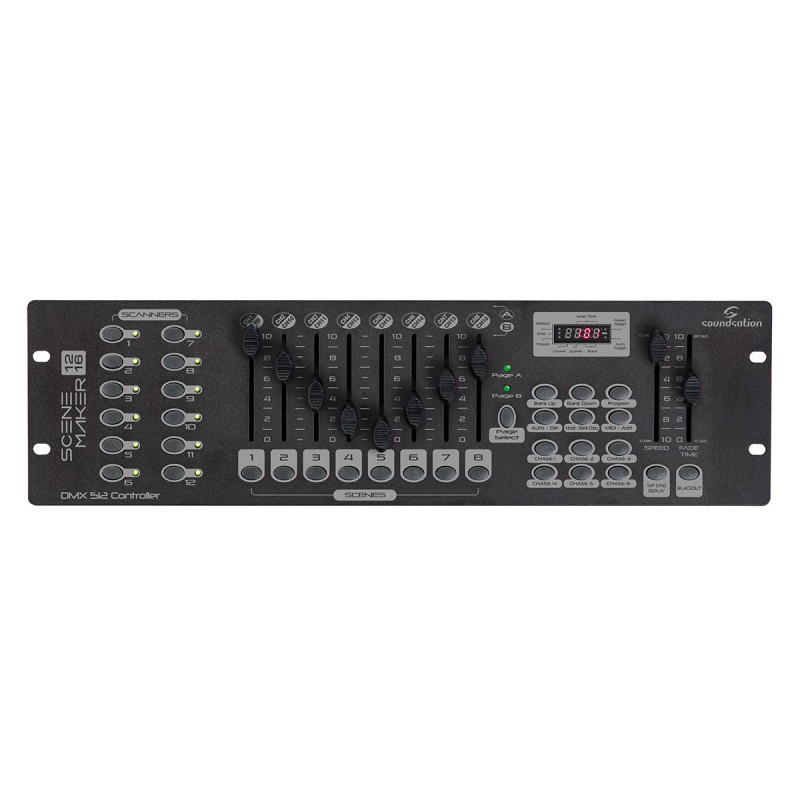

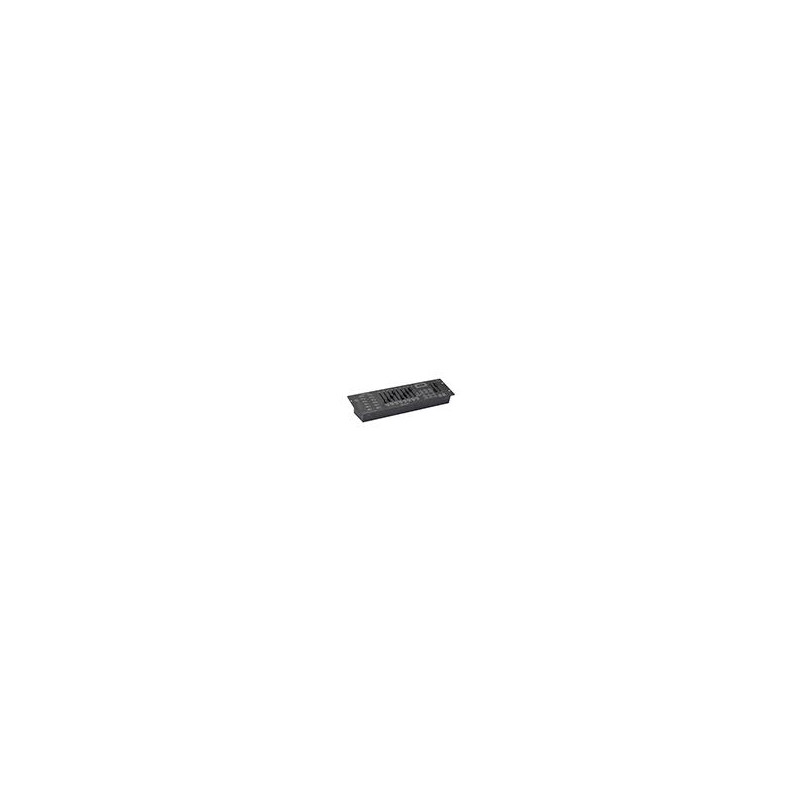

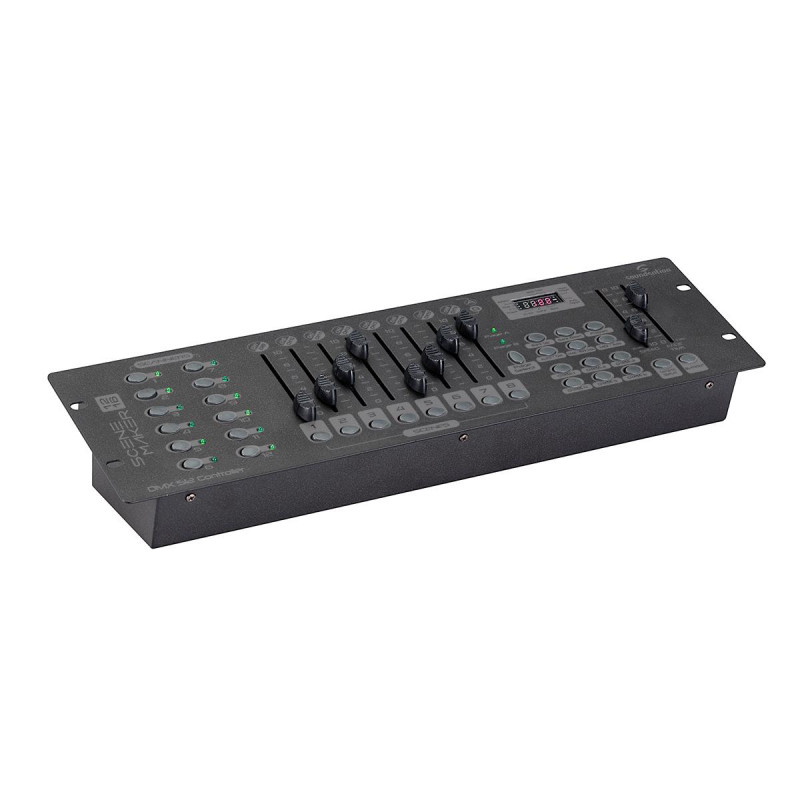

CONTROLLER DMX SOUNDSATION SCENE

12 Fixtures with 16 DMX Channels each; 192 Channels in total

69,00 €

-

In Stock
Usually ships in 4 - 7 business days.

More info

12 Fixtures with 16 DMX Channels each; 192 Channels in total



Features



  • 23 banks of 8 programmable scenes, 184 scenes total
  • 6 chases of 184 programmed scenes from 23 banks
  • Execute multiple chases simultaneously
  • 8 Sliders x 2 Pages for direct control of channels
  • Auto Mode controlled by Speed and Fade Time
  • 8-CH / 16-CH modes for Assigned or Reversed DMX channels
  • Master Blackout
  • Built-in microphone for music triggering
  • USB connection for LED Goose-neck Lamp (Not included)
  • LED Display for easy navigation of menus
  • MIDI control over banks, chases and Blackout

Specs



  • http://www.soundsationmusic.com/
  • Power Supply: DC 9V-12V, 500mA min.
  • USB Lamp (not included): 5V - 200 mA max
  • Protocols: DMX-512 USITT

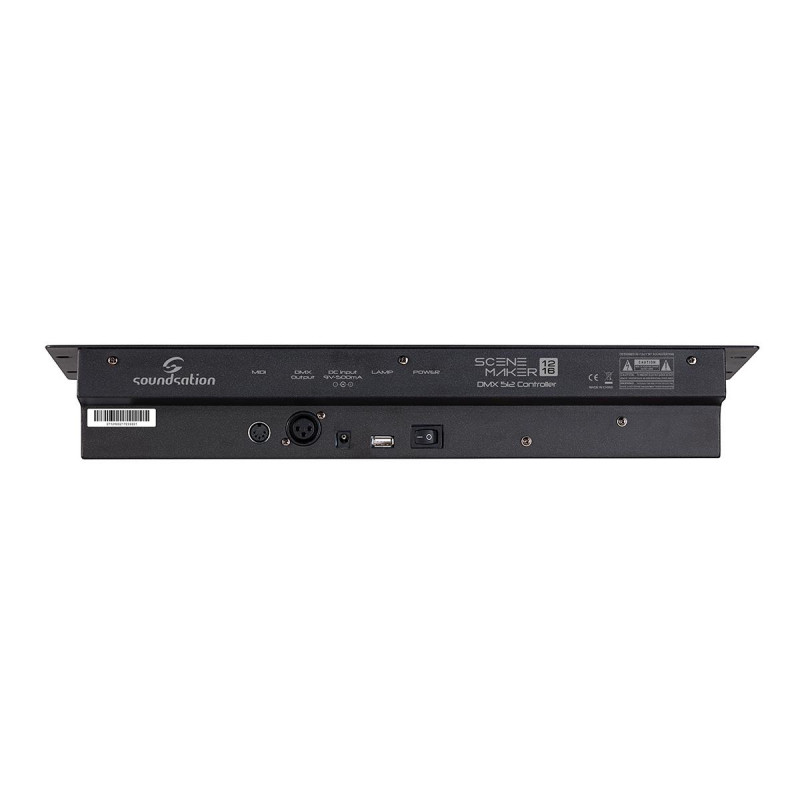

  • Data Input: Locking 3-pin XLR male socket
  • Data Output: Locking 3-pin XLR female socket
  • Data Pin Configuration: Pin 1 shield, Pin 2 (-), Pin 3 (+)
  • Controller Size (WxHxD): 482x82x133 mm
  • Net Weight 2.0 kg
  • Packing Dimension (WxHxD): 560x135x185 mm
  • Packing Gross Weight: 2.6 kg
