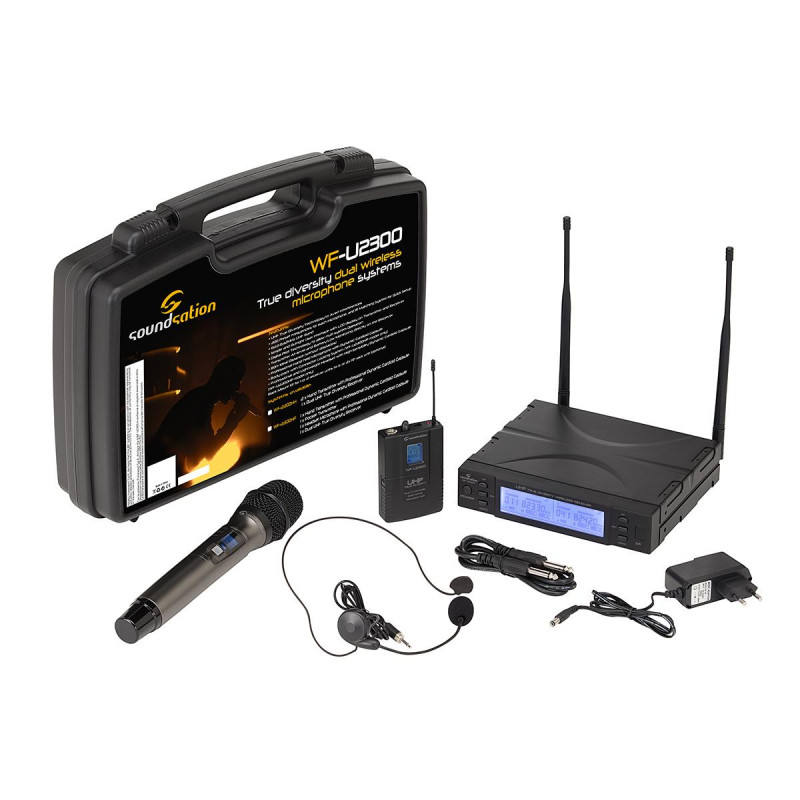

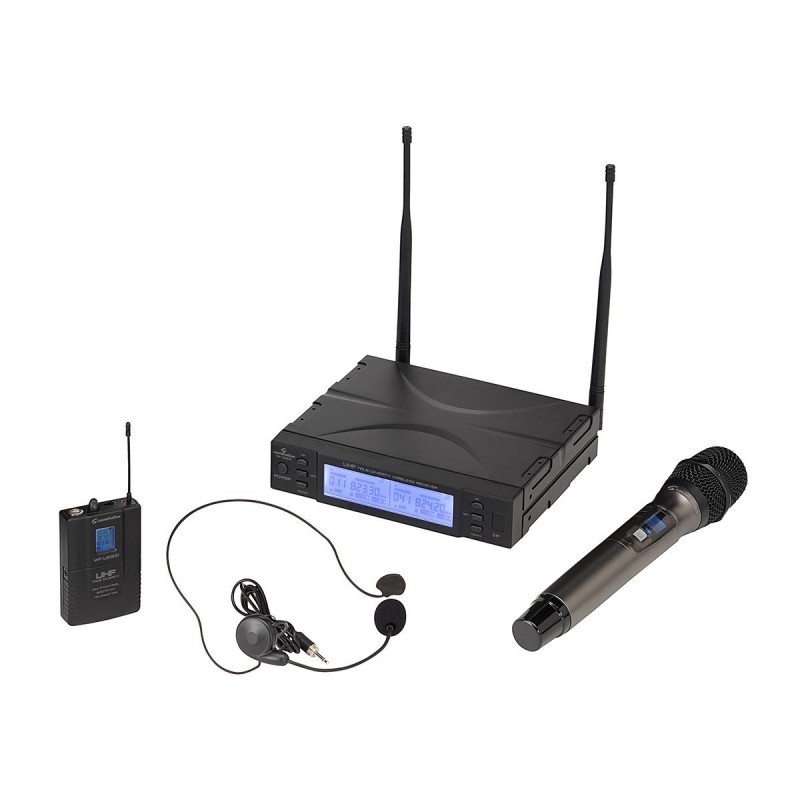

UHF True Diversity Technology to Avert Interferences

Features

• 300 Preset Frequencies for each microphone, and IR Matching System for Quick Setup
• 823-832 MHz UHF Band

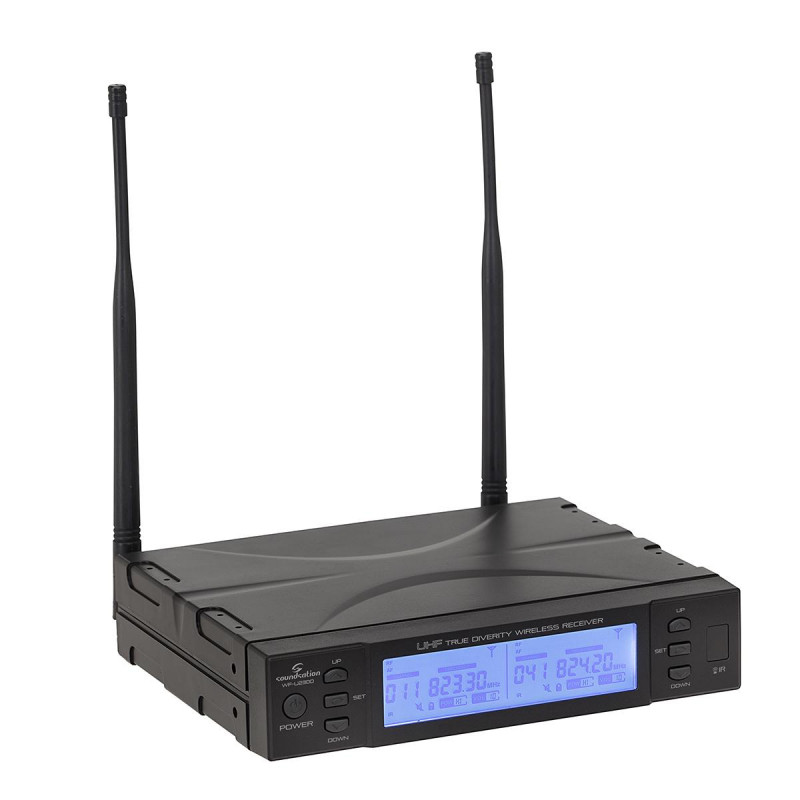

• Simple and Outright User Interface with LCD display on Transmitter and Receiver
• Digital Pilot Technology to allow multi system Operation
• Transmitter AF-level and Battery-Low Monitoring directly on the Receiver
• 80 m Ideal Distance (without obstacles)

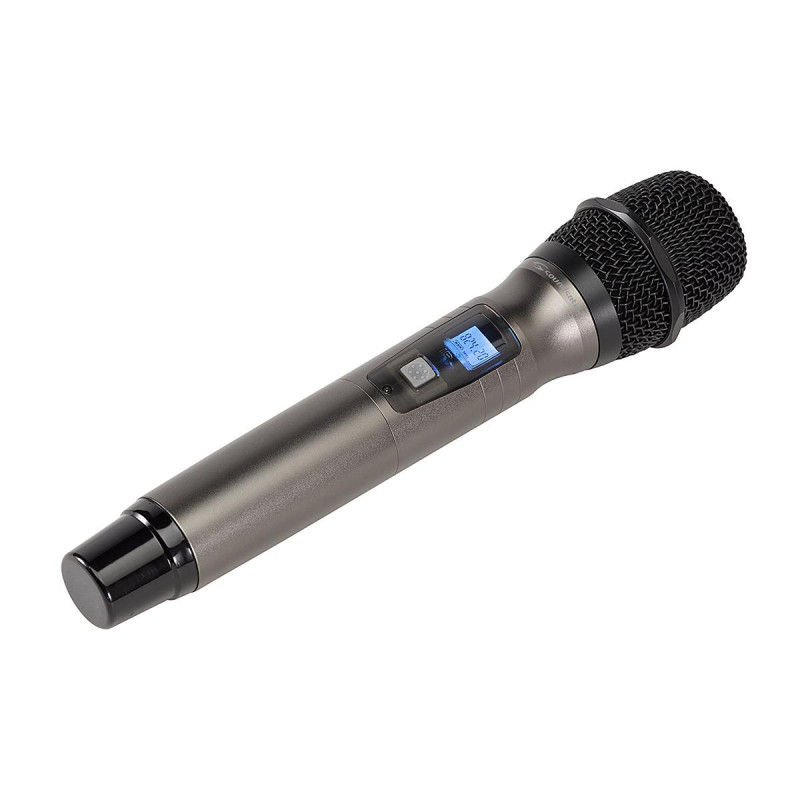

• Professional Hand held Microphone with Dynamic Cardioid Capsule

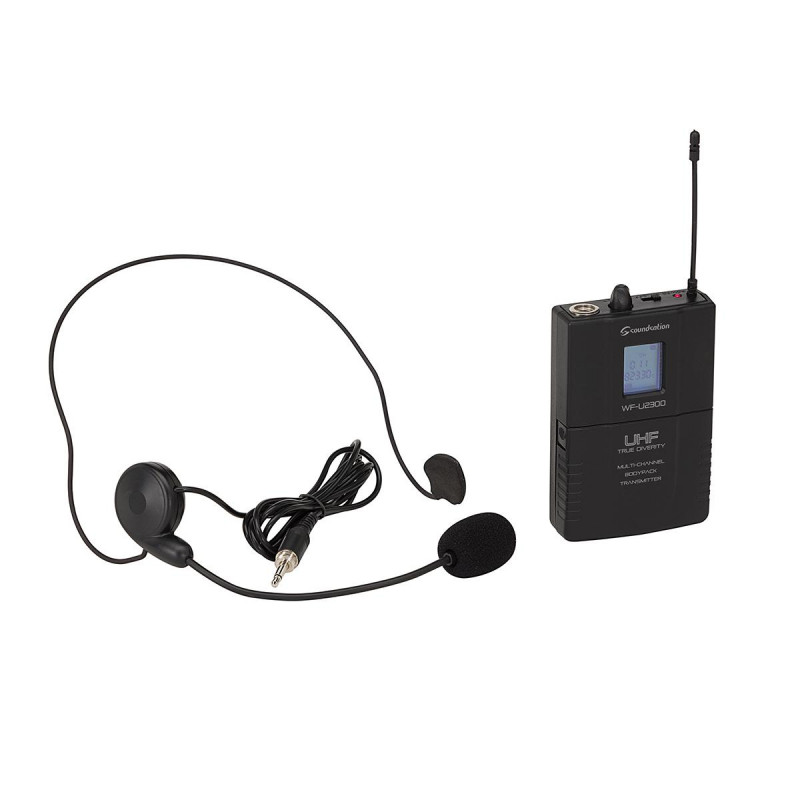

• Body-pack with Connector Locking System
• Professional and Lightweight Headset with High-Sensibility Condenser Cardioid Capsule
• Rack-Mount Kit for 1 or 2 receiver units to 1x or 2x 19 rack unit (optional)

Specs

• http://www.soundsationmusic.com
• Carrier Frequency: UHF823-832 MHz
• Frequency Stabilization: < 30ppm
• Dynamic Range: >90 dB
• Total Harmonic Distortion: <0.5%
• Frequency Response: 40 Hz-15kHz 3 dB

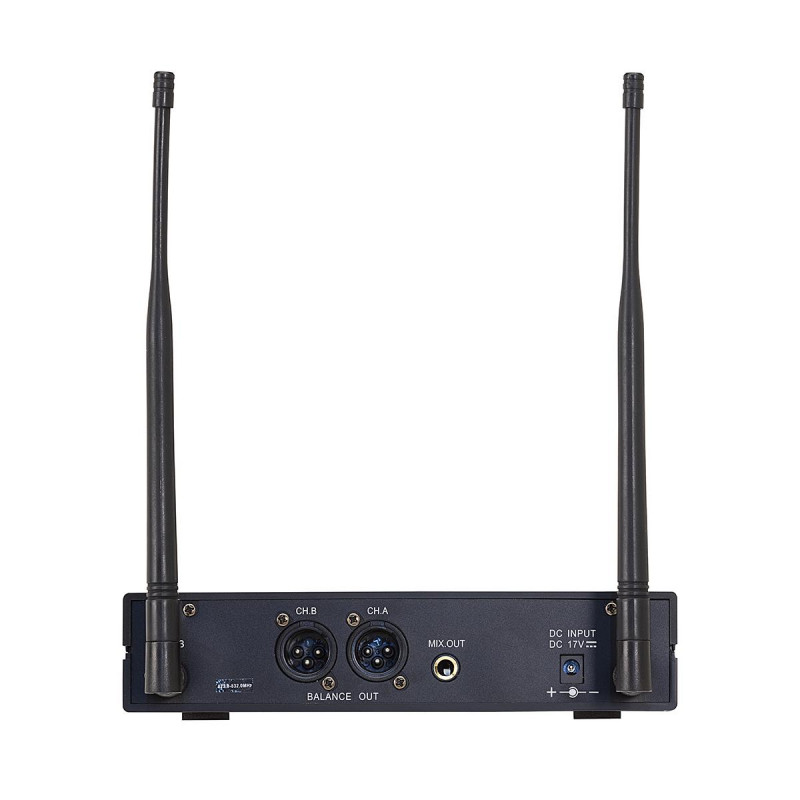

• Audio Output Level: Balanced 400 mV; Unbalanced 400 mV
• Packing Dimensions (WxHxD): 435x104x321 mm
• Packing Gross Weight: 2.5 kg
• Receiver Power Supply: DC 12V/500 mA
• Receiver Consume Power: 7 W
• Signal/Noise Ratio: >90 dB
• Receiving Sensitivity: 5 dBuV
• De-Emphasis: 75 uS
• Dimensions (WxHxD): 210x43x187 mm (antennas not incl.)
• Antenna: 255 mm (not bent)
• Net Weight: 0.53 kg
• Transmitter Power: 10 mW(Max)
• Modulation Type: FM
• Max Deviation: 25 kHz
• Spurious Emission: >40 dB
• Battery Voltage: 3 V (2x1.5 V AA Battery)
• Continuous Using: 5 hours
• Hand-held Mic. Dimensions (W/DxH): 35(min)-53(max)x260 mm
• Hand-held Mic. Net Weight: 0.335 kg (batteries included)
• Pocket Transmitter Dimensions (WxHxD): 62x103x30 mm
• Antenna (W/DxH): 3x9 mm
• Pocket Transmitter Net Weight: 0.132 kg (batteries included)
