More info

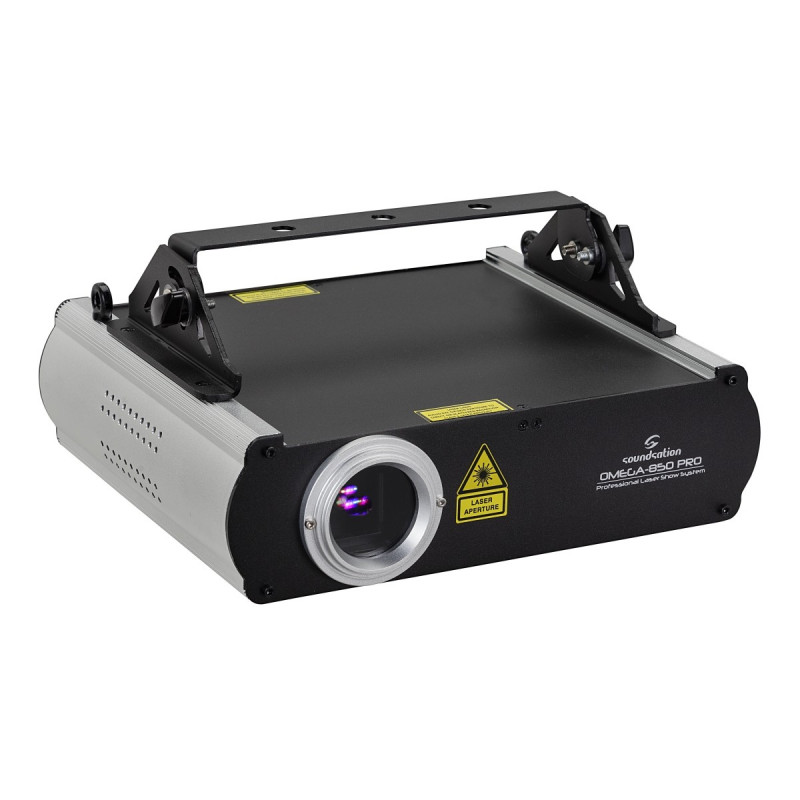

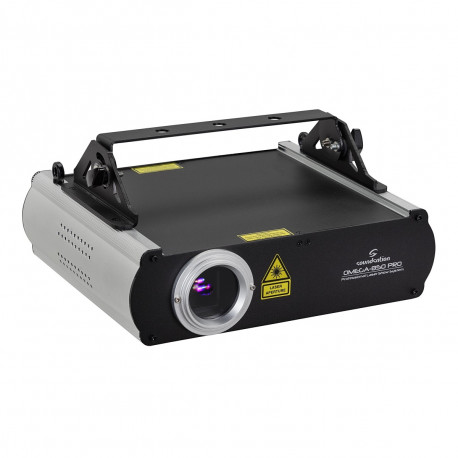

850mW RGB graphic laser (200mW R, 150mW G, 500mW B) for complete color palette effects
Features
- 20K scanner speed
- Built-in Fish-eye Lens for 180 emitting radiation Angle
- Lens Magnification: 0.23X
- 3-dimensional adjustment frame for maximum alignment of laser emitters
- Built-in 2 sets of programs and 2 sets of voice programs
- SD-Card reader for quick access to external ILDA libraries
- ILDA standard protocol for maximum compatibility with other ILDA software/hardware equipment
- Operation Modes: ILDA show in SD Card playing, Internal Program playing, Sound, DMX, Master/Slave
- DMX: 24CH mode
- 128x64 dot multi-function LCD display system fox quick access to all parameters memory content
- Job wheel with switch for easy menu navigation and editing
- Wired Remote Control Connector for hard-blackout
- Key switch and safety eye for maximum safety of use and installation
Specs
- http://www.soundsationmusic.com/
- Laser Red: 638nm/200mw
- Laser Green: DPSS 532nm/150mw
- Laser Blue: 450nm/500mw
- Laser Type: Class 4 Laser
- Zoom angle: 1-36
- Scanner Speed: 20K

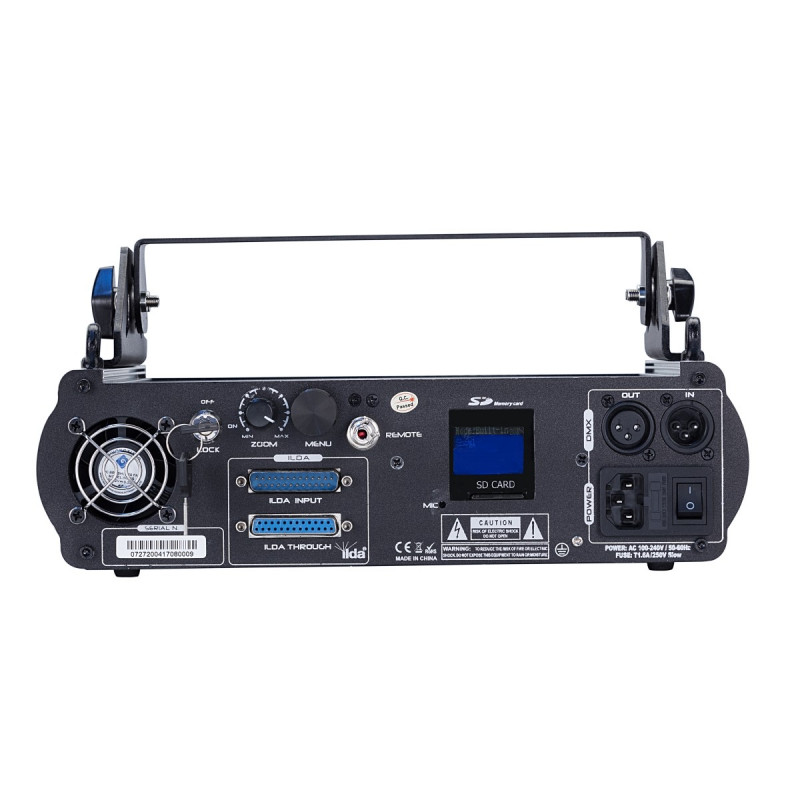

- I/O Connectors: (DMX) 3-pin XLR / (ILDA) DB25
- S/D Connectors: Outlay SD card store programs
- DMX: 24CH
- Maximum External Temp: 104F (40C)
- Cooling System: Green TEC cooling
- Power Supply Type: Switching (internal)
- Power Range: 100-240V 50/60Hz
- Consumption: 30W
- Fuse: T1.6A 250V
- Unit Dimension (LxHxD): 316x89x154 mm
- Unit Net Weight: 4.26 kg
- Packing Size (LxHxD): 406x194x326 mm
- Packing Weight: 5kg
