More info

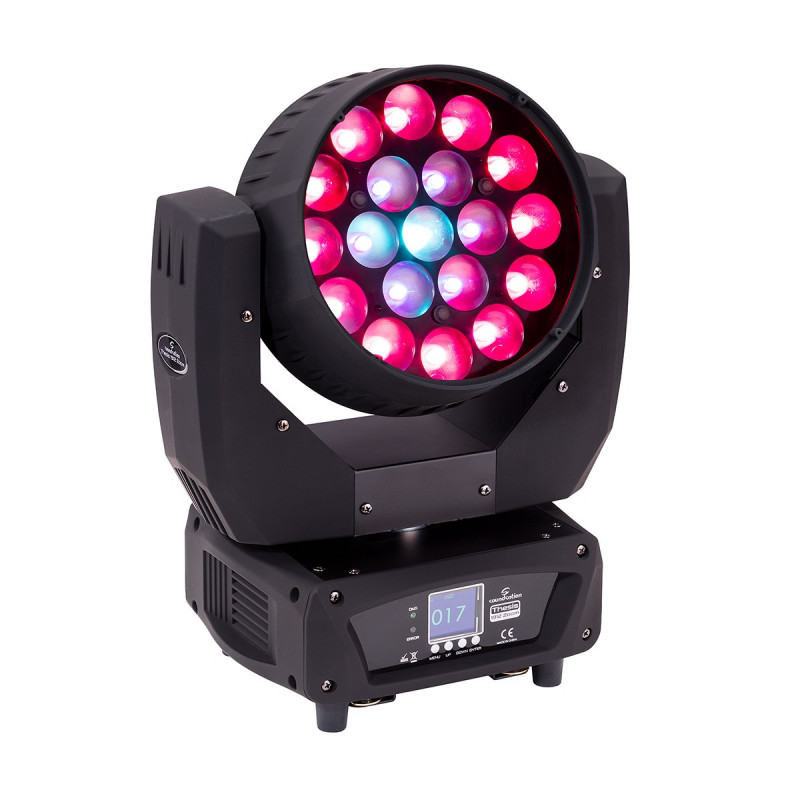

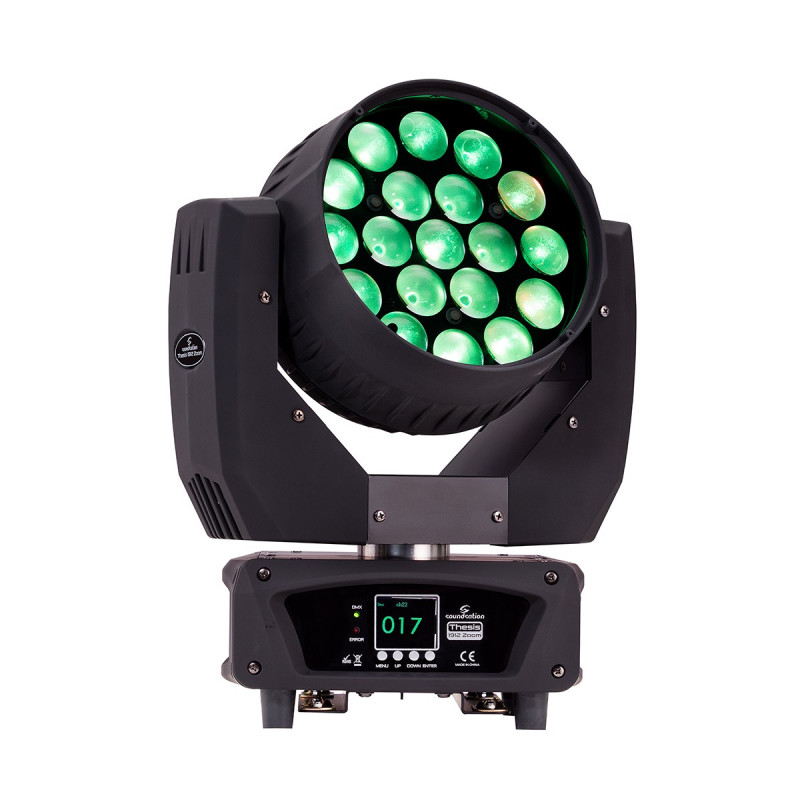

19 x 12W RGBW CREE LEDs with max 42400 Lux (full bright @ 1m - 15 beam)
Features
- Super long-life LED with 100000 hours operation, low energy consumption, energy saving, and environmental protection LED
- Uniform RGBW color mixing system and rainbow effect with 3 concentric Zones (12pcs LED on external ring, 6pcs LED in the middle, 1pc LED in the centre)
- 0-100% Linear Dimmer with 65536 brightness levels, to achieve a truly 16-bit dimming and eliminate the eight-dimming low light jitter
- Smooth Zoom function from 15 to 60
- Lens without attenuation
- 3 kinds of control modes: DMX, Master/Slave Auto, Sound Control
- 22/14 DMX Channel Modes
- 1~25t/s Strobe effects (with Electronic regulating or Random)
- Horizontal scanning: 540 (16-bit precision scanning)
- Vertical scanning: 265 (16-bit precision scanning)
- TFT LCD display with user-friendly interface

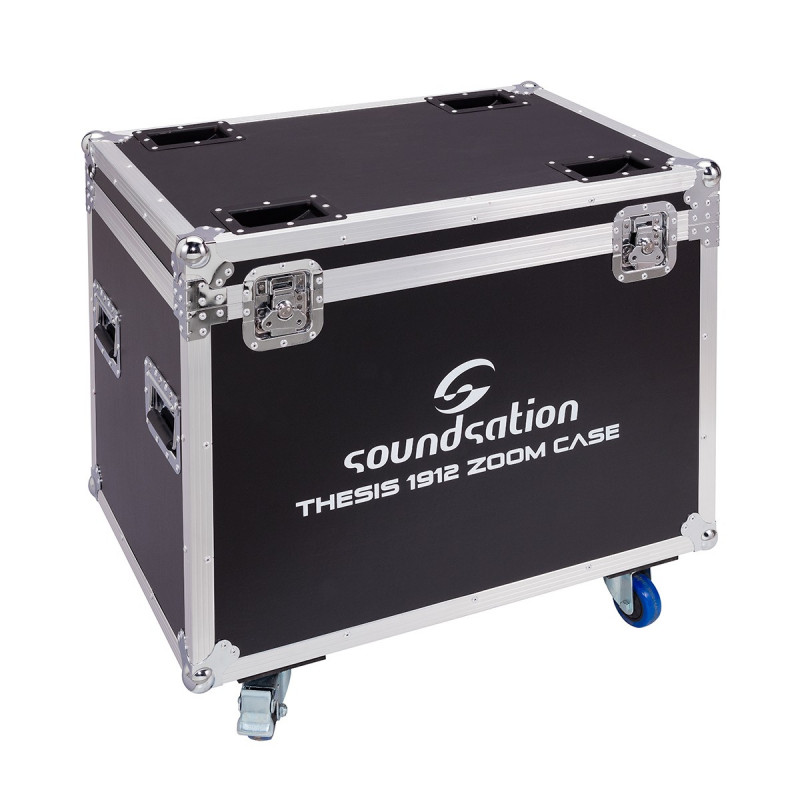

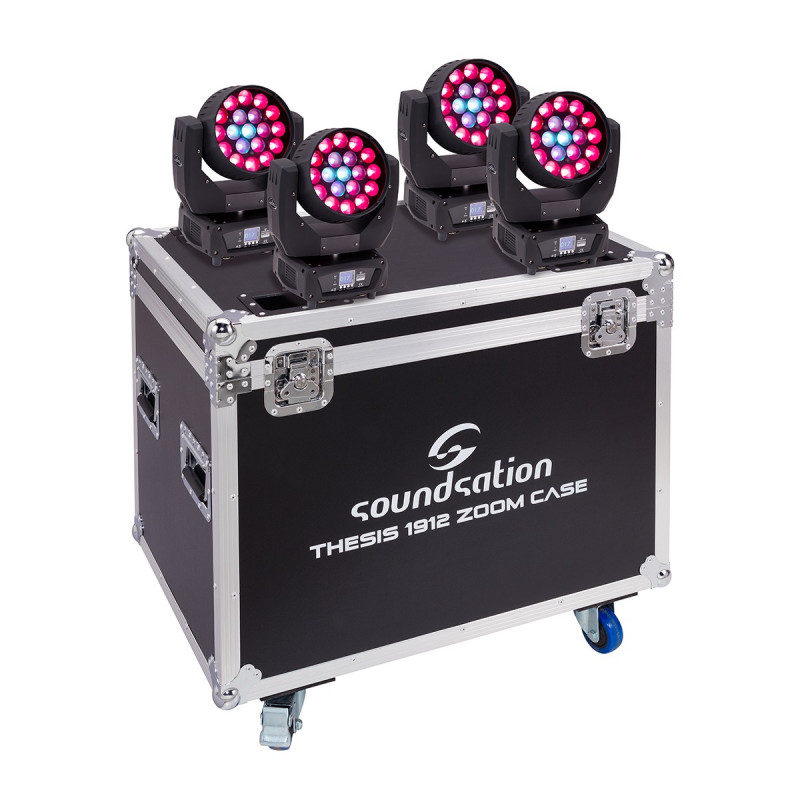

- Professional Flight Case with wheels (two wheels with brake)
Specs
- http://www.woundsationmusic.com/
- Light Source: 19 pieces of 12W RGBW 4in1 high brightness CREE LEDs
- Luminance: Max 42400 Lux @1m (Full bright, 15 Beam Angle)
- LED lifetime: Around 100,000 hours
- Beam Angle: From 15 to 60 with DMX controlled zoom
- PAN: 540 (16bit precision scanning)
- TILT: 265 (16bit precision scanning)
- Operation mode: DMX control, Master/slave, Auto run, Sound
- DMX Mode: 14CH and 22CH
- Dimmer: 0-100% Linear Dimmer with 65536 brightness levels
- Strobe: 1~25t/s Strobe effects
- Noise: 48.1dB @ 7m; 48.2dB @ 6m; 49.2 dB @1m
- Voltage: AC 100-240V / 50~60Hz
- Power consumption: max 300W
- Fuse: F10A L250V (5x20 mm)
- Fixture Size (LxHxD): 300 x 410 x 200 mm
- Flight Case Size: 810 x 560 x 720 mm
- Single Fixture Weight: 7.4 kg
- Gross Weight(Fixtures, Flight Case and Accessories: 39 kg
