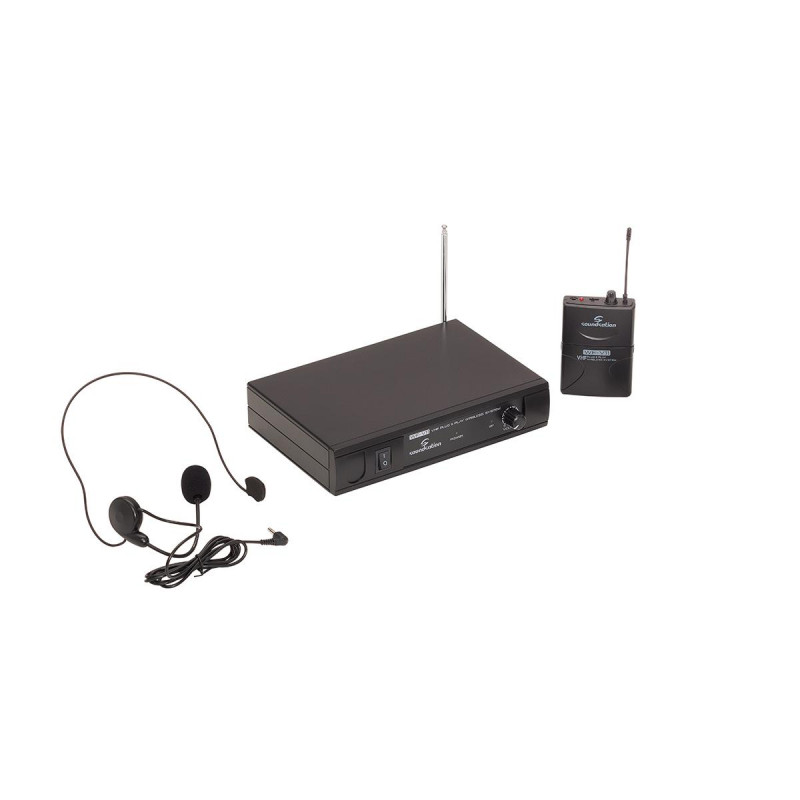

VHF Transmission with SMD Technology

Features

• 4 available Frequencies in VHF Band
• Simple user Interface for plug and play setup
• 30m ideal distance (without obstacles)
• Strong yet lightweight bodypack transmitter
• Professional and Lightweight Headset with high-sensibility dynamic cardioid capsule

Specs

• http://www.soundsationmusic.com/
• Carrier Frequency: VHF 200 - 215.3 MHz
• Operating Frequency: 213.0 MHz
• Frequency Stabilization: Automatic calibration
• Dynamic Range: > 90dB
• Total Harmonic Distortion: < 0.5%
• Frequency Response: 40Hz - 16kHz / 3dB
• Packing Dimensions (WxHxD): 436 x 104 x 324 mm
• Packing Gross Weight: 2.0 kg
• Receiver Power Supply: DC12V, 500mA
• Receiver Consumption: < 2W
• Signal/Noise Ratio: > 95dB
• Receiving Sensitivity: 10dBuV
• De-Emphasis: 75uS
• Audio Output Level: Balanced 400mV; Unbalanced 400mV
• Receiver Size (WxHxD): 211 x 43 x 115 mm (antennas not incl.)
• Antenna Length: 110 mm (min.) 430 mm (max.)
• Net Weight: 0.295 kg
• Transmitter Power: 10mW
• Modulation Type: FM
• Deviation: 37KHz
• Battery Voltage: 3V (2x1.5V AA-Type Batteries)
• Continuous Using: 7 hours
• Pocket Trans. Dimensions (WxHxD): 62 x 103 x 30 mm
• Antenna (W/DxH): 3 x 9 mm
• Pocket Transmitter Net Weight: 0.132 kg (batteries included)
