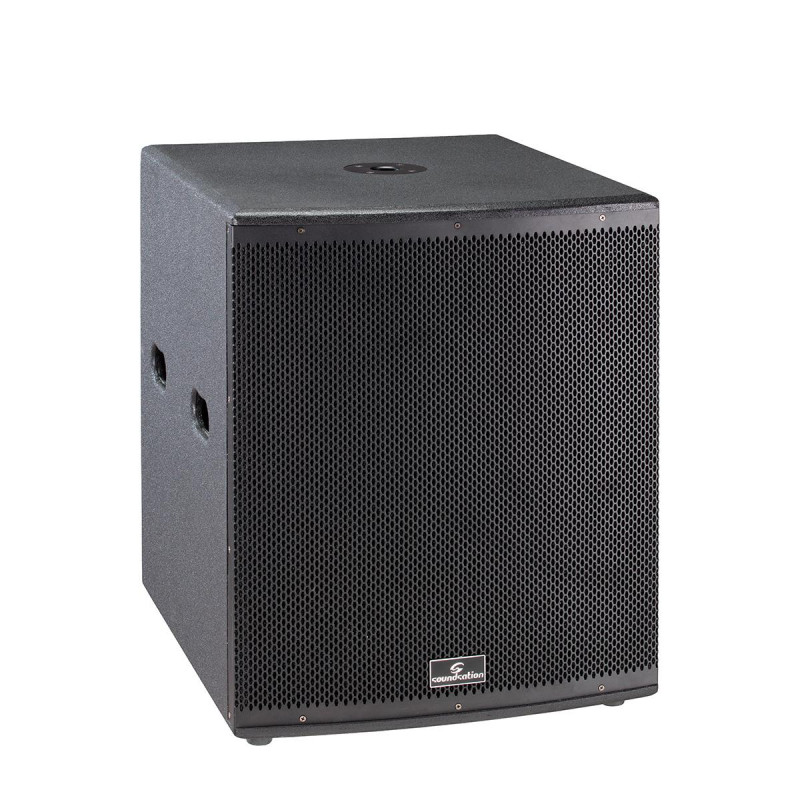

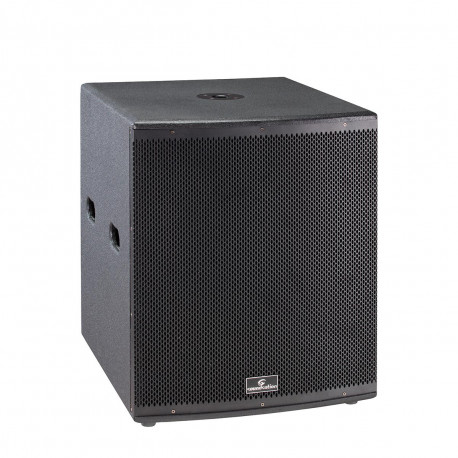

Hyper Bass series is the result of years of experience gathered by Soundsation in Portable Sound systems. These active subwoofers are equipped with 12”, 15” or 18” high-excursion woofers. Sturdy and stylish birch plywood enclosures with full metal grille and acoustic foam ,offers a pleasant look and ensure an high quality sound and punch. Equipped with a Class D amp and switching power supply they deliver massive power up to 1200W with great efficiency. All models feature a stereo active crossover and balanced Input/Output/Link connections . All models feature M20 speaker pole mount, 2 or 4 recessed handles (12”or 15-18”) 4 wheels predisposition on 15” and 18” version for portable sound purposes and easy carriage.
Product downloads
Manual
Brochure
Specifications
Key features
| Bass-reflex Active Subwoofer | |
| 18" woofer | |
| 1200 Watt class D amplifier | |
| Integrated active crossover | |
| XLR L/R Balanced Line Inputs | |
| XLR L/R Balanced Filtered Outputs, XLR L/R Balanced Link Outputs | |
| Controls | Sub Level, 80-120Hz crossover switch, 0-180° Phase, Shape switch, Ground Lift On-Off |
| RMS, Overload, Thermal limiter protection | |
| Multiplex Birch plywood enclosure with painted black finish | |
| 2 lateral recessed handles each side | |

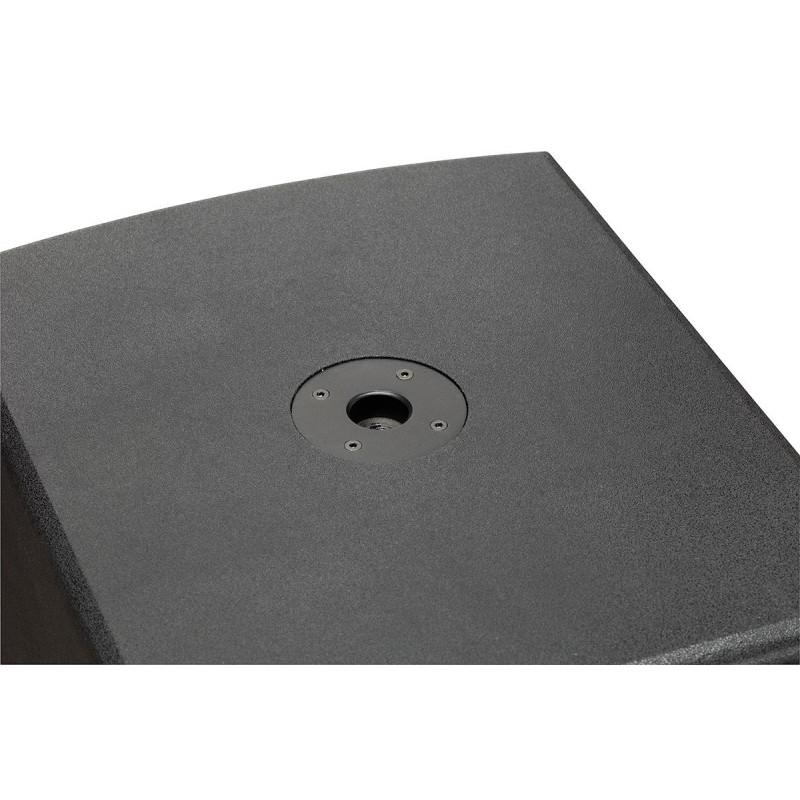

| M20 type speaker pole mount to reduce vibrations | |
| Predisposition for 4 wheels (not included) | |
| Dimensions (LxHxW) | 620 x 700 x 740 mm |
| Weight | 37 Kg |
Specifications
| Bass reflex active subwoofer | |
| Woofer | 18”, 4” voice coil |
| Amplifier | 1200W Peak/ 600W RMS, Class-D |
| Max SPL(Peak) | 126dB |
| Crossover Frequency | 120 Hz (24dB/Oct.) |
| Frequency Response [- 10dB] | From 30 Hz to 150 Hz |
| Frequency Response [- 3dB] | From 35 Hz to 120 Hz |
| LEDs | Power On (Green), Signal (Green) / Limit (Red) |
| Power Requirement | 230Vac - 50 Hz |
| Minimum Power Consumption | 750W |
| Power Connector | VDE with T5AL-250V Fuse |
| Dimensions (LxHxW) | 620 x 700x 740 mm |
| Weight | 37 Kg |
