Sound Sation - HYPER TOP 15A

HYPER TOP 15A

1000W 15" Polypropylene bi-amped active speaker

299.00€%10.37 You save 31.00€
268,00 €

Add to wishlist

In Stock

Europe Warehouse: 7

More info

HYPER series is the result of years of experience gathered by Soundsation in Portable Sound systems.This speaker line is built with a sturdy, lightweight and stylish polypropylene enclosure with full metal grille and acoustic foam to protect the transducers. The cutting-edge design, according to latest industry standard, offers both a great look and an optimal sound quality. All models are equipped with a Class D amp and switching power supply to deliver massive power with great efficiency and light weigh. (with the exception of the 6”). MIC and Line inputs to connect all major input sources, being microphones, mixers or media players. Featuring four M8 flying points distibuted on each side, 1 handle on top and a standard D36mm pole mount hole it is ideal for both fixed installation or portable applications.

Specifications

Key features

2-Way bi-amped Active Speaker
High resonance, sturdy and lightweight polypropylene cabinet with full metal grille and foam soundproof material
Class D amplifier for Low-frequencies; Class-AB for High-frequencies. 1000W total power (800W+200W)
15" woofer and 1.35" driver

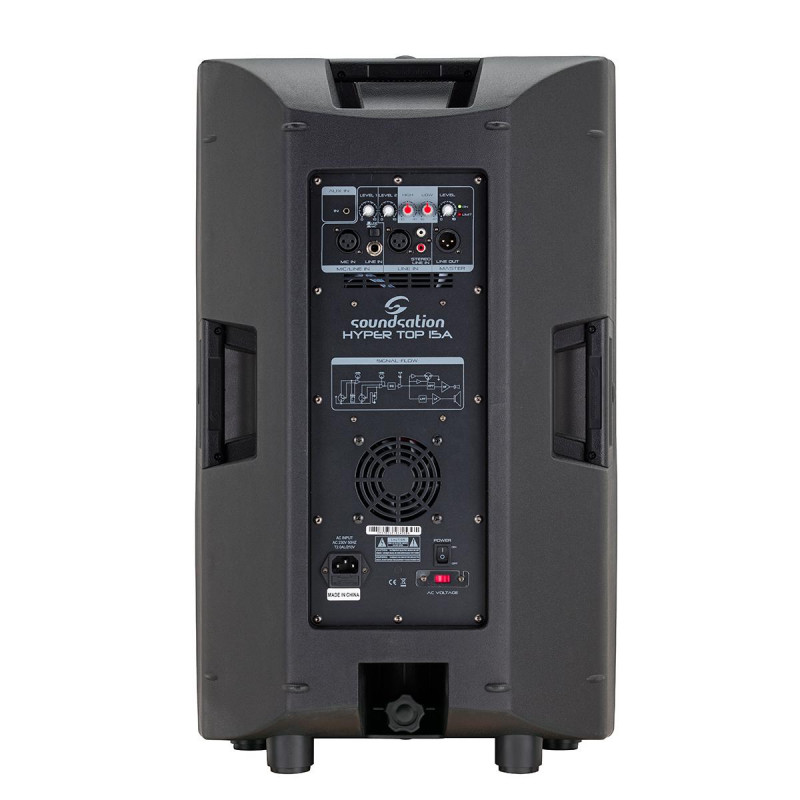

Microphone/line inputs XLR + jack jack ¼”, line XLR/RCA stereo, mini jack for convenient connection of smartphones and tablets
XLR output link out
Volume for each channel, master volume and equalization Hi/LOW controls
Suited for stage monitor use at 30°/45°
Top and side handle allow easy carrying
36mm pole mount
4 M8 flying points, one each side
Dimensions (WxHxD)420 x 697 x 383 mm
Weight18 Kg

Specifications

2-Way active bi-amped speaker
Woofer15" with 3" voice coil
Compression driver1.35” voice coil, 1” throat
Horn90° x 60°, symmetric
Frequency Response [- 10dB]41Hz - 19KHz
Frequency Response [- 3dB]46Hz - 19KHz
Max SPL121dB
Sensitivity96dB
AmplifiersClass-D (Low freq.); Class-AB (High Freq.)
Power (Peak/Rated)1000W (800+200W) / 500W (400+100W)
Crossover2.6KHz, 24dB/Oct.
EQHigh (2.5KHz, +/- 12 dB); Low (150Hz, +/- 12 dB)
LEDsPower On (Green), Clip (Red)
Power Requirement230Vac - 50 Hz
Minimum Power Consumption250W
Power ConnectorVDE with T2A-250V Fuse
Dimensions (WxHxD)420 x 697 x 383 mm
Weight18 Kg
