UHF Transmission with SMD Technology

Features

• 4 available Frequencies in free-license ISM Europe Band
• Simple user Interface for plug and play setup
• 30m ideal distance (without obstacles)

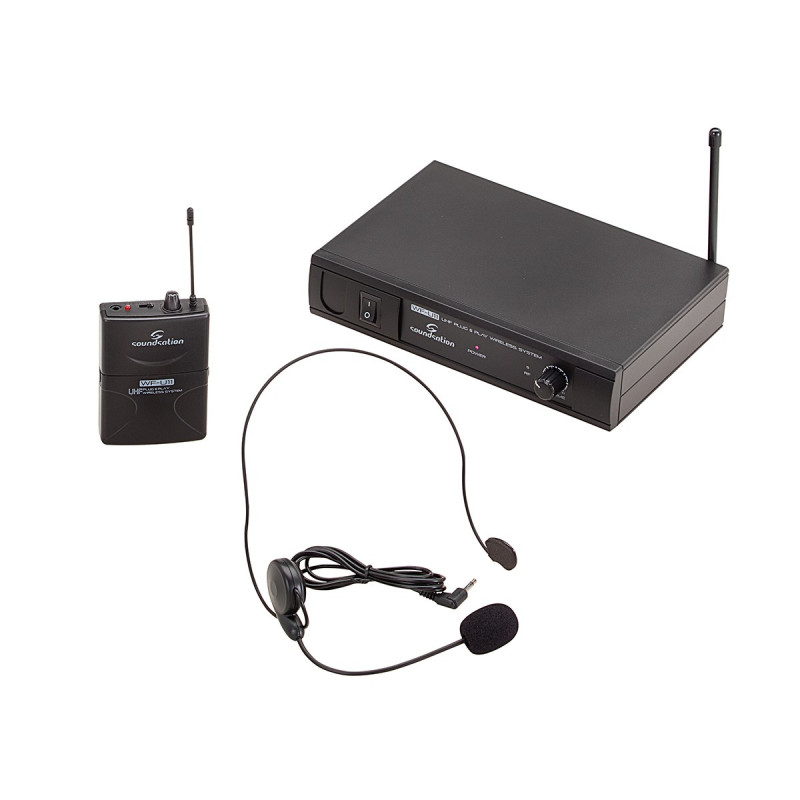

• Strong yet lightweight bodypack with professional headset microphone
• Professional and Lightweight Headset with high-sensibility dynamic cardioid capsule

Specs

• http://www.soundsarionmusic.com/
• Carrier Frequency: UHF 863-865MHz
• Available Frequencies: 863.05 MHz, 864.15 MHz, 863.55 MHz, 865.00 MHz (WF-U11PA Freq. is 863.05 MHz)
• Frequency Stabilization: Automatic calibration
• Dynamic Range: > 90dB
• Total Harmonic Distortion: < 0.5%
• Frequency Response: 40 18500 Hz / 3dB
• Packing Dimensions (WxHxD): 436 x 104 x 324 mm
• Packing Gross Weight: 2.0 kg
• Power Supply: DC12V, 400mA
• Consumption: < 4W
• Signal/Noise Ratio: > 95dB
• Border Upon Channel Rejection: > 80dB
• Receiving Sensitivity: 10dBuV
• De-Emphasis: 75uS
• Audio Output Level: Balanced 400mV; Unbalanced 400mV
• Dimensions (WxHxD): 211 x 43 x 115 mm (antennas not incl.)
• Antenna: 120 mm (not bent)
• Net Weight: 0.295 kg
• Transmitter Power: 10mW
• Modulation Type: FM
• Deviation: 37KHz
• Spurious Emission: > 30dB
• Battery Voltage: 3V (2x1.5V AA-Type Batteries)
• Continuous Using: 5 hours
• Pocket Trans. Dimensions (WxHxD): 62 x 103 x 30 mm
• Antenna (W/DxH): 3 x 9 mm
• Pocket Transmitter Net Weight: 0.132 kg (batteries included)
