UHF Phase Lock circuit, stable and low harmonic radiation

Features

• 99-Channels in 10 Groups with frequencies arranged in order to avoid interferences
• 823-832MHz + ISM Europe (863-865MHz) Carrier Wave Frequency Range
• User-friendly interface with a wide illuminated LCD Display
• Independent Mono/Stereo Modulation Function between Transmitter and Receiver
• Excellent circuit design to achieve the best signal/noise ratio

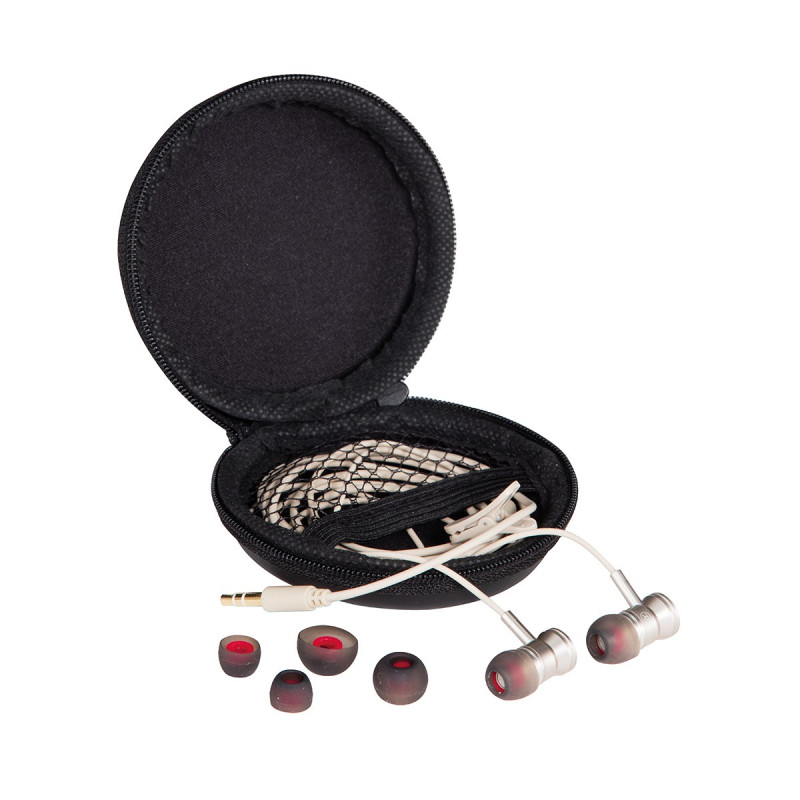

• Supplied with High-Dynamics Earphones in soft Case
• Compact and robust Receiver Configuration Design
• Output Connector: 1/8" Stereo Jack

Specs

• http://www.soundsationmusic.com/
• Carrier Frequency: UHF 823-832 + 863-865 MHz
• Modulation: FM Stereo
• Output Power: 10mW
• Effective Working Distance: 80 meters (without obstacles)
• Oscillation Mode: PLL phase-locked frequency synthesizer
• Maximum Deviation: 68KHz
• Comprehensive S/N ratio: >105dB
• Comprehensive T.H.D: <0.4% @1 KHz
• Audio Input: 2x Line-Inputs with Combo Connectors (XLR and jack 6.3mm)
• Audio Output: 6.3mm Stereo Jack
• Transmitter Size (WxHxD): 210 x 43 x 182 mm
• Transmitter Weight: 1.06 kg
• Frequency Response: 40Hz-16KHz3dB
• Stereo Separation: =45dB @1 KHz
• Receiver Output socket: 3.5mm stereo headphone jack
• Output Power: 2x150mW (THD3%)
• Battery: 2x AA-Type Batteries
• Receiver Current consumption: 185mA (typical)
• Battery Current/life: About 7 hours

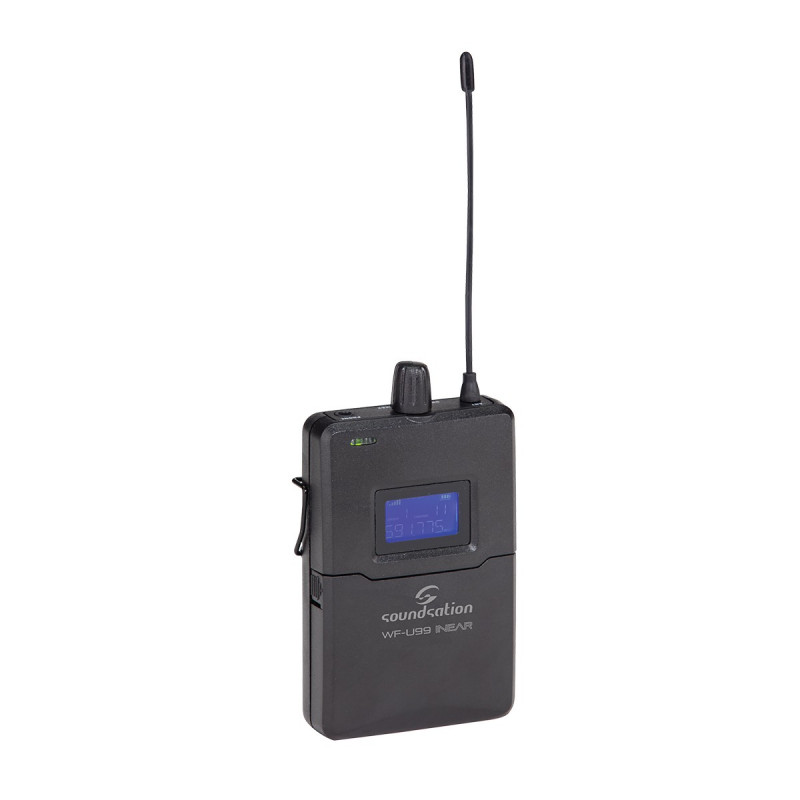

• Receiver Size (HxWxD): 111 x 66 x 26 mm (antenna excluded)
• Receiver Antenna Size (W/DxH): 4 x 105 mm
• Receiver Weight: 143 g (batteries included)
• Packing Size (WxHxD): 180 x 129 x 35 mm
• Packing Weight: 0.2 kg
