Type of active system Bi-amplified

300W RMS

12 "woofer

2.5 "titanium tweeter

Nominal coverage (H * V) Hybrid symmetry Horn 100 ° * 80 °

Frequency response (+/- 3dB) 55Hz-20kHz

Frequency range (-10dB) 50Hz-20kHz

Max SPL @ 1m 128dB

Controls - EQ Note - EQ changed by the DSP knob

DSP Presets selectable by the user. 1: FLAT 2: MONITOR 3: SPEECH 4: BASS 5: PUNCH 6: LIVE

Amplifier protection Yes

Thermal protection Yes

Rear LED power indicator

2 transport handles (one on each side)

LED speaker lighting (on / off switch)

Injection molded polypropylene enclosure

Tickets

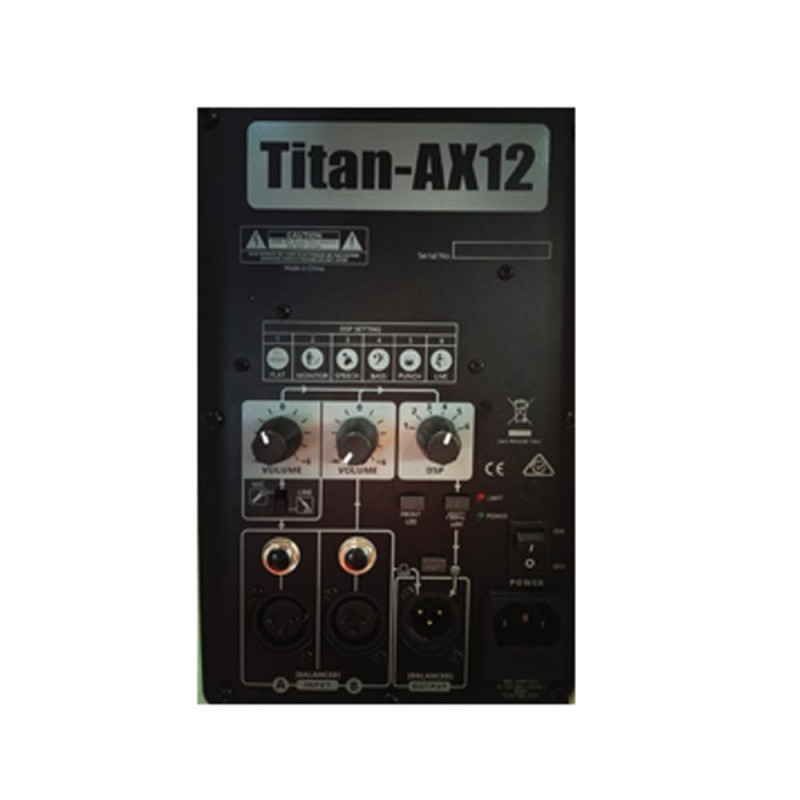

• Input type switchable balanced Mic or line level (Chan 1)
•

• Input connector 2 * XLR and 2 * 1/4 "jack (Chan 1 Line / MIC)
•

• Line output
•

• Line output connector Switchable LOOP / MIX Balanced Female XLR
•

• Dimensions and weight
•

• Height 582.7mm
•

• Front width 384.6mm
•

• Rear width 384.6mm
•

• Depth 318.6 mm
•

• Net weight 12.4kg
