Work - MAX 3 BT
Small size mixer with bluetooth...
-
Defender - 85208F
Defender Mini ER F End Ramp female...
More info

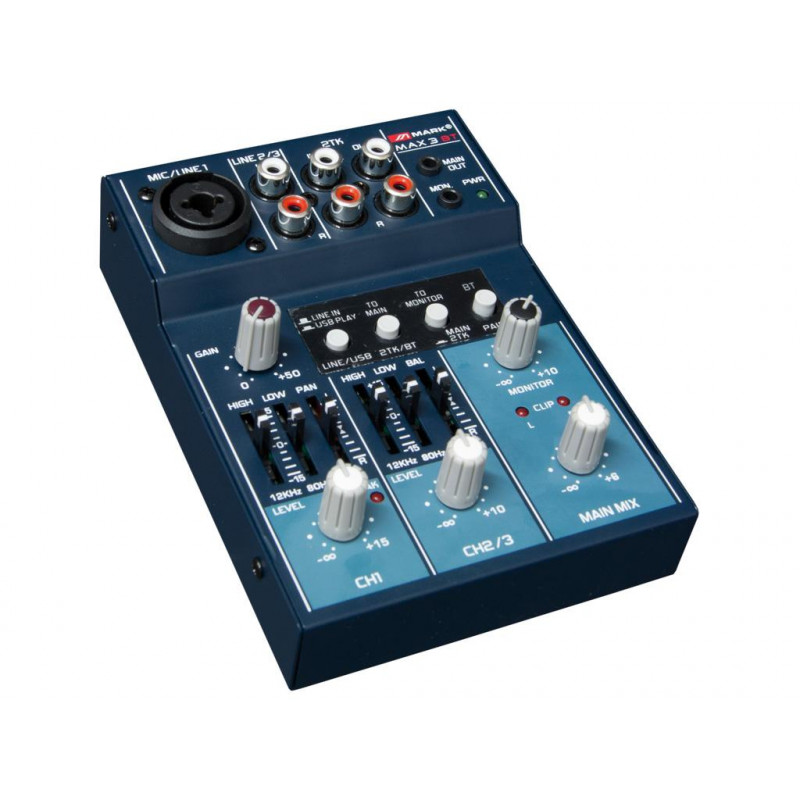

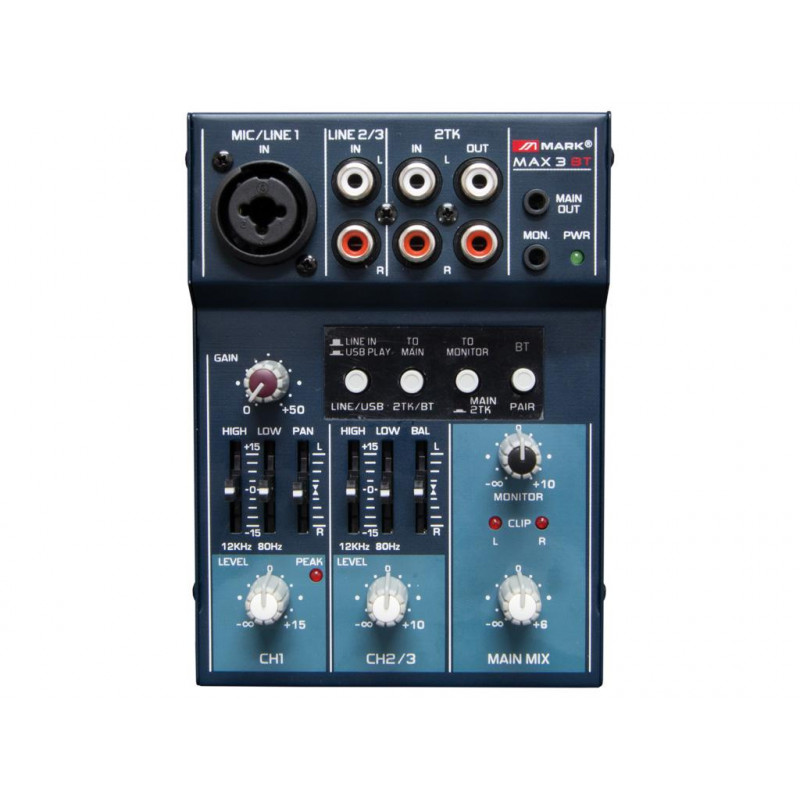

This new mixer belonging to the MAX series is ideal for small installations, thanks to its small size and versatility, since it integrates a USB interface which can be connected to an external device and work as a sound card. This new model incorporates a BLUETOOTH module, being possible thanks to this, the connection of the MAX 3 BT with mobile devices such as smartphones or tablets and playing mp3 files through the mixer. Thanks to its size and its weight (only 480 grams) it is ideal for conferences, mobile shows?
- 1 mic input channels with XLR and balanced line input
- 1 stereo input channels with RCA jack
- Ultra low noise discrete mic preamps with Phantom + 20V power
- 2-EQ bands in mono and stereo channels
- Mono gain control for each channel
- Peak LED on each channel and master
- 2RCA-Track inputs & 2RCA Track outputs
- Master outputs and monitors
- External power or via USB connection
- Bi-directional USB port for audio input / output signals
- Bluetooth connection
- 1 stereo input channels with RCA jack
- Ultra low noise discrete mic preamps with Phantom + 20V power
- 2-EQ bands in mono and stereo channels
- Mono gain control for each channel
- Peak LED on each channel and master
- 2RCA-Track inputs & 2RCA Track outputs
- Master outputs and monitors
- External power or via USB connection
- Bi-directional USB port for audio input / output signals
- Bluetooth connection
Type: USB 3 channel mixer
Frequency response: 10 Hz to 40 kHz
Distorsion (THD & N): 0.01%
MIC Gain: -118 dBuCMRR: 70 dBRelation output level: 0dBu
Maximum output level: +17 dBuADC & DAC: 16-Bit Delta-Sigma, 44.1kHz,
USB 2.0 full speed compilant
Operating System: Windows XP or higher. Mac OS 9 or higher
Power: USB connection, DC5V, 500mA
Consumption: 2.5W
Dimensions (Al * L * W): 90 mm * 136mm * 34mm
Weight: 0.48 Kg
Frequency response: 10 Hz to 40 kHz
Distorsion (THD & N): 0.01%
MIC Gain: -118 dBuCMRR: 70 dBRelation output level: 0dBu
Maximum output level: +17 dBuADC & DAC: 16-Bit Delta-Sigma, 44.1kHz,
USB 2.0 full speed compilant
Operating System: Windows XP or higher. Mac OS 9 or higher
Power: USB connection, DC5V, 500mA
Consumption: 2.5W
Dimensions (Al * L * W): 90 mm * 136mm * 34mm
Weight: 0.48 Kg
| #1 | Manual | MAX 3BT |  | to download |
| #2 | Datasheet | Datasheet - MAX 3 BT | to download | |
| #3 | Datasheet | Datasheet - MAX 3 BT | to download |
