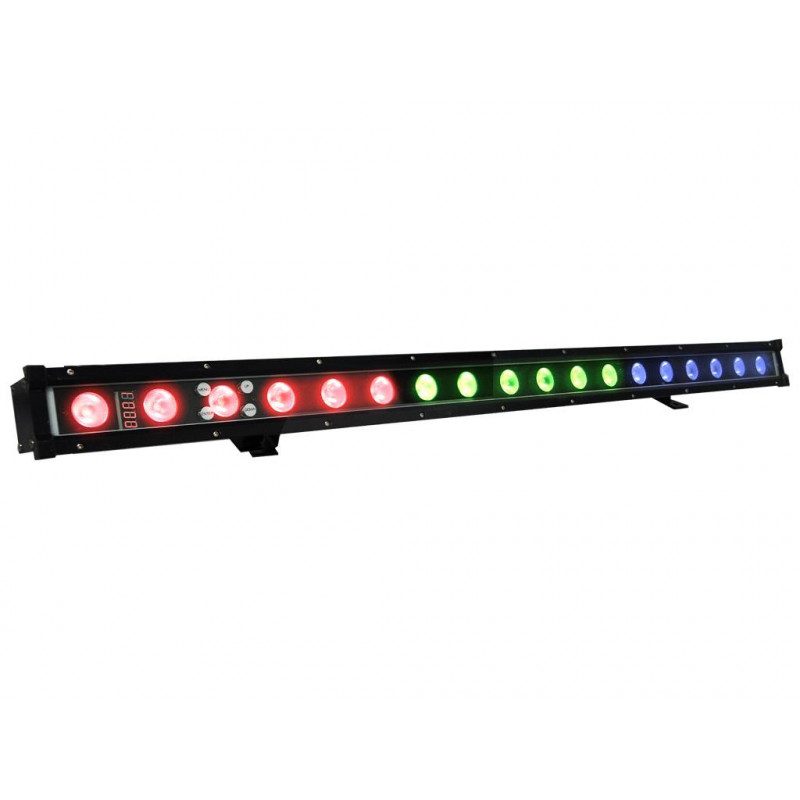

MBAR 831 IP is a lightbar that incorporates 18 LEDs 3 in 1 (R, G, B) of 3W each. The possibility of mixing from a single point of light allows a very uniform color to be created when illuminating walls, stages or point areas.

Its high quality aluminum casing and cabling system allow outdoor installation by taking advantage of its high IP range (IP 65). It has several operating modes: Auto (with several programs), master / slave and DMX. In the latter mode, it is possible to select various channel modes: 9,6,4 and two different 3-channel modes, including general dimmer, primary color dimmer, strobe, program execution and color transitions.

It also incorporates 4 different dimerization curves (linear, quadratic, inverse quadratic and "S" shaped), all of which can be accessed by DMX or by configuring the interface with touch buttons. .

• 18 LEDs 3 in 1 (R, G, B) OF 3W c.u
• Control: Auto, master / key, DMX
• DMX modes: 9.6,4, 3 (a), 3 (b) channels
• Functions: Dimmer, strobo, gradual change
• Selection of 4 different dimerization curves
• Beam Angle: 25º
• IP rating: IP 65
• Interface with touch buttons with locking possibility
• Built-in temperature sensor reduces output if temperature rises
• Power supply: AC 100-240V 47/63 Hz
• Consumption: 60W
• Dimensions: 1001x69x100mm
• Weight: 4.1kg
