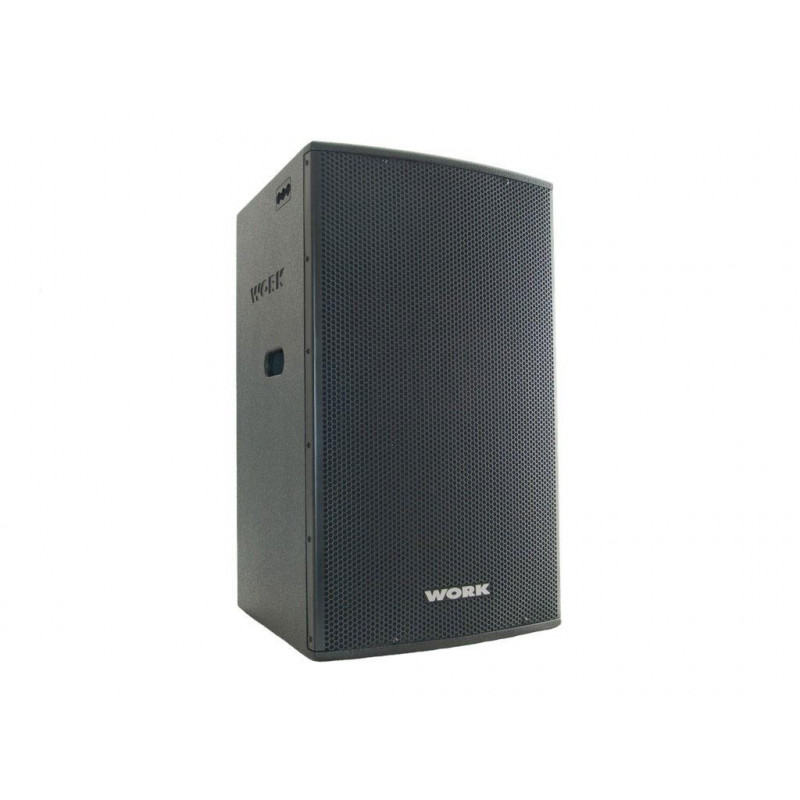

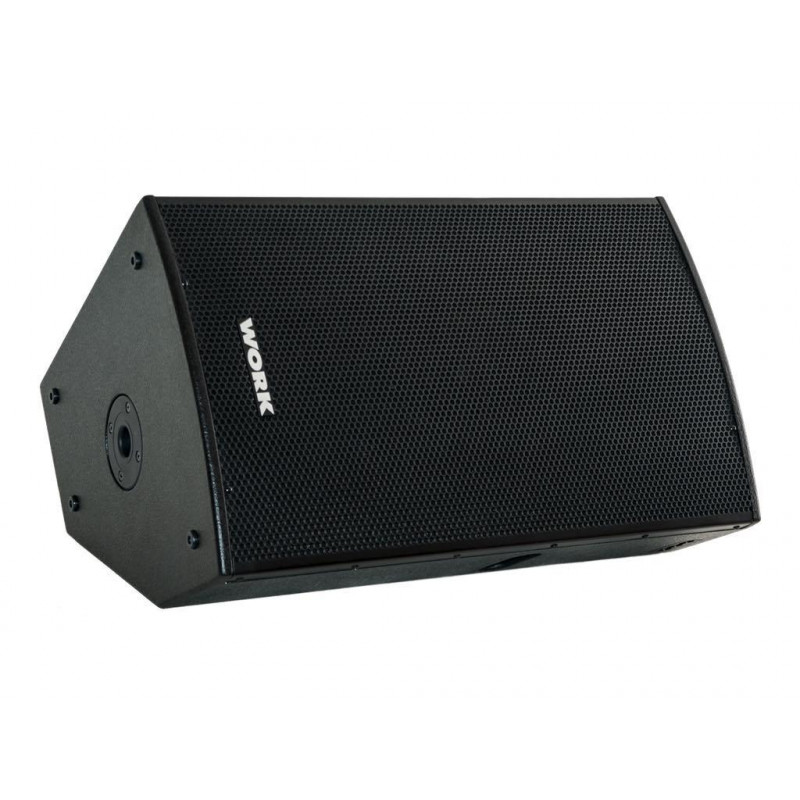

Work - MINO 15 A PRO
Active Acoustic Boxes
-
Showtec - T-Cross 3-way
Pro-30 Square F Truss
More info
Configuration: 650W + 150W @ 8ohm (EIAJ).
Amplifier class: Class D (Bass), Class AB (Treble).

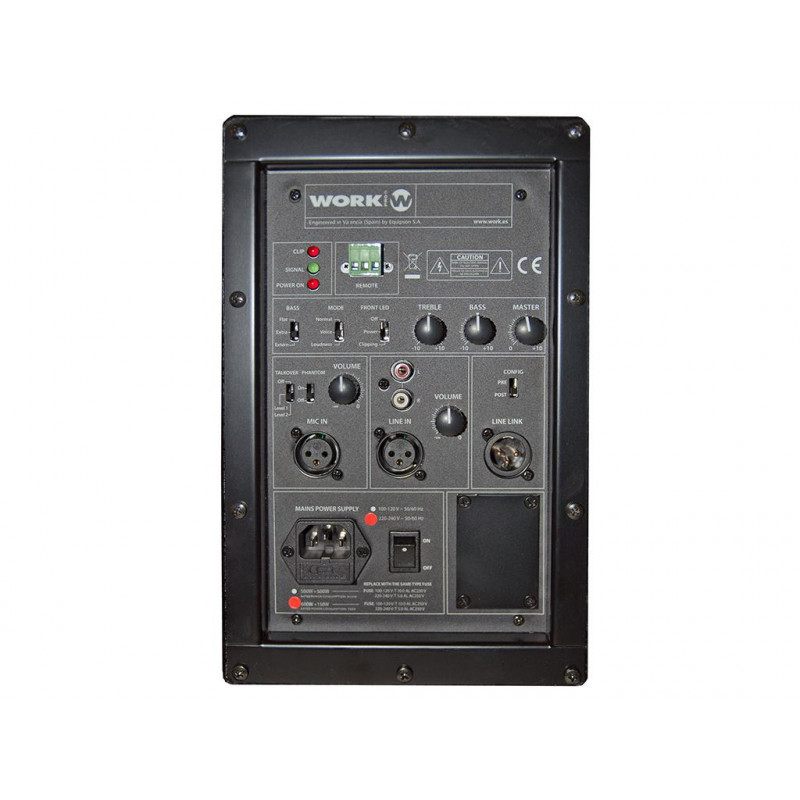

Input connectors: XLR3 (MIC) / XLR3-RCA (LINE).
Input impedance: 10kohm.
Gain (class D ampl. / Class AB): 27 dB.
S / N ratio (class D ampl. / Class AB):> 95 dB / A.
Slew rate (8ohm): 50 V / uS.
Frequency response (class D ampl. / Class AB): 15 Hz - 20 kHz / 10 Hz - 50 kHz.
Damping factor (class D ampl. / Class AB): 100Hz> 400 - 1kHz> 180.
Power: 100-120 / 220-240V AC 50 / 60Hz.
Dimensions: 542 x 747 x 458 mm.
Weight: 40.3 kg.
Amplifier class: Class D (Bass), Class AB (Treble).
Input connectors: XLR3 (MIC) / XLR3-RCA (LINE).
Input impedance: 10kohm.
Gain (class D ampl. / Class AB): 27 dB.
S / N ratio (class D ampl. / Class AB):> 95 dB / A.
Slew rate (8ohm): 50 V / uS.
Frequency response (class D ampl. / Class AB): 15 Hz - 20 kHz / 10 Hz - 50 kHz.
Damping factor (class D ampl. / Class AB): 100Hz> 400 - 1kHz> 180.
Power: 100-120 / 220-240V AC 50 / 60Hz.
Dimensions: 542 x 747 x 458 mm.
Weight: 40.3 kg.
| #1 | Manual | MINO 15A - Manual | to download |
