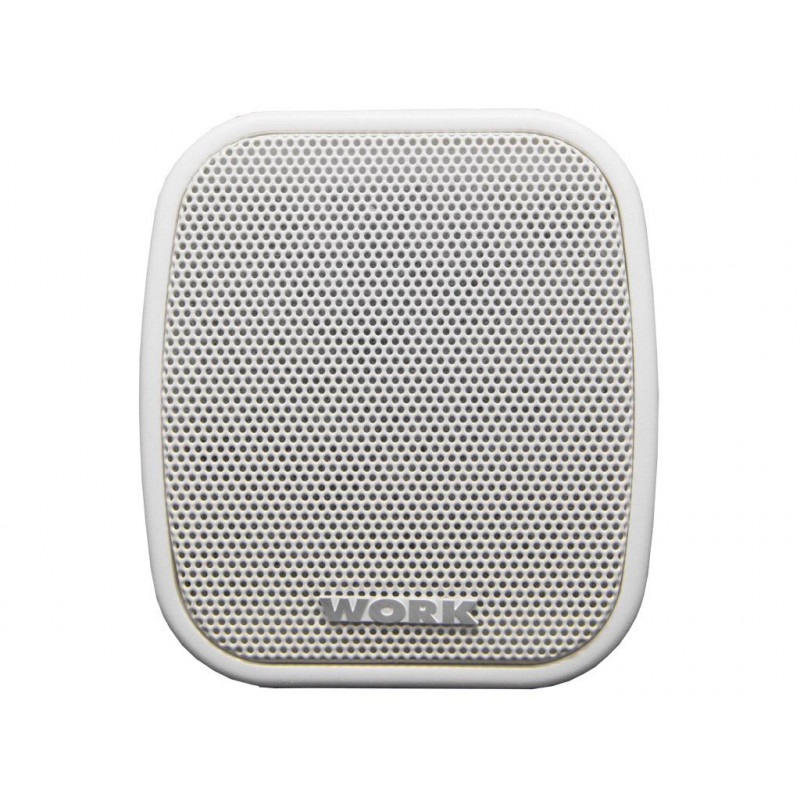

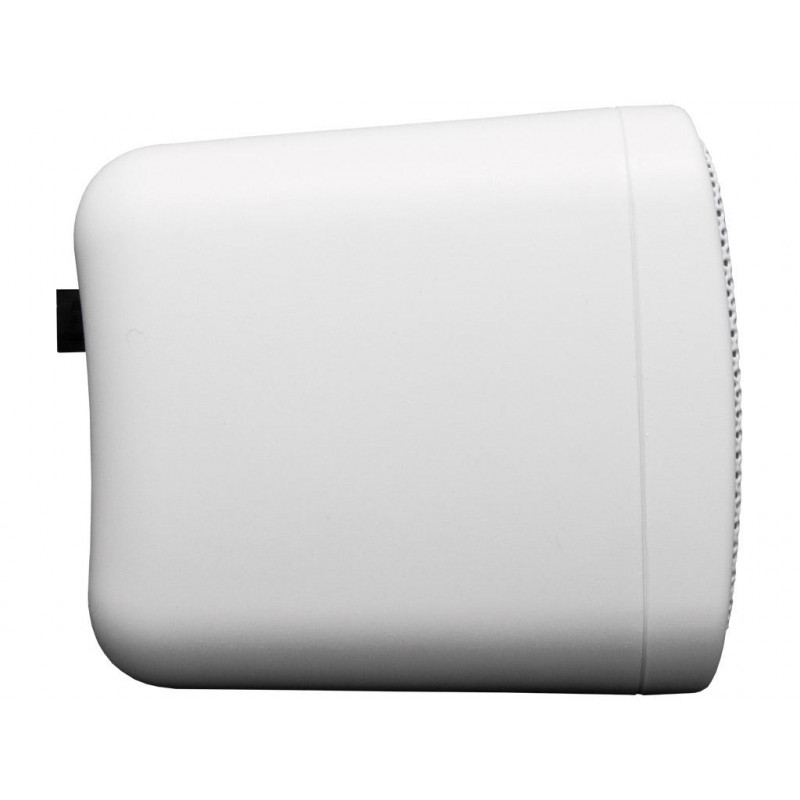

Work - NEO 3 LINE WHITE
Installation speaker
More info
NEO 3 is an ultra compact acoustic box whose design has been directly inspired by the first models of the NEO Series. It has a high performance which makes it possible to reproduce a wide range of frequencies.
NEO 3 especially stands out because it is possible to use the same model in installations of 100 V or 8 ohm. When a speaker is connected to a low impedance the audio does not pass through the transformer in order to maintain a high level of quality.

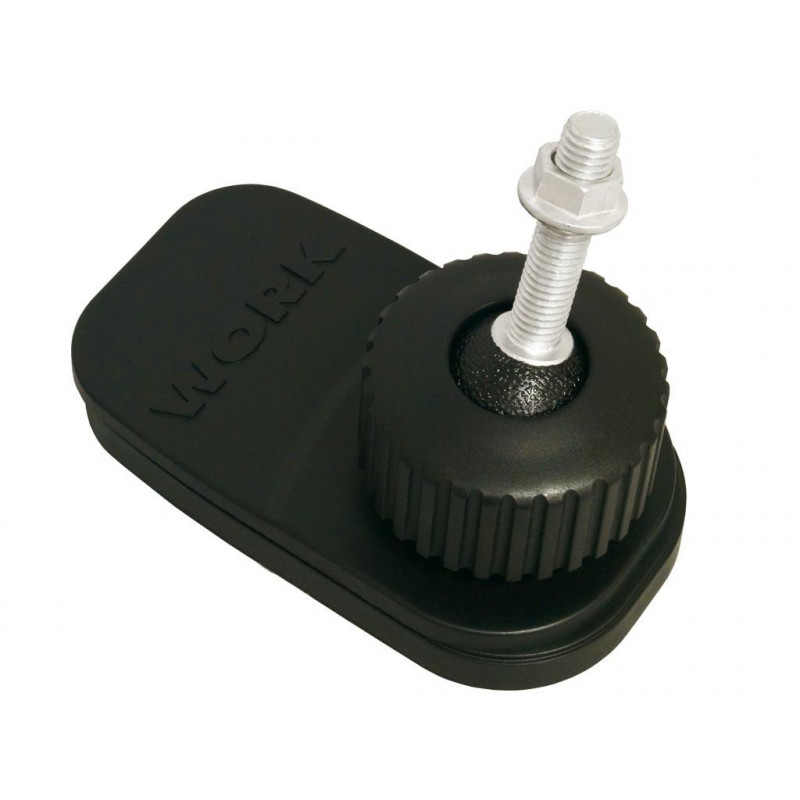

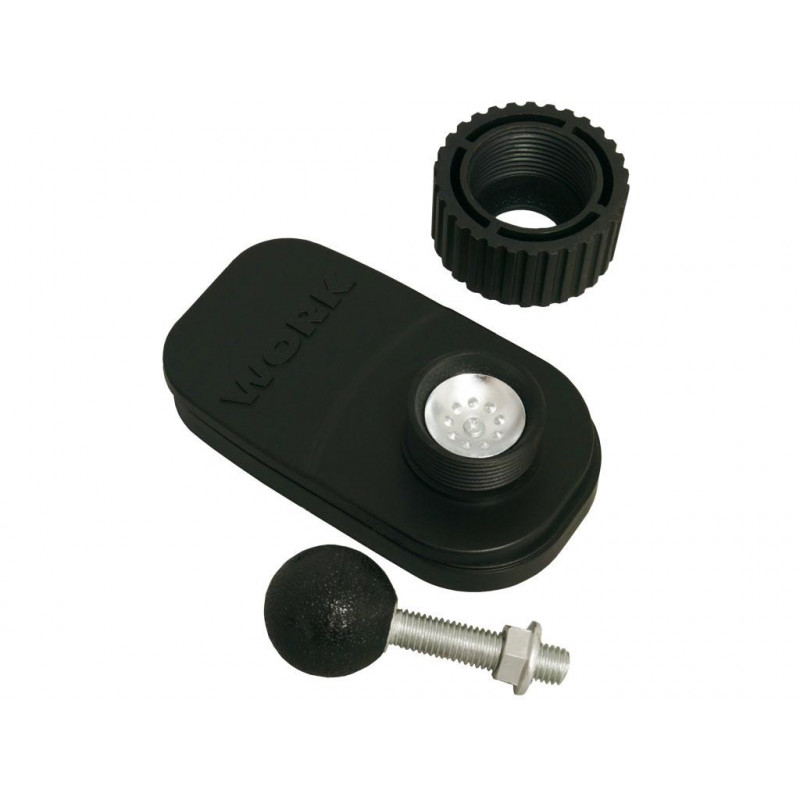

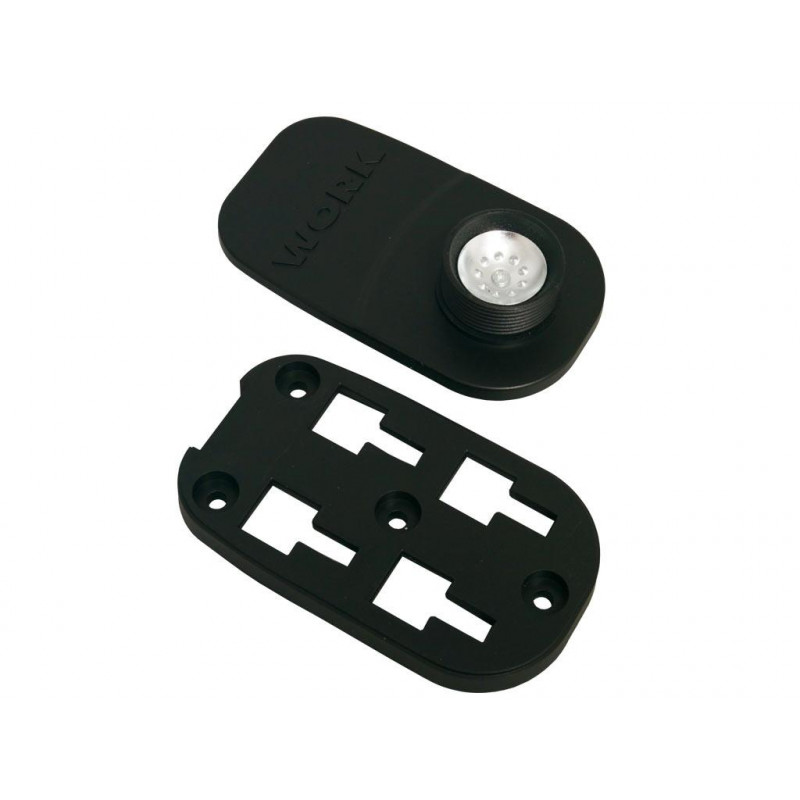

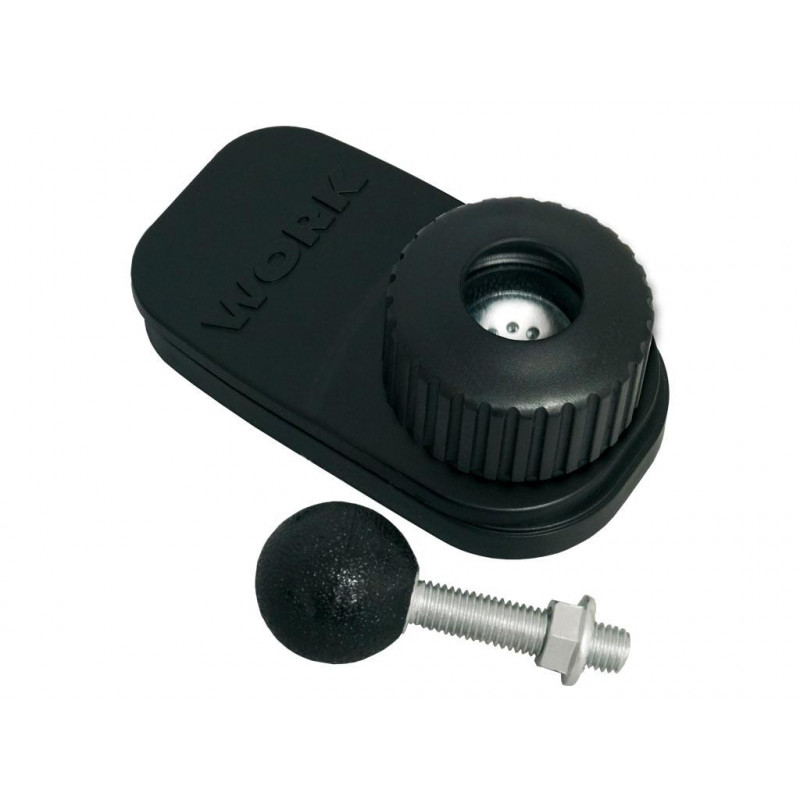

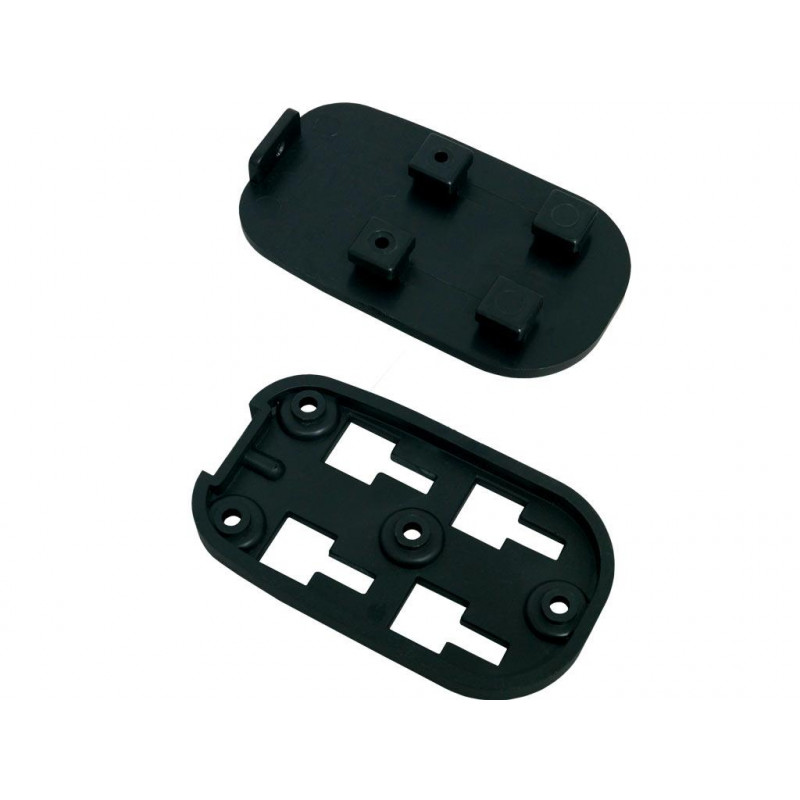

NEO 3 is also very simple and quick to install, thanks to the new support designed exclusively for this model, which also allows a quick orientation of the box on both axes.
Type: Speaker 1 passive way.
Components: 2.75 "Woofer.
Power: 100V line: 10 W (1kohm)
Power: 70V line: 5 W (980ohm)
Power: 8ohm: (50 W RMS (with 120 Hx HPF)).

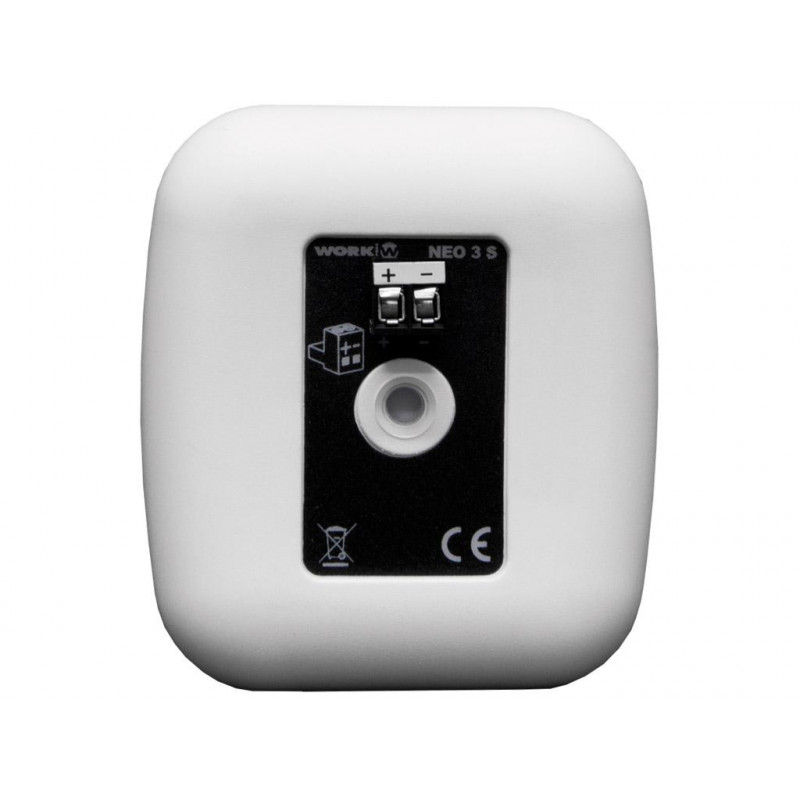

Input connectors: Euroblock.
Sensitivity (1W / 1M): 87dB.
Max SPL: 101 dB.
Frequency response: 120Hz - 20kHz (-10dB).
Recommended amplifier: 50W @ 8W.
Dispersion: 90º x 90º

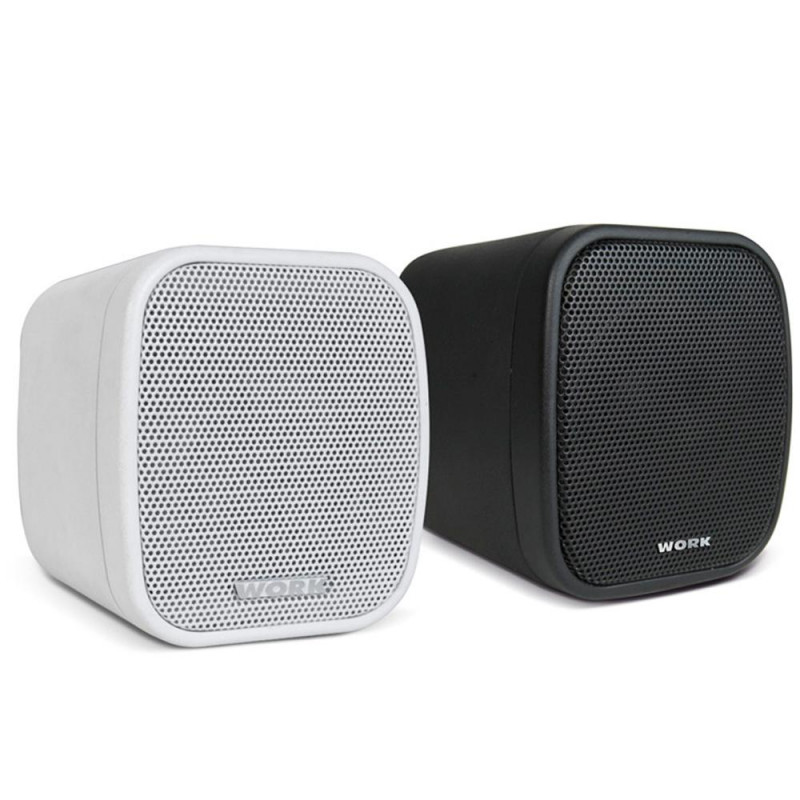

Color RAL code: RAL 9003 (B) / 9004 (N).
Enclosure: Polypropylene.
Grid: aluminum.
Dimensions (W x H x D): 95 x 85 x 100mm.
Weight: 0.5 kg.
Components: 2.75 "Woofer.
Power: 100V line: 10 W (1kohm)
Power: 70V line: 5 W (980ohm)
Power: 8ohm: (50 W RMS (with 120 Hx HPF)).
Input connectors: Euroblock.
Sensitivity (1W / 1M): 87dB.
Max SPL: 101 dB.
Frequency response: 120Hz - 20kHz (-10dB).
Recommended amplifier: 50W @ 8W.
Dispersion: 90º x 90º
Color RAL code: RAL 9003 (B) / 9004 (N).
Enclosure: Polypropylene.
Grid: aluminum.
Dimensions (W x H x D): 95 x 85 x 100mm.
Weight: 0.5 kg.
| #1 | Datasheet | Datasheet | to download | |
| #2 | Manual | NEO 3 - Manual |  | to download |
| #3 | Manual | NEO 3 - EASE Data file / EASE data file | | to download |
| #4 | Datasheet | NEO 3 - Technical Sheet | to download |
