Work - NEO S8 A WHITE
Self-powered subwoofer
-
Showtec -...
20 m/3 x 2,5 mm2
More info

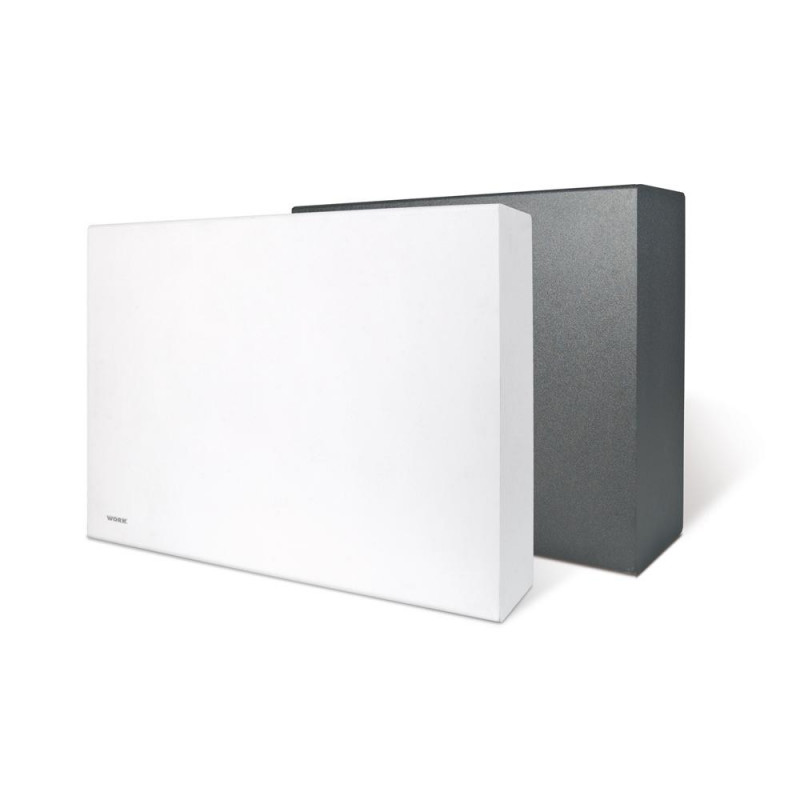

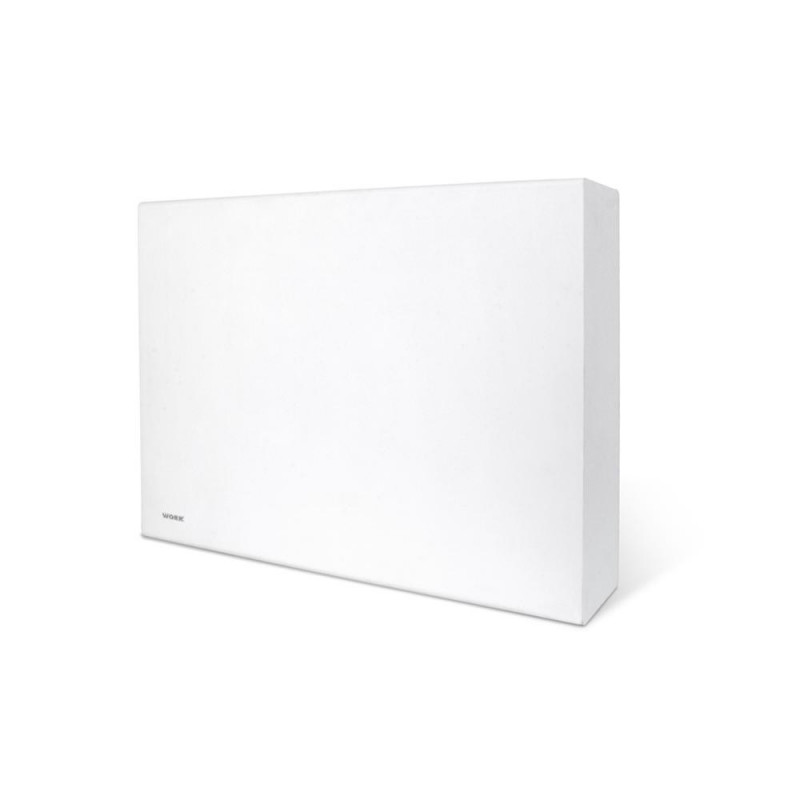

NEO S8 A is the perfect complement to the NEO Series speakers. It is a self-powered subwoofer with balanced inputs that is integrated into almost any installation thanks to its elegant ultra-thin design. It can be hung vertically and horizontally on the wall and it is possible to hide with a simple painting.

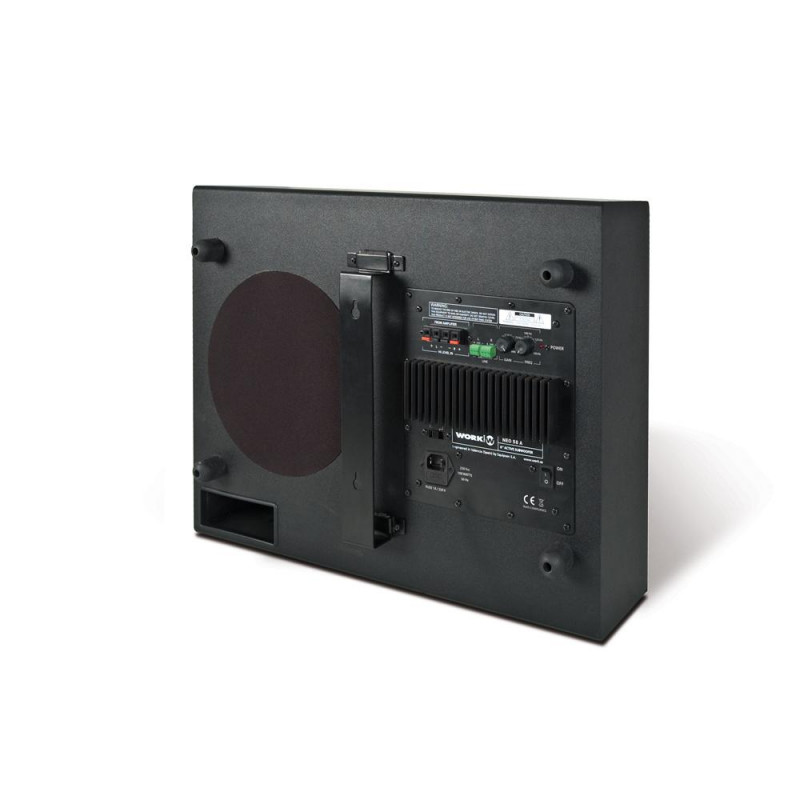

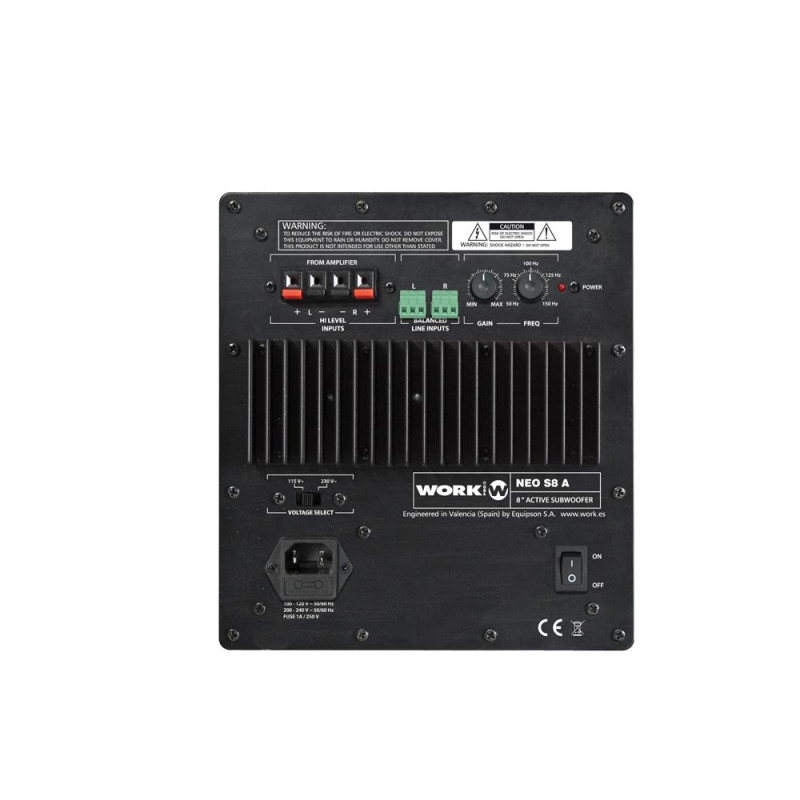

It incorporates balanced signal inputs (via terminal block) and high level input from an amplifier. It is also possible to control the gain and cutoff frequency with a value between 50 and 150 Hz. Its 2-position rear handle allows the subwoofer to be fixed both vertically and horizontally.
Self-powered subwoofer.
It can be used in vertical or horizontal position.
Ultra-thin elegant design and easy to hide.
Perfect complement to the NEO speakers.
Balanced entries.
Available in black and white.
It can be used in vertical or horizontal position.
Ultra-thin elegant design and easy to hide.
Perfect complement to the NEO speakers.
Balanced entries.
Available in black and white.
Type: Self-powered subwoofer.
Elements: 8 "woofer.
LINE entry:
Input impedance: 22 Kohm.
LINE entry:
Max. Input level: 0.775 V rms (0 dBu).
HI LEVEL entry:
Input impedance: 240 ohm.
HI LEVEL entry:
Max. Input level: 15 V rms @ 80 Hz.
Output power: 58 W rms @ 0.1% THD.
Max. SPL: 10 dB.
Frequency response: 40 Hz -160 Hz.
Crossover frequency: 50 Hz to 150 Hz (selectable).
Material (enclosure): MDF wood.
Dimensions (H x W x D): 520 x 400 x 130 mm.
Weight: 8.5 kg.
Elements: 8 "woofer.
LINE entry:
Input impedance: 22 Kohm.
LINE entry:
Max. Input level: 0.775 V rms (0 dBu).
HI LEVEL entry:
Input impedance: 240 ohm.
HI LEVEL entry:
Max. Input level: 15 V rms @ 80 Hz.
Output power: 58 W rms @ 0.1% THD.
Max. SPL: 10 dB.
Frequency response: 40 Hz -160 Hz.
Crossover frequency: 50 Hz to 150 Hz (selectable).
Material (enclosure): MDF wood.
Dimensions (H x W x D): 520 x 400 x 130 mm.
Weight: 8.5 kg.
| #1 | Manual | NEO S8 A - Manual |  | to download |
| #2 | Datasheet | NEO S8 A - Technical Sheet | to download | |
| #3 | Datasheet | Datasheet | to download |
