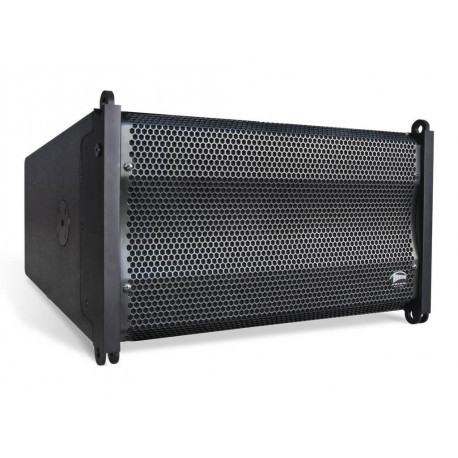

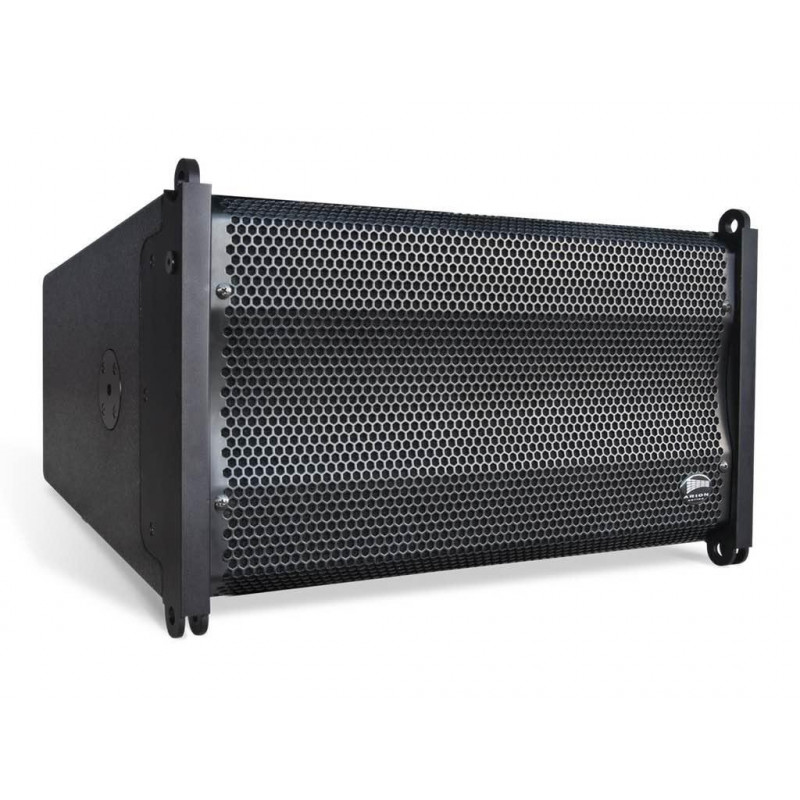

Work - SL 101 (ARION 10)

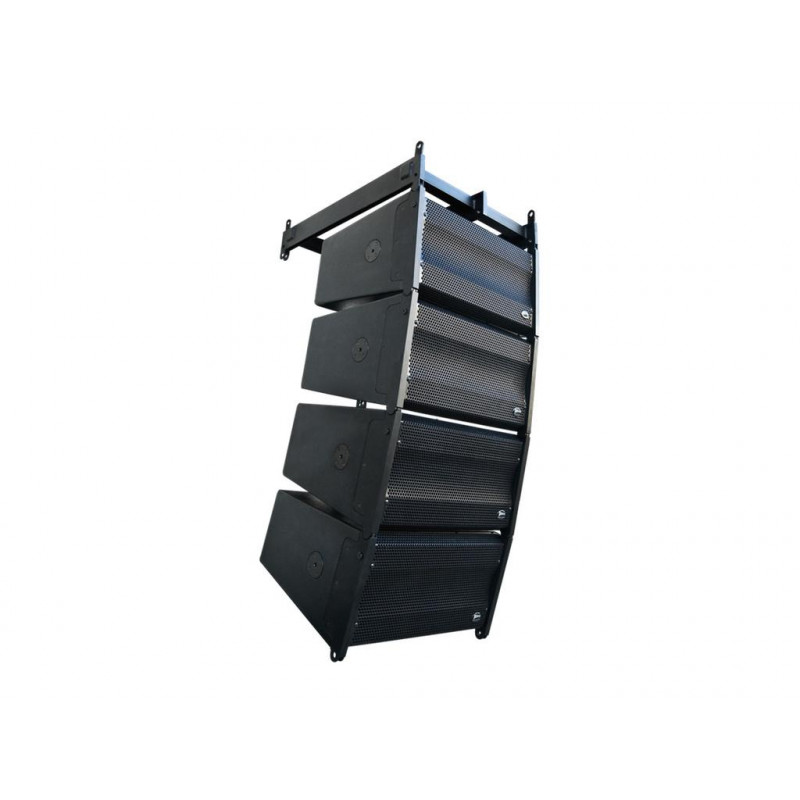

Line Array System
More info
Two-way acoustic box with Line Array format.
Ultra-compact and lightweight design.
High sensitivity (95 dB).
High output level (124 dB peak).
Transducers:
1 neodymium transducer 10 ".
2 neodymium compression engines for high frequencies of 1.7 ".
120 ° horizontal dispersion.
Assembly and stacking system very fast.
Printed angle indicators to adjust the vertical angle in steps of 1 °.
Acoustic box made of 15 mm birch wood.
Fixing system for rigging (aluminum).
Polyurethane coating with textured finish for prolonged use.
Ultra-compact and lightweight design.
High sensitivity (95 dB).
High output level (124 dB peak).
Transducers:
1 neodymium transducer 10 ".
2 neodymium compression engines for high frequencies of 1.7 ".
120 ° horizontal dispersion.
Assembly and stacking system very fast.
Printed angle indicators to adjust the vertical angle in steps of 1 °.
Acoustic box made of 15 mm birch wood.
Fixing system for rigging (aluminum).
Polyurethane coating with textured finish for prolonged use.
Supported power, Media: 400W Program.
Supported power, Treble: 150W Program.
Frequency range, on the axis, -10 dB: 45 Hz - 20 kHz.
Sensitivity (1W @ 1m, on the axis): 95 dB SPL.
Maximum SPL, nominal: 118 dB SPL / 124 dB SPL (Peak).
Coverage angle: Horizontal: 120 ° .Vertical: Dependent geometry.
Nominal impedance: High: 8 ohm, Low: 8 ohm.
Enclosure: Trapezoidal, 15mm birch plywood.
Finishes: Black, textured polyurethane for the enclosure, powder coating for the grid.
Transducers: 1 x 10 "cone and neodymium magnet speakers, 2 x 1.75" driver with compression diaphragm and neodymium magnet.
Connectors: 2xNL4.
Dimensions (AnxALxPr): 538.5 x 262 x 435.5 mm.
Weight: 17 kg.

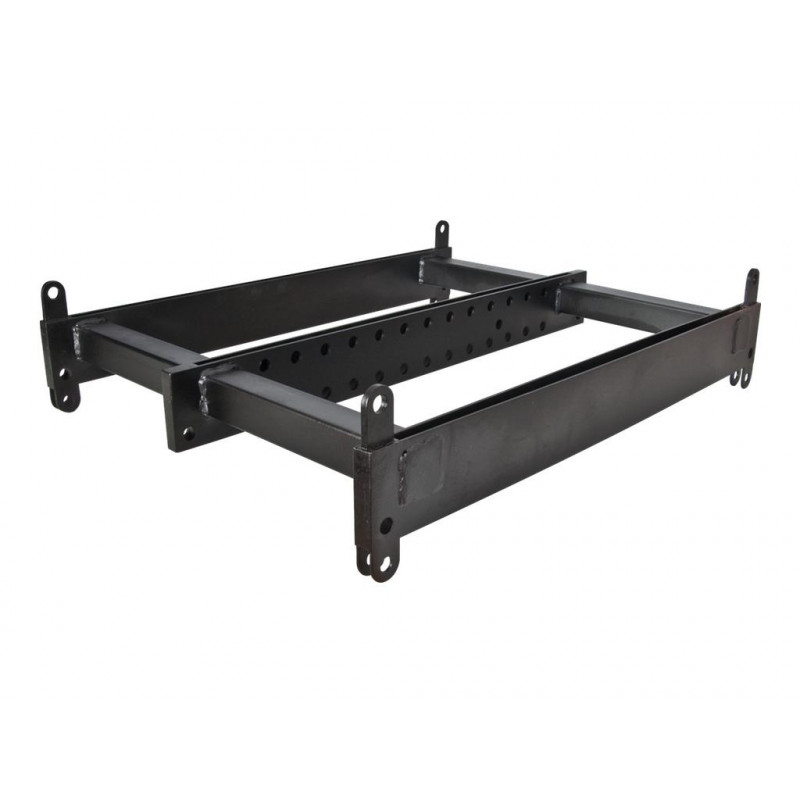

Optional accessories: Suspension frame.
Supported power, Treble: 150W Program.
Frequency range, on the axis, -10 dB: 45 Hz - 20 kHz.
Sensitivity (1W @ 1m, on the axis): 95 dB SPL.
Maximum SPL, nominal: 118 dB SPL / 124 dB SPL (Peak).
Coverage angle: Horizontal: 120 ° .Vertical: Dependent geometry.
Nominal impedance: High: 8 ohm, Low: 8 ohm.
Enclosure: Trapezoidal, 15mm birch plywood.
Finishes: Black, textured polyurethane for the enclosure, powder coating for the grid.
Transducers: 1 x 10 "cone and neodymium magnet speakers, 2 x 1.75" driver with compression diaphragm and neodymium magnet.
Connectors: 2xNL4.
Dimensions (AnxALxPr): 538.5 x 262 x 435.5 mm.
Weight: 17 kg.
Optional accessories: Suspension frame.
| #1 | Manual | Arion 10 SL 101 Manual |  | to download |
| #2 | software | ARION 10 - EASE Data file / EASE data file | to download | |
| #3 | Brochure | ARION 10 BROCHURE | to download |
