Work - WIR 1

WIR 1

Wi-Fi audio receiver

Sold Out

Europe Warehouse: 0

More info

WRI 1 is a Wi-Fi audio receiver that operates in the 2.4 GHz ISM band that has two operating modes: AP (Access Point) or STA (station). Its balanced output, robust chassis and optimized antenna for greater coverage make it ideal for professional use.


- Wi-Fi audio receiver.
- ISM 2.4GHz operation band.
- Operating modes: AP (Access Point) or STA (station)
- Supports UPnP, DLNA and Airplay.
- It allows to transmit audio from an external device (smartphone, tablet, PC)
- External 5 dBi antenna to increase the coverage area.
- Supports up to 24 bit 192 kHz audio sample rate streaming.
- Area of ??coverage greater than 15 meters (AP mode). In STA mode it depends on the coverage of the existing Wi-Fi network.

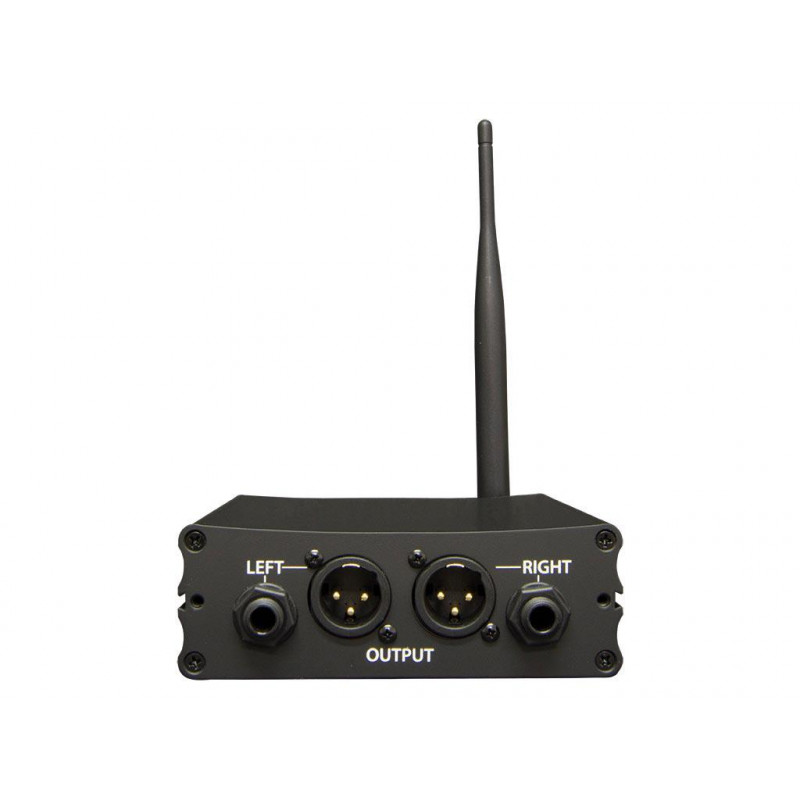

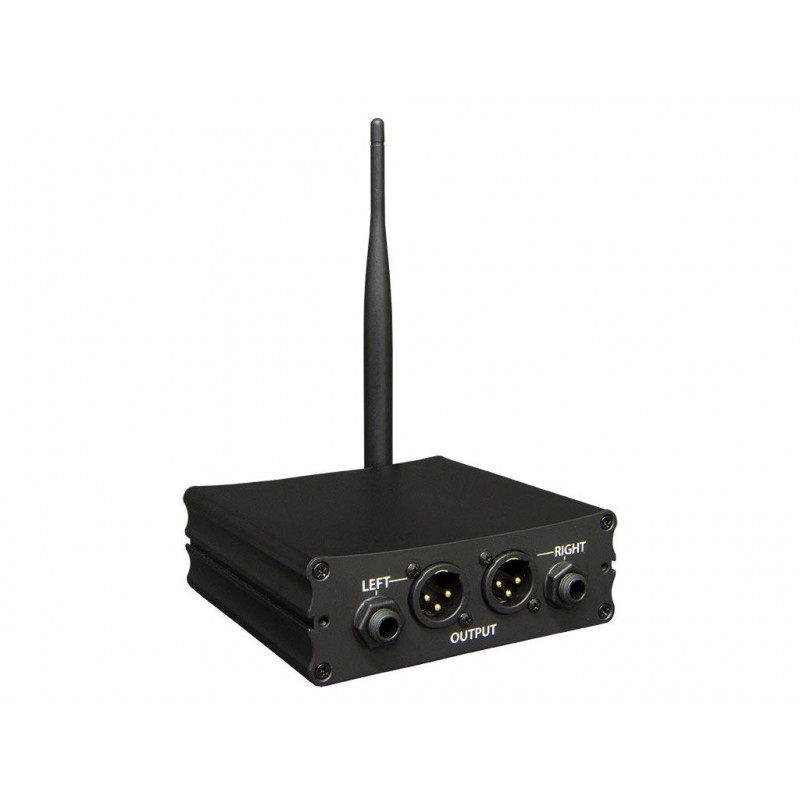

- XLR connectors and ¼ '' balanced jack for the output signal.
- Robust chassis.

Feeding
DC 5V-1A 50/60 Hz
Consumption
<300 mA
Frequency
2404-2476MHz
Sampling frequency
192 kHz
Receiving sensitivity
-84dBm (min.)
Output level
+ 0dBu
Frequency response
20Hz - 19.5kHz, + 3dB / -3dB
S / N
> 85 dB
Dynamic Range @ 1 kHz
> 85 dB
Crosstalk @ 1kHz
> 90 dB
THD
<0.1%
Latency
20 ms
Dimensions (AnxAlxPr)
120x41x151 mm
Weight
360 g
Manual
to download
