MICROPHONE PHANTOM POWER SUPPLY Xvive Audio, a well-known brand known for its compact wireless guitar systems, microphones and in-ear wireless monitoring systems, now brings us a compact and lightweight phantom power supply for condenser microphones and other audio equipment. audio systems that require 48 or 12 volts: the P1 portable phantom power supply.

Condenser microphones, as well as a wide variety of preamps, DI boxes, and other audio gear, require phantom power to work. P1 provides a very convenient and affordable solution when phantom power is not available. For example: when mixers or preamps don't supply phantom power, or only supply phantom power to a limited number of channels or to all at once and only one needs phantom power, when phantom power goes bad in a mixer or preamp causing noise or hum in the microphone signal, or when you want to use a condenser microphone with a portable audio recorder or computer, but don't want to quickly drain the recorder's batteries by draining them on phantom power.

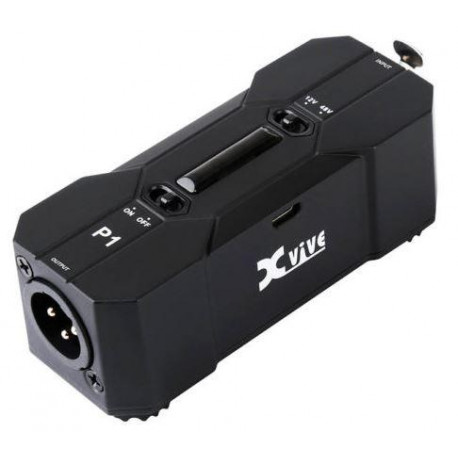

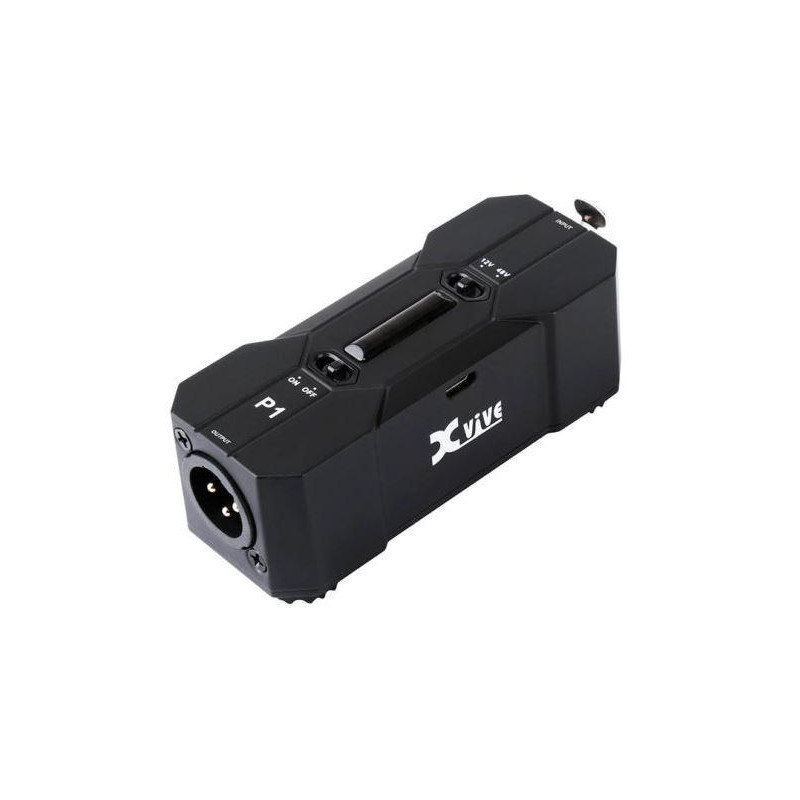

The P1 is powered by an internal lithium battery and a full charge that can run a high-current condenser microphone for up to 40 hours. It takes 2.5-3 hours to charge the P1 from any 5V USB power source. A row of LEDs on the front of the power supply indicates how much charge is left. The P1 is sturdily built in a small and incredibly stylish black painted metal casing weighing just 145g. Thanks to high-quality components and circuitry, this power supply is ultra-low noise and delivers pure power without compromising the quality of tone our microphone is capable of delivering with any technical weaknesses.

The P1's built-in battery not only eliminates the hassle and limitation of having to connect to a power source, it also eliminates the possibility of ground loops in our signal by keeping electrical circuits isolated. That said, the unit can also work while connected to power.
The P1 portable phantom power supply is now available from Xvive distributors and retailers worldwide at a price of around 59 Euros.

Technical characteristics:

• Input: balanced female XLR
• Output: balanced male XLR
• Battery: 2200mA / 3.7V (lithium-ion battery)
• Battery life: 14 ~ 40 hours
• Battery charging time: 2.5 ~ 3 hours
• Charging voltage: USB 5V
• Load current: ≥1A Output current (direct short): 48V – current at 12mA 12V – current at 16mA
• Dimensions: 44 x 33 x 105 mm
• Weight: 145g
