Adam Hall - Defender Nano

Defender Nano

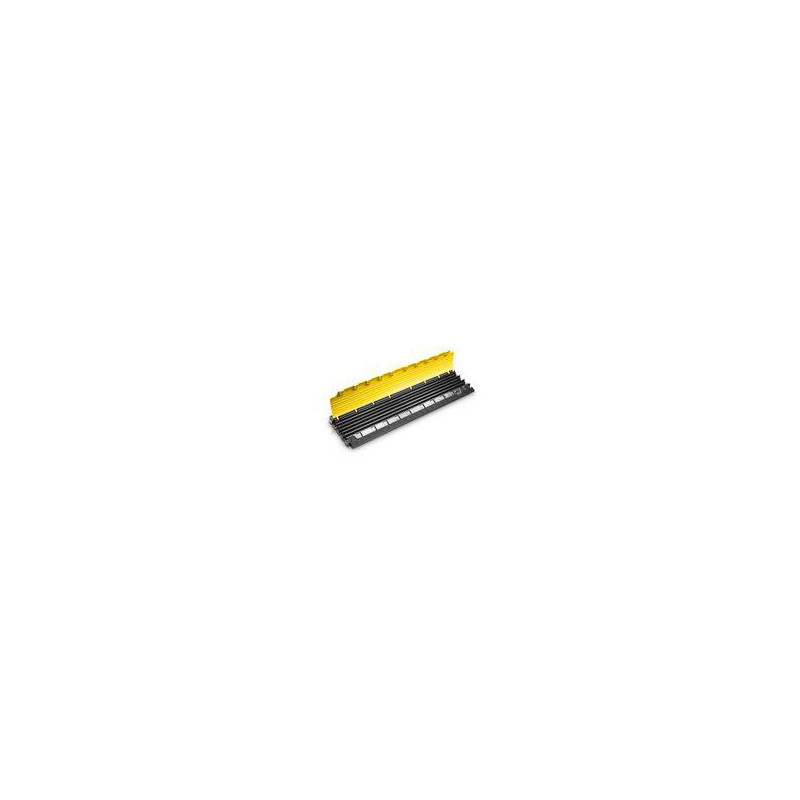

Defender Nano Cable Protector 6-channel. Price per piece.

In Stock

More info

  • especially flat, non-slip cable protector made of black, recyclable polyurethane, wheelchair-compatable
  • yellow polyethylenelid with high warning effect and secure closure (also available with black lid, Item No. 85150BLK)
  • patented, self-cleaning lid hinge
  • 6 channels 17 x 18 mm
  • load bearing capacity approx. 2t / 20 cm²
  • fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
  • resistant to oil, acids, solvents, and petrol
  • dimensions 100 x 28 x 3.2 cm; Weight 4.37 kg
  • reliable protection for cables and personnel for indoor and outdoor use
  • not suitable for vehicular traffic
  • end ramps for secure cable inlet and exit as accessories
Product type
Cable Protectors

Type
6 Channels

Length
1000 mm

Width
280 mm

Height
32 mm

Channels
6

Width channel 1
17 mm

Height channel 1
18 mm

Width channel 2
17 mm

Height channel 2
18 mm

Width channel 3
17 mm

Height channel 3
19 mm

Width channel 4
17 mm

Height channel 4
19 mm

Width channel 5
17 mm

Height channel 5
18 mm

Width channel 6
17 mm

Height channel 6
18 mm

Material
polyurethane

Max. load
ca. 2t on a surface area of 20 x 20 cm

Chemical resistance
acid-resistant , oil-resistant , petrol-resistant

Hardness range
88 ± 4 Shore

Fire protection class
B2

Temperature range
-30 to + 60 °C

Weight
4,37 kg

Special feature
DEKRA-certified
