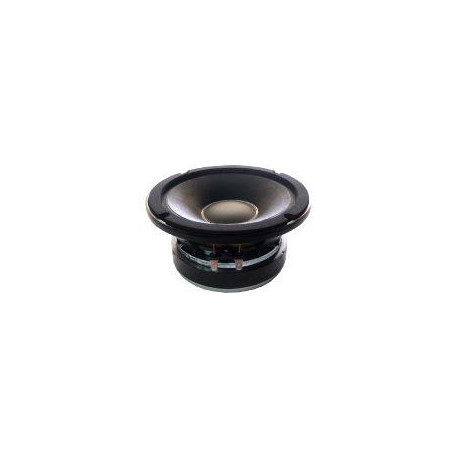

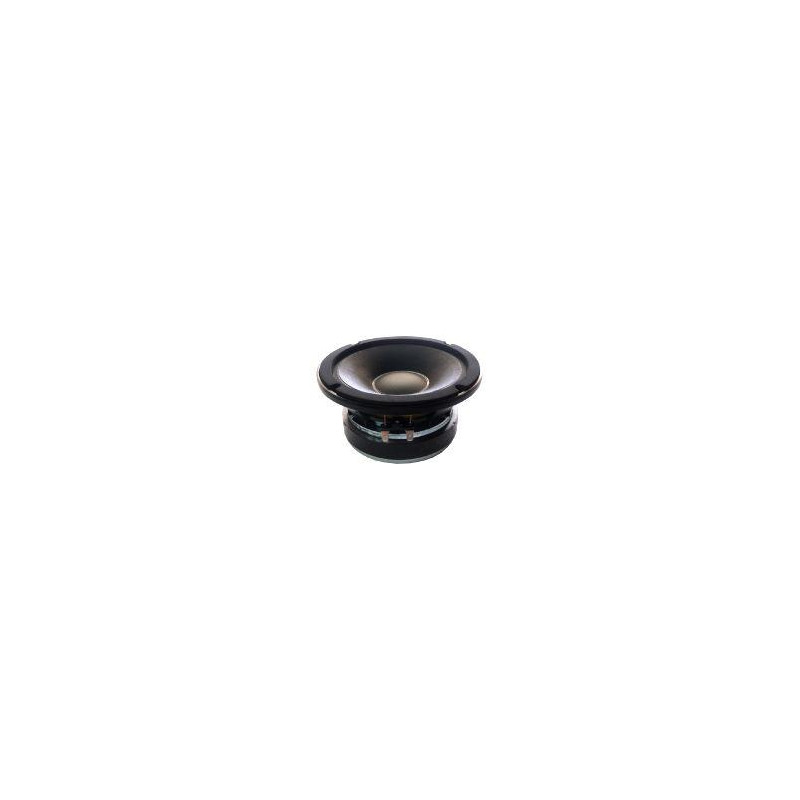

This low-mid frequency transducer offers three main points of interest: a good sensitivity (97 dB), a controlled dispersion up to 3 kHz and a low harmonic distortion. These characteristics make it suitable for high quality sound reinforcement systems, especially for live applications. Furthermore, it is mounted with a cast aluminium basket that reduces mechanical vibrations and increases thermal dissipation. This fact, added to the use of a high quality 2’’ voice-coil, increases considerably the power handling reaching 250 w AES.

?Key Features

• High power handling (250 w AES)
• Low harmonic distortion

• Controlled dispersion up to 3 kHz

• 2” edgewound aluminium voice coil with polymide fiber glass former

• Designed for high quality mid-frequency reproduction

Technical Specifications

• Nominal diameter 165 mm. 6.5 in.
• Rated impedance 8 ohms.
• Minimum impedance 6.6 ohms.
• Power capacity 250 w AES
• Program power 500 w
• Sensitivity 97 dB 2.83v @ 1m @ 2p
• Frequency range 150 - 6000 Hz
• Voice coil diameter 51.7 mm. 2 in.
• Magnetic assembly weight 2 kg. 4.4 lb.
• BL Factor 11.6 N / A
• Moving mass 0.014 kg.
• Voice coil length 8 mm.
• Air gap height 7 mm.
